Citroen C CROSSER DAG 2008 1.G Owner's Manual

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
188
Recording a CD onto the music server (2/3) Press Explanations Result
Manual recording of individual tracks
You can record the tracks manually, one by one.
After inserting a CD and while it is being played, press [^ ] to access the
secondary menu.
Press [REC. Setting].
Press [Manual REC.] and confi rm by pressing [Back].
Once the manual programming has been carried out, select the t rack to
be recorded then press [^].
Press [REC. Start], the recording of the track selected begins.
If another track is selected during recording, the recording stop s and the new
track selected is played.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
189
Recording a CD onto the music server (3/3) Press Explanations Result
Automatic recording of the fi rst track
You can programme the automatic recording of the fi rst track when a CD
is inserted.
After inserting a CD and while it is being played, press [^ ] to access the
secondary menu.
Press [REC. Setting] then [Single REC.] and confi rm by pressing [ Back].
Next, eject the CD which is currently being played then inse rt a CD and
the recording of the fi rst track begins.
If you wish to record the fi rst track of the CD which is currentl y being
played, press[^] to access the secondary menu and press [REC. Start].
If another track is selected during recording, the recording stop s and the
track selected is played.
Stopping automatic or manual recording
During the recording of a CD or of a track on a CD, press [^] to access the
secondary menu.
Press [REC. Stop], the recording stops.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
190

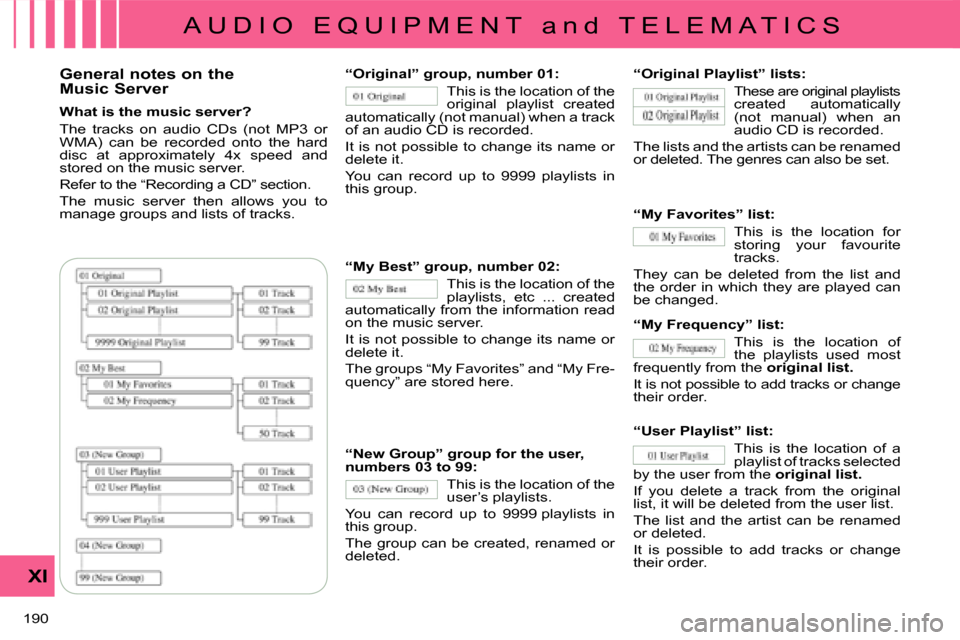

General notes on the
Music Server
What is the music server?
The tracks on audio CDs (not MP3 or
WMA) can be recorded onto the hard
disc at approximately 4x speed and
stored on the music server.
Refer to the “Recording a CD” section.
The music server then allows you to
manage groups and lists of tracks. “Original” group, number 01:
This is the location of the
original playlist created
automatically (not manual) when a track
of an audio CD is recorded.
It is not possible to change its name or
delete it.
You can record up to 9999 playlists in
this group. “Original Playlist” lists:
These are original playlists
created automatically
(not manual) when an
audio CD is recorded.
The lists and the artists can be renamed
or deleted. The genres can also be set.
“My Best” group, number 02: This is the location of the
playlists, etc ... created
automatically from the information read
on the music server.
It is not possible to change its name or
delete it.
The groups “My Favorites” and “My Fre-
quency” are stored here.
“New Group” group for the user,
numbers 03 to 99:
This is the location of the
user’s playlists.
You can record up to 9999 playlists in
this group.
The group can be created, renamed or
deleted. “My Favorites” list:
This is the location for
storing your favourite
tracks.
They can be deleted from the list and
the order in which they are played can
be changed.
“My Frequency” list:
This is the location of
the playlists used most
frequently from the original list.
It is not possible to add tracks or change
their order.
“User Playlist” list:
This is the location of a
playlist of tracks selected
by the user from the original list.
If you delete a track from the original
list, it will be deleted from the user list.
The list and the artist can be renamed
or deleted.
It is possible to add tracks or change
their order.

ABCD
E
F
G
HIJK
L
M
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
191

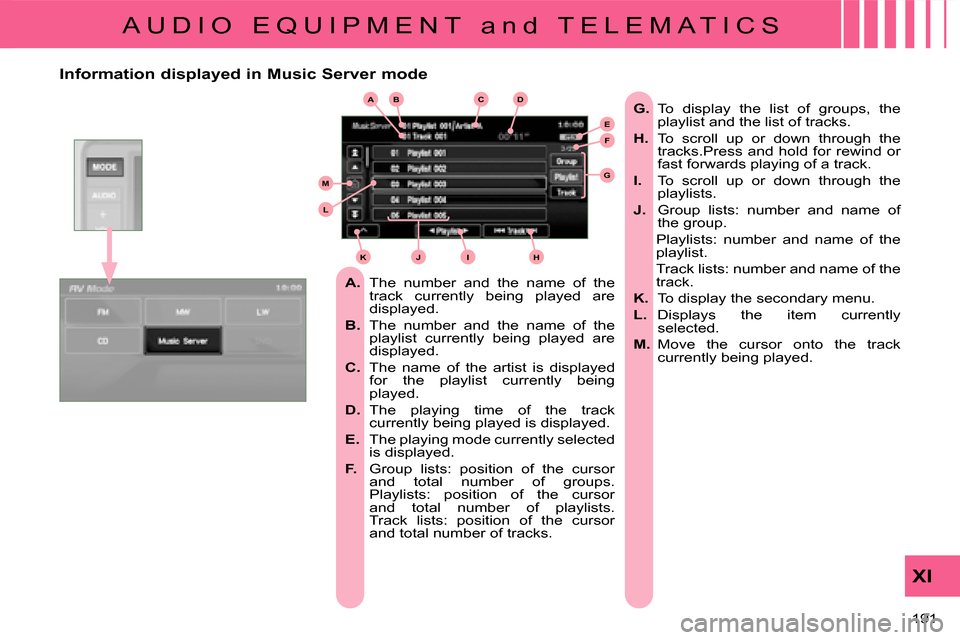

Information displayed in Music Server mode
A. The number and the name of the
track currently being played are
displayed.

B. The number and the name of the
playlist currently being played are
displayed.

C. The name of the artist is displayed
for the playlist currently being
played.

D. The playing time of the track
currently being played is displayed.

E. The playing mode currently selected
is displayed.

F. Group lists: position of the cursor
and total number of groups.
Playlists: position of the cursor
and total number of playlists.
Track lists: position of the cursor
and total number of tracks.
G. To display the list of groups, the
playlist and the list of tracks.

H. To scroll up or down through the
tracks. Press and hold for rewind or
fast forwards playing of a track.

I. To scroll up or down through the
playlists.

J. Group lists: number and name of
the group.
Playlists: number and name of the
playlist.
Track lists: number and name of the
track.

K. To display the secondary menu.

L. Displays the item currently
selected.

M. Move the cursor onto the track
currently being played.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
192
Explanations Result

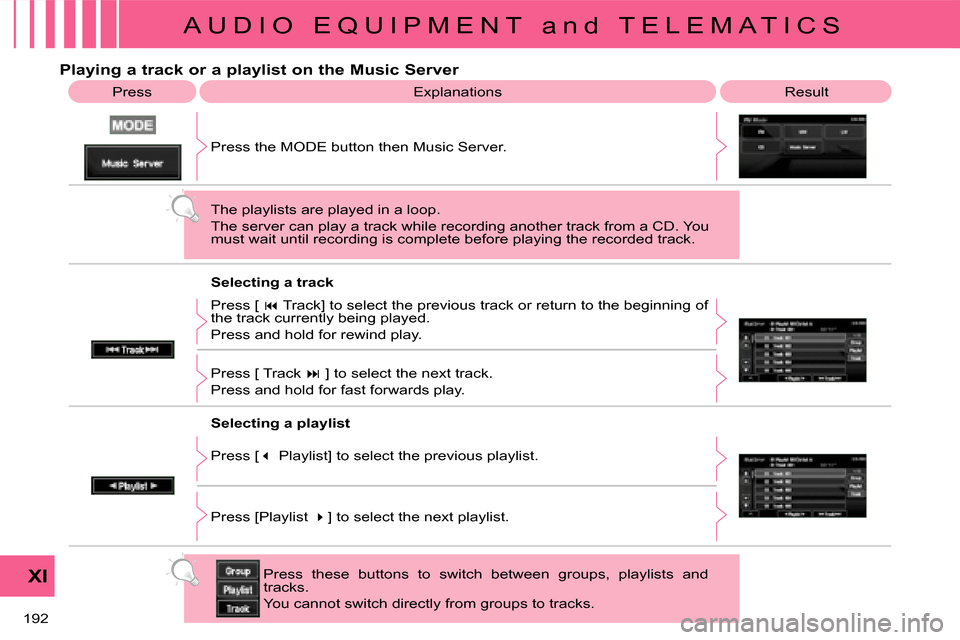

Playing a track or a playlist on the Mus
ic Server
Press
Press the MODE button then Music Server.
The playlists are played in a loop.
The server can play a track while recording another track from a CD. You
must wait until recording is complete before playing the recorde d track.
Selecting a track
Press these buttons to switch between groups, playlists and
tracks.
You cannot switch directly from groups to tracks.
Press [
 Track] to select the previous track or return to the beginning of
the track currently being played.
Press and hold for rewind play.
Press [ Track  ] to select the next track.
Press and hold for fast forwards play.
Selecting a playlist
Press [  Playlist] to select the previous playlist.
Press [Playlist  ] to select the next playlist.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
193
Creating a group and a playlist on the Music Server
Explanations Result
Press [^] to access the secondary menu.
Creating a group
Press [New Group], enter the name of the group and confi rm by
pressing
[SET].
The group is stored on the server.
Creating a playlist
Press [^] to access the secondary menu then press [Function Settings] .
Press [New Playlist].
Select the group to which the playlist is to be attached.
The group must be created fi rst.
Enter the name of the playlist and confi rm by pressing [SET].
Then select the search method attached to this new list (eit her from the
list or by conditions).
The list is stored on the server.
Press

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
194
General notes on MP3/WMA CDs
Playing an MP3/WMA CD When the MP3/WMA CD is
inserted in the player, play-
ing of the tracks is automat-
ic.
The tracks cannot be recorded
onto the music server.
You can play up to 8 levels,
255 folders and 400 fi les
maximum.
Copyright
Your Audio equipment may allow you to
listen to music which is usually protected
by copyright in accordance with current
national and international standards.
Please consult these standards and
comply with them.
Acceptance of the fi les
Some burned CDs may not be played
by your equipment (quality, recording
speed ...).
When you burn a CD-R or CD-RW,
select the ISO 9660 level 1.2 or Joliet
burning standard.
To obtain the best acoustic quality
possible, select the lowest burning
speed.
The MPEG1 and MPEG2 standards
are accepted.
Transmission speeds between 32 and
320 kbits/s and scans between 16 kHz
and 48 kHz are accepted.
To display the title information (the
name of the artist, the title of the album,
etc...), the information contained in the
ID3 Tags or the WMA Tags must be
included in the MP3/WMA fi les burned
onto the disc.
What is the MP3/WMA fi le format?
MP3 is the abbreviation of MPEG-1
Audio Layer 3 and MPG is the
abbreviation of Motion Pictures Experts
Group, a digital video data compression
standard used on media such as video
CDs.
The MP3 compression reduces the
number of bytes in a song by eliminating
the long sound waves in the range of
frequencies which are imperceptible
to the human ear, so producing high
quality audio fi les with a low volume of
data.
This compression divides the size of
the content of a conventional audio
CD by approximately 10, which means
that the content of 10 audio CDs can
be recorded onto a single CD-R or
CD-RW.
WMA is the abbreviation of Windows
Media Audio, another audio data
compression standard offered by
Microsoft.
It can be used to create and save audio
fi les at a compression rate higher than
that of the MP3 format.
Windows Media and Microsoft
Corporation are trademarks registered
in the United States and/or other
countries.

ABC
EF
G
IKL
M
N
D
H
J
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
195

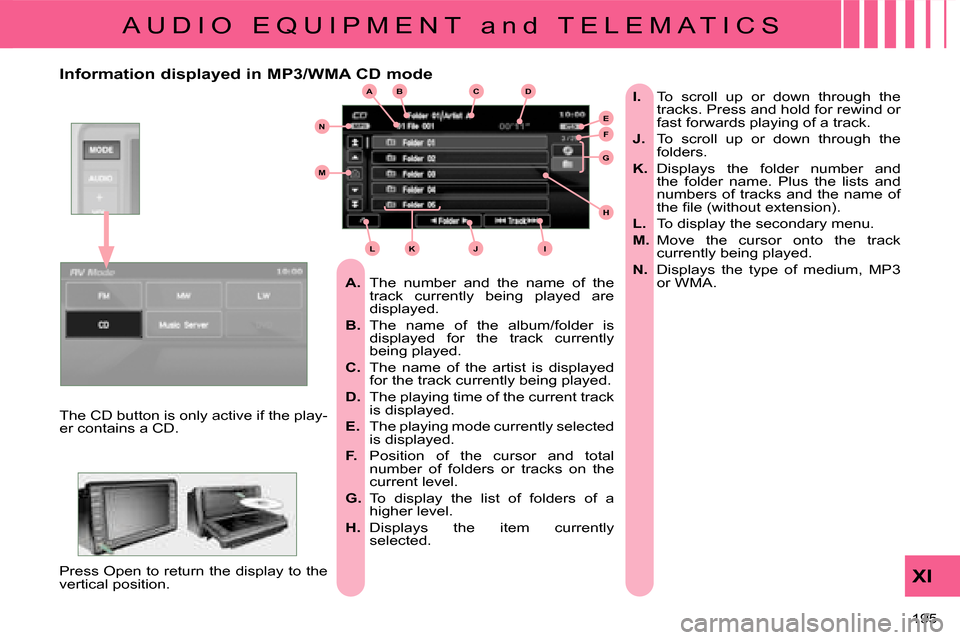

Information displayed in MP3/WMA CD mode
A. The number and the name of the
track currently being played are
displayed.

B. The name of the album/folder is
displayed for the track currently
being played.

C. The name of the artist is displayed
for the track currently being played.

D. The playing time of the current track
is displayed.

E. The playing mode currently selected
is displayed.

F. Position of the cursor and total
number of folders or tracks on the
current level.

G. To display the list of folders of a
higher level.

H. Displays the item currently
selected.
I. To scroll up or down through the
tracks. Press and hold for rewind or
fast forwards playing of a track.

J. To scroll up or down through the
folders.

K. Displays the folder number and
the folder name. Plus the lists and
numbers of tracks and the name of
the fi le (without extension).

L. To display the secondary menu.

M. Move the cursor onto the track
currently being played.

N. Displays the type of medium, MP3
or WMA.
The CD button is only active if the play-
er contains a CD.
Press Open to return the display to the
vertical position.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
196

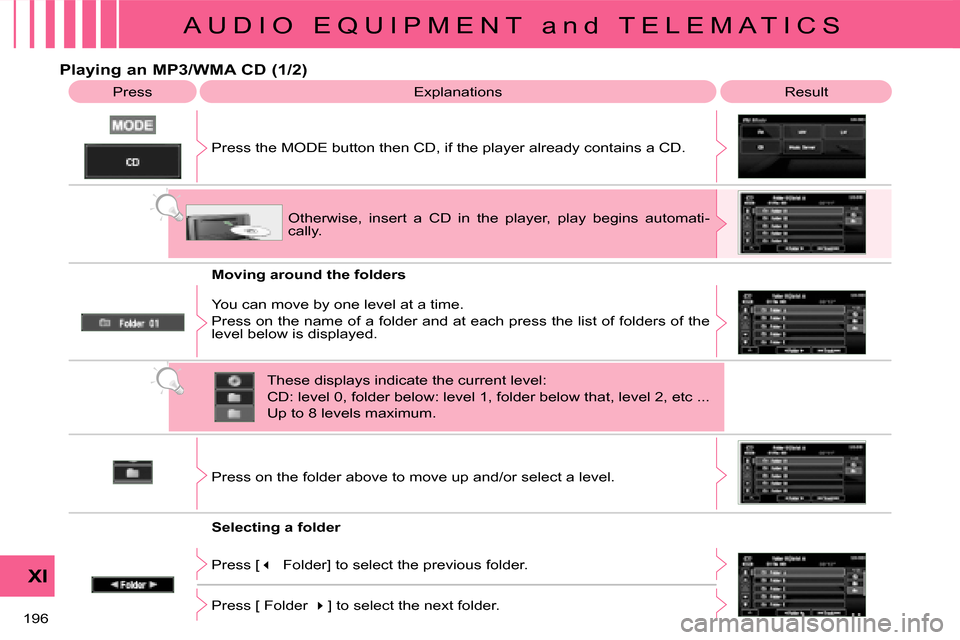

Playing an MP3/WMA CD (1/2) Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.
Moving around the folders
Selecting a folder Otherwise, insert a CD in the player, play begins automati
-
cally.
You can move by one level at a time.
Press on the name of a folder and at each press the list of f olders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [  Folder] to select the previous folder.
Press [ Folder  ] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level 1, folder below that,
level 2, etc ...
Up to 8 levels maximum.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
197

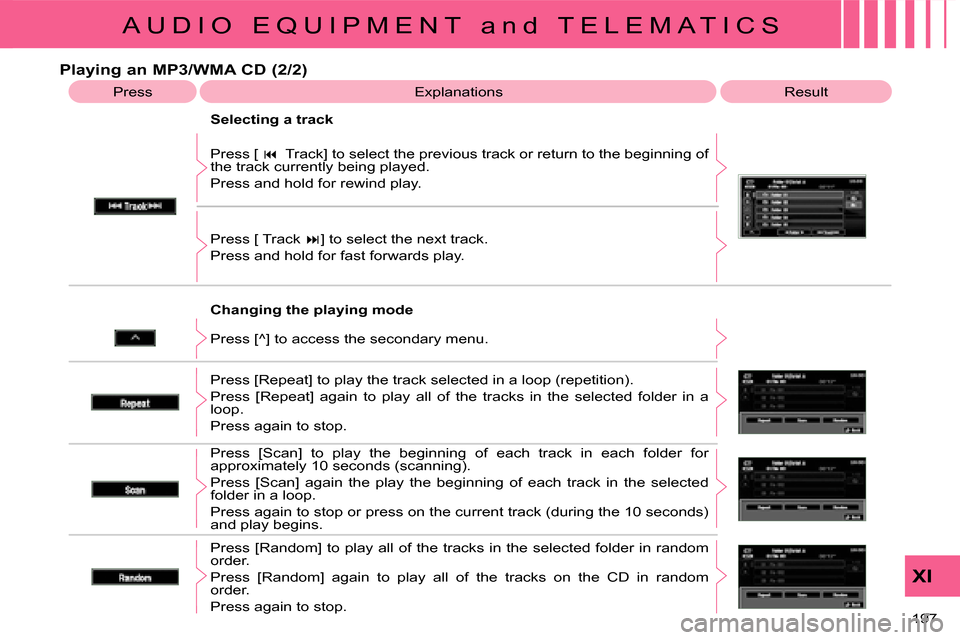

Changing the playing mode
Press [
 Track] to select the previous track or return to the beginning of
the track currently being played.
Press and hold for rewind play.
Selecting a track
Press [ Track
 ] to select the next track.
Press and hold for fast forwards play.
Press [Repeat] to play the track selected in a loop (repetitio n).
Press [Repeat] again to play all of the tracks in the selecte d folder in a
loop.
Press again to stop.
Press [Scan] to play the beginning of each track in each folde r for
approximately 10 seconds (scanning).
Press [Scan] again the play the beginning of each track in th e selected
folder in a loop.
Press again to stop or press on the current track (during the 10 seco nds)
and play begins.
Press [Random] to play all of the tracks in the selected folde r in random
order.
Press [Random] again to play all of the tracks on the CD in random
order.
Press again to stop.
Press [^] to access the secondary menu.
Press
Explanations Result
Playing an MP3/WMA CD (2/2)
