Page 21 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
24
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on continu -
o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t i g n o r e
these warnings.
The messages displayed may vary between the type 1 instrument pan el and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e d i s p l a y .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
L i g h t s l e f t
on Fixed You have forgotten to
switch off your lights. Switch off your lights by
placing the stalk at OFF. An intermittent audible
signal is heard.
Page 22 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
25
Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a CITROËN
dealer. The vehicle retains
conventional braking
without assistance
but you are advised
to stop.
Braking system Fixed Associated warning
lamp.
The level of brake
fl u i d i n t h e r e s e r v o i r
is too low.
Stop and top up, otherwise
contact a CITROËN dealer.
If the message
remains on after
topping up, contact
a CITROËN dealer.
Associated warning
lamp.
Braking system fault. Consult a CITROËN
dealer.
It is essential to
s t o p .
Handbrake on Fixed You have moved off with
the handbrake still applied. Release the handbrake.
Coolant
temperature Flashing
High engine temperature. If the message
fl a s h e s ,
wait for the engine to cool
before topping up the level,
if necessary.
It is essential to
s t o p y o u r v e h i c l e
i n a s a f e p l a c e .
Flashing If the message
fl a s h e s and the
s e r v i c e w a r n i n g
light comes on ,
contact a CITROËN
dealer without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).
Page 23 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
26
Message is on Cause Solution - action Observations
Air bags Fixed Fault in the air bags or
pretensioners. Consult a CITROËN
dealer.
Service Fixed Problem in one of the systems
w h i c h d o e s n o t h a v e a s p e c i fi c
message. Stop the vehicle and
contact a CITROËN
dealer. To identify the
problem, contact a
CITROËN dealer.
Engine oil pressure Fixed Engine oil pressure too low or
fault in the oil circuit. Stop the vehicle and
contact a CITROËN
dealer.
Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of
oil, top up the level.
Fuel level warning Fixed The fuel tank level is low. Fill your fuel tank as
soon as possible.
Fuel circuit Fixed Fuel circuit fault. Consult a CITROËN
dealer.
Accesses
not closed correctly Fixed
One of the doors or the tailgate
is not closed correctly. Close the door or the
tailgate. The access
concerned is
indicated on the
display.
Page 24 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
27
Message is on Cause Solution - action Observations
Dynamic stability control
system (ASC) Fixed
Dynamic stability control system
(ASC) fault. Consult a CITROËN
dealer.
Four wheel
drive system Fixed Four wheel drive transmission
system fault. Consult a CITROËN
dealer.
Four wheel
drive system temperature Fixed The temperature of the four
wheel drive transmission
system is too high. Stop the vehicle and
contact a CITROËN
dealer. The vehicle switches
to front wheel
drive (2 WD) mode
automatically.
Automatic headlamp
adjustment system Fixed
The automatic headlamp
adjustment is faulty. Consult a CITROËN
dealer. O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery charge Fixed Battery charge fault. Stop the vehicle and
contact a CITROËN
dealer.
Exterior
temperature Fixed The exterior temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road
may be icy even
when this screen is
not displayed.
Page 25 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
28
Message is on Cause Solution - action Observations
Saturation of the particle
e m i s s i o n fi l t e r Fixed
Start of saturation of the particle
e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
conditions permit,
r e g e n e r a t e t h e fi l t e r
by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared. If the message is still
displayed, contact a
CITROËN dealer.
Diesel
additive level Fixed Low diesel additive level. Have the level
topped up by a
CITROËN dealer
without delay.
Water in the d i e s e l fi l t e r
(according to country) Fixed The presence of water in the
d i e s e l fi l t e r i s i n d i c a t e d .
Risk of damage to the injection
system on Diesel engines. Contact a CITROËN
dealer without delay.
Page 26 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
29
Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel drive system Flashing When the "2WD" (2 wheel drive) mode is selected using the
transmission mode selector.
4WD four wheel drive system Flashing When the "4WD" (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using the
transmission mode selector.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Consult a CITROËN
dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle
stops.
Page 27 of 230
I
30
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the
INFO
button, located on the fascia to the left
of the instrument panel, to display the
various information displays in succes-
sion:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the distance
and the number of months
remaining before the next
service to be carried out in
accordance with the manu-
facturer's servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
C o o l a n t t e m p e r a t u r e When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank in
relation to the average
consumption over the
last few miles (kilometres) travelled (re-
fer to the "Range" section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the "Trip computer"
section).
T r i p c o m p u t e r
When the vehicle is
s t a t i o n a r y , this allows
the user to change the
following parameters
(refer to the "Function
parameters" section):
- the display language,
- the temperature display unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 28 of 230
I
!
!
I N S T R U M E N T S a n d C O N T R O L S
31
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the
temperature of the cool-
ant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a CITROËN dealer. T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g a
change in the style of driving or the
relief, resulting in a reduction in the
current consumption.
If you only add a few litres, the value
displayed will be incorrect. There-
f o r e , y o u m u s t fi l l t h e t a n k w h e n e v e r
possible.
When you disconnect the bat-
tery, the previous consump-
tion data is lost and the value
displayed will be different from that
displayed before the battery was dis-
connected. The distance displayed
must be considered an approximate
indication.
Page 29 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
32

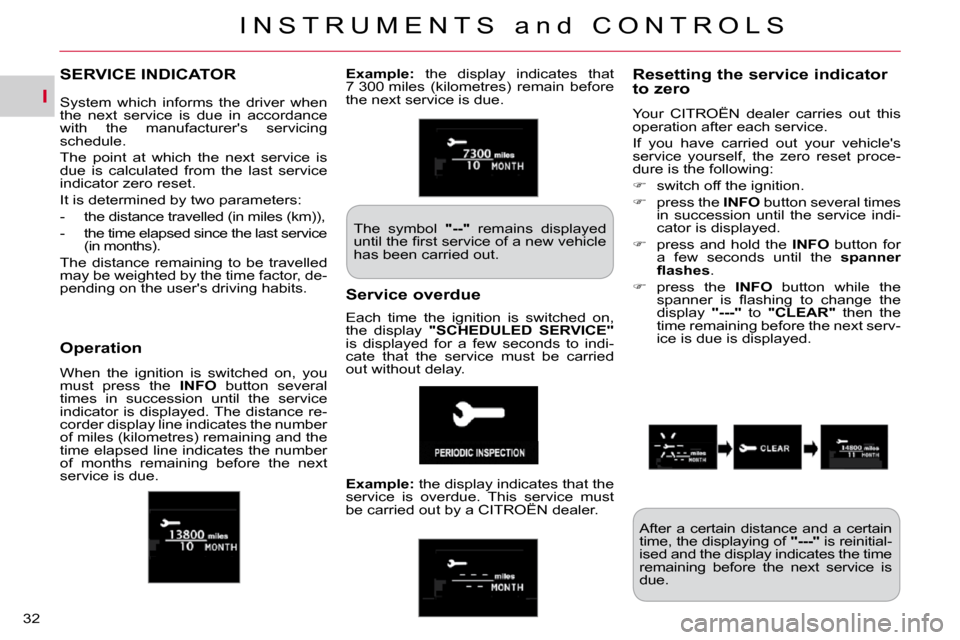

SERVICE INDICATOR Resetting the service indicator to zero
Your CITROËN dealer carries out this
operation after each service.
If you have carried out your vehicle's
service yourself, the zero reset proce-
dure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a certain
time, the displaying of "---" is reinitial-
ised and the display indicates the time
remaining before the next service is
due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last service
(in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user's driving habits.
E x a m p l e : the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains displayed
u n t i l t h e fi r s t s e r v i c e o f a n e w v e h i c l e
has been carried out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a CITROËN dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
Page 30 of 230
I
!
!
I N S T R U M E N T S a n d C O N T R O L S
31
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the
temperature of the cool-
ant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a CITROËN dealer. T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g a
change in the style of driving or the
relief, resulting in a reduction in the
current consumption.
If you only add a few litres, the value
displayed will be incorrect. There-
f o r e , y o u m u s t fi l l t h e t a n k w h e n e v e r
possible.
When you disconnect the bat-
tery, the previous consump-
tion data is lost and the value
displayed will be different from that
displayed before the battery was dis-
connected. The distance displayed
must be considered an approximate
indication.
