Page 11 of 216
14
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog
lamps.
84
88
89
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped or main beam
headlamps.
Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Slow.
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Page 12 of 216
FAMILIARISATION
VENTILATING
Automatic air conditioning Temperature adjustment. E x t e r i o r a i r i n t a k e .
Interior air recirculation.
A i r fl o w a d j u s t m e n t . Automatic programme (comfort).
Deactivation of the air conditioning.
Air distribution adjustment.
Front visibility control.
Rear screen de-icing.
44
Page 13 of 216
16
FAMILIARISATION
MONITORING
Instrument panel Controls bar
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat. When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights
19
A. Passenger air bag disarmed
warning light.
106
B. Hazard warning lights switch.
99
C. Front passenger’s seat belt not
fastened or unfastened warning light.
103
20
Detection of fastening of the
driver’s seat belt When the ignition is switched
on, the
seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.
22

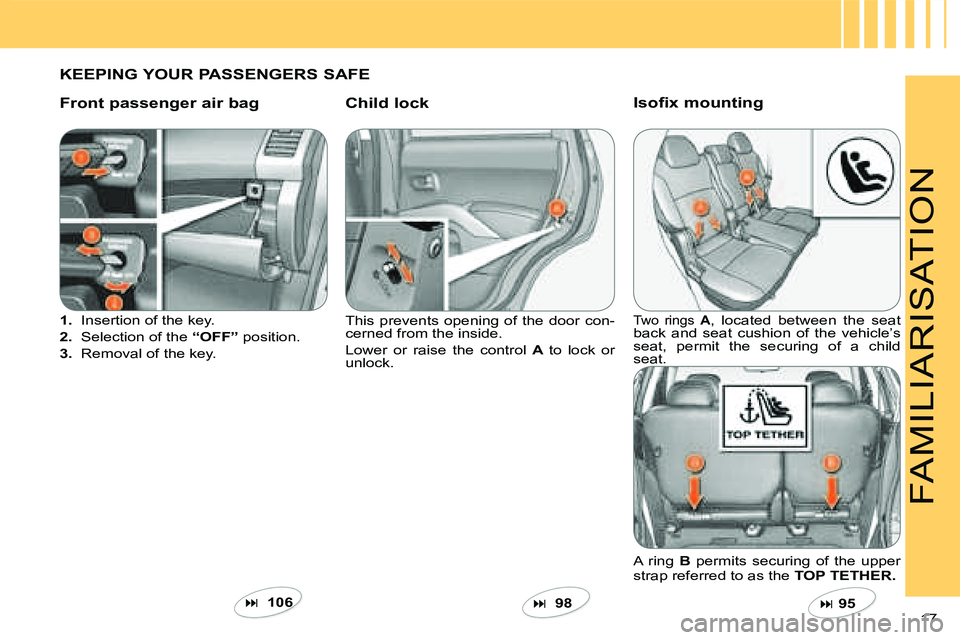

Page 14 of 216
17
FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag Child lock
1. Insertion of the key.
2. Selection of the “OFF” position.
3. Removal of the key. This prevents opening of the door con-
cerned from the inside.
Lower or raise the control
A to lock or
unlock.
106
98 Isofix mounting
Two rings
A , located between the seat
back and seat cushion of the vehicle’s
seat, permit the securing of a child
seat.
A ring B permits securing of the upper
strap referred to as the TOP TETHER .
95
Page 15 of 216
18
FAMILIARISATION
Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1.
“ON/OFF” button: activation /
deactivation of the cruise control
mode.
2.
“COAST SET” button: storing of a
driving speed then decreasing of
the cruising speed.
3.
“ACC RES” button: increasing of
the cruising speed and recalling of
the stored speed.
4.
“CANCEL” button: switching off of
the cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects any obstacle (person, ve-
hicle, tree, gate,...) located behind the
vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. two side sensors.
E. two central sensors.
Audible rear parking assistance
114 116
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
112
Also...
You can change transmission mode
when stationary or when driving at a
speed below 60 mph (100 km/h).
Page 16 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
19
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- E x t e r i o r t e m p e r a t u r e .
- Transmission mode.
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.
16. Rev counter.
17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
Page 17 of 216
CRUISE
I N S T R U M E N T S a n d C O N T R O L S
I
20
INSTRUMENT PANEL INDICATOR LIGHTS
Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Right-hand
direction
indicator Flashing
with
buzzer
T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Main beam
headlamps
F i x e d This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights
F i x e d This comes on when
the lights stalk is in the
“Side lights” or “Dipped
headlamps” position. Turn the stalk to the position required.
Front fog
lamps
F i x e d This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps
F i x e d This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control
F i x e d This comes on when the
mode is active. Press the “ON/OFF” button to activate/
deactivate the mode.
Page 18 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
21
Indicator lights is on Cause Observations
Diesel
pre-heating F i x e d
This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
d e t e r m i n e d b y t h e e x t e r i o r c l i m a t i c c o n d i t i o n s .
Warning lights is on Cause Observations
Handbrake /
B r a k e fl u i d level F i x e d This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a CITROËN dealer.
Emission
control system F i x e d o r
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.
Battery charge
F i x e d This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the “Battery” section).
Page 19 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
22
Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened F i x e d The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS
F i x e d This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.
Air bags and
pretensioners F i x e d This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It should switch off when the engine is started. If
it does not switch off, contact a CITROËN dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a CITROËN dealer without delay.
Page 20 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
23
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
c o n t i n u o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t
ignore these warnings.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol “!” is displayed.
To return to the previous screen (with the “!” symbol), you must press the
INFO button several times.
INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at “OFF”)
Y o u c a n s h u t d o w n t h e w a r n i n g m e s s a g e s w h i c h s h o w t h e s e s y m b o l
s i n o r d e r t o m o v e o n t o t h e n e x t s c r e e n .
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
Symbols which appear in the top right corner of the dis
play.
Message is on
Associated
warning light
Cause Solution - action Observations
Key in
ignition F i x e d
- The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.
Lights left
on F i x e d
- You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk at
OFF.
An intermittent audible
signal is heard.
