9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.

2. Telephone controls.

3. Steering wheel adjustment control.

4. Lights and direction indicators
controls.
Headlamp wash control.

5. Instrument panel.

6. Driver’s air bag.
Horn.

7. Cruise control switches.

8. Gear lever.

9. Handbrake.

10. Bonnet release.

11. Enclosed storage compartment.
Fuse box.

12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.

13. Cup holder.

14. Side adjustable and closing vent.

15. Information button.

16. Window de-icing and demisting
vent.

17. Windscreen de-icing vent.

16
FAMILIARISATION
MONITORING
Instrument panel Controls bar

A. Speedometer.

B. Instrument panel display.

C. Rev counter.

D. Fascia lighting rheostat. When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights

 19
A. Passenger air bag disarmed
warning light.

 106

B. Hazard warning lights switch.

 99

C. Front passenger’s seat belt not
fastened or unfastened warning light.

 103

 20
Detection of fastening of the
driver’s seat belt When the ignition is switched
on, the
seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.

 22

I N S T R U M E N T S a n d C O N T R O L S
I
19

1. Speedometer.

2. Left-hand direction indicator and
hazard warning lights indicator
light.

3. Main beam headlamps indicator
light.

4. Diesel pre-heating indicator light.

5. Side lights indicator light.

6. Front fog lamps indicator light.

7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL

18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

8. Rear fog lamps indicator light.

9. Anti-lock braking system (ABS)
warning light.

10. Battery charge fault warning light.

11. Handbrake applied and brake fl uid
level warning light.

12. Cruise control mode indicator light.

13. Air bags warning light.

14. Engine management warning light.

15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.

16. Rev counter.

17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).

CRUISE
I N S T R U M E N T S a n d C O N T R O L S
I
20
INSTRUMENT PANEL INDICATOR LIGHTS

Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer This fl ashes when you
press the lights stalk
down. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Right-hand
direction
indicator Flashing
with
buzzer
This fl ashes when you
push the lights stalk up. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Main beam
headlamps
Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights
Fixed This comes on when
the lights stalk is in the
“Side lights” or “Dipped
headlamps” position. Turn the stalk to the position required.
Front fog
lamps
Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps
Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control
Fixed This comes on when the
mode is active. Press the “ON/OFF” button to activate/
deactivate the mode.

I N S T R U M E N T S a n d C O N T R O L S
I
21

Indicator lights is on Cause Observations
Diesel
pre-heating Fixed
This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.

Warning lights is on Cause Observations
Handbrake /
Brake fl uid level Fixed This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel display. Top up with brake fl uid
and contact a CITROËN dealer.
Emission
control system Fixed or
fl ashing This comes on or
fl ashes if the system
fails. Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.
Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the “Battery” section).

I N S T R U M E N T S a n d C O N T R O L S
I
22

Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS
Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It should switch off when the engine is started. If
it does not switch off, contact a CITROËN dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a CITROËN dealer without delay.

I N S T R U M E N T S a n d C O N T R O L S
I
23
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
continuously or fl ashes. This initial warning may be accompanied by an audible signal and a message on the display. Do not
ignore these warnings.
When the cause of the appearance of the warning light o r warning message has been rectifi ed, the warning disappears fro m
the display automatically. If the cause of the warning is n ot rectifi ed, you can return to the previous screen at any time b y
pressing the INFO button on the fascia.
The symbol “!” is displayed.
To return to the previous screen (with the “!” symbol), you must press the
INFO button several times.
INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at “OFF”)
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press briefl y . Press and hold .
Symbols which appear in the top right corner of the dis
play.

Message is on
Associated
warning light
Cause Solution - action Observations

Key in
ignition Fixed
- The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.

Lights left
on Fixed
- You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk at
OFF.
An intermittent audible
signal is heard.

I N S T R U M E N T S a n d C O N T R O L S
I
29
The total distance is
displayed in zone 1
of the display and the
trip distance in zone 2
(refer to the “Distance
recorders” section).

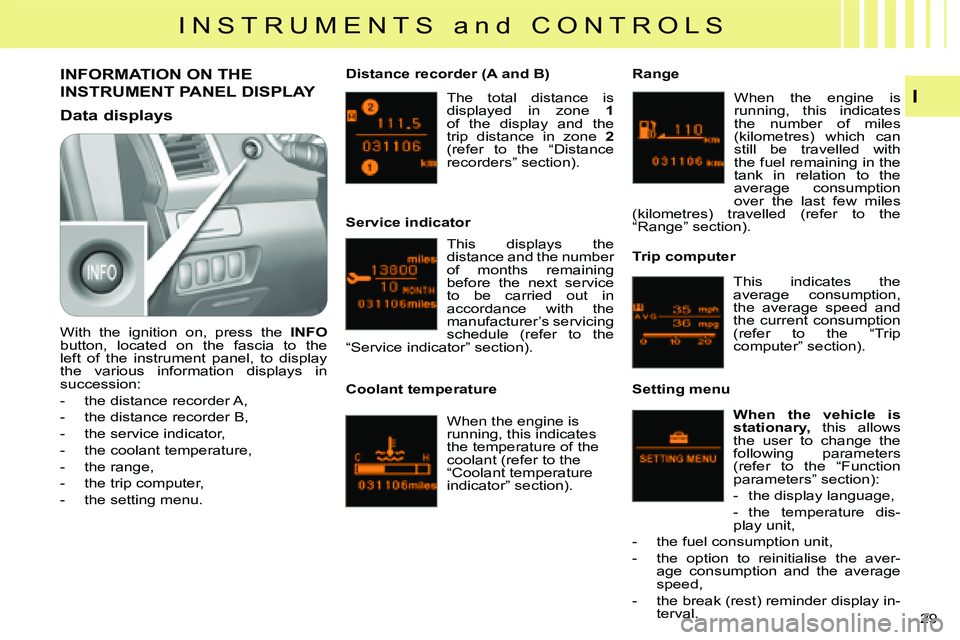

Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
Data displays
With the ignition on, press the
INFO
button, located on the fascia to the
left of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the
distance and the number
of months remaining
before the next service
to be carried out in
accordance with the
manufacturer’s servicing
schedule (refer to the
“Service indicator” section).
Service indicator

When the engine is
running, this indicates
the temperature of the
coolant (refer to the
“Coolant temperature
indicator” section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with
the fuel remaining in the
tank in relation to the
average consumption
over the last few miles
(kilometres) travelled (refer to the
“Range” section).
Range
This indicates the
average consumption,
the average speed and
the current consumption
(refer to the “Trip
computer” section).
Trip computer

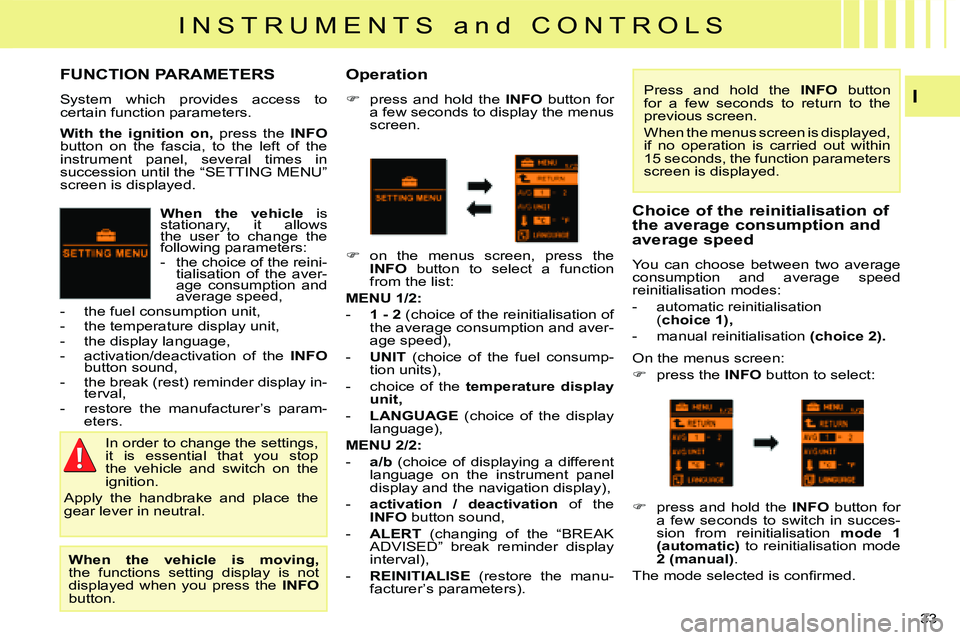

When the vehicle is
stationary , this allows
the user to change the
following parameters
(refer to the “Function
parameters” section):
- the display language,
- the temperature dis-
play unit,
- the fuel consumption unit,
- the option to reinitialise the aver- age consumption and the average
speed,
- the break (rest) reminder display in- terval.
Setting menu

I N S T R U M E N T S a n d C O N T R O L S
I
32

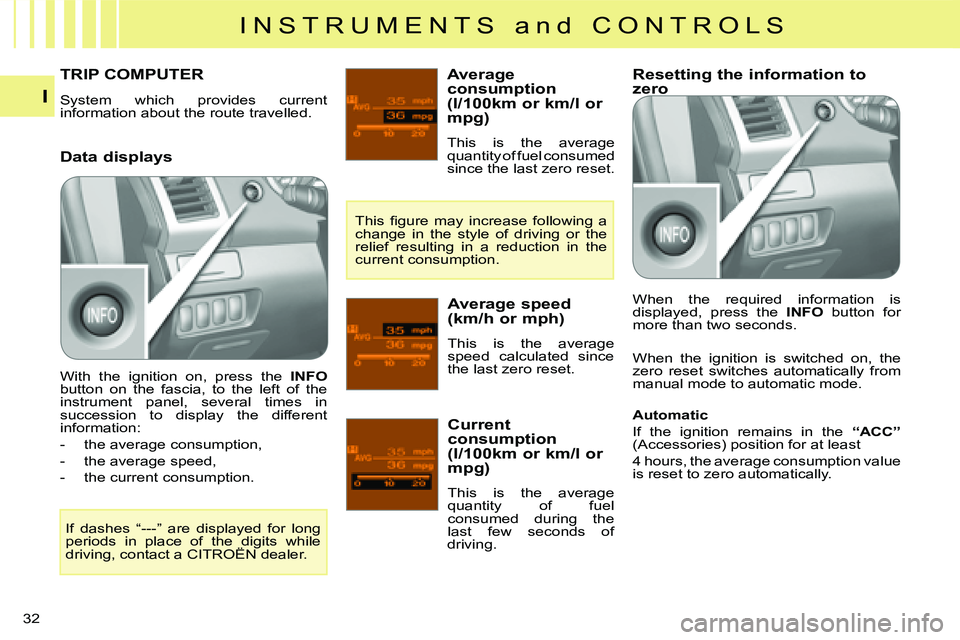

System which provides current
information about the route travelled.
TRIP COMPUTER Average
consumption
(l/100km or km/l or
mpg)
This is the average
quantity of fuel consumed
since the last zero reset.
This fi gure may increase following a
change in the style of driving or the
relief resulting in a reduction in the
current consumption. Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset. Resetting the information to
zero
Automatic
If the ignition remains in the “ACC”

(Accessories) position for at least
4 hours, the average consumption value
is reset to zero automatically.
If dashes “---” are displayed for long
periods in place of the digits while
driving, contact a CITROËN dealer. Current
consumption
(l/100km or km/l or
mpg)
This is the average
quantity of fuel
consumed during the
last few seconds of
driving.
Data displays
With the ignition on, press the
INFO
button on the fascia, to the left of the
instrument panel, several times in
succession to display the different
information:
- the average consumption,
- the average speed,
- the current consumption. When the required information is
displayed, press the
INFO button for
more than two seconds.
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.

I N S T R U M E N T S a n d C O N T R O L S
I
33

When the vehicle is
stationary , it allows
the user to change the
following parameters:
- the choice of the reini- tialisation of the aver-
age consumption and
average speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
- restore the manufacturer’s param- eters.
FUNCTION PARAMETERS
System which provides access to
certain function parameters.
In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.
Apply the handbrake and place the
gear lever in neutral.

When the vehicle is moving ,
the functions setting display is not
displayed when you press the INFO
button.

With the ignition on , press the INFO
button on the fascia, to the left of the
instrument panel, several times in
succession until the “SETTING MENU”
screen is displayed. Operation

 press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to the
previous screen.
When the menus screen is displayed,
if no operation is carried out within
15 seconds, the function parameters
screen is displayed.

 on the menus screen, press the

INFO button to select a function
from the list:

MENU 1/2 :
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the temperature display
unit ,
- LANGUAGE (choice of the display
language),

MENU 2/2:
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- activation / deactivation of the
INFO
button sound ,
- ALERT (changing of the “BREAK
ADVISED” break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). Choice of the reinitialisation of
the average consumption and
average speed
You can choose between two average
consumption and average speed
reinitialisation modes:
- automatic reinitialisation
( choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:

 press the INFO button to select:

 press and hold the INFO button for
a few seconds to switch in succes-
sion from reinitialisation mode
1

(automatic) to reinitialisation mode

2 (manual) .
The mode selected is confi rmed.
