Citroen C CROSSER DAG 2010.5 1.G Manual PDF
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C CROSSER DAG, Model: Citroen C CROSSER DAG 2010.5 1.GPages: 217, PDF Size: 6.56 MB
Page 71 of 217
III
79

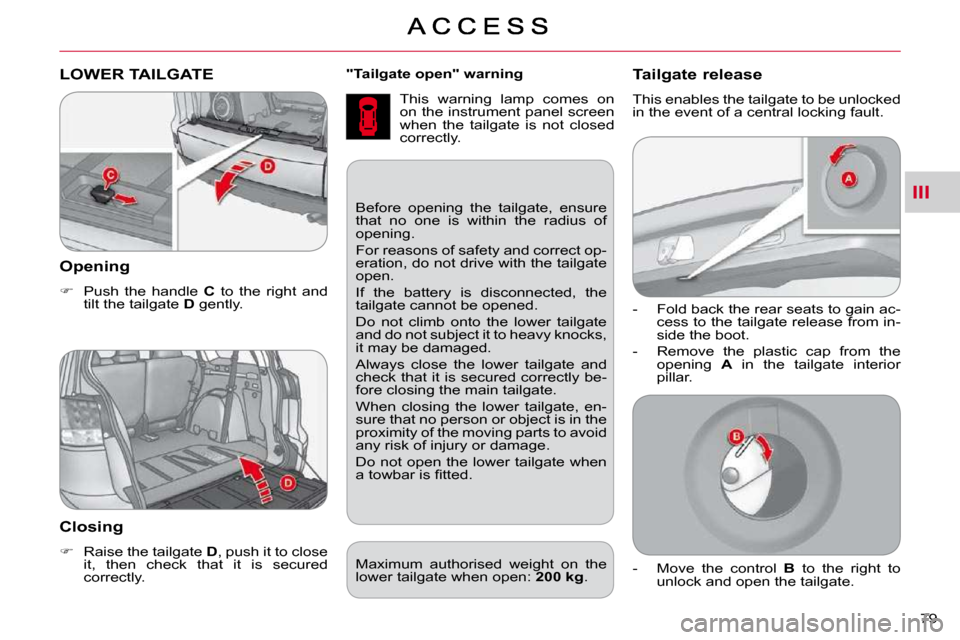

"Tailgate open" warning
This warning lamp comes on
on the instrument panel screen
when the tailgate is not closed
correctly. LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and correct op-
eration, do not drive with the tailgate
open.
If the battery is disconnected, the
tailgate cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the main tailgate.
When closing the lower tailgate, en-
sure that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate when
a t o w b a r i s fi t t e d .
Maximum authorised weight on the
lower tailgate when open:
200 kg .
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-
cess to the tailgate release from in-
side the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 72 of 217
III
79
"Tailgate open" warning
This warning lamp comes on
on the instrument panel screen
when the tailgate is not closed
correctly. LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and correct op-
eration, do not drive with the tailgate
open.
If the battery is disconnected, the
tailgate cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the main tailgate.
When closing the lower tailgate, en-
sure that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate when
a t o w b a r i s fi t t e d .
Maximum authorised weight on the
lower tailgate when open:
200 kg .
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-
cess to the tailgate release from in-
side the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 73 of 217
III
A C C E S S
80

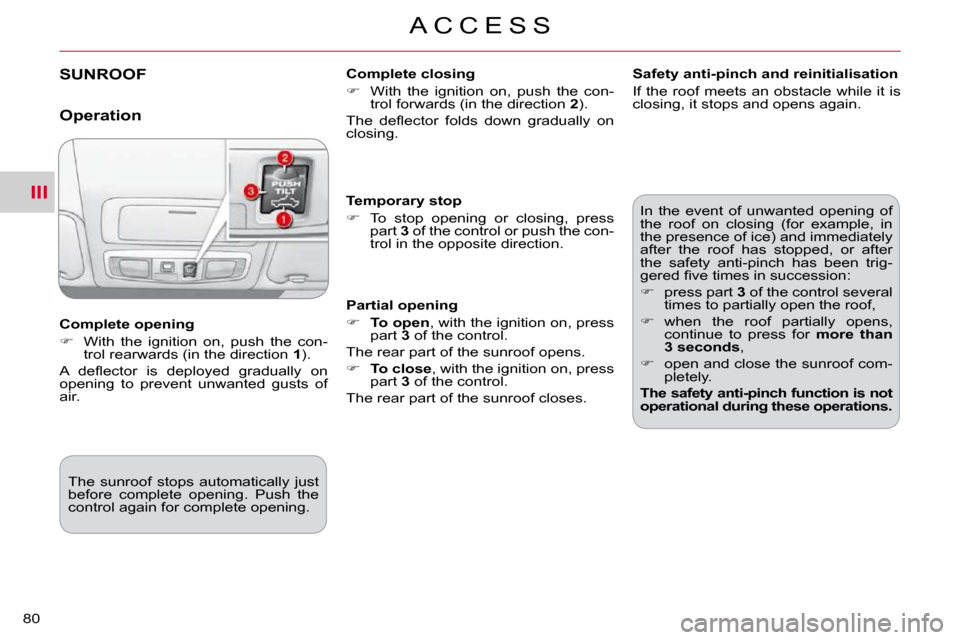

SUNROOF Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Complete opening
With the ignition on, push the con-
trol rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air. Temporary stop
To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes. Safety anti-pinch and reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.
The sunroof stops automatically just
before complete opening. Push the
control again for complete opening.
Operation
In the event of unwanted opening of
the roof on closing (for example, in
the presence of ice) and immediately
after the roof has stopped, or after
the safety anti-pinch has been trig-
g e r e d fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control several
times to partially open the roof,
when the roof partially opens,
continue to press for more than
3 seconds ,
open and close the sunroof com-
pletely.
The
safety
anti
-
pinch
function is not
operational during
t
hese operations.
Page 74 of 217
III
!
!
A C C E S S
81

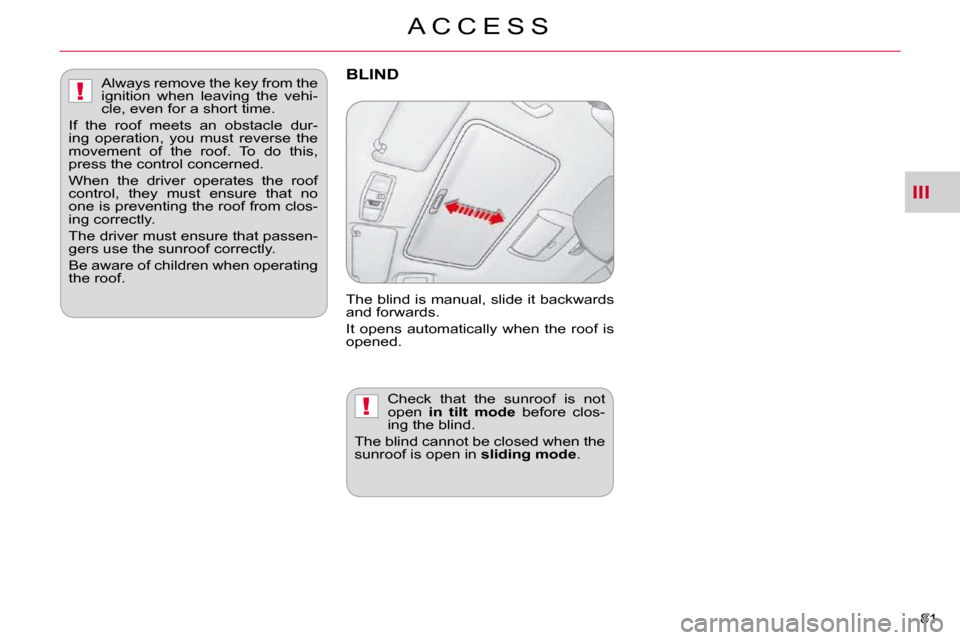

BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before clos-
ing the blind.
The blind cannot be closed when the
sunroof is open in sliding mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle dur-
ing operation, you must reverse the
movement of the roof. To do this,
press the control concerned.
When the driver operates the roof
control, they must ensure that no
one is preventing the roof from clos-
ing correctly.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
Page 75 of 217
III
!
!
A C C E S S
81
BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before clos-
ing the blind.
The blind cannot be closed when the
sunroof is open in sliding mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle dur-
ing operation, you must reverse the
movement of the roof. To do this,
press the control concerned.
When the driver operates the roof
control, they must ensure that no
one is preventing the roof from clos-
ing correctly.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
Page 76 of 217
III
!
A C C E S S
82

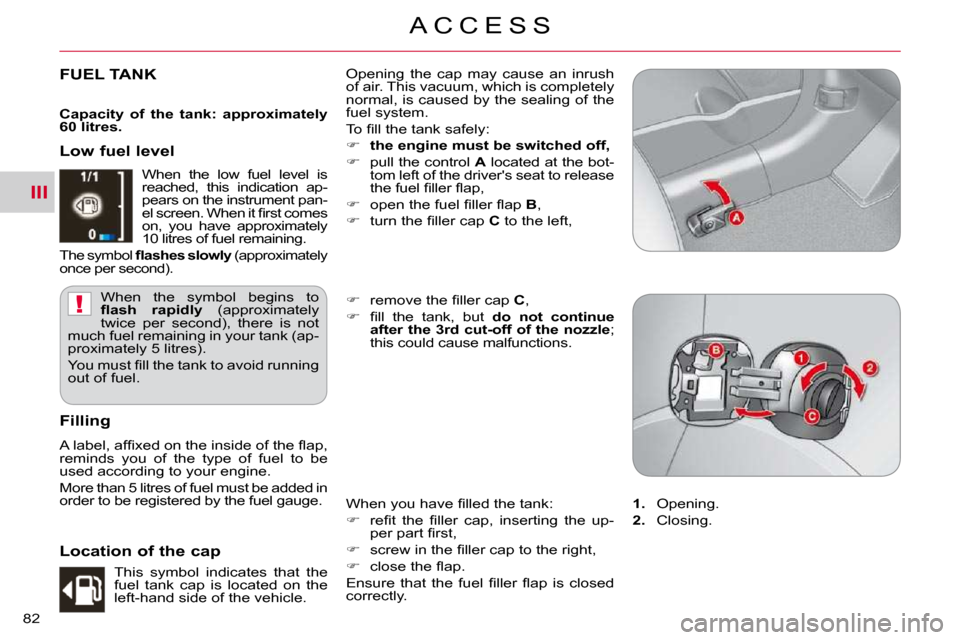

FUEL TANK Opening the cap may cause an inrush
of air. This vacuum, which is completely
normal, is caused by the sealing of the
fuel system.
T o fi l l t h e t a n k s a f e l y :
the engine
must be
switched off,
pull the control A located at the bot-
tom left of the driver's seat to release
t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
t u r n t h e fi l l e r c a p C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e fi l l e r c a p , i n s e r t i n g t h e u p -
p e r p a r t fi r s t ,
s c r e w i n t h e fi l l e r c a p t o t h e r i g h t ,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
r e m o v e t h e fi l l e r c a p C ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge. When the low fuel level is
reached, this indication ap-
pears on the instrument pan-
e l s c r e e n . W h e n i t fi r s t c o m e s
on, you have approximately
10 litres of fuel remaining.
The symbol
fl a s h e s s l o w l y (approximately
once per second).
When the symbol begins to
fl a s h r a p i d l y (approximately
twice per second), there is not
much fuel remaining in your tank (ap-
proximately 5 litres).
Y o u m u s t fi l l t h e t a n k t o a v o i d r u n n i n g
out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
Capacity of the tank: approximately
60 litres.
Page 77 of 217
III
A C C E S S
83
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Page 78 of 217
IV
V I S I B I L I T Y
84
LIGHTING STALK
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e r e -
q u i r e m e n t s o f p a r t i c u l a r d r i v i n g c o n d i -
tions:
- r e a r f o g l a m p s t o b e s e e n f r o m a d i s -tance,
- f r o n t f o g l a m p s f o r e v e n b e t t e r v i s - i b i l i t y ,
- d a y t i m e r u n n i n g l a m p s t o b e s e e n d u r i n g t h e d a y . Certain functions of the lighting stalk
(automatic illumination of headlamps,
s e n s i t i v i t y ) c a n b e c o n fi g u r e d v i a t h e
c o l o u r s c r e e n " E q u i p m e n t " m e n u .
Manual controls
T h e l i g h t i n g c o m m a n d s a r e i s s u e d d i r e c t l y
b y t h e d r i v e r b y m e a n s o f t h e r i n g
A and
the stalk B . L a m p s o f f .
Automatic illumination of
h e a d l a m p s .
S i d e l a m p s o n l y .
B. Stalk for switching headlamps: pull
t o s w i t c h t h e l i g h t i n g b e t w e e n d i p p e d
h e a d l a m p s / m a i n b e a m h e a d l a m p s .
In the lamps off and sidelamps modes,
t h e d r i v e r c a n s w i t c h o n t h e m a i n b e a m
h e a d l a m p s t e m p o r a r i l y ( " h e a d l a m p
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
s t a l k .
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
t h e s w i t c h i n g o n o f t h e l i g h t i n g s e l e c t e d .
A. Main lighting mode selection ring:
t u r n i t t o p o s i t i o n t h e s y m b o l r e -
q u i r e d f a c i n g t h e m a r k .
Dipped headlamps or main
b e a m h e a d l a m p s .
Main lighting
The various front and rear lamps of the
v e h i c l e a r e d e s i g n e d t o a d a p t t h e d r i v -
e r ' s v i s i b i l i t y p r o g r e s s i v e l y i n r e l a t i o n t o
the climatic conditions:
- s i d e l a m p s , t o b e s e e n ,
- d i p p e d b e a m h e a d l a m p s t o s e e without dazzling other drivers,
- m a i n b e a m h e a d l a m p s t o s e e c l e a r l y w h e n t h e r o a d i s c l e a r .
Page 79 of 217
IV
!
V I S I B I L I T Y
85
Front and rear foglamps
C. f o g l a m p s s e l e c t i o n r i n g .
The foglamps operate with the dipped
a n d m a i n b e a m h e a d l a m p s . front and rear fog lamps
To switch on the front fog lamps,
turn the push ring C forwards one
n o t c h .
To switch on the rear fog lamps, turn
the push ring C f o r w a r d s t w o n o t c h e s .
To switch off the front fog lamps,
turn the push ring C rearwards one
n o t c h .
To switch off the rear fog lamps,
turn the push ring C rearwards
t w o n o t c h e s .
The ring C returns to its initial position
a u t o m a t i c a l l y .
T h e f r o n t f o g l a m p s a r e s w i t c h e d o n a u -
t o m a t i c a l l y w h e n y o u s w i t c h o n t h e r e a r
f o g l a m p s .
The rear fog lamps are switched off
a u t o m a t i c a l l y w h e n y o u s w i t c h o f f t h e
d i p p e d / m a i n b e a m h e a d l a m p s o r t h e
f r o n t f o g l a m p s .
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
t h e r e a r f o g l a m p s c a n b e s w i t c h e d o n
even if the lights stalk is in the "OFF"
p o s i t i o n . I n g o o d o r r a i n y w e a t h e r , b o t h
d a y a n d n i g h t , t h e f r o n t f o -
glamps and the rear foglamps
a r e p r o h i b i t e d . I n t h e s e s i t u a t i o n s ,
t h e p o w e r o f t h e i r b e a m s m a y d a z z l e
o t h e r d r i v e r s .
D o n o t f o r g e t t o s w i t c h o f f t h e f r o n t f o -
glamps and the rear foglamps when
t h e y a r e n o l o n g e r n e c e s s a r y .
Lighting on reminder
A n a u d i b l e s i g n a l w h e n t h e d r i v e r ' s
door is opened warns the driver if the
vehicle lighting is on, with the ignition
o f f .
Switching off the lighting stops the
a u d i b l e s i g n a l .
If condensation is present, switch the
headlamps on for a few minutes in
o r d e r t o c l e a r i t .
Page 80 of 217
IV
!
V I S I B I L I T Y
86
Automatic illumination of headlamps Daytime running lamps *
* A c c o r d i n g t o c o u n t r y .
Automatic switching off
W h e n t h e l i g h t s s t a l k i s a t " d i p p e d h e a d -
l a m p s o r m a i n b e a m h e a d l a m p s " , i f t h e
ignition switch is at "LOCK" or "ACC" or
i f t h e k e y h a s b e e n r e m o v e d f r o m t h e
i g n i t i o n s w i t c h , t h e l i g h t s s w i t c h o f f a u t o -
m a t i c a l l y when the driver's door is
opened . O n v e h i c l e s w h i c h a r e e q u i p p e d w i t h d a y -
t i m e r u n n i n g l a m p s , t h e d i p p e d b e a m h e a d -
l a m p s c o m e o n w h e n t h e v e h i c l e i s s t a r t e d .
This warning lamp comes on
i n t h e i n s t r u m e n t p a n e l .
T h e i n s t r u m e n t s a n d c o n t r o l s ( i n s t r u -
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e i l l u -
m i n a t e d . T h e s i d e l a m p s a n d t h e d i p p e d b e a m
h e a d l a m p s c o m e o n a u t o m a t i c a l l y , w i t h -
o u t a n y a c t i o n o n t h e p a r t o f t h e d r i v e r ,
if a low level of exterior light is detected
o r i f t h e w i p e r s a r e s w i t c h e d o n .
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
l i g h t i n g i s s w i t c h e d o f f a u t o m a t i c a l l y .
T h e s e n s o r i s l o c a t e d a t t h e b a s e o f t h e
w i n d s c r e e n .
Contact a CITROËN dealer to adjust
t h e s e n s i t i v i t y o f t h e s e n s o r .
I n f o g g y w e a t h e r o r i n s n o w , t h e
s u n s h i n e s e n s o r m a y d e t e c t s u f -
fi c i e n t l i g h t . T h e l i g h t i n g w i l l n o t
c o m e o n a u t o m a t i c a l l y .
Do not cover the sunshine sensor, the
a s s o c i a t e d f u n c t i o n s w i l l n o l o n g e r b e
c o n t r o l l e d .
T h e s e n s i t i v i t y o f t h e a u t o m a t i c i l -
l u m i n a t i o n o f h e a d l a m p s c a n b e
c o n fi g u r e d v i a t h e c o l o u r s c r e e n
" E q u i p m e n t " m e n u .
