I
MONITORING
39
MONOCHROME SCREEN

This provides the following information:


- the time,

- audio system information (refer to
the "Audio and Telematics" section).



Setting the time

The digital clock can be set in automatic
mode
or in manual mode
.


Selecting the Setting

Select the automatic mode
or the
manual mode
as follows:


)
Press button A
"PWR" to switch on
the audio system.

)
Access the setting mode by pressing
button B
"TUNE" for approximately
2 seconds.

)
Press button B
"TUNE" several
times to scroll through the various
menus and select the CT menu

(clock time).
The order of the menus is the following:
AF/CT/REG/TP-S/PTY display language/
SCV/PHONE/Functions setting mode
OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol "CT"
appears on the screen.

Manual mode
This mode permits manual setting of
the time using the audio equipment
buttons.
It can also be used when the "Automatic
mode" displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.

I
MONITORING
40
Set the time using the buttons as
indicated below:


)
with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK
button until the
time display fl ashes.

)
Press the appropriate button to set
the time:

Button
H:
to set the hours
The hours digits scroll when you press
this button.

Button M:
to set the minutes
The minutes digits scroll when you
press this button.

Button 00:
to reset the minutes to zero.


- from 1 to 29 min
:
rounded down to
the previous hour,

- from 30 to 59 min:
rounded up to
the next hour.
Automatic mode

In this mode, setting is automatic using
the signal from the RDS radio stations.

)
After setting the time, press the
DISP
button; the time display stops
fl ashing.
The digital clock does not display
seconds.
When the "minutes" display is set or
reset to zero, the clock starts at the
zero second of the minute selected.
The time setting is lost if the battery
is disconnected.


)
Turn button B
"TUNE" to the left or
to the right to select "CT ON"
(auto-
matic mode) or "CT OFF"
(manual
mode).

)
After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B
"TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "Functions setting mode" menu
automatically.

I
MONITORING
41
COLOUR SCREEN

This permits display of the following
main menus: On the control panel, press button B
(SET)
to access the "Settings"
screen
and select:


- "Display Off"
to switch off the display,

- "Sound control"
for the sound dis-
tribution or volume, the type of music
and the sound fi eld (surround),

- "Picture control"
to set the colour,
the intensity, the brightness, the
contrast and the level of black,

- "System"
to change the time zone,
the language, the units and other
settings,

- "Wide Screen"
to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,

- "Equipment"
to set certain equip-
ment offered in the vehicle,

- "Colour Contrast"
to select the
contrast of the display in relation
to the ambient light (Day, Night or
Auto),

- "TP standby"
to activate or deacti-
vate the traffi c information.

"Audio-video" menu
"Navigation-guidance" menu
On the control panel, press button A
(MODE)
to access the "AV mode"

screen and select:


- radio (FM, MW, LW),

- CD (audio, MP3 or WMA),

- Music Server,

- DVD.
"Settings" menu
On the control panel, press button C
(MENU)
to access the "Menu"
screen
and select:


-
"Address/Junction"
to search for
a location using the address or the
name of the street,

- "POI name"
to search for a location
using the name of a point of interest
(POI),

- "Advanced search"
to search for a
location using an advanced search
based on a POI,

- "Previous 20"
to search for a loca-
tion using one of the 20 previous
destinations,

- "Address book"
to search for a
location using a stored address,

- "Home"
to navigate to your home
address,

- "Navigation settings"
to set func-
tions linked with the navigation,

- "Navigation tools"
to access the
basic information or a pre-set dem-
onstration.

The "CD" and "DVD" buttons are
active if you insert a CD or DVD in
the player.

III
!
ACCESS
76








Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys

Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with new keys.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a
short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system, this could cause malfunctions.


When purchasing a second-hand vehicle

Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which
can start the vehicle.

VII
!
122
When the cruise control is in
operation, pay attention if you
press and hold one of the pro-
grammed speed adjustment buttons:
this can result in a very rapid change
in the speed of your vehicle.
Do not use the cruise control on slip-
pery roads or in heavy traffi c.

On a steep descent, the cruise control will
not be able to prevent the vehicle from
exceeding the programmed speed.
To prevent the mat from becoming
caught under the pedals:


- ensure that the mat is positioned
correctly,

- never fi t one mat on top of another.


To deactivate the cruise control:


)
Press the brake
or clutch
pedal, or

)
Press button 1 "ON OFF"
, or

)
Press button 4 "CANCEL"
.


The cruise control may be deactivated
automatically:


)
When the vehicle reaches a speed
below 20 mph (35 km/h).

)

When the active stability control system
(ASC) comes into operation.

Reactivating the function

When the cruise control has been de-
activated, you can return to the stored
speed by pressing button 3 "ACC RES"

when you reach a minimum speed of
25 mph (40 km/h).
Decreasing the programmed
speed


)
Using button 2 "COAST SET"
:


- successive presses decrease the
speed in steps of approximately
1 mph (1.6 km/h).

- a maintained press of this button
decreases the speed progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.


)
Using the brake pedal:


- brake to deactivate the cruise control,
then press button 2 "COAST SET"
.
Release to store the new speed.



Temporary acceleration/deceleration
Increasing the programmed
speed


)
Using button 3 "ACC RES"
:


- successive presses increase the
speed in steps of approximately
1 mph (1.6 km/h).

- a maintained press of this button
increases the programmed speed
progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.


)
Using the accelerator pedal:


- accelerate to reach the speed re-
quired, then press button 2 "COAST
SET"
. Release the button to store
the new speed.

Temporary acceleration
Press the accelerator pedal as normal.
When the pedal is released, you return
to the stored speed.

Temporary deceleration
Press the brake pedal to reduce the
speed. To return to the stored speed,
press button 3 "ACC RES"
.

XI
169
AUDIO and TELEMATICS
RADIO

Selectin
g radio mode

Press the "PWR" button
or the "AM/FM" button to
switch on the radio.
Disconnecting the battery terminals
clears the stored radio stations.


Selecting the waveband

Press the "AM/FM" button
several times in succession
to select the waveband; it
changes in the following
order: FM1/FM2/FM3/MW/
LW/FM1...

Automatic station search

Press the "SEEK
" or
"SEEK

" button to search
the lower frequencies or the
higher frequencies respec-
tively.
Manual station search
Turn the "TUNE" dial re-
spectively to the left to
search the lower frequen-
cies or to the right to search
the higher frequencies.
Manual station storing

Press one of the six buttons "1" to "6"
until an audible signal is heard.
The sound cuts out then becomes au-
dible again when the station has been
stored.
The number of the button and the as-
sociated radio frequency appear on the
screen.

Automatic station storing

Press the "AM/FM" button
for more than two seconds.

Recalling stored stations

Press one of the six buttons "1" to "6".
The station corresponding to the wave-
band selected appears on the screen.
The search begins automatically and
stops at the fi rst station found. The six stations offering the best recep-
tion are stored and classifi ed from the
weakest to the strongest on the six cor-
responding buttons. You can store up to six stations on each
waveband.
Storing a new station replaces the pre-
vious station. Stations can only be stored automati-
cally on wavebands FM3, MW and LW.
Storing new stations replaces the pre-
vious stations.
This storing can be activated automatically
irrespective of the waveband selected.
To recall the pre-set stored setting,
press the button and release it within
two seconds.

XI
171
AUDIO and TELEMATICS

Themed type of programme
"PTY"
Some stations offer the option of listen-
ing to a themed type of programme as a
priority, selected from the list available
below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED,
POP M, ROCK M, EASY M, LIGHT M,
CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN,
TRAVEL, LEISURE, JAZZ, COUNTRY,
NATION M, OLDIES, FOLK M, DOCUMENT.

Emergency broadcasts
"ALERT"
An emergency broadcast automatically
and temporarily interrupts the FM station
or the source that you are listening to.
The message "ALERT" appears on the
display and the volume is different from
that of the previous source.
Following the emergency broadcast,
the message disappears and the volume
returns to that of the source prior to the
interruption.
Search for a "PTY" broadcast
Press the "PTY" button.
Turn the "TUNE" dial to se-
lect the type of programme
required.
Two seconds later, the radio searches
for a broadcast which corresponds to
your selection; the type of PTY selected
fl ashes on the display.
Once the station has been found, its
name appears on the display.
You can press the "SEEK
" or "SEEK
" buttons to fi nd another station.

If no station is found corresponding
to your selected type of programme,
"NONE" appears on the display for
fi ve seconds and the radio returns to
the previous station.
You can store up to six PTY programmes.
Each new programme stored replaces
the previous one.
Storing a "PTY" programme To recall the pre-set memory setting,
press the button and release it within
two seconds.

Changing the display language of
the "PTY" programme
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button several times in
succession; the functions setting mode
changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial to the left or to the
right to select the language (ENGLISH,
FRANCAIS, DEUTSCH, SVENSK,
ESPAGNOL, ITALIANO).
The sound cuts out then becomes au-
dible again when the programme has
been stored.
The number of the button and the asso-
ciated PTY programme appear on the
display.
Turn the "TUNE" dial to set
the PTY programme to be
stored.
Press one of the six but-
tons "1" to "6" for more than
two seconds.

XI
175
AUDIO and TELEMATICS

Selecting changer mode

If the changer already con-
tains a disc, press the "CD"
button.
"CD", the disc and track
numbers and the playing time appear
in the screen. After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.

Ejecting a disc

Press this button briefl y to
remove the current disc
from the changer. Once ejected, if the compact disc is
not removed within fi fteen seconds it
is re-loaded into the changer.


Loading a disc

Press the "LOAD" button
briefl y. "WAIT" appears on
the display.
When the changer is ready,
the indicator lamp on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears in the screen.
If several slots are empty, select one
using one of the "DISC" buttons. The CD changer can hold up to 6 CDs.
Insert circular compact discs only.
8 cm compact discs cannot be
played by the changer.


Loading all of the discs
Ejecting all of the discs

Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been
removed, the next disc is ejected auto-
matically in its turn.
Repeat these steps until unloading is
complete.

Selecting a disc

Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol
of the disc selected appears
in the screen. See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER

XI
!
178
AUDIO and TELEMATICS

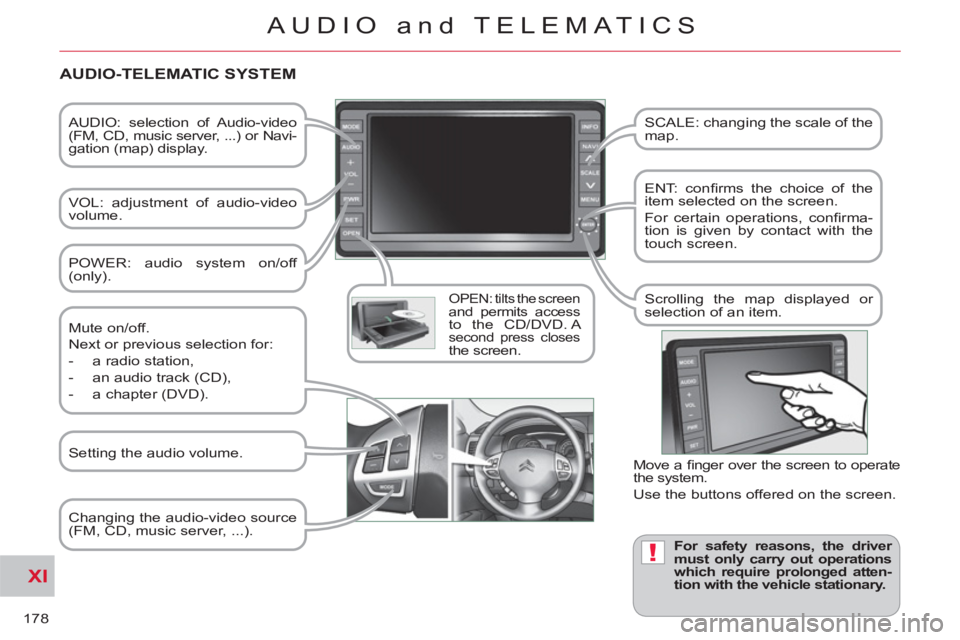

AUDIO: selection of Audio-video
(FM, CD, music server, ...) or Navi-
gation (map) display.

VOL: adjustment of audio-video
volume.


OPEN: tilts the screen and permits access to the CD/DVD. A second press closes the screen.
SCALE: changing the scale of the
map.

ENT: confi rms the choice of the
item selected on the screen.
For certain operations, confi rma-
tion is given by contact with the
touch screen.

Scrolling the map displayed or
selection of an item.


For safety reasons, the driver
must only carry out operations
which require prolonged atten-
tion with the vehicle stationary.

AUDIO-TELEMATIC SYSTEM


Changing the audio-video source
(FM, CD, music server, ...).
Mute on/off.
Next or previous selection for:


- a radio station,

- an audio track (CD),

- a chapter (DVD).

Move a fi nger over the screen to operate
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).

Setting the audio volume.

XI
/
188
AUDIO and TELEMATICS

Entering an address and starting guidance (2/2)

Press
Explanations
Result
Press [Street] and enter the name of a street using the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer
are recognised, you can select a street from a list which is displayed or
press [List].
Press [House #] and enter the number of the house using the touch
keypad.
You can enter the name of a junction instead of the number
of the street. Press [Junction] and select the name from a
list which is displayed.
This is the result once all of the information has been entered:
If you agree with the information press [Set], otherwise press one of the
buttons to correct.
Press [Start] to start the navigation.
