Checks

Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
Screenwash fluid level
Top up the level when necessary. Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.

Do not discard used oil or fluids into sewers or onto the ground.
Take used oil to a CITROËN dealer or a qualified workshop (France) or to anauthorised waste disposal site.








Used products
To p p i ng up
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination
of the ser vice warning lamp, accompaniedby an audible warning and a message in the screen.

166
Checks






Checks

The battery does not require any maintenance.
However, check that the terminals are clean
and correctl
y tightened, particularly in summer and winter.
Par ticle emissions filter (Diesel)
The start of saturation of thepar ticle filter is indicated by the
temporary illumination of this warning lamp
accompanied by a warning message in the screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lampgoes off.
If the warning lamp stays on, this indicates a
low additive level.
On a new vehicle, the first particlefilter regeneration operations may be accompanied by a "burning" smell,
which is perfectly normal.
Following prolonged operation of the vehicle at very low speed or at idle, you may, in exceptional circumstances,notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment. Unless other wise indicated, check these components in accordance with the ser vicin
g booklet and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
Air filter and passenger compartment filter
Refer to the servicing booklet for
details of the replacement inter vals
for these components.
Oil filter
Replace the oil filter each time theengine oil is changed.
Refer to the ser vicing booklet for
details of the replacement inter val for
this component. When carr
ying out work on the battery, refer
to the "Practical information" section for
details of the precautions to be taken before
disconnecting the battery and following itsreconnection. Dependin
g on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.city driving), replace them twice as often if necessary.y A clogged passenger compar tment filter may
have an adverse effect on the performance
of the air conditioning system and generateundesirable odours.

168
Technical data
EnginesVTi72VTi 115
GearboxesManual (5-speed)

Electronic (5-speed)

Manual (5-speed)


Automatic
(4-speed)


Model codes : DD...

HMY0HMY0/P

NFP0


NFP9


Cubic capacity (cc)
1 199

1 587
Bore x stroke
(mm)

75 x 90.578.5 x 82
Max power: EU standard
(kW)
53
85
Max power engine speed
(rpm)
5 500
6 050
Max torque: EU standard
(Nm)
110

150

Max torque engine speed (rpm) 3 000

4 000

F
uel Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON

Catalytic conver ter yesyes

OIL CAPACITIES
(in litres)
Engine (with filter replacement) 3.253.5















Petrol engines

170
Technical data
EngineHDi 92
Gearbox
Manual(5-speed)

Model codes:DD...9HJC
9HP0
Cubic capacity (cc) 1 560

Bore x stroke
(mm)

75 x 88

Max power: EU standard (kW) 68

Max power engine speed (rpm)
4 000
Max torque: EU standard
(Nm)
230

Max torque engine speed (rpm)
1 750

F
uel Diesel

Catalytic conver ter yes
Particle emission filter no
yes

OIL CAPACITIES
(in litres)
Engine (with filter replacement) 3.75














Diesel engine

226
Visual search
Maintenance - Technical data
Petrol weights 169 Diesel weights 171
Changing bulbs 133 -138 - front- rear


Running out of fuel, Diesel 162
Opening the bonnet 159 Under the bonnet, petrol 160 Under the bonnet, Diesel 161 Petrol engines 168 Diesel engines 170
12V bat tery 14 4 -146 Load reduction, economy mode 146, 147
Engine compar tment fuses 13 9 -140, 143
Checking levels 163 -165 - oil- brake fluid- coolant- screenwash fluid - additive (Diesel with particleemissions filter)
Checking components 166 -167 - battery - air / passenger compar tment filter - oil filter - particle emissions filter (Diesel)- brake pads / discs
Identification markings 173 Dimensions 172

.
227
Alphabetical index
ABS and EBFD systems ...............................101Accessoires...................................................154Accessories..................................................154Accessory socket, 12V ...................................72Adjusting headlamps......................................96Adjusting head restraints................................56Adjusting the steering wheel ...........................60Advice on care and maintenance.........154,160Airbags....................................................31, 106Airbags, front.........................................106, 109Airbags, lateral......................................108, 109Air conditioning...................................20, 63, 65Air conditioning, electronic (with screen)...........................................62,65Air conditioning, manual...........................14, 63Air filter..........................................................r166Air flow............................................................61Air vents..........................................................61Alarm ...............................................................46Anti-lock braking system (ABS)....................101Anti-theft....................................................43, 45Armrest, front..................................................72Ashtray............................................................70Audible warning............................................100Audio streaming (Bluetooth).................188, 190Audio system.........................................175, 205Automatic operation of hazard
warning lamps.............................................100Auxiliary sockets...................................187,215
Boot .................................................................49Boot (unlocking)..............................................42Brake discs....................................................167Brake lamps ..................................................137Brake pads....................................................167Braking assistance system...........................101
Capacity, fuel tank ..........................................52CD.........................................................182, 211CD MP3 .................................................183, 212Central locking................................................43Changing a bulb .....................................133-138Changing a fuse.....................................139-143Changing a wheel..................................126-132Changing a wiper blade..........................98,148Changing the date...........................................35Changing the remote control battery..............44Changing the time...........................................35Checking levels ......................................163-165Checking the engine oil level........................163Checking tyre pressures (using the kit) ........125Checks...................................................160-167Child lock.......................................................119Children ..........................................105, 11 0-11 9Child seats .....................................110, 113-115Child seats, conventional ..............................113Cigarette lighter...............................................r72Clock ...............................................................35Closing the boot........................................43, 49Closing the doors ......................................43, 48Connectors, audio ...................72,185, 187,215Coolant level.................................................164Courtesy lamps...............................................99
A
C
Courtesy mirror...............................................r71Cruise control..................................................87Cup holder.......................................................r70
D
Date (setting)...................................................35Daytime running lamps...........................95,135Deactivating the passenger airbag...............107Demisting/defrosting, front .............................68Demisting/defrosting, rear..............................r69Dials and gauges............................................22Diesel additive level......................................165Dimensions ...................................................172Dipped beam...........................................91,135Dipstick ..........................................................163Direction indicators.......................100, 134, 137Doors...............................................................48Door pockets ...................................................70Driving economically ......................................20
Battery...........................................14 4-146,166Battery, charging...................................145,146Battery, remote control.............................44, 45Bluetooth (hands-free).................................. 189Bonnet ...........................................................159
BEBA (Emergency braking assistance) ..........101Eco-driving .....................................................20Economy mode.............................................147Electric window controls.................................51Electronic brake force distribution(EBFD)........................................................101
E

228
Alphabetical index
Filling with fuel ..........................................52-54Fitting a wheel...............................................131Fitting roof bars.............................................157Fittings, boot...................................................73Flashing indicators ........................100,134, 137Front foglamps ........................................93, 136Front seats......................................................55Fuel............................................................20,54Fuel consumption............................................20Fuel f iller cap...................................................52Fuel filler flap...................................................52Fuel gauge..........................................15, 3 0, 52Fuel tank....................................................52, 53Fusebox, dashboard.....................................141Fuses .............................................................139
Gearbox, automatic ........................82, 146,167Gearbox, electronic.........................78, 146,167Gearbox, manual....................................77,167Gear lever, automatic gearbox .......................82Gear lever, electronic gearbox ..........................78Gear lever, manual gearbox...........................77Glove box........................................................71
Halogen headlamps......................................133Hands-free kit................................................189Hazard warning lamps ..................................100Headlamps..............................................91, 133Head restraints, front......................................56Heated lower windscreen ...............................69Heating..........................................14, 20, 63, 65Height adjustment, steering wheel .................60Horn...............................................................100
Keeping children safe....................105, 11 0 -119Key in ignition warning....................................75Key with remote control ............................ 42-45
Labels, identification ..................................... 173Lamps, front..................................................133Lamps, warning and indicator...................r23-31Level, brake fluid ........................................... 164
Levels and checks.................................160-165Lighting............................................................91Lighting, guide-me home ................................95Lighting, interior..............................................r99Lighting bulbs (replacement).................133-138Lighting control stalk.......................................91Lighting on reminder.......................................r94Loading....................................................20,157Load reduction mode.................................... 146Locating your vehicle......................................43Lower windscreen defrosting..........................69
Jack...............................................................126JACK socket ....................................72, 187, 215
F
GJ
H
K
L
Electronic engine immobiliser...................r43,45Emergency boot release.................................50Emergency braking system ..........................101Emergency starting.......................................145Emergency warning lamps...........................100Energy economy mode .................................147Engine, Diesel .................54,161,162,170, 171Engine, petrol..................................54,160, 168Engine compartment .............................160,161Engine compar tment fusebox.......................143Engine oil......................................................163Engine oil dipstick .........................................163Engines .................................................168,170Environment................20,45, 62, 146, 165, 173ESP/ASR.......................................................102
Ignition.............................................................75Indicators, direction ......................100,134, 137Inflating accessories (using the kit) ..............125Inflating tyres..................................20, 125, 173
Inputs for audio system ...................72,187, 215Instrument panel.............................................22Instrument panel screen.................................22Interior fittings ...........................................70-72ISOFIX child seats .................................117,118ISOFIX mountings.........................................116
I

3
2
Access

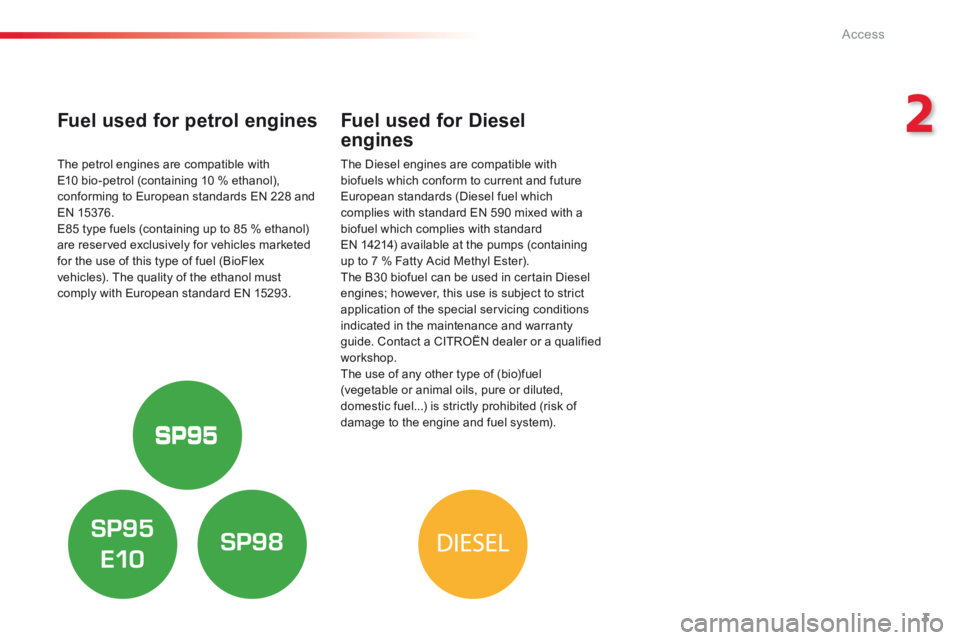

Fuel used for petrol engines
