brake fluid CITROEN C-ELYSÉE 2014 Handbook (in English)

28
Monitoring
Warning / indicator lampStateCauseAction / Observations
Braking fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a CITROËN dealer or a qualified workshop.
+
fixed, associatedwith the ABS warning lamp. Th
e electronic brake force distribution (EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.


Maximum coolanttemperature

fixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before toppingup the level, if necessary.
If the problem persists, contact a CITROËN dealer or qualified workshop.

160
Checks














Petrol engines
1.
Screenwash fluid reservoir.2.
Coolant header tank.3.
Air filter.4.
Brake fluid reservoir.5.
Battery.
6.Fusebox.7. Engine oil dipstick. 8.Engine oil filler cap.
To avoid damaging the electrical units,the use of a high pressure washer in the engine compar tment is strictly prohibited .

161
10
Checks

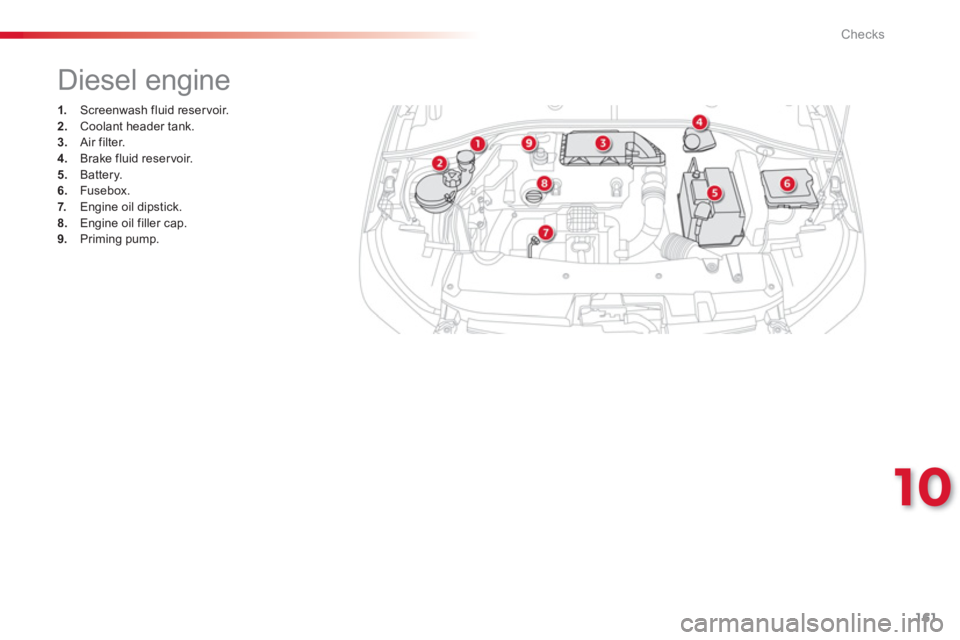

Diesel engine
1.
Screenwash fluid reservoir. 2.Coolant header tank.3.Air filter.4.
Brake fluid reservoir.
5. Battery.
6.Fusebox.7. Engine oil dipstick.8.Engine oil filler cap.9.
Priming pump.

164
Checks
The coolant level should be closeto the "MA X" mark but should never exceed it.
In addition, as the cooling system is pressurised,
wait at least one hour a
fter switching off the engine before carrying out any work.
To a v o i d a ny risk of scalding, unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.

Changing the coolant
The coolant does not have to be changed.


Fluid specifi cation

The coolant must conform to themanufacturer's recommendations. When the engine is warm, the temperature o
f
the coolant is regulated by the fan.
The cooling fan may star t after switching off the engine: take care with ar ticles and
clothing that might become caught by the
fan blades.
The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fl uid
Refer to the ser vicing booklet for details of the
interval for this operation.
Fluid specifi cation
The brake fluid must conform to themanufacturer's recommendations and meet the
DOT3 or DOT4 standard.

167
10
Checks
Manual gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking interval for this component.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the ser vicing booklet for
details of the checking interval for
this component.
Automatic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checkin
g interval
for this component. Brake wear depends on the st
yleof driving, par ticularly in the caseof vehicles used in town, over shor t
distances. It may be necessary to have
the condition of the brakes checked,even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Parking brake
If excessive travel or a loss of
effectiveness of this system isnoticed, the parking brake must be checked, even between two ser vices.















Only use products recommended by CITROËN or products of equivalent quality and specification. In order to optimise the operationof units as impor tant as the braking system, CITROËN selects and offers very specific products.
Checking this system must be done by aCITROËN dealer or a qualified workshop. Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn.
