Citroen C ZERO 2011 1.G User Guide

.Familiarisation
9
Sitting comfortably


Front seats


38





1.
Head restraint height adjustment.

2.
Backrest angle adjustment.

3.
Driver’s seat cushion height adjustment.

4.
Seat forwards-backwards adjustment.

Familiarisation
10
Sitting comfortably


Door mirrors




A.
Selection of the mirror.

B.
Adjusting the position of the mirror glass.

C.
Folding/Unfolding.

42





Rear view mirror


Manual day/night type



1.
Selecting the "day" position of the rear view mirror.

2.
Rear view mirror adjustment.

43





1.
Fitting the belt.

2.
Fastening the buckle.

3.
Checking the fastening by pulling on the
belt webbing.


Seat belts


73

.Familiarisation
11
Seeing clearly


Lighting


Ring A

Ring B


Wipers


56





Windscreen wiper


59




Rear wiper


59


Dipped or main beam headlamps.
Sidelamps.
Automatic illumination of headlamps.
Lighting off.
Front and rear foglamps. Park.
Intermittent wipe.
Wash/wipe. Single wipe.
Park.
Intermittent wipe (speed adjustable
manually).
Slow.
Fast.

Familiarisation
12
Vent ilat ion


Air conditioning

Te m p e r a t u r e a d j u s t m e n t .
Air flow adjustment. Air distribution adjustment.
Air intake/Air recirculation. Air conditioning On/Off.
"MA X" button.

49

.Familiarisation
13
Passenger safety



1.
Inser t the key.

2.
Select position:
"ON"
(activation), with front passenger or
"for wards facing" child seat,
"OFF"
(deactivation), with "rear facing"
child seat.


Front passenger’s airbag

Two rings A
, located between the seat cushion
and backrest are used to secure an ISOFIX
child seat.
A ring B
is used to secure an upper strap called
the TOP TETHER
.


ISOFIX mountings


77




Child lock



A.
Child lock on.

B.
Child lock off.

68



65

Familiarisation
14
Monitoring



1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps go off.
If a warning lamp remains on, refer to
the relevant page.

Warning lamps


19



A.
"Neutral" position.

B.
Energy consumption.

C.
"Eco" zone.

D.
"Charge" zone.


Energy consumption/
generation indicator

27

Four successive aler ts indicate that the energy
available in the main battery is dropping to a
low level:


- 2 bars of the energy gauge in the
instrument panel, on and flashing:
star ting to use the reser ve.

- The last bar in the energy gauge flashing.

- The last bar disappears:
display of the range disappears; the heating
and air conditioning are switched off.

Low energy alerts


- Display of this warning lamp in
the instrument panel:
Progressive reduction in the
power available from the motor.

26

.Familiarisation
15
Driving safely


P.
Parking.
Press the brake pedal to come out of
this position.

R.
Reverse.

N.
Neutral.

D.
Drive (for ward).


Drive selector


54



- Check that the drive selector is in position P
.

- Inser t the key in the ignition switch.

- Turn the key to position 4 (START)
.

- Hold it in this position for a few seconds,
until the " READY
" lamp comes on,
accompanied by an audible signal.

- Release the key.
The switch returns automatically to
position 3 (ON)
.


Starting the motor


52



- Stop the vehicle.

- Keep your foot on the brake pedal.

- Put the drive selector in position P
.

- Apply the parking brake.

- Turn the key anti-clockwise to the LOCK

position.


Stopping the motor


52

i!
!
!
!
Familiarisation
16
Charging your vehicle

This procedure consists of connecting the
vehicle to a special fast charging station.


A.
Interior opening control.

B.
Exterior flap (left hand side of the vehicle).

C.
Socket cover.
The cable to use is the one attached to the
charging station.

Fast charge


84
This procedure consists of connecting the
vehicle to a domestic power point.


A.
Interior opening control.

B.
Exterior flap (right hand side of the vehicle).

C.
Socket cover.


Normal charge


80


To optimise the ser vice life of the
main batter y, recharge it completely
ever y 15 days.

For a recharge to be complete
,
follow the procedure for a normal
recharge
(domestic power point)
without interruption, until it switches off
automatically (charging lamp goes off in
the instrument panel).
Before making any connection, check
that the power point you want to use
meets standards and is compatible
with the current rating on the control
unit of the charging cable. In all cases,
it is recommended that you first have
your installation checked by a qualified
electrician.
Ensure that the charging station and its
cable are compatible with your vehicle.
You must always use a genuine
CITROËN charging cable.
Do not use an electrical
extension lead, multi-way
connector, adaptor or timer.

.Familiarisation
17





For more economical driving, and increased range
Practical advice for everyday use to optimise the range of your vehicle by conser ving battery power.


Adopt a smooth driving
style
The electrical consumption of your vehicle
depends greatly on your journey, your driving
style and your speed.
In all cases, adopt a smooth driving style.

Stay in the "Eco" zone
indicated in the energy
consumption/generation meter: depress the
accelerator pedal progressively, without sudden
movement, and if the conditions permit, drive at
steady and moderate speed.


Recover energy

Anticipating the driving conditions allows you to
recover energy and increase the range of your
vehicle.

Use the "Charge" zone
of the energy
consumption/generation meter whenever
possible: anticipate the traffic slowing
down and if the the conditions permit, use
deceleration rather than the brakes.


Control the use of your
electrical equipment
The heating and air conditioning systems
operate on energy from the main battery.
Excessive use of these systems greatly
reduces the range of your vehicle. Remember
to switch them off once the desired level of
comfor t is reached and check their settings
every time you set off.
Control also the use of demisting/defrosting
and the heated seat.


Limit the causes of excess
consumption
As with any vehicle, limit the loads carried
in the vehicle and reduce wind resistance
(windows open above 30 mph (50 km/h), roof
bars, roof box, …).


Observe the recommendations
on maintenance
Check the tyre pressures regularly and
follow the schedule for routine ser vicing
recommended by CITROËN.

Monitoring
18

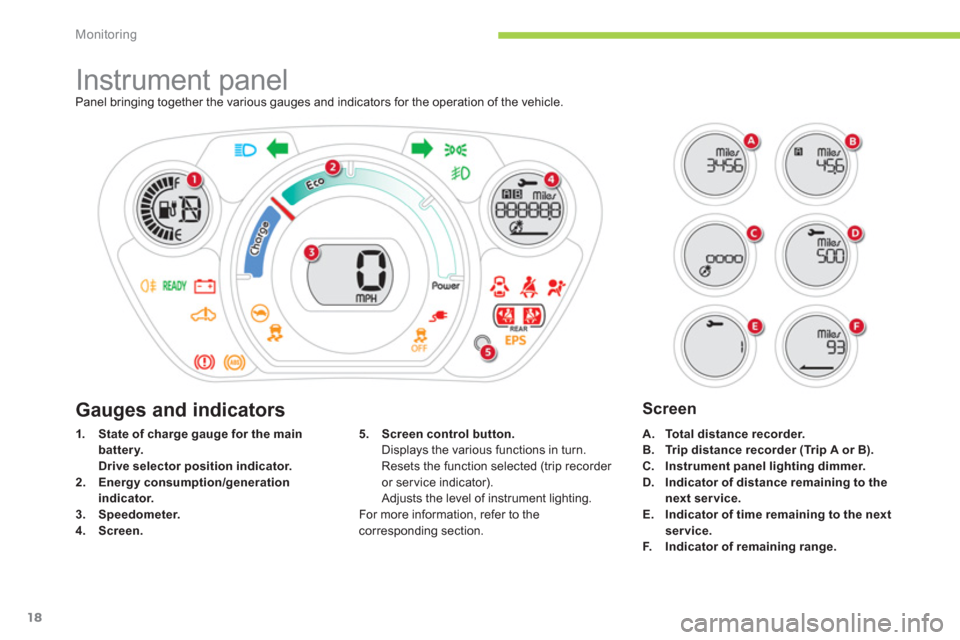

Instrument panel
Panel bringing together the various gauges and indicators for the operation of the vehicle.


1.
State of charge gauge for the main
battery.



Drive

selector position indicator.


2.
Energy consumption/generation
indicator.


3.
Speedometer.


4.
Screen.


A.
Total distance recorder.


B.
Trip distance recorder (Trip A or B).


C.
Instrument panel lighting dimmer.


D.
Indicator of distance remaining to the
next service.


E.
Indicator of time remaining to the next
service.


F.
Indicator of remaining range.




5.
Screen control button.


Displays the various functions in turn.
Resets the function selected (trip recorder
or ser vice indicator).
Adjusts the level of instrument lighting.
For more information, refer to the
corresponding section.

Gauges and indicators

Screen
