audio Citroen C ZERO 2011 1.G Owner's Manual

.
.
Contents
Child seats 61
ISOFIX child seats 65
Child lock 68
Child safety
Direction indicators 69
Hazard warning lamps 69
Horn 69
Emergency or assistance call 70
Braking assistance systems 70
Trajectory control systems 72
Front seat belts 73
Airbags 76
Safety
Charging the main battery 80
Ancillaries battery 86
Temporary puncture repair kit 90
Changing a wheel 94
Changing a bulb 97
Changing a fuse 105
Changing a wiper blade 110
Towing the vehicle 110
Precautions for washing 111
A c c e s s o r i e s 111
Practical information
Bonnet 114
Front compar tment 115
Rear compartment 116
Checking levels 117
Checks 119
Checks
Electric motor 120
Weights 121
Dimensions 122
Identifi cation markings 123
Technical data
Emergency or assistance 125
Audio system 127
Audio and telematics
Visual search
Alphabetical index

Familiarisation
6
Interior


Drive selector

Four-position drive selector: P
, R
, N
and D
.


Charging fl ap interior opening
controls

Air conditioning

After setting the desired level of comfor t,
the system controls this level according to
the exterior climatic conditions.

Audio system

This system benefits from the latest
technology: MP3 compatible audio system,
USB player, Bluetooth hands-free system, ...

54



37



49


127

Normal charging flap.
Fast charging flap.

Familiarisation
8
Instruments and controls



1.
Parking brake.

2.
Drive selector.

3.
12 V accessory socket.

4.
Passenger’s airbag deactivation.
USB por t.

5.
Glove box.

6.
Cup holder.

7.
Windscreen demisting vents.

8.
Lighting and direction indicator stalk.

9.
Audio system.

10.
Hazard warning lamps switch.

11.
Centre vents.

12 .
Heating/air conditioning controls.

13.
Emergency or assistance call.

i
Comfort
46

When connected to the USB por t, the por table
device charges automatically.

For more information on the use of
this system, refer to the "Audio and
Telematics" section.









USB Player


This USB port, is located on the centre console.
It permits the connection of por table devices,
such as a digital audio player of the iPod ® type
or a USB memory stick.
It reads the audio files which are transmitted
to your audio equipment and played via the
vehicle’s speakers.
You can manage these files using the audio
system controls.

!
Safety
70

















Braking assistance systems







Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery sur faces. Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution (EBFD),

- emergency braking assistance (EBA).









Emergency or
assistance call
This system allows you to make an emergency
or assistance call to the emergency ser vices or
to the dedicated CITROËN ser vice.
For more information on the use of this
function, refer to the "Audio and telematics"
section.
When braking in an emergency, press
very firmly without releasing the
pressure.


Activation

The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.

Practical information
106

Dashboard fuses

The fusebox is placed in the lower dashboard
(right-hand side).

Fuse N°



Rating



Functions




1



7. 5 A

Left hand front and rear sidelamps.


2



15 A

Accessory socket.


3



-

Not used.


4



7. 5 A

Star ter motor.


5



20 A

Audio system.


6



-

Not used.


7



7. 5 A

Vehicle equipment, right hand front and rear sidelamps.


8



7.5 A

Electric door mirrors.


9



7.5 A

Supervisor controller.


10



7.5 A

Air conditioning.


11



10 A

Rear foglamp.


12



15 A

Door locking.


13



10 A

Cour tesy lamp.

i
!i
Practical information
112

"Protection":

vehicle cover, translucent bumper protectors,
side rubbing strips...


"Multimedia":

audio systems, speed camera warning,
universal solar charger...
The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).


Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.

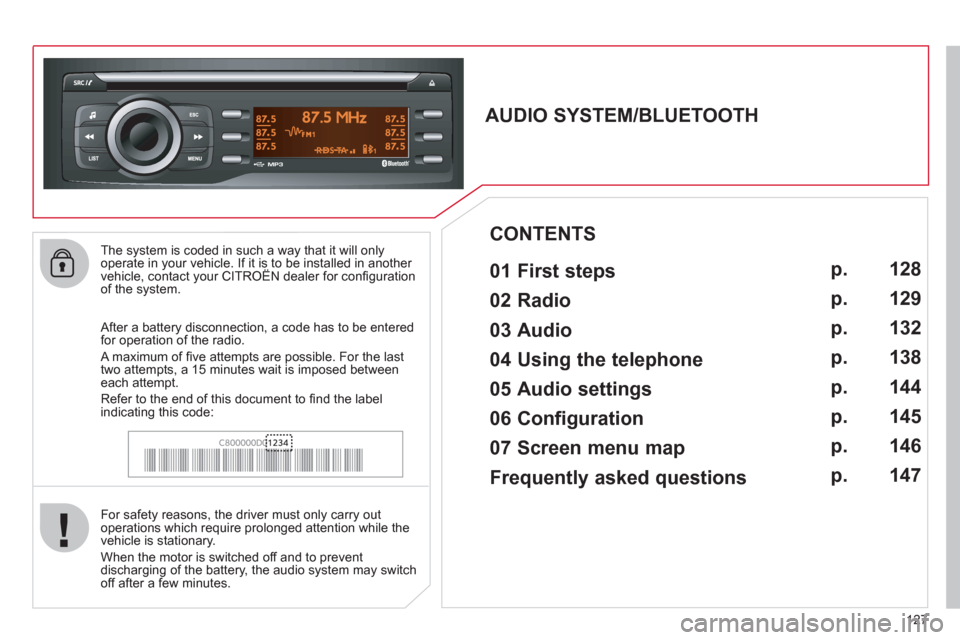

127
The system is coded in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact your CITROËN dealer for confi guration
of the system.


AUDIO SYSTEM/BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the motor is switched off and to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



CONTENTS

02 Radio

03 Audio

04 Using the telephone

05 Audio settings

06 Configuration

07 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p. 128
129
132
138
144
145
146
147

After a battery disconnection, a code has to be entered
for operation of the radio.
A maximum of fi ve attempts are possible. For the last
two attempts, a 15 minutes wait is imposed between
each attempt.
Refer to the end of this document to fi nd the label
indicating this code:

1
2
74
5
6
3
8
9
7
01
128
FIRST STEPS



1. On/Off and volume adjustment.

2. CD eject.

3. Selection of source:
FM1, FM2, CD, USB, AUX, Streaming.
Accept an incoming call.
Long press:


- access to calls log of the telephone
connected,

- or end a call in progress.
4. Selection of a preset radio station.
Radio: long press: preset a radio station.
Other than radio: see relevant sections.

5. Display the list of stations received,
the CD/USB tracks or folders.
Long press: update the list of stations
received.

6. Abandon current operation
.
Up one level (menu or folder).
7. Automatic search for a lower/higher radio
frequency.
Selection of previous/next CD, USB track.
Navigation in a list.
Maintained press: fast forwards or
backwards.

8. Main menu.

9. Audio settings:
equalizer, treble, bass, loudness,
distribution, left/right balance, front/rear
balance, automatic volume.

02
1
12
2
3
129
RADIO


Press SRC/TEL several times in
succession and select the FM1 or FM2
radio band.

Press a button to listen to the
corresponding preset station.
Select the desired radio station and
confi rm by pressing "OK"
.







RADIO


Press LIST
to display the list of stations
received in alphabetical order.
The exterior environment (hills, buildings, tunnel, car park, below ground...) may prevent reception, even in RDS station tracking mode.
This phenomenon is normal in the propagation of radio waves and is in no way indicative of a fault with the audio system.

A long press on LIST
builds or updates
the list of stations; audio reception is cut
momentarily.

Make a long press on one of the buttons
to preset the station being heard.
The name of the station is displayed
accompanied by an audible signal to
confi rm the preset.

A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).

MANAGE THE LIST

PRESETTING AND SELECTING A STATION
