Technical data
120

MODEL:



MOTOR AND MAIN BATTERY



Model type code:



1 N ZK Z Z



Electric motor



Y4 F1


Te c h n o l o g y
Synchronous with neodymium permanent magnets
Max. power: EU standard (kW)

49
Max. power speed (rpm)

2 500 to 8 000
Max. torque: EU standard (Nm)

18 0
Max. torque speed (rpm)

0 to 2 500

Main battery



Lithium-Ion


Energy capacity (kWh)

16

Normal charge

Voltage (V)

220
Charging time
(

* )
(

** )
:


- 16 A

- 13 A

- 10 A

6 hours
7 hours
9 hours

Fast charge

Voltage (V)

330
Charging time (80% charge) **

30 minutes

*
Depending on the power supply in the country.

**
Time measured for ambient temperatures between 20 and 25 °C. Range varies according to the exterior climatic conditions, the driver's style of driving, the use of electrical equipment, the frequency of normal or fast
charges and ageing of the main battery.

10
!
Technical data
121


WEIGHTS (

in
kg)



Electric motor



Y4 F1



Main battery



Lithium-Ion



Model type code:



1 N ZK Z Z


Unladen weight

1 120
Kerb weight

1 195
Gross vehicle weight (GV W)

1 450
Gross train weight (GTW)

1 450
Maximum load on the roof (including the roof bars)
43

Your vehicle cannot be fitted with a towbar. It cannot tow a trailer.

Technical data
122

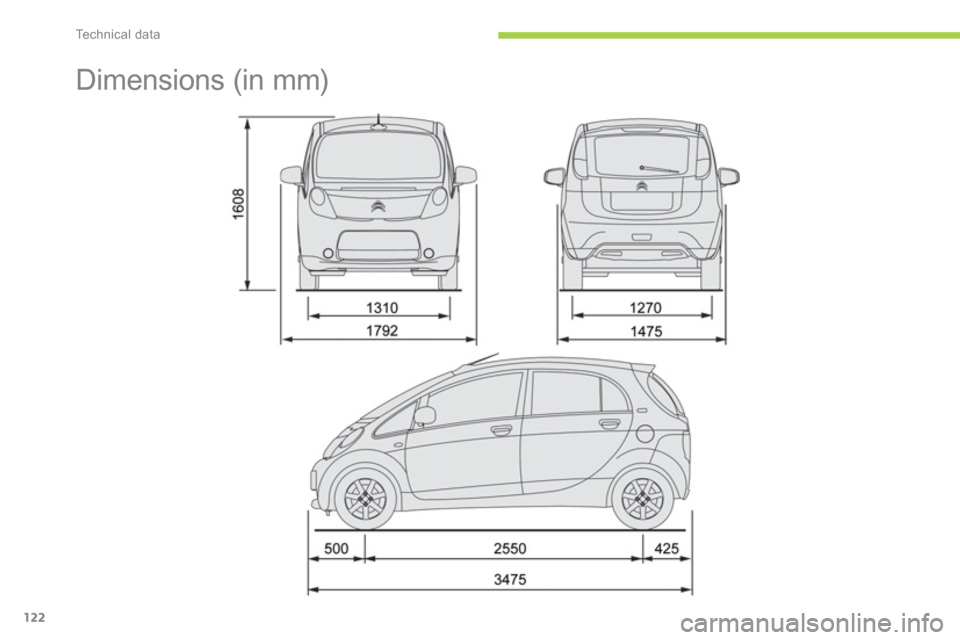

Dimensions (in mm)

10
i
i
Technical data
123














Identifi cation markings
Various visible markings for the identification of your vehicle.

A. Ser vice - Replacement Par ts
identification plate.

This plate is riveted to the underside of
the bonnet. Tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase the
electrical power consumption of your
vehicle, which reduces its range.
B. Tyre identification label.

This label is affixed to the driver's centre pillar.
It bears the following information:


- the tyre pressures (in bars),

- the tyre specification,

- the type of tyre.
C. Manufacturer's plate

This plate is riveted to the left hand centre
pillar.

D. Vehicle identification number (VIN).

This number is is engraved on the inner wheel
arch, inside the boot, right hand side.
For information on fitting snow chains,
contact a CITROËN dealer or a
qualified workshop.
It bears in par ticular the following information:


- the vehicle model,

- the paint code,

- the type, variant, version.

.
