Changing a wiper
blade
Removing a front or rear
wiper blade
F Raise the corresponding wiper arm.
F R emove the wiper blade, sliding it towards
the outside.
Fitting a front or rear wiper
blade
F Put the new wiper blade in place and secure it.
F

F
old down the wiper arm carefully.
Precautions for
washing
To avoid damaging the electrical
components, the use of a high pressure
jet wash is strictly prohibited:
-

i
n the front compartment (under the
bonnet).
-

u
nder the body.
For washing the bodywork, do not use a
pressure greater than 80 bars. Check - before washing the vehicle -
that the charging flaps and the charging
socket covers (normal and fast charge)
are properly closed. Do not wash the vehicle while the
battery is being recharged.
Practical information

113

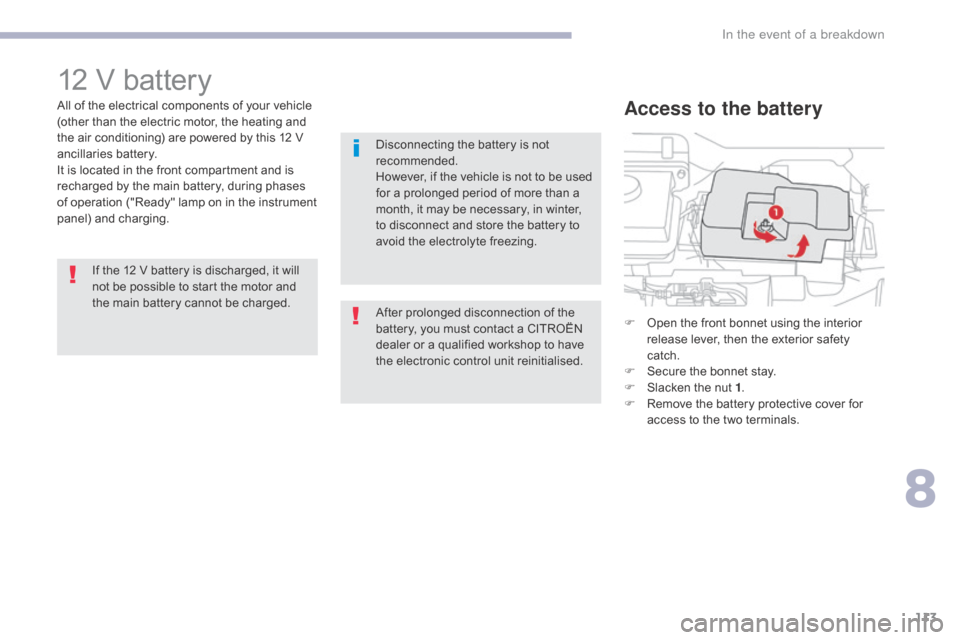

12 V battery
All of the electrical components of your vehicle
(other than the electric motor, the heating and
the air conditioning) are powered by this 12 V
ancillaries battery.
It is located in the front compartment and is
recharged by the main battery, during phases
of operation ("Ready" lamp on in the instrument
panel) and charging.If the 12 V battery is discharged, it will
not be possible to start the motor and
the main battery cannot be charged. F

O
pen the front bonnet using the interior
release lever, then the exterior safety
catch.
F

S
ecure the bonnet stay.
F

S
lacken the nut 1.
F

R
emove the battery protective cover for
access to the two terminals.Access to the battery
Disconnecting the battery is not
recommended.
However, if the vehicle is not to be used
for a prolonged period of more than a
month, it may be necessary, in winter,
to disconnect and store the battery to
avoid the electrolyte freezing.
After prolonged disconnection of the
battery, you must contact a CITROËN
dealer or a qualified workshop to have
the electronic control unit reinitialised.
8
In the event of a breakdown

118
1. 12 V compressor with integral pressure gauge, to measure and adjust the tyre
pressure.
Composition of the kit
2. Sealant cartridge for the temporary repair of a tyre.
3.
I

njection pipe.
4.
S

uction pipe, to remove the sealant product
if necessary.
5.
S

achet containing a replacement valve
core, a tool for removing/refitting the valve
core and a speed restriction sticker.
The speed restriction sticker must
be affixed to the vehicle's steering
wheel to
remind you that a wheel is in
temporary use.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
Refitting the rear seat cushion
F Put the metal cover back into place.
F R efit the four "butter fly" screws.
F

I
nsert the metal hooks into the seat
backrest.
F

F
old the seat cushion down and press to
secure the two locks.
F

C
heck that the seat cushion is locked
securely.
When refitting the cushion, take care
not to trap the seat belt buckles.
In the event of a breakdown

130
Changing dipped beam headlamp
bulbs
F Turn the bulb holder to the left and pull it out.
F

R
emove the bulb by pressing on the tongue.
F

C
hange the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing front foglamp bulbs /
d aytime running lamp bulbs
F Put the front wheels onto full lock,
to facilitate access.
F

R
emove the clips securing the protective
covers on the bulb holders.
F

M
ove the cover aside. F
T urn the bulb holder (A for the front fog
lamp, B for the daytime running lamp) to
the left and pull it out.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
In the event of a breakdown

137
Fuse N°Rating Functions
1 -Not used.
2 30 AInternal fuse.
3 40 AElectric motor.
4 40 ARadiator fan.
5 40 AElectric windows.
6 30 AVacuum pump.
7 15 AMain battery ECU.
8 15 AThird brake lamp.
9 15 AFront foglamps.
10 15 AWater pump.
Front compartment fuses
The fusebox is placed in the front compartment
under the heating system fluid reservoir. Only
these fuses can be replaced.
The replacement of fuses for other units
(e.g. vacuum pump and 12 V battery)
requires the involvement of a CITROËN
dealer or a qualified workshop.
8
