Installing ISOFIX child seats
I UF: seat suitable for the installation of an I sofix Universal seat, F or ward facing and secured using
the "Top Tether" upper strap.
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated. Weight of the child / indicative age
Less than 10 kg (group 0)
Up to 6 months approx Less than 10 kg (group 0)
Less than 13 kg (group 0+) Up to 1 year approx From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat*rearward facing rearward facingforward facing
ISOFIX size categor y F G C D EC D A B B1
Universal and semi-universal
ISOFIX child seats which can be
installed on the outer rear seats X
X X RÖMER
BabySafe Plus ISOFIX X X
IUF
* Infant car seats and "car cots" cannot be installed on the front passenger seat. Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A and G
, is
indicated on the child seat next to the ISOFIX logo.
5
Safety

91
To tow your vehicle, the drive selector
must be in position N.
For more information on Towing the
vehicle , refer to the corresponding
section.
Parking the vehicle
To stop the motor, you must select position P .
You must apply the parking brake to immobilise
the vehicle.
To remove the key from the ignition switch, the
drive selector must be in position P .
6
Driving

100

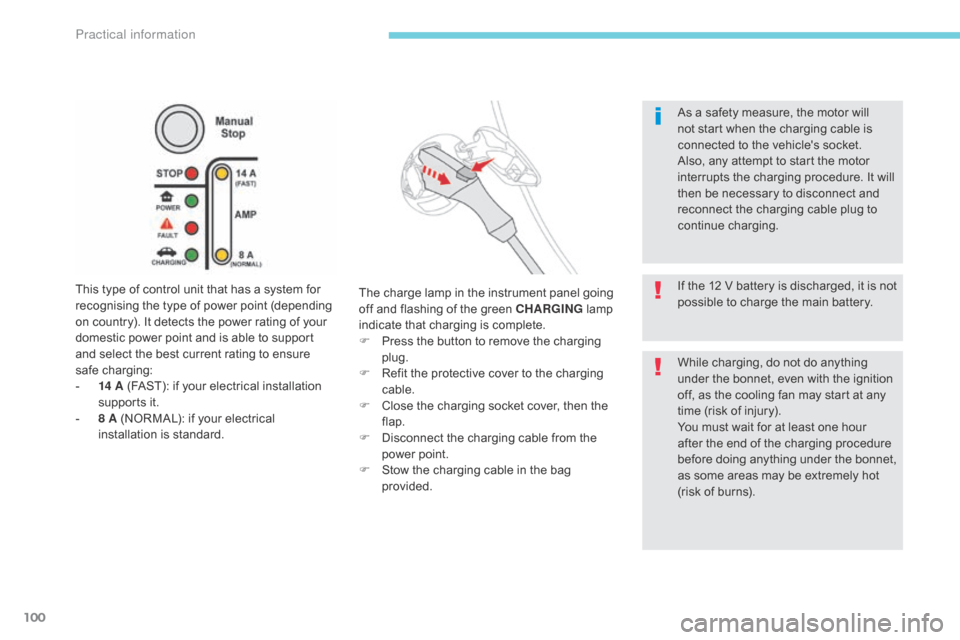

This type of control unit that has a system for
recognising the type of power point (depending
on country). It detects the power rating of your
domestic power point and is able to support
and select the best current rating to ensure
safe charging:
-
14
A (FAST): if your electrical installation
supports it.
-

8 A
(NORMAL): if your electrical
installation is standard. As a safety measure, the motor will
not start when the charging cable is
connected to the vehicle's socket.
Also, any attempt to start the motor
interrupts the charging procedure. It will
then be necessary to disconnect and
reconnect the charging cable plug to
continue charging.
The charge lamp in the instrument panel going
off and flashing of the green CHARGING lamp
indicate that charging is complete.
F

P
ress the button to remove the charging
plug.
F

R
efit the protective cover to the charging
cable.
F

C
lose the charging socket cover, then the
flap.
F

D
isconnect the charging cable from the
power point.
F

S
tow the charging cable in the bag
provided. If the 12 V battery is discharged, it is not
possible to charge the main battery.
While charging, do not do anything
under the bonnet, even with the ignition
off, as the cooling fan may start at any
time (risk of injury).
You must wait for at least one hour
after the end of the charging procedure
before doing anything under the bonnet,
as some areas may be extremely hot
(risk of burns).
Practical information

111
Checking componentsUnless other wise indicated, check these components in accordance with the manufacturer's service schedule.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
Passenger compartment filter
Refer to the manufacturer's
service schedule for details of the
replacement intervals for this filter.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
Only use products recommended by
CITROËN or products of equivalent
quality and specifications.
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and offers
very specific products.
Parking brake
If a loss of effectiveness of this
system is noticed, the parking brake
must be checked, even between
two services.
Brake disc / drum wear
For information on checking the
brake disc or drum wear, contact
a CITROËN dealer or a qualified
workshop.
This system must be checked by a CITROËN
dealer or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn. Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g.

city driving), replace it twice as often
if necessary .
A dirty passenger compartment filter may have
an adverse effect on the per formance of the air
conditioning system and generate undesirable
odours.
7
Practical information

112
Changing a wiper
blade
Removing a front or rear
wiper blade
F Raise the corresponding wiper arm.
F R emove the wiper blade, sliding it towards
the outside.
Fitting a front or rear wiper
blade
F Put the new wiper blade in place and secure it.
F

F
old down the wiper arm carefully.
Precautions for
washing
To avoid damaging the electrical
components, the use of a high pressure
jet wash is strictly prohibited:
-

i
n the front compartment (under the
bonnet).
-

u
nder the body.
For washing the bodywork, do not use a
pressure greater than 80 bars. Check - before washing the vehicle -
that the charging flaps and the charging
socket covers (normal and fast charge)
are properly closed. Do not wash the vehicle while the
battery is being recharged.
Practical information

120
2. Inflation
F Check that the compressor switch A is in the " OFF" position.
F

F
ully uncoil the compressor pipe B .F

C
onnect this pipe to the valve of the
repaired wheel.
F
C
onnect the compressor's electric plug to
the vehicle's 12 V socket (ignition switch in
position "ON" or "ACC").
F
S
tart the compressor by turning the
switch A to the "
ON" position.
F
U
sing the compressor, adjust the pressure
in accordance with the vehicle's tyre
pressure label (located in the driver's door
aperture).
A l
oss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or a qualified
workshop for assistance.
F

R
emove the compressor and stow the kit.
F

D
rive off straight away at reduced
speed (50 mph [80 km/h] max) limiting
the distance travelled to approximately
120
miles (200 km).As soon as possible, go to a CITROËN
dealer or a qualified workshop.
You must tell the technician that you
have used the kit. After checking, the
technician will advise you whether
the tyre can be repaired or must be
replaced. If after around 5 to 7 minutes the
required pressure is not attained, this
indicates that the tyre is not repairable;
contact a CITROËN dealer or a
qualified workshop for assistance.
In the event of a breakdown

126
Changing a bulb
1. Direction indicators (W21W - 21 W).
2. S idelamps (W5W - 5 W).
3.
M

ain beam headlamps (HB3 - 60 W).
4.
D

ipped beam headlamps (H11 - 55 W).
The headlamps have polycarbonate
lenses with a protective coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or a
pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Front lamps
5. Front foglamps (H8 - 35 W).
6. D aytime running lamps
(P13W - 13 W).
In the event of a breakdown

128
F Slacken fixing screw D, while holding the
bumper away.
F

S
lacken fixing screw E . F
P ull the lamp towards you, and disengage
the tab F to remove it completely.
In the event of a breakdown

131
1. Brake lamps / Sidelamps
(21 W / 15 W or LEDs).
2.
D

irection indicators (WY21W - 21 W).
3.
R

eversing lamps (W21W - 21 W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Changing integrated direction
indicator side repeater bulbs
(WY5W - 5
W)
F Push the repeater towards the rear and disengage it.
F

T
urn the bulb holder to the left and pull
it
out.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
F Remove the two screws.
F D isengage the lamp unit by pulling it
towards you.
8
In the event of a breakdown

134
Changing a fuse
The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right-hand
side).
For access:
F
U
nclip the cover and remove it completely
by pulling it towards you.
F

R
emove the tweezer.
Access to tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
C
heck that the ignition switch is in the
" LOCK " position.
F

I
dentify the failed fuse by checking the
condition of its filament.
Changing a fuse
Good Failed
F

U

se the special tweezer to extract the fuse
from its location.
F

A

lways replace the failed fuse with a fuse
of the same rating.
F

C

heck that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree. CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10
mil

liamperes.
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.
