Citroen C ZERO RHD 2017 1.G Owner's Guide

29
Boot
Opening
F After unlocking the vehicle using the remote control or the key, press the
handle
A

and open the tailgate. F
P ull the handle B downwards to guide the
tailgate down,
F

r
elease the handle and press the exterior
sur face of the tailgate gently to close it.
Closing
2
Access

30
1. Driver's electric window.
2. Passenger's electric window.
3.
R

ear right electric window.
4.
R

ear left electric window.
5.
D

eactivating the passenger and rear
electric window switches.
Electric windows
Operation
Deactivating the passenger and
rear electric window switches
F For the safety of your children, press switch 5
to prevent operation of the passenger and rear
electric windows irrespective of their position.
When the button is pressed down, the switches are
deactivated.
When the button is raised, the switches are activated.
System which opens or closes a window manually or automatically. It is fitted with a deactivation system to prevent misuse of the rear controls.
The electric window switches
remain operational for approximately
30
seconds after the ignition is
switched
off.
The windows can no longer be opened
or closed after the driver's door is
closed.
With the ignition on:
F

P
ress the switch gently to open or pull it
gently to close. The window stops as soon
as the switch is released.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When the driver operates the
passenger electric window switches,
they must ensure that no one
is preventing correct closing of
the
w

indows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.
Automatic one-touch mode (driver's side)
F

P
ress the switch fully to open. The driver's
window opens completely when the switch
is released.
F

P
ressing the switch again stops the
movement of the window.
Access

31
Charging flaps
F Pull control A located at the bottom of the dashboard, driver's side, to release the
charging flap.
Normal charging
F Pull control C located under the driver's seat, on the door side, to release the flap.
Fast charging*
For more information on Charging
the main battery , refer to the
corresponding section.
F

O

pen the access flap on the right of the
vehicle.
F

P

ress latch B to open the socket cover. * Depending on equipment.
F

O

pen the flap on the left of the vehicle.
F

P

ress latch D to open the socket cover.
2
Access

32

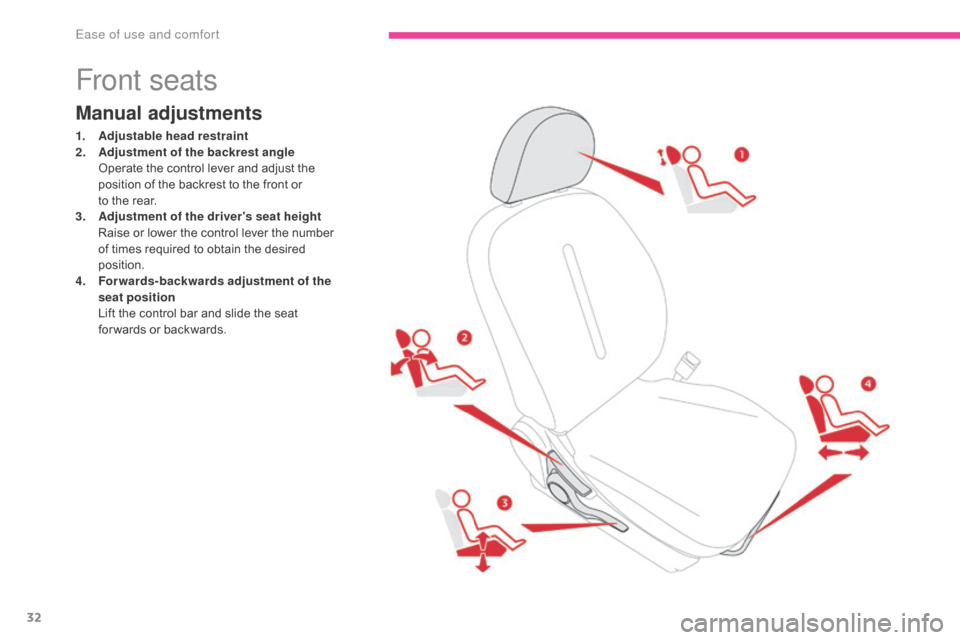

Front seats
Manual adjustments
1. Adjustable head restraint
2. Adjustment of the backrest angle
O

perate the control lever and adjust the
position of the backrest to the front or
to the rear.
3.
A

djustment of the driver's seat height
R

aise or lower the control lever the number
of times required to obtain the desired
position.
4.
F

orwards-backwards adjustment of the
seat position
L

ift the control bar and slide the seat
for wards or backwards.
Ease of use and comfort

33
Head restraint height adjustment
F To raise it, pull upwards.
F T o lower it, push it downwards, pressing
the height adjustment button at the same
time.
F

T
o remove it, raise it to the high position,
then remove it pressing the height
adjustment button at the same time.
F

T
o refit it, engage the rods of the head
restraint in the apertures, pressing the
height adjustment button at the same time. Never drive with the removed head
restraints in the vehicle as they could
be thrown around the vehicle on sharp
braking. They must always be in place
and adjusted correctly.
After installing the head restraint, check
that the height adjustment button has
engaged correctly.
The adjustment is correct when the top
of the head restraint is aligned with the
top of the head of the seated person.Press the control switch, located on the
dashboard, to switch on the driver's seat
heating.
The warning lamp in the switch comes on.
The temperature is controlled automatically.
Pressing a second time stops operation.
Heated seat control
3
Ease of use and comfort

34

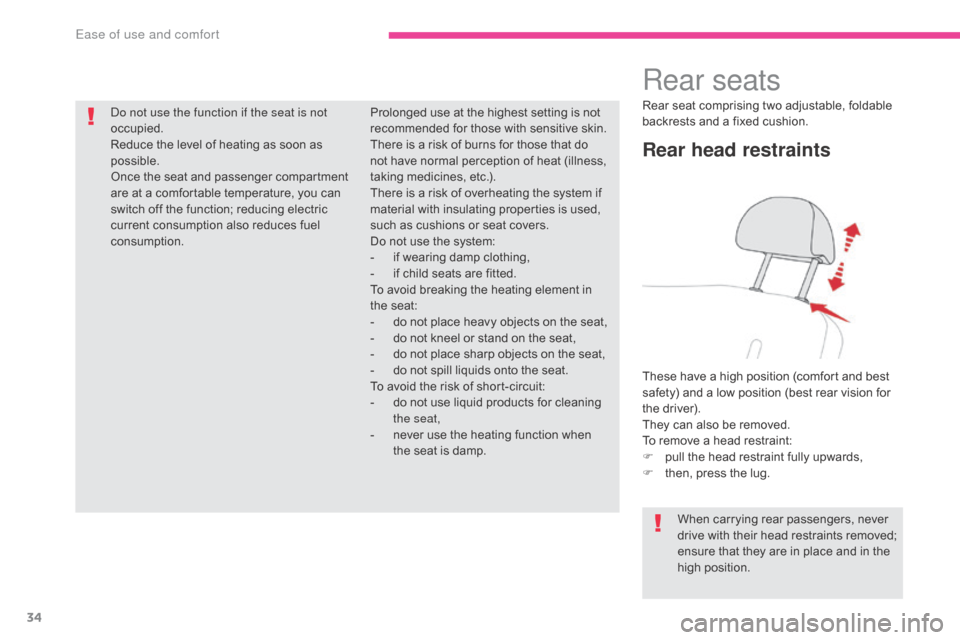

Rear seats
Rear head restraints
These have a high position (comfort and best
safety) and a low position (best rear vision for
the driver).
They can also be removed.
To remove a head restraint:
F
p
ull the head restraint fully upwards,
F

t
hen, press the lug.When carrying rear passengers, never
drive with their head restraints removed;
ensure that they are in place and in the
high position.
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger compartment
are at a comfortable temperature, you can
switch off the function; reducing electric
current consumption also reduces fuel
consumption.
Prolonged use at the highest setting is not
recommended for those with sensitive skin.
There is a risk of burns for those that do
not have normal perception of heat (illness,
taking medicines, etc.).
There is a risk of overheating the system if
material with insulating properties is used,
such as cushions or seat covers.
Do not use the system:
-

i

f wearing damp clothing,
-

i

f child seats are fitted.
To avoid breaking the heating element in
the seat:
-

d

o not place heavy objects on the seat,
-

d

o not kneel or stand on the seat,
-

d

o not place sharp objects on the seat,
-
d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-

d

o not use liquid products for cleaning
the seat,
-

n

ever use the heating function when
the seat is damp. Rear seat comprising two adjustable, foldable
backrests and a fixed cushion.
Ease of use and comfort

35

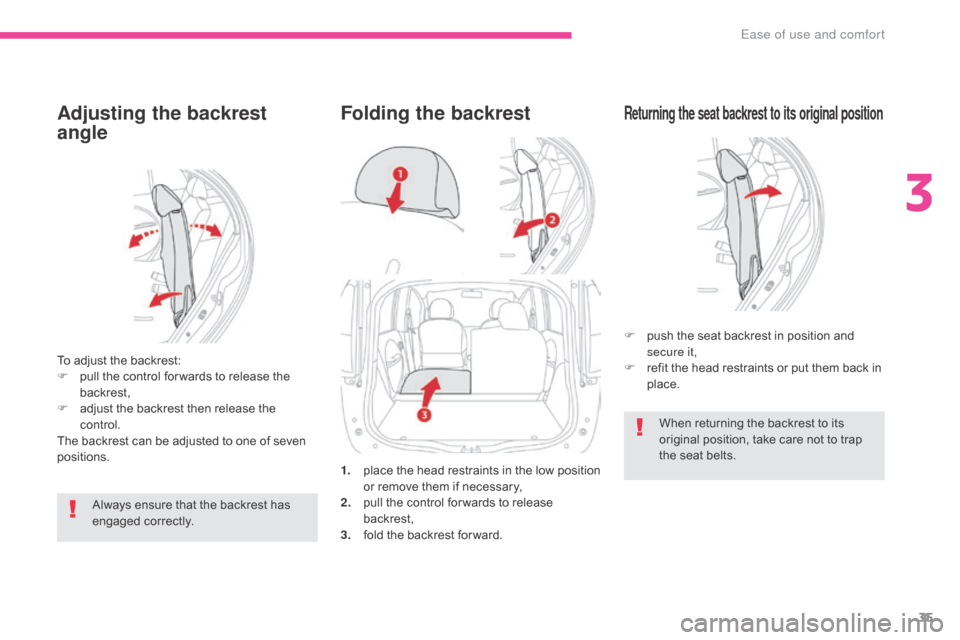

Adjusting the backrest
angle
To adjust the backrest:
F p ull the control for wards to release the
backrest,
F

a
djust the backrest then release the
control.
The backrest can be adjusted to one of seven
positions.
Always ensure that the backrest has
engaged correctly.
Returning the seat backrest to its original position
F push the seat backrest in position and secure it,
F

r
efit the head restraints or put them back in
place.
1.
p

lace the head restraints in the low position
or remove them if necessary,
2.
p

ull the control for wards to release
backrest,
3.
f

old the backrest for ward.
Folding the backrest
When returning the backrest to its
original position, take care not to trap
the seat belts.
3
Ease of use and comfort

36
Mirrors
Adjustment
The mirrors can be adjusted when the ignition
switch is in the "ON" or "ACC" position.
F
M
ove control A to the right or to the left to
select the corresponding mirror.
F

D
irect control B in all four directions to
adjust the mirror.
When adjustment is complete, return control A
to the central position.
Door mirrors
The mirrors can also be folded
manually.
However, you must never unfold them
manually , other wise the mirrors may
not remain in place correctly when
driving.
Always use control C to unfold them.
Electric folding / unfolding*
F With the ignition switch in the "ON" or "ACC" position: press control C to unfold
them
F

W
ith the ignition switch in the "LOCK"
position: press control C within
30


seconds to fold them.
* Depending on version.
Ease of use and comfort

37
Rear view mirror
Adjust the mirror by moving it up or down and/
or to the left or right.
The rear view mirror has two positions:
-
d
ay (normal),
-

n
ight (anti-dazzle).
To change from one to the other, push or pull
the lever on the lower edge of the mirror.
3
Ease of use and comfort

38
Interior fittings
1. Glove box
2. Retractable cup holder
P

ress the cover to open the cup holder
3.
1 2

V accessory socket (120 W )


O
bserve the maximum power rating to
avoid damaging your accessory
4.
O

pen storage
5.
U

SB Player
6.
Doo

r pocket
Ease of use and comfort
