Page 11 of 97
14

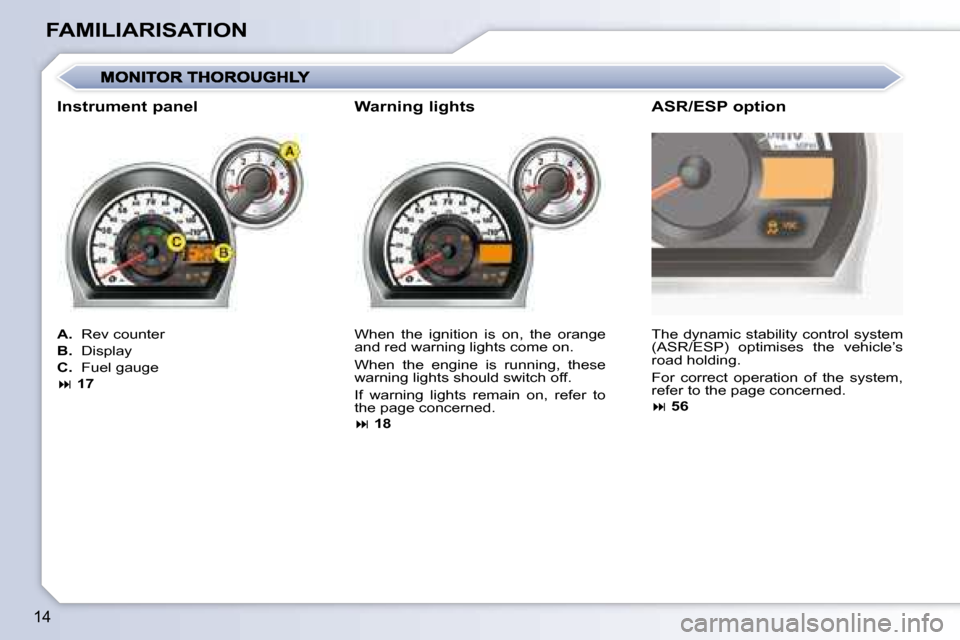

FAMILIARISATION W h e n t h e i g n i t i o n i s o n , t h e o r a n g e
and red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o
the page concerned.
18
A. Rev counter
B. Display
C. Fuel gauge
17 The dynamic stability control system
(ASR/ESP) optimises the vehicle’s
road holding.
F o r c o r r e c t o p e r a t i o n o f t h e s y s t e m ,
refer to the page concerned.
56
Instrument panel Warning lights ASR/ESP option
Page 13 of 97
16

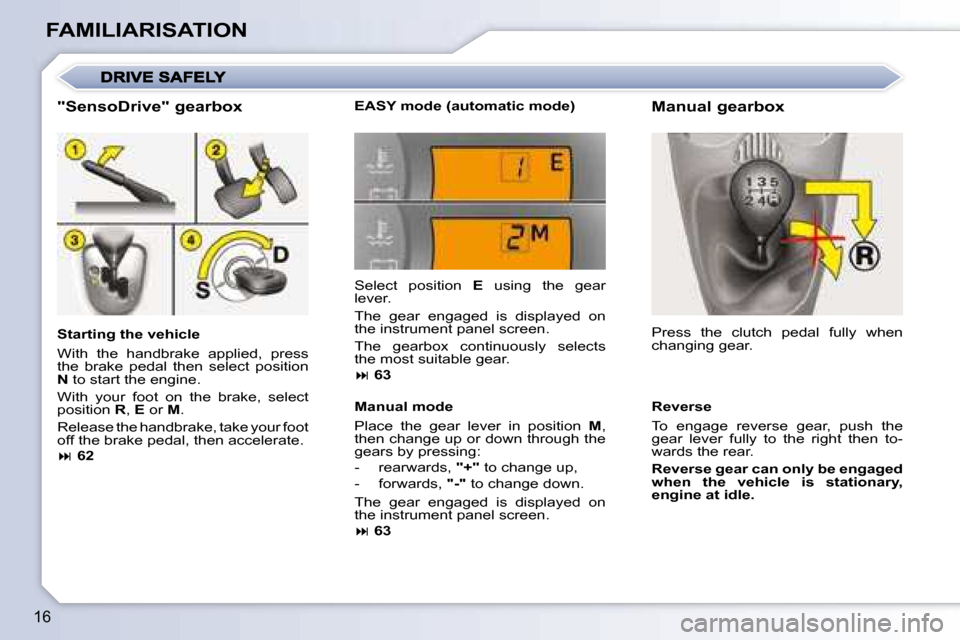

FAMILIARISATION "SensoDrive" gearbox
Starting the vehicle
W i t h t h e h a n d b r a k e a p p l i e d , p r e s s
the brake pedal then select position
N to start the engine.
W i t h y o u r f o o t o n t h e b r a k e , s e l e c t
position R , E or M .
R e l e a s e t h e h a n d b r a k e , t a k e y o u r f o o t
o f f t h e b r a k e p e d a l , t h e n a c c e l e r a t e .
62 Select position
E using the gear
lever.
The gear engaged is displayed on
the instrument panel screen.
The gearbox continuously selects
the most suitable gear.
63
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- r e a r w a r d s , "+" t o c h a n g e u p ,
- f o r w a r d s , "-" to change down.
The gear engaged is displayed on
the instrument panel screen.
63 Press the clutch pedal fully when
changing gear.
Reverse
T o e n g a g e r e v e r s e g e a r , p u s h t h e
gear lever fully to the right then to-
wards the rear.
Reverse gear can only be engaged
when the vehicle is stationary,
engine at idle.
EASY mode (automatic mode)
Manual gearbox
Page 14 of 97
1
17

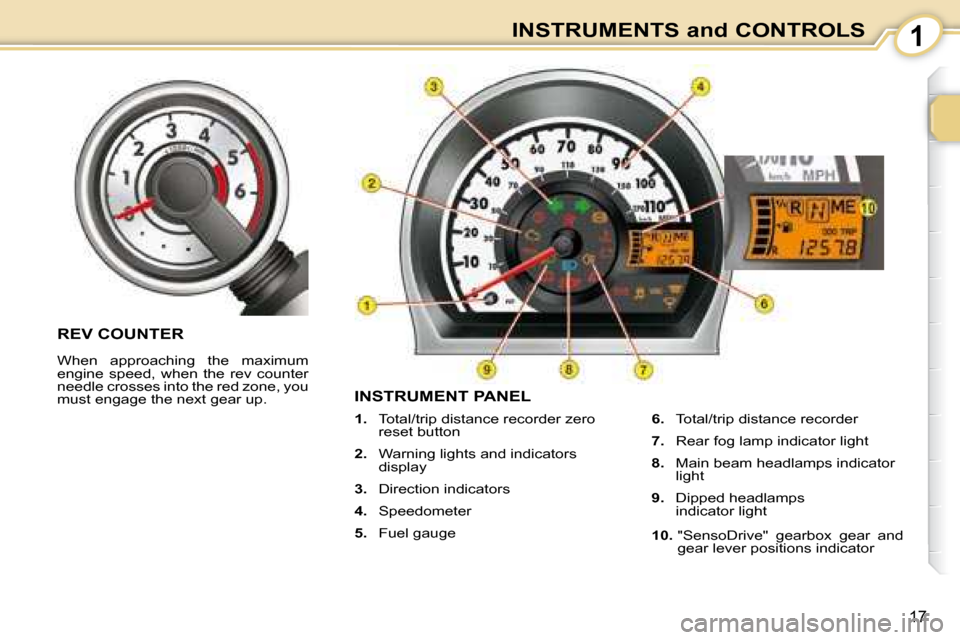

INSTRUMENTS and CONTROLS
INSTRUMENT PANEL
1. Total/trip distance recorder zero
reset button
2. Warning lights and indicators
display
3. Direction indicators
4. Speedometer
5. Fuel gauge
6. Total/trip distance recorder
7. Rear fog lamp indicator light
8. Main beam headlamps indicator
light
9. Dipped headlamps
indicator light
REV COUNTER
When approaching the maximum
engine speed, when the rev counter
needle crosses into the red zone, you
must engage the next gear up.
10. "SensoDrive" gearbox gear and
gear lever positions indicator
Page 17 of 97
1
20
INSTRUMENTS and CONTROLS

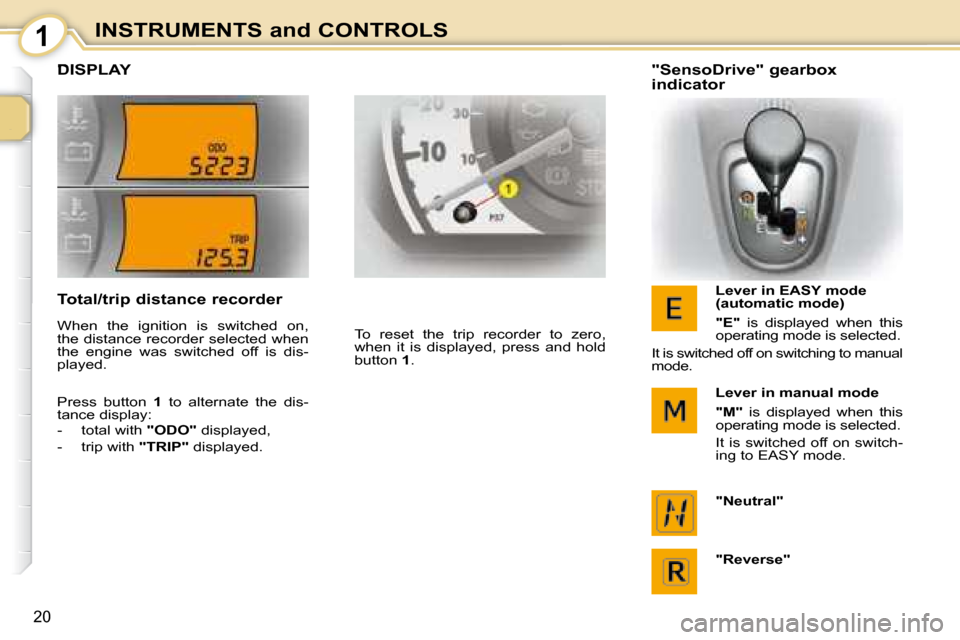

DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "SensoDrive" gearbox
indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
I t i s s w i t c h e d o f f o n s w i t c h -
ing to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on,
the distance recorder selected when
t h e e n g i n e w a s s w i t c h e d o f f i s d i s -
played.
Press button
1 t o a l t e r n a t e t h e d i s -
tance display:
- t o t a l w i t h "ODO" displayed,
- t r i p w i t h "TRIP" displayed.
Page 18 of 97
1
20
INSTRUMENTS and CONTROLS
DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "SensoDrive" gearbox
indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
I t i s s w i t c h e d o f f o n s w i t c h -
ing to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on,
the distance recorder selected when
t h e e n g i n e w a s s w i t c h e d o f f i s d i s -
played.
Press button
1 t o a l t e r n a t e t h e d i s -
tance display:
- t o t a l w i t h "ODO" displayed,
- t r i p w i t h "TRIP" displayed.
Page 21 of 97
2
23
AUDIO EQUIPMENT
GENERAL FUNCTIONS
On/off
With the ignition key
in the accessories po-
sition or with the ignition on, press
this button to switch the audio equip-
ment on or off.
After the engine has been switched
off, the audio equipment can only
operate for approximately 30 min-
utes, to prevent discharging of the
battery. Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
VOLUME ADJUSTMENT
CLOCK ADJUSTMENT
Press this button sever-
al times in succession
to gain access to the
bass
(BASS) , treble
(TREB) , front/rear balance (FAD) and
left/right balance (BAL) settings.
AUDIO SETTINGS
Press this button for
more than 2 seconds, the
c l o c k d i s p l a y fl a s h e s :
AUXILIARY SOCKET
An auxiliary socket
"AUX" is provided for
the connection of port-
able equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the audio
settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: increase
t h e v o l u m e o f t h e r a d i o s i g n i fi c a n t l y
(between 30 and 60) to obtain a satis-
factory playing volume.
- to adjust the hours, press this button,
- to adjust the minutes, press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 23 of 97
2
25
AUDIO EQUIPMENT
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
t w o b u t t o n s b r i e fl y t o
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
P r e s s t h i s b u t t o n b r i e fl y t o l i s t e n t o
each station available on the FM
waveband for three seconds. To stop
the station scan, press this button
again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button sever-
al times in succession
to select the wave-
bands FM1, FM2, FM3
and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.
Page 24 of 97
2
26
AUDIO EQUIPMENT Notes on radio
reception
Your audio equipment will be
subjected to phenomena which do
not affect domestic radio sets. Both
MW/LW and FM reception are sub-
ject to various forms of interference.
T h i s i s n o r e fl e c t i o n o n t h e q u a l i t y o f
the equipment but is due to the na-
ture of the signals and the way in
which they are transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage
power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmitters
received on AM and FM in your cur-
rent location. These stations are stored
on the AM and FM3 wavebands. The
end of the search is signalled by two
audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
Page 25 of 97
2
27
AUDIO EQUIPMENT
Regional following mode
(REG)
Some stations, organised in a net-
work, broadcast regional programmes
in the various regions which they
serve. The regional following mode
enables you to continue listening to
the same programme. Search by type of programme
(PTY)
This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).
EON system
This system links stations which be-
long to the same network. It permits
t h e t r a n s m i s s i o n o f t r a f fi c i n f o r m a t i o n
broadcast by a station which belongs
to the same network as the station to
which you are listening.
I n o r d e r t o b e n e fi t f r o m t h i s , s e l e c t t h e
t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA .
Using the AF (alternative
frequency) function on the FM
waveband
The
RDS (Radio Data System) ena-
bles you to continue listening to the
same station irrespective of the fre-
quency that it uses in your current
location. The audio equipment con-
tinuously searches for the transmitter
which provides the best reception.
Press this button sever-
al times in succession
to activate or deactivate
the function.
On FM, the multifunction display will
indicate:
- "TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of
t r a f fi c i n f o r m a t i o n .
- "TA" or "TA EON" : the program-
me transmitted by the radio is
put on standby while awaiting the
b r o a d c a s t i n g o f t r a f fi c i n f o r m a t i o n .
If you wish to interrupt the transmis-
sion of a message, press this button
again.
Traffic information
programme (TA)
Press this button sever-
al times in succession
to activate or deactivate
the function.
The screen will indicate:
- "AF" if the function is activated,
- "AF REG" if the function is
activated at regional level,
- "AF" fl a s h i n g i f t h e f u n c t i o n i s n o t
available. When
FM is selected,
press this button:
Notes: the volume of the
t r a f fi c i n f o r m a t i o n i s i n d e -
pendent of the volume of
normal radio listening.
You can adjust it using the volume
button, when the TA programme is
being transmitted.
The setting will be stored and will be
used during subsequent message
transmissions.
RDS
- "no pty" is displayed,
- t h e n p r e s s t h e b u t t o n b r i e fl y t o select a programme.
After a few seconds without any action,
your selection is stored.
Page 54 of 97
5
52

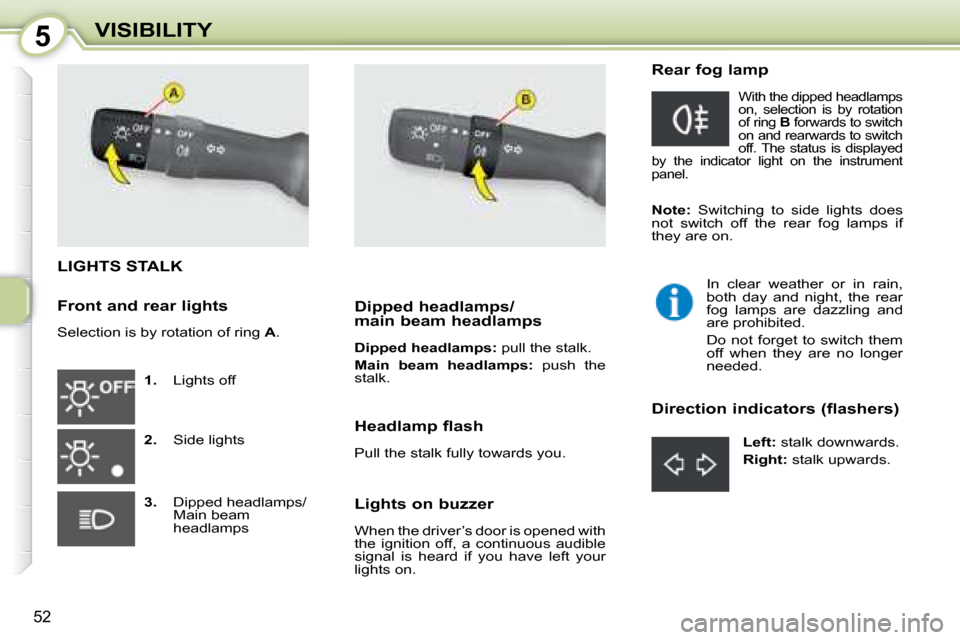

VISIBILITY
LIGHTS STALK
1. Lights off
2. Side lights
3. Dipped headlamps/
Main beam
headlamps Dipped headlamps/
main beam headlamps
Dipped headlamps: pull the stalk.
Main beam headlamps: push the
stalk.
Lights on buzzer
When the driver’s door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lights on. Rear fog lamp
With the dipped headlamps
on, selection is by rotation
of ring B forwards to switch
on and rearwards to switch
off. The status is displayed
by the indicator light on the instrument
panel.
In clear weather or in rain,
both day and night, the rear
fog lamps are dazzling and
are prohibited.
Do not forget to switch them
off when they are no longer
needed.
Direction indicators (flashers)
Left: stalk downwards.
Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lights
Selection is by rotation of ring
A .
Note: Switching to side lights does
not switch off the rear fog lamps if
they are on.
