FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- supply to front speakers,
- two 8-way connectors.
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f 1 0 0 m m d i a m e t e r
speakers on the dashboard.
A s a c c e s s o r i e s , y o u c a n fi t 1 6 5 m m
diameter speakers on the rear shelf. Making the connections
A1: -
A2: -
A3: -
A4: (+) Accessories
A5: -
A6: (+ve) Sidelamps
A7: (+ve) Permanent
A8: Earth
Consult a CITROËN dealer be-
fore installing audio equipment
or speakers in your vehicle.
FITTING/REMOVING THE MAT *
When removing the mat on the
driver's side, push the seat as far
back as possible and remove the
fi x i n g .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
correctly on the pin and clip the
fi x i n g . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
caught under the pedals:
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g
already present in the vehicle.
I t i s i m p e r a t i v e t h a t t h i s fi x i n g i s
used.
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* According to version.
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6: (-) Front left speaker
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Page 92 of 99
9
81
PRACTICAL INFORMATION
TOWING YOUR VEHICLE
Your vehicle can only be towed at
the front. Lifting (2 wheels only on the
road)
It is preferable to raise the vehicle by
the wheels.
Never use the radiator crossmember.
When your vehicle is being
towed with the engine switched
off, there is no braking or steer-
ing assistance.
Without lifting (4 wheels on
the road)
You should always use a towing bar.
The removable towing eye is stored
in the spare wheel, under the boot
carpet.
Unclip the bottom of the cover,
Screw in the towing eye until it
locks.
Place the gear lever in posi-
tion N for the "SensoDrive"
gearbox.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
use the accessories recommended
by CITROËN and follow the manu-
f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
For further information, contact a
CITROËN dealer.
Please refer to national
legislation in order to comply
with the regulations concerning
the transportation of objects
which are longer than the
vehicle.
Towing with fours wheels on the
road must be carried out at very low
speed over a very short distance (in
accordance with the legislation in
force).
In all other cases, your vehicle must
be transported on a trailer.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special
condition may result in damage to
certain braking components and the
absence of braking assistance the
next time the engine is started.
Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.
If the height exceeds 40 cm,
adapt the speed of the vehicle to
t h e p r o fi l e o f t h e r o a d t o a v o i d
damaging the roof bars.
Page 93 of 99
9
82
PRACTICAL INFORMATION
A wide range of accessories
recommended by CITROËN and
genuine parts is offered by the
Network.
T h e y a l l b e n e fi t f r o m C I T R O Ë N ' s
recommendation.
These accessories and parts, having
been tested and approved for
reliability and safety, are all adapted
to your CITROËN vehicle.
This product range is structured
around 5 categories: You can obtain "Van" conver-
sion kits to convert a private
vehicle to a van.
"Protection": a n t i - t h e f t a l a r m , fi r s t
aid kit, warning triangle, high visibility
safety jacket, snow chains and
non-skid covers, fog lamps kit, rear
parking assistance...
"Comfort and leisure": mats, boot
tray, sun blinds, roof bars, armrest,
telephone support, CD storage,
glove box lid, child seats and booster
cushions...
"Personalisation": covers, 14 inch
alloy wheels, wheel trims, spoiler,
s t a n d a r d m u d fl a p s , s t y l i n g s t r i p s , d o o r
spoilers, sill protectors, aluminium/
leather gear lever knob, aluminium in-
terior trim kit, chromed exhaust tailpipe,
anti-scratch covers under the handles,
"Cristal" rear lights...
"Accessories": windscreen wash
fl u i d , i n t e r i o r a n d e x t e r i o r c l e a n i n g
and maintenance products.
"Navigation and communication":
bluetooth hands-free kit, audio equip-
ment, portable satellite navigation
system, CD changer, auxiliary cable
for audio equipment (e.g.: connec-
tion for portable MP3 player on audio
equipment), speakers...
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned
and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . T h e fi t t i n g o f e l e c t r i c a l
equipment or accessories
which are not recommended
by CITROËN may result in
a failure of your vehicle's electronic
system and excess consumption.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a
representative of the Marque to be
shown the range of recommended
equipment and accessories.
Page 94 of 99
1010
83
TECHNICAL DATA
PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8 h p )
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
Gearbox Manual (5-speed) "SensoDrive" (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.2
Gearbox - Final drive 2
Page 95 of 99
1010
85
TECHNICAL DATA
DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4
h p
)
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
Gearbox
M a n u a l ( 5 - s p e e d )
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.8
Gearbox-Final drive 1.9
Page 96 of 99
1010
84
TECHNICAL DATA
Fuel consumption values correct at time of printing. These consu mption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.
FUEL CONSUMPTION - PETROL
W E I G H T S ( I N K G ) - P E T R O L
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) l i t r e s / 1 0 0 k m ( m p g )
Engines Gearbox
Model
codes
PM, PN
Urban Extra-urban Mixed
E m i s s i o n o f
CO 2 b y w e i g h t
( g / k m )
1.0 litre Manual CFAC 5.5 (51.4) 3.9 (72.4) 4.5 (61.4) 106
1.0 litre "
S e n s o D r i v e " CFAC/P 5.5 (51.4) 4.1 (68.9) 4.6 (61.4) 107
Engines
1.0 litre
Gearbox
Manual "
S e n s o D r i v e
"
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Q u a l i t y o f t h e f u e l u s e d f o r p e t r o l e n g i n e s
The petrol engines are perfectly compatible with E5 type pet
rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Page 97 of 99
1010
86
TECHNICAL DATA
FUEL CONSUMPTION - DIESEL
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d )
l i t r e s / 1 0 0 k m
(
m p g
)
Engines Gearbox
Model
codes
PM, PN
Urban Extra
-urban Mixed
E m i s s i o n o f
CO 2 b y w e i g h t
g / k m
1.4 litre
Turbo HDI
Manual 8 H T C 5.3 (53.3) 3.4 (83.1) 4.1 (68.9) 109
Q u a l i t y o f t h e f u e l u s e d f o r D i e s e l e n g i n e s
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be distri-buted at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).
W E I G H T S ( I N K G ) - D I E S E L
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
Engines
1.4 litre Turbo HDI
Gearbox
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 98 of 99
1010
87
TECHNICAL DATA

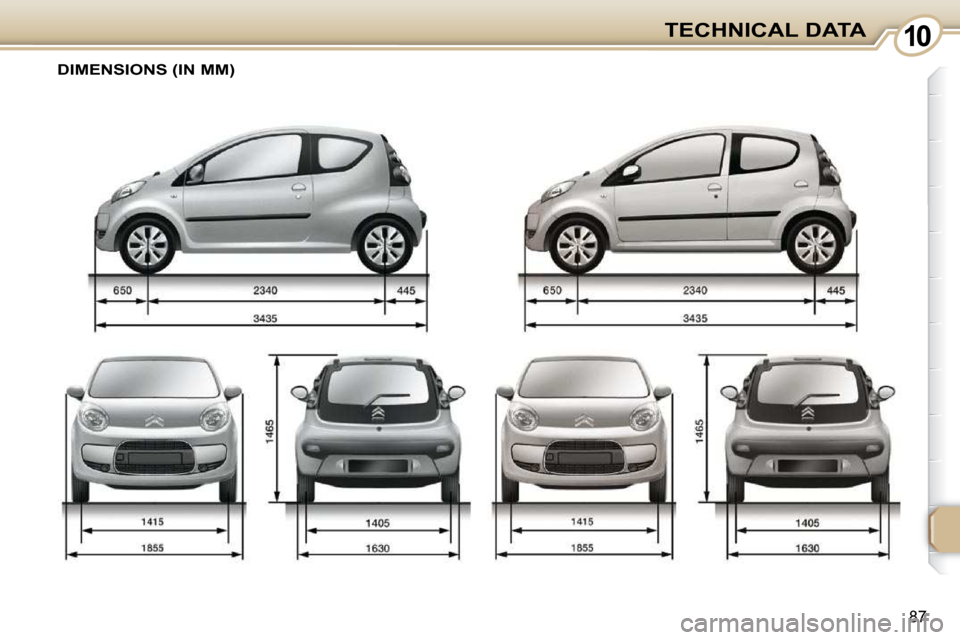

D I M E N S I O N S ( I N M M )
Page 99 of 99
1010
88
TECHNICAL DATA

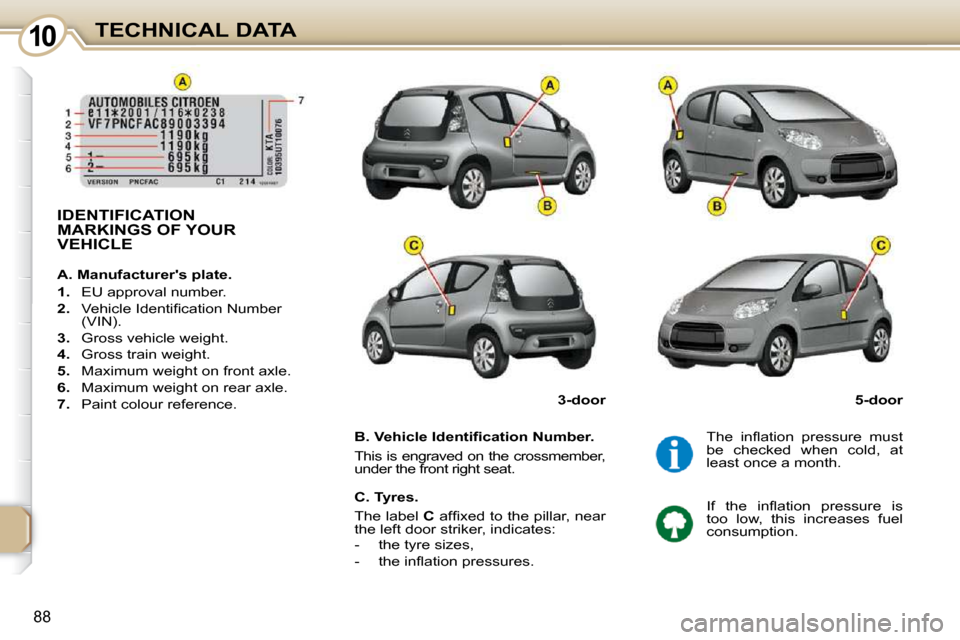

IDENTIFICATION MARKINGS OF YOUR VEHICLE
B . V e h i c l e I d e n t i fi c a t i o n N u m b e r .
This is engraved on the crossmember,
under the front right seat. T h e i n fl a t i o n p r e s s u r e m u s t
be checked when cold, at
least once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2 . V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference. 5-door
3-door
I f t h e i n fl a t i o n p r e s s u r e i s
too low, this increases fuel
consumption.
C. Tyres.
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- t h e i n fl a t i o n p r e s s u r e s .
