key Citroen C1 2008.5 1.G User Guide

4
49

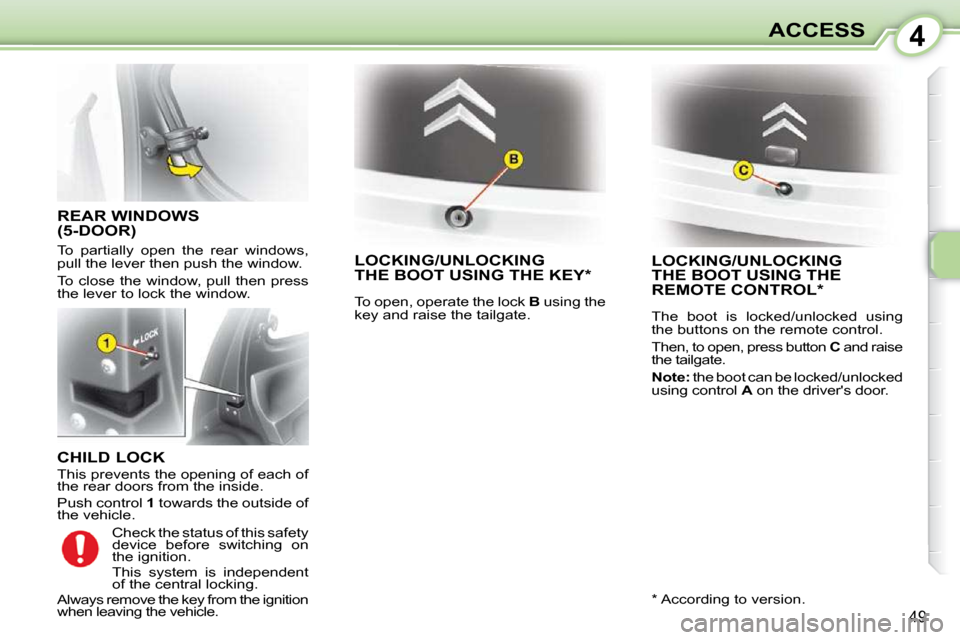

ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKINGTHE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKINGTHE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and raise
the tailgate.

Note: the boot can be locked/unlocked
using control A on the driver's door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on
the ignition.
This system is independent
of the central locking.
Always remove the key from the ignition
when leaving the vehicle. * According to version.

4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKINGTHE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKINGTHE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and raise
the tailgate.

Note: the boot can be locked/unlocked
using control A on the driver's door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on
the ignition.
This system is independent
of the central locking.
Always remove the key from the ignition
when leaving the vehicle. * According to version.

4
51
ACCESS

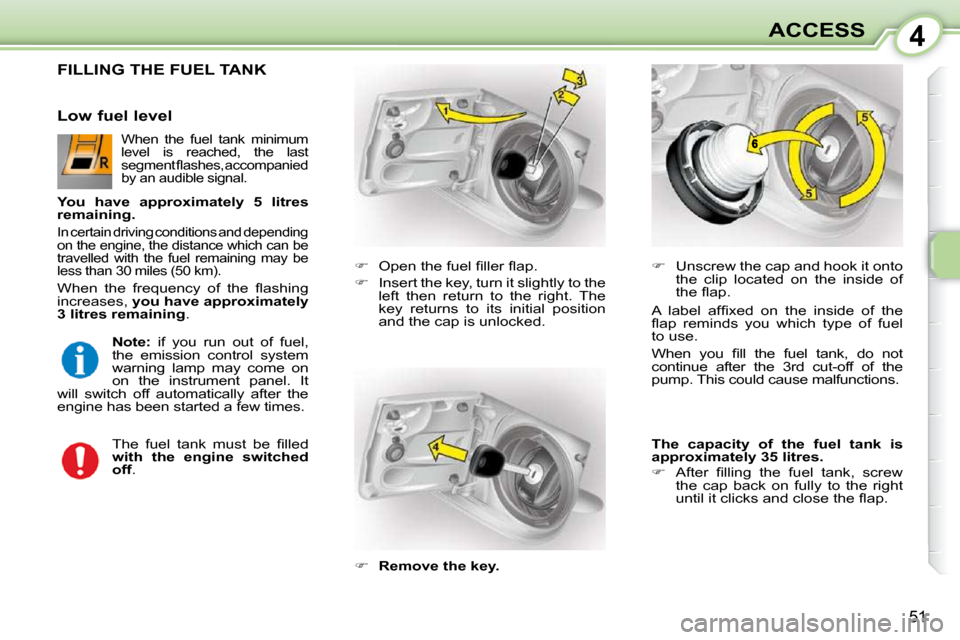

FILLING THE FUEL TANK

 Open the fuel fi ller fl ap.

 Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the fuel tank minimum
level is reached, the last
segment fl ashes, accompanied
by an audible signal.

You have approximately 5 litres
remaining.
In certain driving conditions and depending
on the engine, the distance which can be
travelled with the fuel remaining may be
less than 30 miles (50 km).
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
 Unscrew the cap and hook it onto
the clip located on the inside of
the fl ap.
A label affi xed on the inside of the
fl ap reminds you which type of fuel
to use.
When you fi ll the fuel tank, do not
continue after the 3rd cut-off of the
pump. This could cause malfunctions.

 Remove the key.

Note : if you run out of fuel,
the emission control system
warning lamp may come on
on the instrument panel. It
will switch off automatically after the
engine has been started a few times.
The fuel tank must be fi lled

with the engine switched
off .
The capacity of the fuel tank is
approximately 35 litres.

 After fi lling the fuel tank, screw
the cap back on fully to the right
until it clicks and close the fl ap.

6
60

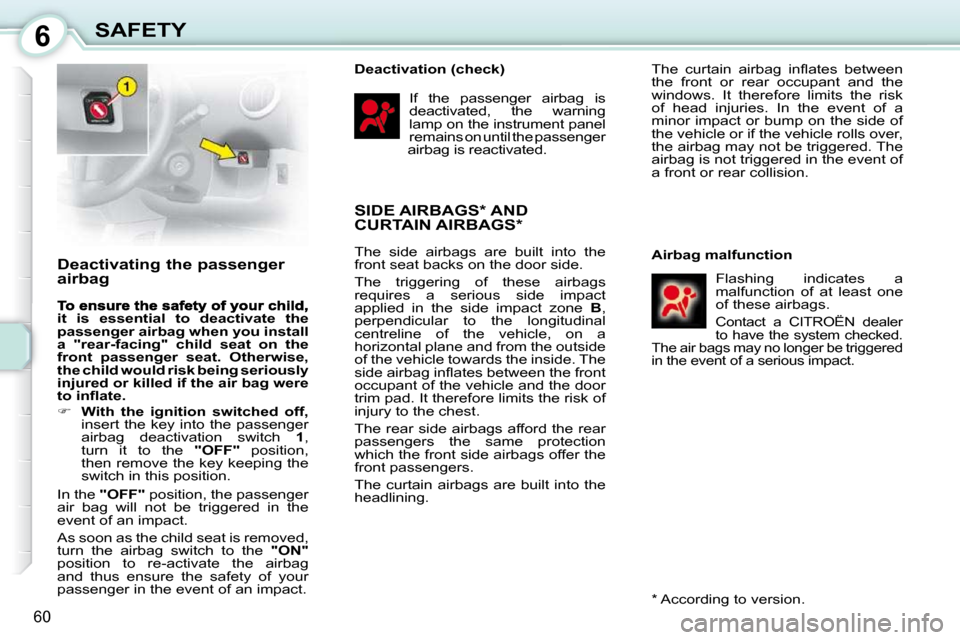

SAFETY
Deactivating the passenger
airbag
it is essential to deactivate the passenger airbag when you install a "rear-facing" child seat on the front passenger seat. Otherwise, the child would risk being seriously injured or killed if the air bag were to infl ate. With the ignition switched off , switched offinsert the key into the passenger airbag deactivation switch 1 , turn it to the "OFF" position, then remove the key keeping the switch in this position.
In the "OFF" position, the passenger air bag will not be triggered in the event of an impact.
As soon as the child seat is removed, turn the airbag switch to the "ON"position to re-activate the airbag and thus ensure the safety of your passenger in the event of an impact.
If the passenger airbag is deactivated, the warning lamp on the instrument panel remains on until the passenger airbag is reactivated.
The curtain airbag infl ates between
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be triggered. The
airbag is not triggered in the event of
a front or rear collision. Flashing indicates a
malfunction of at least one
of these airbags.
Contact a CITROËN dealer
to have the system checked.
The air bags may no longer be triggered
in the event of a serious impact.
Deactivation (check)
Airbag malfunction
* According to version.
SIDE AIRBAGS * AND CURTAIN AIRBAGS *
The side airbags are built into the
front seat backs on the door side.
The triggering of these airbags
requires a serious side impact
applied in the side impact zone B ,
perpendicular to the longitudinal
centreline of the vehicle, on a
horizontal plane and from the outside
of the vehicle towards the inside. The
side airbag infl ates between the front
occupant of the vehicle and the door
trim pad. It therefore limits the risk of
injury to the chest.
The rear side airbags afford the rear
passengers the same protection
which the front side airbags offer the
front passengers.
The curtain airbags are built into the
headlining.

6
60
SAFETY
Deactivating the passenger
airbag
it is essential to deactivate the passenger airbag when you install a "rear-facing" child seat on the front passenger seat. Otherwise, the child would risk being seriously injured or killed if the air bag were to infl ate. With the ignition switched off , switched offinsert the key into the passenger airbag deactivation switch 1 , turn it to the "OFF" position, then remove the key keeping the switch in this position.
In the "OFF" position, the passenger air bag will not be triggered in the event of an impact.
As soon as the child seat is removed, turn the airbag switch to the "ON"position to re-activate the airbag and thus ensure the safety of your passenger in the event of an impact.
If the passenger airbag is deactivated, the warning lamp on the instrument panel remains on until the passenger airbag is reactivated.
The curtain airbag infl ates between
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be triggered. The
airbag is not triggered in the event of
a front or rear collision. Flashing indicates a
malfunction of at least one
of these airbags.
Contact a CITROËN dealer
to have the system checked.
The air bags may no longer be triggered
in the event of a serious impact.
Deactivation (check)
Airbag malfunction
* According to version.
SIDE AIRBAGS * AND CURTAIN AIRBAGS *
The side airbags are built into the
front seat backs on the door side.
The triggering of these airbags
requires a serious side impact
applied in the side impact zone B ,
perpendicular to the longitudinal
centreline of the vehicle, on a
horizontal plane and from the outside
of the vehicle towards the inside. The
side airbag infl ates between the front
occupant of the vehicle and the door
trim pad. It therefore limits the risk of
injury to the chest.
The rear side airbags afford the rear
passengers the same protection
which the front side airbags offer the
front passengers.
The curtain airbags are built into the
headlining.

8
67
CHECKS
CHECKING THE LEVELS
There are two marks
on the dipstick:

A = maximum
If you fi ll past this mark,
contact a CITROËN
dealer.

B = minimum
Never allow the level
to fall below this mark.
Dipstick
Oil change
According to the information given in
the servicing booklet. Changing the brake fluid
The brake fl uid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
Use fl uids recommended by the
manufacturer, which fulfi l DOT4
standards.
Windscreen wash level
For best quality cleaning and for your
safety, we would advise that you
use products recommended by your
manufacturer.
Consult a CITROËN dealer.
Oil viscosity grade
In all cases, the oil selected must meet
the manufacturer's requirements. Cooling system
Used oil
Avoid prolonged contact of used oil
with the skin.
Brake fl uid is harmful to health and
very corrosive.
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Slacken the cap by 1/4 of a
turn to release the pressure
to prevent any risk of
scalding. When the pressure
has dropped, remove the cap and
top up the level. Only use the fl uid recom-
mended by the manufacturer.
Otherwise, you risk seriously
damaging your engine.
Do not dispose of used oil,
brake fl uid or coolant into
drains or into the ground.
Empty the used oil into the
containers provided for this
purpose in the CITROËN network
(France) or at an authorised waste
disposal site.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
When the engine is warm, the
temperature of the coolant is
controlled by the engine fan. As this
fan can operate with the ignition key
removed and because the cooling
system is pressurised, wait for at
least one hour after the engine has
stopped before carrying out any
work.

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
