14
FAMILIARISATION W h e n t h e i g n i t i o n i s o n , t h e o r a n g e
and red warning lamps come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lamps should switch off.
I f w a r n i n g l a m p s r e m a i n o n , r e f e r t o
the page concerned.

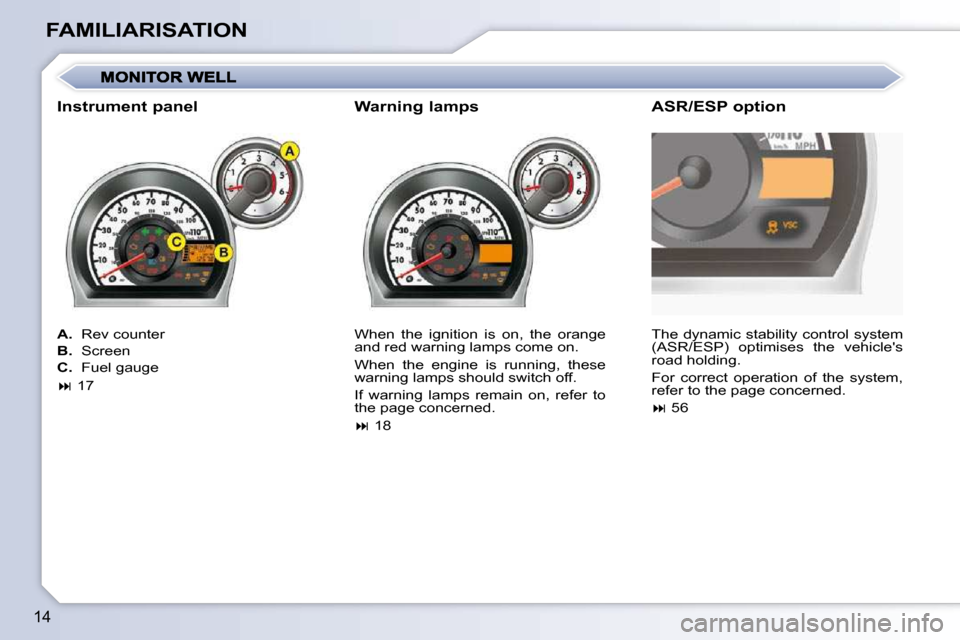

18
A. Rev counter
B. Screen
C. Fuel gauge
17 The dynamic stability control system
(ASR/ESP) optimises the vehicle's
road holding.
F o r c o r r e c t o p e r a t i o n o f t h e s y s t e m ,
refer to the page concerned.
56
Instrument panel Warning lamps ASR/ESP option
Page 16 of 99
1
19

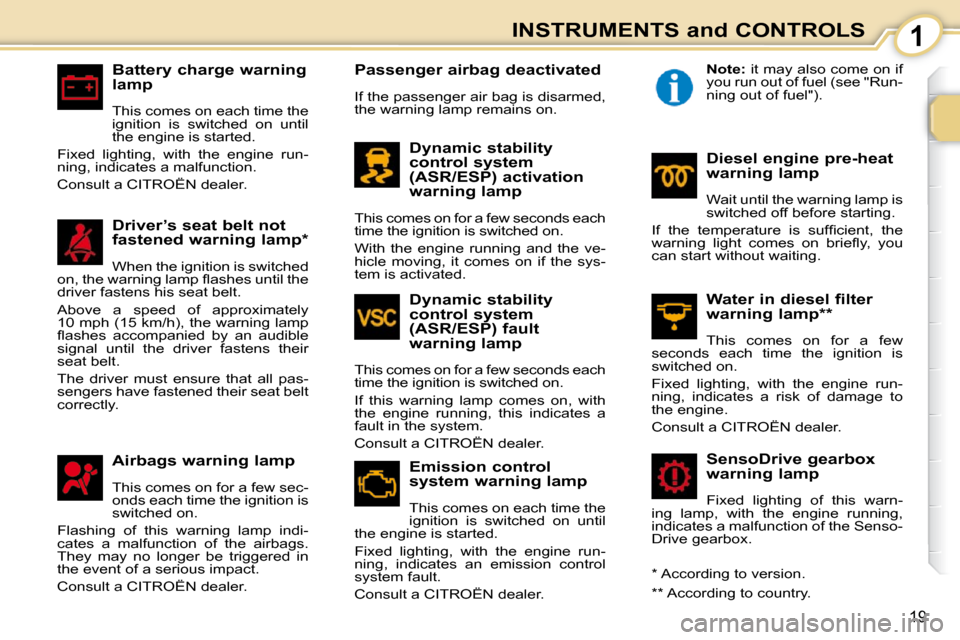

INSTRUMENTS and CONTROLS
Battery charge warning
lamp
This comes on each time the
ignition is switched on until
the engine is started.
Fixed lighting, with the engine run-
ning, indicates a malfunction.
Consult a CITROËN dealer.
Driver’s seat belt not
fastened warning lamp *
When the ignition is switched
o n , t h e w a r n i n g l a m p fl a s h e s u n t i l t h e
driver fastens his seat belt.
Above a speed of approximately
10 mph (15 km/h), the warning lamp
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal until the driver fastens their
seat belt.
The driver must ensure that all pas-
sengers have fastened their seat belt
correctly.
Airbags warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
Flashing of this warning lamp indi-
cates a malfunction of the airbags.
They may no longer be triggered in
the event of a serious impact.
Consult a CITROËN dealer. Passenger airbag deactivated
If the passenger air bag is disarmed,
the warning lamp remains on.
SensoDrive gearbox
warning lamp
Fixed lighting of this warn-
ing lamp, with the engine running,
indicates a malfunction of the Senso-
Drive gearbox.
Emission control
system warning lamp
This comes on each time the
ignition is switched on until
the engine is started.
Fixed lighting, with the engine run-
ning, indicates an emission control
system fault.
Consult a CITROËN dealer. Diesel engine pre-heat
warning lamp
Wait until the warning lamp is
switched off before starting.
I f t h e t e m p e r a t u r e i s s u f fi c i e n t , t h e
w a r n i n g l i g h t c o m e s o n b r i e fl y , y o u
can start without waiting.
Water in diesel filter
warning lamp **
This comes on for a few
seconds each time the ignition is
switched on.
Fixed lighting, with the engine run-
ning, indicates a risk of damage to
the engine.
Consult a CITROËN dealer.
* According to version.
Note: it may also come on if
you run out of fuel (see "Run-
ning out of fuel").
** According to country.
Dynamic stability
control system
(ASR/ESP) activation
warning lamp
This comes on for a few seconds each
time the ignition is switched on.
With the engine running and the ve-
hicle moving, it comes on if the sys-
tem is activated. Dynamic stability
control system
(ASR/ESP) fault
warning lamp
This comes on for a few seconds each
time the ignition is switched on.
If this warning lamp comes on, with
the engine running, this indicates a
fault in the system.
Consult a CITROËN dealer.
Page 19 of 99
1
21
INSTRUMENTS and CONTROLS

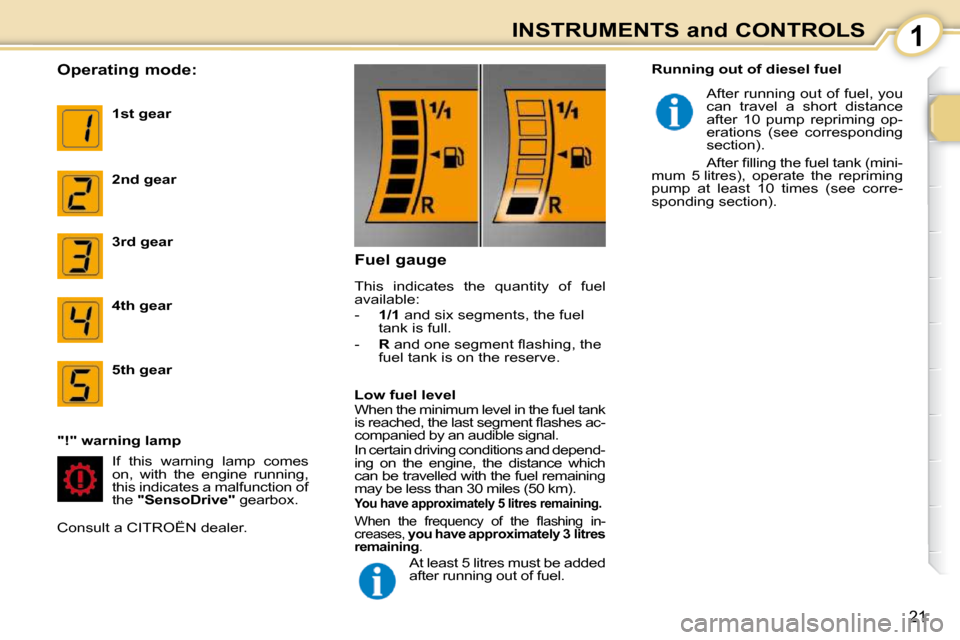

Operating mode:
1st gear
2nd gear
3rd gear
4th gear
5th gear
If this warning lamp comes
on, with the engine running,
this indicates a malfunction of
the "
SensoDrive
" gearbox. Fuel gauge
This indicates the quantity of fuel
available:
-
1/1 and six segments, the fuel
tank is full.
- R a n d o n e s e g m e n t fl a s h i n g , t h e
fuel tank is on the reserve.
Low fuel level
When the minimum level in the fuel tank
i s r e a c h e d , t h e l a s t s e g m e n t fl a s h e s a c -
companied by an audible signal.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
You have approximately 5 litres remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g i n -
creases, you have approximately 3 litres
remaining .
At least 5 litres must be added
after running out of fuel. Running out of diesel fuel
After running out of fuel, you
can travel a short distance
after 10 pump repriming op-
erations (see corresponding
section).
A f t e r fi l l i n g t h e f u e l t a n k ( m i n i -
mum 5 litres), operate the repriming
pump at least 10 times (see corre-
sponding section).
"!" warning
lamp
Consult a CITROËN dealer.
Page 23 of 99
2
25
AUDIO EQUIPMENT
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
t w o b u t t o n s b r i e fl y t o
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direction, the frequency
will be scanned continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
P r e s s t h i s b u t t o n b r i e fl y t o l i s t e n t o
each station available on the FM
waveband for three seconds. To stop
the station scan, press this button
again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.
Page 24 of 99
2
26
AUDIO EQUIPMENT Notes on radio
reception
Your audio equipment will be sub-
jected to phenomena which do not
affect domestic radio sets. Both MW/
LW and FM reception are subject to
various forms of interference. This
i s n o r e fl e c t i o n o n t h e q u a l i t y o f t h e
equipment but is due to the nature of
the signals and the way in which they
are transmitted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the
result of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l b y
obstacles (mountains, hills, buildings,
etc) or of being in an area which is
not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d s i x
transmitters, the remaining
memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
Page 25 of 99
2
27
AUDIO EQUIPMENT
Regional mode (REG)
Some stations, organised in a
network, broadcast regional pro-
grammes in the various regions
which they serve. The regional mode
enables you to continue listening to
the same programme. Search by type of programme
(PTY)
This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).
EON system
This system links stations which be-
long to the same network. It permits
t h e t r a n s m i s s i o n o f t r a f fi c i n f o r m a t i o n
broadcast by a station which belongs
to the same network as the station to
which you are listening.
I n o r d e r t o b e n e fi t f r o m t h i s , s e l e c t t h e
t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA .
Using the AF (alternative
frequency) function on
the FM waveband
The
RDS (Radio Data System) ena-
bles you to continue listening to the
same station irrespective of the fre-
quency that it uses in your current
location. The audio equipment con-
tinuously searches for the transmitter
which provides the best reception.
Press this button suc-
cessively to activate or
deactivate the function.
On FM, the multifunction display will
indicate:
- "TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of
t r a f fi c i n f o r m a t i o n .
- "TA" or "TA EON" : the programme
transmitted by the radio is put
on standby while awaiting the
b r o a d c a s t i n g o f t r a f fi c i n f o r m a t i o n .
If you wish to interrupt the transmis-
sion of a message, press this button
again.
Traffic information
programme (TA)
Press this button suc-
cessively to activate or
deactivate the function.
The screen will indicate:
- "AF" if the function is activated,
- "AF REG" if the function is
activated at regional level,
- "AF" fl a s h i n g i f t h e f u n c t i o n i s n o t
available. When
FM is selected,
press this button:
Notes: t h e v o l u m e o f t h e t r a f fi c information is independent of
the volume of normal radio
listening.
You can adjust it using the volume
button, when the TA programme is
being transmitted.
The setting will be stored and will be
used during subsequent message
transmissions.
RDS
- "no pty" is displayed,
- t h e n p r e s s t h e b u t t o n b r i e fl y t o select a programme.
After a few seconds without any action,
your selection is stored.
Page 27 of 99
2
29
AUDIO EQUIPMENT
Press this button to
select the next track.

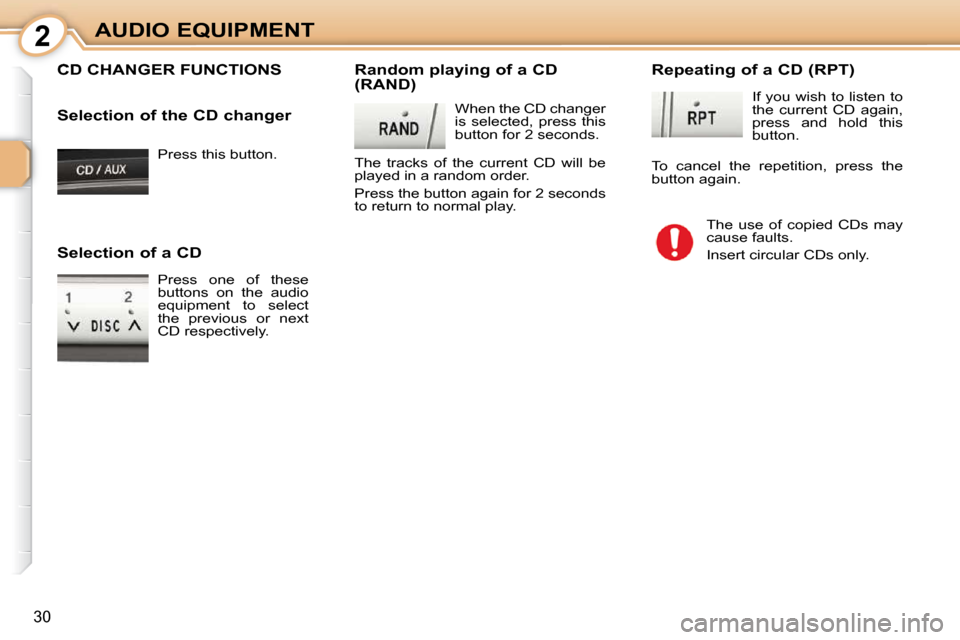

CD PLAYER AND CD CHANGER FUNCTIONS
Introscan (SCAN) Press this button to
listen to the start of
each track on the cur-
rent CD.
Fast play
Press and hold one
of these buttons for
fast forwards or back-
wards play respec-
tively.
The fast play stops
when the button is re-
leased. When a CD is inserted,
printed face upper-
most, play begins au-
tomatically.
If there is a CD in the player already,
press this button.
CD PLAYER FUNCTIONS Repeating of a track on the
CD (RPT)
Random playing of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen
to the current track
again, press this but-
ton. To cancel the
repe tition, press the button again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deacti-
vated when the audio equipment is
switched off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to re-
turn to the start of the
current track or to se-
lect the previous track. Selection of the CD player
Page 29 of 99
2
29
AUDIO EQUIPMENT
Press this button to
select the next track.
CD PLAYER AND CD CHANGER FUNCTIONS
Introscan (SCAN) Press this button to
listen to the start of
each track on the cur-
rent CD.
Fast play
Press and hold one
of these buttons for
fast forwards or back-
wards play respec-
tively.
The fast play stops
when the button is re-
leased. When a CD is inserted,
printed face upper-
most, play begins au-
tomatically.
If there is a CD in the player already,
press this button.
CD PLAYER FUNCTIONS Repeating of a track on the
CD (RPT)
Random playing of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen
to the current track
again, press this but-
ton. To cancel the
repe tition, press the button again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deacti-
vated when the audio equipment is
switched off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to re-
turn to the start of the
current track or to se-
lect the previous track. Selection of the CD player
Page 30 of 99
2
30
AUDIO EQUIPMENT Press this button.
CD CHANGER FUNCTIONS Random playing of a CD
(RAND) When the CD changer
is selected, press this
button for 2 seconds.
The tracks of the current CD will be
played in a random order.
Press the button again for 2 seconds
to return to normal play.
Selection of a CD Press one of these
buttons on the audio
equipment to select
the previous or next
CD respectively. Repeating of a CD (RPT)
If you wish to listen to
the current CD again,
press and hold this
button.
The use of copied CDs may
cause faults.
Insert circular CDs only.
To cancel the repetition, press the
button again.
Selection of the CD changer
Page 61 of 99
6
56
SAFETY When this warning lamp
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
C o n s u l t a C I T R O Ë N d e a l e r .
When these warn-
ing lamps come
on simultaneously,
it indicates that
there is a malfunc-
tion of the braking system or that the
parking brake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.
Stop immediately.
C o n s u l t a C I T R O Ë N d e a l e r .
N o r m a l o p e r a t i o n o f t h e
ABS may make itself felt by
slight vibrations of the brake
pedal.
In emergency braking,
p r e s s v e r y fi r m l y w i t h o u t
releasing the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and supplement the ABS.
T h e A S R s y s t e m o p t i m i s e s d r i v e t o prevent the wheels skidding, by acting on the brakes of the driving wheels and on the engine. It also allows the directional stability of the vehicle to be improved on acceleration.
If there is a variation between the trajectory followed by the vehicle and that required by the driver, the ESP system automatically acts on the brake of one or more wheels and on the engine to put the vehicle back on course, within the limits of the laws of physics.
Operating check
Operation of the ASR and ESP systems When one of these two systems is operating, this warning lamp comes on.
When a malfunction of the systems occurs, this warning lamp comes on.
T h e A S R / E S P s y s t e m s o f f e r exceptional safety during normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
Correct operation of these systems depends on observation of the manufacturer's recommendations regarding the wheels (tyres and rims), the braking components and the electronic components as well as the C I T R O Ë N d e a l e r r e p a i r p r o c e d u r e s . electronic components as well as the electronic
After an impact, have these systems c h e c k e d b y a C I T R O Ë N d e a l e r . After an impact, have these systems have these
Activation of the ESP system is also accompanied by an audible signal.
C o n t a c t a C I T R O Ë N d e a l e r t o h a v e the systems checked.
