Citroen C1 2010.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C1, Model: Citroen C1 2010.5 1.GPages: 97, PDF Size: 3.96 MB
Page 1 of 97
4
FAMILIARISATION
C. Locking/unlocking the vehicle
from the inside (driver's side).
1. Stop position.
2. Accessories position (1st notch).
3. Running position (2nd notch).
4. Starting position.
A. Locking the vehicle.
B. Unlocking the vehicle.
48
Remote control key Manual central control
STARTING
Page 2 of 97

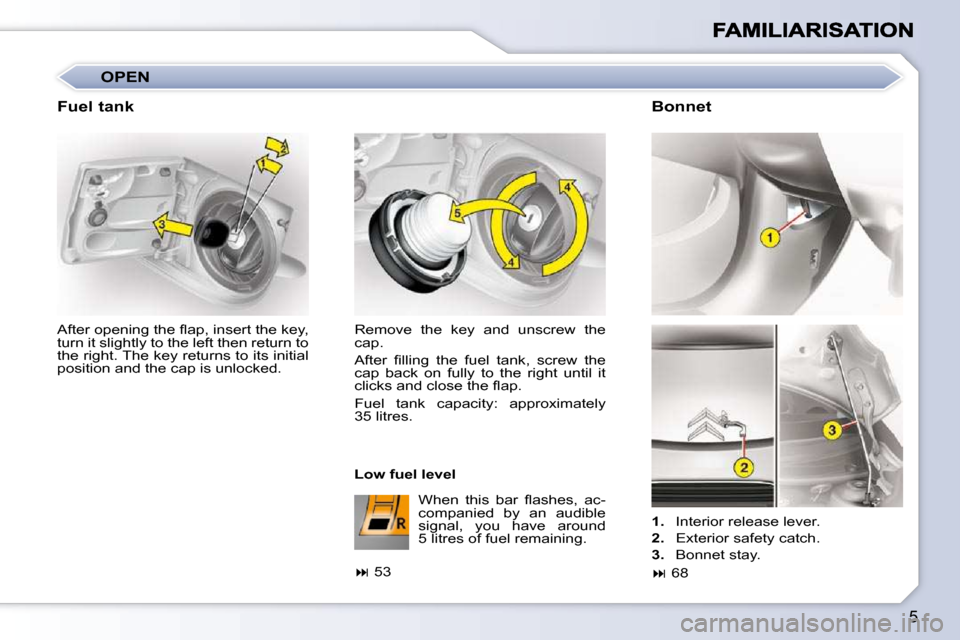

5
W h e n t h i s b a r fl a s h e s , a c -
companied by an audible
s i g n a l , y o u h a v e a r o u n d
5 litres of fuel remaining.
1. Interior release lever.
2. Exterior safety catch.
3. Bonnet stay.
68
53
Low fuel level
Remove the key and unscrew the
cap.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w t h e
cap back on fully to the right until it
c l i c k s a n d c l o s e t h e fl a p .
Fuel tank capacity: approximately
35 litres.
A f t e r o p e n i n g t h e fl a p , i n s e r t t h e k e y ,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked. OPEN
Fuel tank Bonnet
Page 3 of 97
6
FAMILIARISATION Manual air conditioning
T h i s a i r c o n d i t i o n i n g s y s t e m o p t i -
mises the distribution of the air and
its temperature inside the passenger
compartment.
35
SensoDrive gearbox
T h i s fi v e - s p e e d e l e c t r o n i c g e a r b o x
offers a choice between the comfort
o f a u t o m a t e d o p e r a t i o n o r t h e p l e a -
sure of manual gear changing.
65 Auxiliary socket for portable
equipment
C o m p a t i b l e w i t h m a n y M P 3 p l a y e r s ,
this socket allows you to listen to
your favourite tracks while travelling.
Refer to the conditions of use in the
"Audio" section.
25
INTERIOR
Page 4 of 97
7
1. Bonnet release
2. Headlamp adjustment
3. Passenger's airbag deactivation
4. Adjustable side air vent
5. Lighting and direction indicator
stalk
6. Driver's front airbag
Horn
7. Dashboard fusebox (under the
i n s t r u m e n t p a n e l t r i m , o n t h e
right and on the left)
8. Rev counter
9. Passenger's door mirror control
10. Passenger's electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS
Page 5 of 97
8
FAMILIARISATION
1. Driver's door mirror control
2. Instrument panel
3. Wiper stalk
4. Steering lock and ignition
5. Hazard warning lamps
6. Storage compartments
7. Diffusion grille
8. Windscreen demisting and
defrosting vent
9. Passenger's front airbag
10. Adjustable side air vent
11. Storage box
12. Audio system
13. V e n t i l a t i o n , h e a t i n g o r a i r
conditioning controls
14. Storage compartments
15. 12 V socket (120 W max)
16. Parking brake
17. Driver's electric window control
INSTRUMENTS AND CONTROLS
Page 6 of 97
9
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. Seat back angle adjustment. 3. Access to rear seats.
38
Front seats
Page 7 of 97
10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .
50
B. Door mirrors adjustment control.
W h e n t h e v e h i c l e i s p a r k e d , t h e
mirrors can be folded and unfolded
manually.
37
C. Steering wheel height
adjustment release and locking
control.
1. Control released.
2. Control locked.
37
SITTING COMFORTABLY
Front electric windows Mirrors Steering wheel adjus tment
(with power steering)
Page 8 of 97
11
Lighting stalk
Front and rear lamps
Ring A Lighting off.
Sidelamps.
D i p p e d / M a i n b e a m h e a d -
lamps.
Rear foglamp
Ring B
55 Wiper stalk
Windscreen wipers
MIST Single wipe.
OFF Off.
INT Intermittent wipe.
LO Normal wipe (moderate rain).
HI Rapid wipe (heavy rain).
Rear wiper and rear screenwash
Ring C
56
Page 9 of 97
12
FAMILIARISATION Temperature adjustment
A i r fl o w
adjustment
Air distribution
adjustment Rear screen
demisting
34 Air conditioning
Temperature adjustment
Air recirculation/ Air intake
Air distribution
adjustment Air conditioning
On/Off
35 A i r fl o w a d j u s t m e n t
Rear screen demisting
Heating
Page 10 of 97
13
I require...
Heating or Manual air conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of exterior air
Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Recommended interior settings
