technical data Citroen C1 2012 1.G Owner's Manual

.
.
Contents
Child seats 57
ISOFIX mountings 62
Child safety
Changing a wheel 65
Changing a bulb 67
Changing a fuse 71
Battery 76
Mat 79
Fitting audio equipment/speakers 79
To w i ng the vehicle 80
Fitting roof bars 81
Accessories 82
Practical information
Audio system / Bluetooth 93
Audio system 116
Audio
Alphabetical indexVisual search
Opening the bonnet 84
Engine 85
Checking levels 86
Checks 88
Checks
Engine 89
Weights 90
Dimensions 91
Identifi cation markings 92
Technical data

11
89 Technical data








Engine
Engine
1.0 litre (≈ 68 hp)
Manual gearbox(5-speed)Electronic gearbox(5-speed)
Model codes PM, PNCFB0 / CFB4
CFB0/P

Cubic capacity (cc)
998

Bore x stroke (mm) 71 x 84

EU standard maximum power (kW)
50

Max power engine speed (rpm)
6 000


EU standard max torque (Nm)93

Max torque engine speed (rpm) 3 600


Fuel
Unleaded

Catalytic converter

Yes


Engine oil capacity (with filter replacement)
3.2

Technical data
90






Weights (in kg)
The design of your vehicle does not permit the fitting of a towbar.
Engine
1.0 litre
Manual gearbox(5-speed)Electronic gearbox(5-speed)
Versions
3-door

5-door 3-door

5-door
Model codes

PMCFB0 / PMCFB4 PNCFB0 / PNCFB4

PMCFB0/PPNCFB0/P

Kerb weight 800805 830
840
Gross vehicle weight (GVW) 1 180


1 1901 180


1 190

11
91 Technical data





Dimensions (in mm)

Technical data
92











Identifi cation markings


B. Vehicle Identifi cation Number.

This is engraved on the crossmember, under
the front right seat.
A. Manufacturer's plate.
1.
EU approval number. 2.
Vehic le Identification Number (VIN).3.
Gross vehicle weight.4.
Gross train weight.5.
Maximum weight on front axle.
6.Maximum weight on rear axle.7. Paint colour reference.



5-door



3-door


C. T
yres.

The label Caffixed to the pillar, near the left
door striker, indicates:


- the t
yre sizes,

- the t
yre pressures.
The tyre pressures must be checkedwhen cold, at least once a month.
If the tyre pressures are too low, this increases fuel consumption.

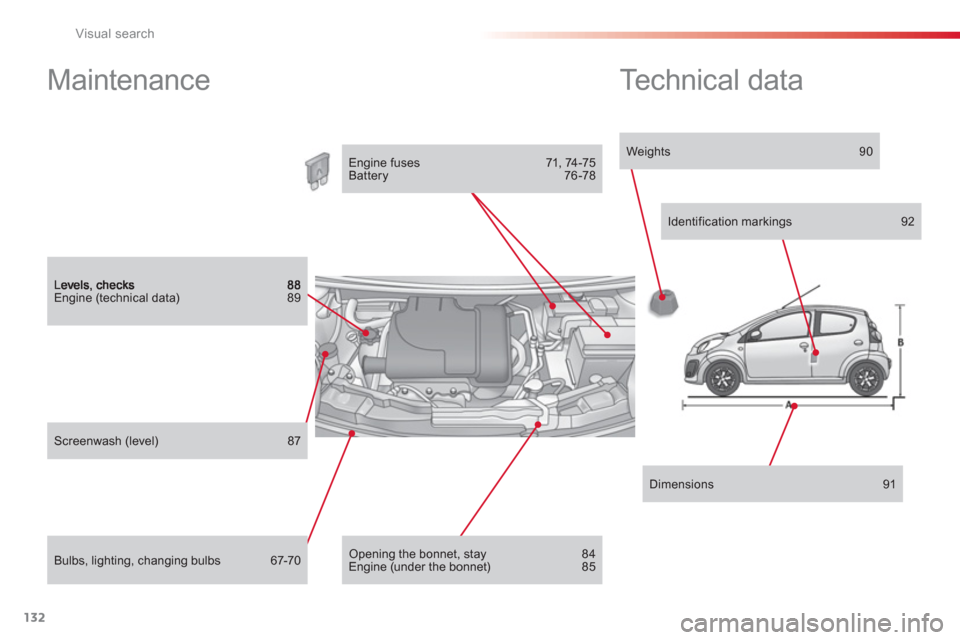

132Visual search
Engine (technical data) 89
Bulbs, lighting, changing bulbs 67-70
Screenwash (level) 87


Engine fuses 71, 74-75
Battery 76-78


Opening the bonnet, stay 84
Engine (under the bonnet) 85



Identification markings 92
Dimensions 91



Weights 90

Maintenance Technical data
