Citroen C1 2014 1.G User Guide

9
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the maintenance and warranty guide.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
B4_en_Chap00c_eco-conduite_ed01-2014
.
Eco-driving

10
Instrument panel
1. Speedometer (mph or km/h).
2. Central display screen.
F

or more information, refer to the
corresponding section.
3.
G

ear shift indicator. 4. D
isplay management button (Display). D
isplay of information in ascending order.
5.
D

isplay management button (Display).
D

isplay of information in ascending order.The engine speed is indicated by the display of
orange bars.
Above the maximum engine speed, the bars
are displayed in red to indicate the need to
change up.
Rev counter*
* Depending on version.
Monitoring

11
Central display screen
The information displayed varies according to your vehicle's engine and type of gearbox.
Central display screen
with the VTi 68 engine
and manual gearboxCentral display screen
with the VTi 68 and ETG
electronic gearboxCentral display screen
with the VTi 82 engine and
manual gearbox
1. Ambient temperature. I
t flashes if there is a risk of ice.
2.
V

ehicle information with:
-

T
otal and trip distance recorders.
R

efer to the corresponding section.
-

T
rip computer information.
R

efer to the corresponding section.
-

S
peed limiter information.
R

efer to the corresponding section.
3.
F

uel gauge. 1. G
ear lever position and gear engaged.
2. V ehicle information with:
-

T
otal and trip distance recorders.
R

efer to the corresponding section.
-

T
rip computer information.
R

efer to the corresponding section.
-

S
peed limiter information.
R

efer to the corresponding section.
3.
F

uel gauge.1. S
peed limiter information. R
efer to the corresponding section.
2.
V

ehicle information with:
-

T
otal and trip distance recorders.
R

efer to the corresponding section.
-

T
rip computer information.
R

efer to the corresponding section.
3.
F

uel gauge.
1
Monitoring

12
Seat belts and passenger's
front airbag warning lamps
display screen
A. Left hand rear seat belt unfastened warning.
B.
R

ight hand rear seat belt unfastened
warning.
C.
P

assenger's front airbag deactivated
warning lamp.
D.
P

assenger's front airbag activated warning
lamp.
Warning lamp C or D remains on,
depending on the state of the passenger's
front airbag (deactivated or activated).
Monitoring

13

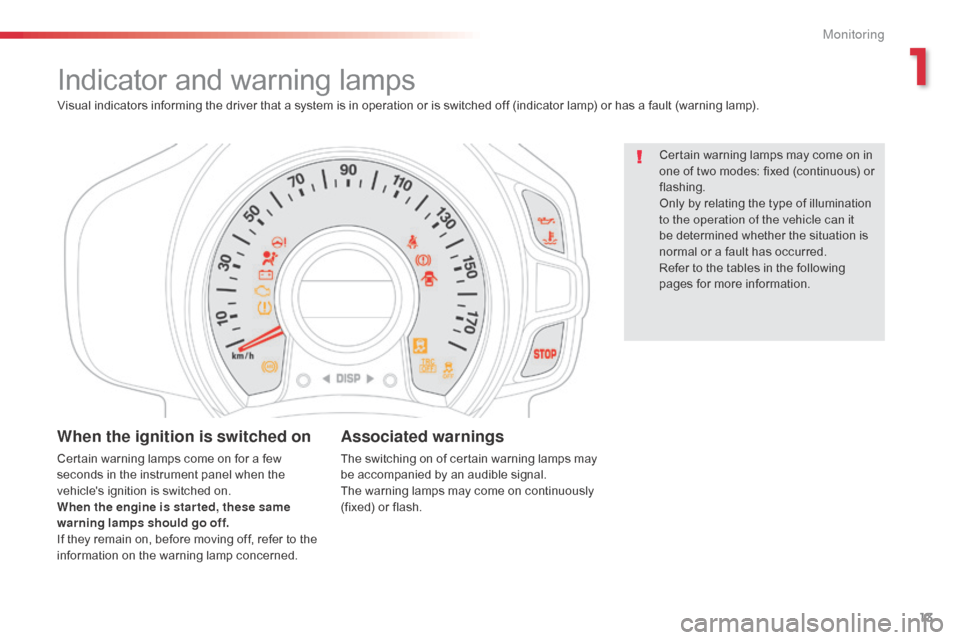

Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp) or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is star ted, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The switching on of certain warning lamps may
be accompanied by an audible signal.
The warning lamps may come on continuously
(fixed) or flash.
1
Monitoring

14
Operation indicator lamps
Left-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed down.
Right-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed up.
Sidelamps or
dipped beam
headlamps fixed.
The sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Warning / indicator lamp
StateCause Action / Observations
Illumination of one of the following indicator lamps confirms that the corresponding system has been switched on.
It may be accompanied by an audible signal.
Rear foglamp fixed. The rear foglamp is switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
Monitoring

15
Parking brakefixed, accompanied by
an audible signal. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in the
"ON"
position. The passenger's front airbag is activated.
In this case, do not install a "rear ward facing" child
seat.
Stop & Star t
(e-VTi 68 engine) fixed.
When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start system
has put the engine into STOP mode. The indicator lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
Keyless Entr y
and Starting
system fixed.
The conditions for starting are met. For more information, refer to the "Starting - stopping
the engine with the Keyless Entry and Starting
system" section.
flashing slowly. The vehicle is in "ACC" mode.
The accessories (audio system, 12V
socket...) can be used.
1
Monitoring

16
Warning / indicator lampStateCause Action / Observations
Gear shift
indicator. fixed.
You can change up. For more information, refer to the corresponding
section.
You can change down (only for the
VTi 68 engine).
Speed limiter
(VTi 68 engine) fixed.
The speed limiter is active.
Monitoring

17
Passenger's
front airbagfixed, in the seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.The passenger's front airbag is deactivated.
You can install a "rear ward facing" child seat on the
front seat unless there is a fault with the airbags
(Airbag warning lamp on).
Traction control
(TRC) fixed.
A brief press has been made on the
button.
The traction control (TRC) system is
deactivated. Press the button to activate the system.
The TRC system is activated automatically when the
vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information, refer to the corresponding
section.
Dynamic
stability control
(DSC ) fixed.
Vehicle stationary, the button
has been pressed for more than
3
seconds.
The traction control (TRC) and
dynamic stability control (DSC)
systems are deactivated. Press this button to activate the systems.
The DSC system is activated automatically when the
vehicle is started.
For more information, refer to the corresponding
section.
Warning / indicator lamp
StateCause Action / Observations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal.
1
Monitoring

18
Warning / indicator lampStateCause Action / Observations
Stop & Star t
(e-VTI 68 engine) fixed.
The Stop & Start
system has been
deactivated. Reactivate the function by pressing the button again.
For more information, refer to the corresponding
section.
Monitoring
