Page 21 of 99
2
23
AUDIO EQUIPMENT
GENERAL FUNCTIONS
On/off
With the ignition key
in the accessories po-
sition or with the ignition on, press
this button to switch the audio equip-
ment on or off.
After the engine has been switched
off, the audio equipment can only op-
erate for approximately 30 minutes,
to prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
VOLUME ADJUSTMENT
CLOCK ADJUSTMENT
Press this button sev-
eral times in succes-
sion to gain access
to the bass
(BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
AUDIO SETTINGS
Press this button for
more than 2 seconds,
the clock display
fl a s h e s :
AUXILIARY SOCKET
An auxiliary socket
"AUX" is provided for
the connection of port-
able equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the audio
settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
crease the volume of the radio signif-
icantly (between 30 and 60) to obtain
a satisfactory playing volume.
-
to adjust the hours,
press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 49 of 99
4
47
ACCESS
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harm-
ful to the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 50 of 99
4
47
ACCESS
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a CITROËN dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
CITROËN dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harm-
ful to the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 70 of 99
7
62
DRIVING Driver information
The symbol which corresponds to
the selection, R , N , E or M and the
number of the gear engaged 1 to 5 ,
are displayed on the instrument panel
screen.
SENSODRIVE GEARBOX
T h e fi v e - s p e e d " SensoDrive "
gearbox offers a choice between the
comfort of automatic operation or the
pleasure of manual gear changing .
Driving mode
S e l e c t t h e d r i v i n g m o d e b y m o v i n g
t h e g e a r l e v e r .
R e v e r s e " R " . T h i s g e a r w i l l b e e n -
gaged when stationary or at a speed
below approximately 4 mph (6 km/h).
T h e e n g a g e m e n t o f r e v e r s e g e a r i s
accompanied by an audible signal.
N e u t r a l " N " .
P o s i t i o n t h e l e v e r t o t h e r i g h t i n N , to
start the engine .
E a s y " E " : a u t o m a t i c g e a r c h a n g i n g .
M anual ( +/- ) " M " : m a n u a l g e a r c h a n g i n g .
Starting the engine
With the parking brake applied, press
the brake pedal then select position N
to start the engine.
With your foot on the brake, select
position R , E or M .
R e l e a s e t h e p a r k i n g b r a k e , t a k e y o u r
foot off the brake pedal, then accelerate.
Notes: w i t h t h e e n g i n e r u n -
n i n g , i n t h e s e t h r e e p o s i -
tions, an audible signal is
h e a r d w h e n t h e d r i v e r ' s d o o r
is opened.
You can change from position E to
position M a n d v i c e v e r s a a t a n y
time.

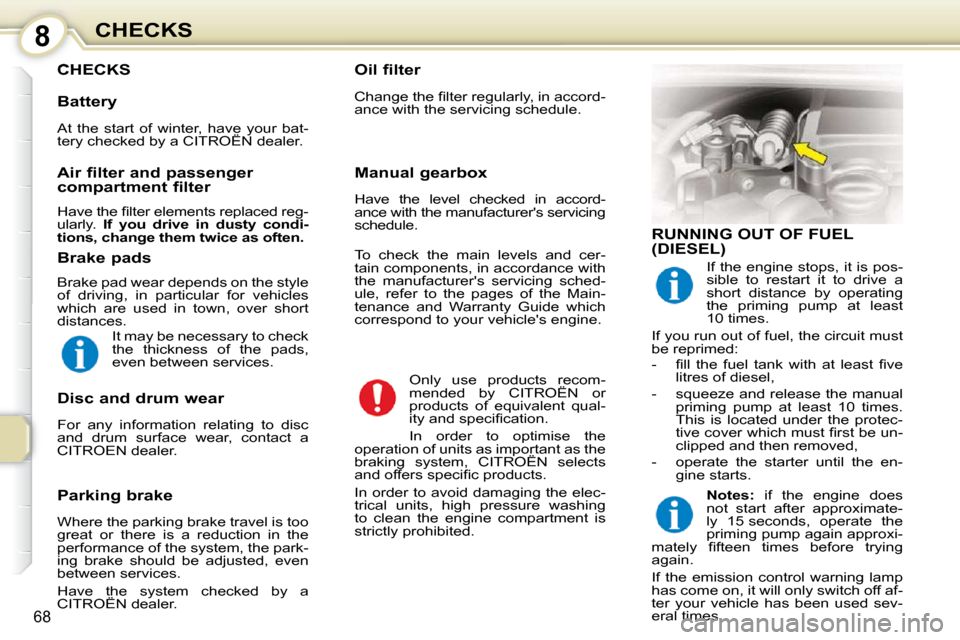

Page 75 of 99
8
68
CHECKS
CHECKS Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n a c c o r d -
ance with the servicing schedule. Only use products recom-
mended by CITROËN or
products of equivalent qual-
i t y a n d s p e c i fi c a t i o n .
In order to optimise the
operation of units as important as the
braking system, CITROËN selects
a n d o f f e r s s p e c i fi c p r o d u c t s .
In order to avoid damaging the elec-
trical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
To check the main levels and cer-
tain components, in accordance with
the manufacturer's servicing sched-
ule, refer to the pages of the Main-
tenance and Warranty Guide which
correspond to your vehicle's engine.
Battery
At the start of winter, have your bat-
tery checked by a CITROËN dealer.
Air filter and passenger
compartment filter
H a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g -
ularly.
If you drive in dusty condi-
tions, change them twice as often.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
Disc and drum wear
For any information relating to disc
and drum surface wear, contact a
CITROEN dealer. Manual gearbox
Have the level checked in accord-
ance with the manufacturer's servicing
schedule.
RUNNING OUT OF FUEL (DIESEL)
It may be necessary to check
the thickness of the pads,
even between services.
If the engine stops, it is pos-
sible to restart it to drive a
short distance by operating
the priming pump at least
10 times.
If you run out of fuel, the circuit must
be reprimed:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel,
- squeeze and release the manual priming pump at least 10 times.
This is located under the protec-
t i v e c o v e r w h i c h m u s t fi r s t b e u n -
clipped and then removed,
- operate the starter until the en- gine starts.
Notes: if the engine does
not start after approximate-
ly 15 seconds, operate the
priming pump again approxi-
m a t e l y fi f t e e n t i m e s b e f o r e t r y i n g
again.
If the emission control warning lamp
has come on, it will only switch off af-
ter your vehicle has been used sev-
eral times.
Parking brake
Where the parking brake travel is too
great or there is a reduction in the
performance of the system, the park-
ing brake should be adjusted, even
between services.
Have the system checked by a
CITROËN dealer.
