Citroen C1 DAG 2010.5 1.G Owner's Guide

1
23
MONITORING
"SENSODRIVE" GEARBOX
INDICATOR
Lever in EASY mode
(automatic mode)

"E" is displayed when this
operating mode is selected.
It goes off on switching to manual
mode.
Lever in manual mode

"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.

"Neutral"

"Reverse"

Operating mode:

1st
gear

2nd gear

3rd
gear

4th
gear

5th
gear
If this warning lamp comes
on with the engine running,
this indicates a fault with the
" SensoDrive " gearbox.

"!" warning lamp
Contact a CITROËN dealer or a
qualifi ed workshop.

2
24
AUDIO
GENERAL FUNCTIONS
On/Off Selection of the source: auxiliary
(or CD or CD changer) Clock adjustment: press for more
than 2 seconds/Access to the audio settings
Volume adjustment Auxiliary socket for portable
equipment (MP3 player, ...) Hours adjustment/
Audio settings
Minutes adjustment/ Audio settings

2
25
AUDIO
On/off With the ignition key
in the accessories
position or with the
ignition on, press this
button to switch the audio equipment
on or off.

After the engine has been switched
off, the audio equipment can only
operate for approximately 30 mi-
nutes, to prevent discharging of
the battery. Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button sev-
eral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance

(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl ashes: Auxiliary socket
An auxiliary socket

"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press

AM/FM .

When using an MP3 player: in-
crease the volume of the radio signif-
icantly (between 30 and 60) to obtain
a satisfactory playing volume.
- to adjust the hours, press this button,
- to adjust the minutes, press this button.
You exit from this mode automati-
cally after a few seconds without any
action.

2
26

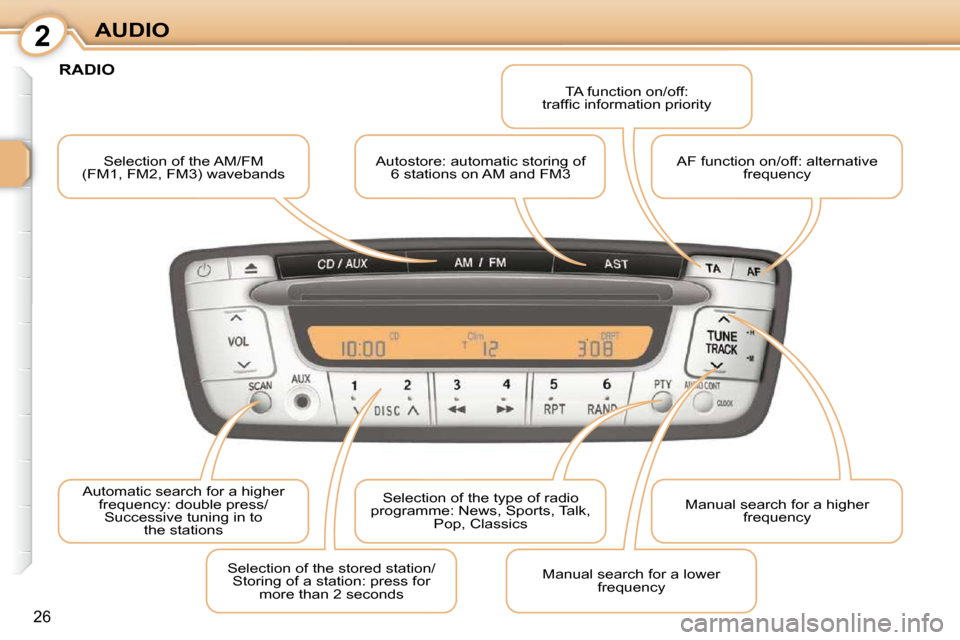

AUDIO Selection of the AM/FM
(FM1, FM2, FM3) wavebands Autostore: automatic storing of
6 stations on AM and FM3 TA function on/off:
traffi c information priority
Automatic search for a higher frequency: double press/Successive tuning in to the stations Selection of the type of radio
programme: News, Sports, Talk, Pop, Classics AF function on/off: alternative
frequency
Manual search for a higher frequency
Selection of the stored station/ Storing of a station: press for more than 2 seconds Manual search for a lower
frequency
RADIO

2
27
AUDIO
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
two buttons briefl y to
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
Press this button briefl y to listen to
each station available on the FM
waveband for three seconds. To stop
the station scan, press this button
again.
If the traffi c information programme

TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
An audible signal confi rms that the
station has been stored.

2
28
AUDIO Radio reception
Your audio equipment will
be subjected to phenomena
which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-
ference. This is no refl ection on the
quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, defl ection of the signal
by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
If it was not possible to fi nd
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.

2
29
AUDIO
Regional mode (REG)
Some stations, organised in a network,
broadcast regional programmes in the
various regions which they serve. The
regional mode enables you to continue
listening to the same programme. Search by type of programme
(PTY)
This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).
EON system
This system links stations which be-
long to the same network. It permits
the transmission of traffi c information
broadcast by a station which belongs
to the same network as the station to
which you are listening.
In order to benefi t from this, select the
traffi c information programme
TA .
Using the AF (alternative
frequency) function on the FM
waveband
The
RDS (Radio Data System) en-
ables you to continue listening to the
same station irrespective of the fre-
quency that it uses in your current
location. The audio equipment con-
tinuously searches for the transmitter
which provides the best reception.
Press this button suc-
cessively to activate
or deactivate the func-
tion.
On FM, the multifunction display will
indicate:
- "TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of traf-
fi c information.
- "TA" or "TA EON" : the pro-
gramme transmitted by the radio
is put on standby while awaiting
the broadcasting of traffi c infor-
mation.
If you wish to interrupt the transmis-
sion of a message, press this button
again.
Traffic information
programme (TA)
Press this button suc-
cessively to activate
or deactivate the func-
tion.
The screen will indicate:
- "AF" if the function is activated,
- "AF REG" if the function is acti-
vated at regional level,
- "AF" fl ashing if the function is not
available. When
FM is selected,
press this button:
The volume of the traffi c in-
formation is independent of
the volume of normal radio
listening.
You can adjust it using the
volume button, when the TA pro-
gramme is being transmitted.
The setting will be stored and will be
used during subsequent message
transmissions.
RDS
- "no pty" is displayed,
- then press the button briefl y to select a programme.
After a few seconds without any ac-
tion, your selection is stored.

2
30

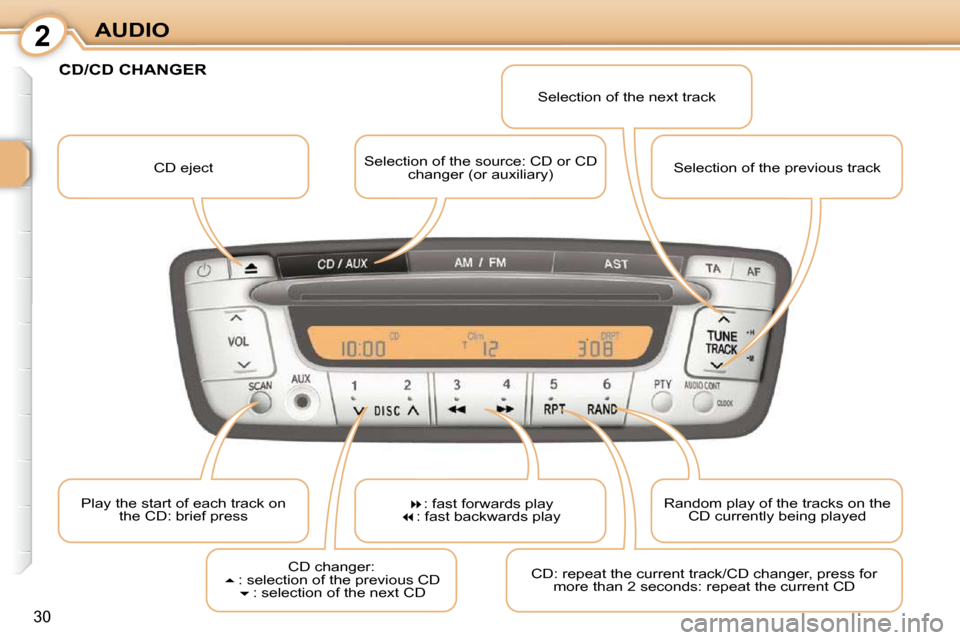

AUDIO CD eject Selection of the source: CD or CD
changer (or auxiliary) Selection of the next track
Play the start of each track on the CD: brief press
 : fast forwards play

 : fast backwards play Selection of the previous track
Random play of the tracks on the CD currently being played
CD changer:

 : selection of the previous CD

 : selection of the next CD CD: repeat the current track/CD changer, press for
more than 2 seconds: repeat the current CD
CD/CD CHANGER

2
31
AUDIO
Press this button to
select the next track.
CD AND CD CHANGER FUNCTIONS
Introscan (SCAN) Press this button to lis-
ten to the start of each
track on the current
CD.
Fast play
Press and hold one
of these buttons for
fast forwards or back-
wards play respec-
tively.
The fast play stops
when the button is re-
leased. When a CD is insert-
ed, printed face up-
permost, play begins
automatically.
If there is a CD in the player already,
press this button.
CD FUNCTIONS Repeat of a track on the CD
(RPT)
Random play of the CD
(RAND) When the CD player
is selected, press this
button. If you wish to listen
to the current track
again, press this but-
ton. To cancel the
repetition, press the
button again.
CD eject Press this button to
eject the CD from the
player.
The tracks on the CD will be played
in a random order. Press the button
again to return to normal play.
The random play mode is deacti-
vated when the audio equipment is
switched off. The use of copied CDs may
cause faults.
Insert circular CDs only.
Selection of a track on a CD
Press this button to
return to the start of
the current track or
to select the previous
track. Selection of the CD player

2

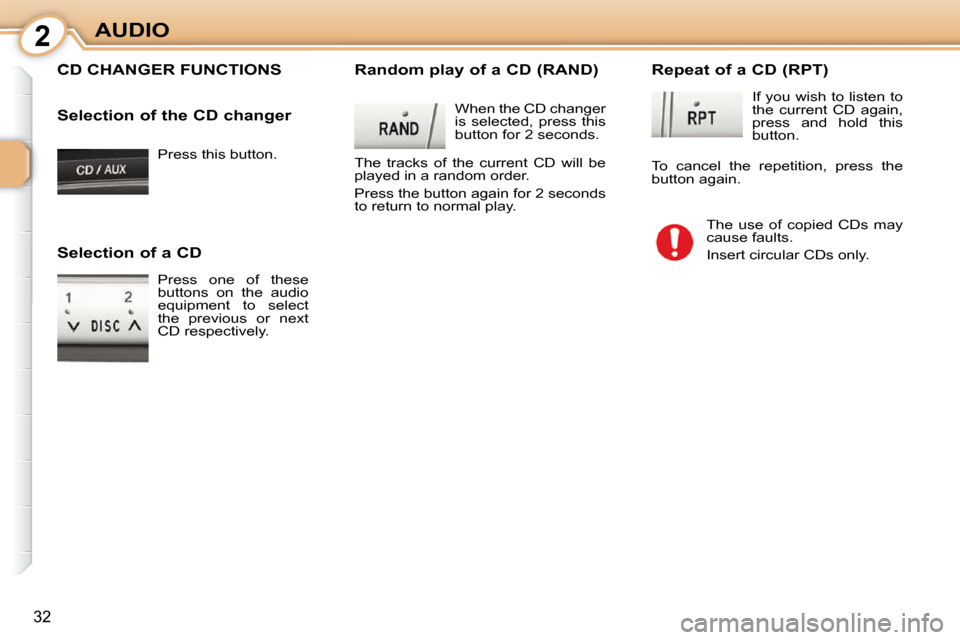

32
AUDIO Press this button.
CD CHANGER FUNCTIONS Random play of a CD (RAND) When the CD changer
is selected, press this
button for 2 seconds.
The tracks of the current CD will be
played in a random order.
Press the button again for 2 seconds
to return to normal play.
Selection of a CD Press one of these
buttons on the audio
equipment to select
the previous or next
CD respectively. Repeat of a CD (RPT)
If you wish to listen to
the current CD again,
press and hold this
button.
The use of copied CDs may
cause faults.
Insert circular CDs only.
To cancel the repetition, press the
button again.
Selection of the CD changer
