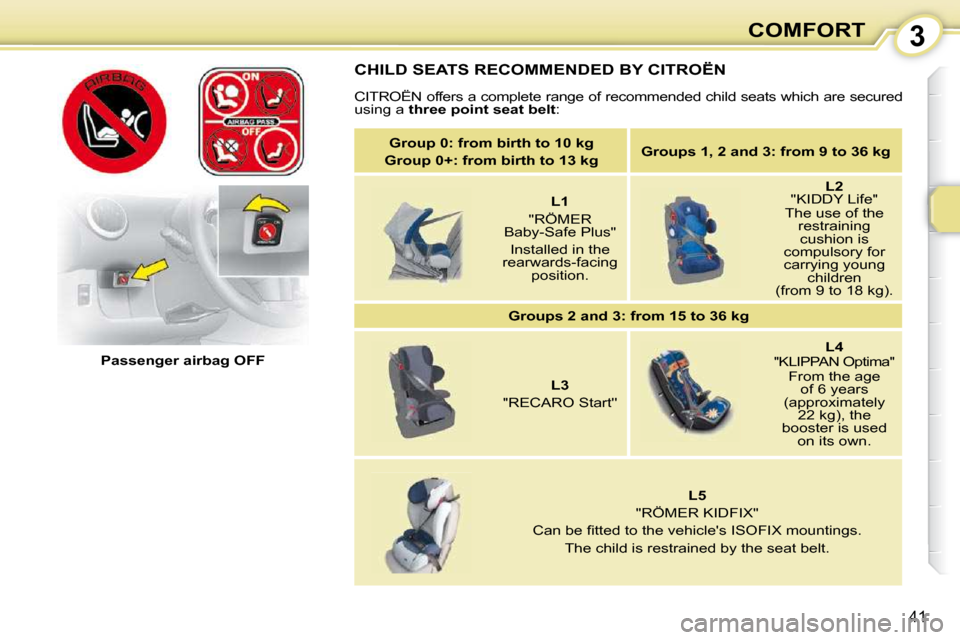

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured
using a t h r e e p o i n t s e a t b e l t :
Passenger airbag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the restraining cushion is
compulsory for
carrying young children
(from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
Page 42 of 97
3
42
COMFORT

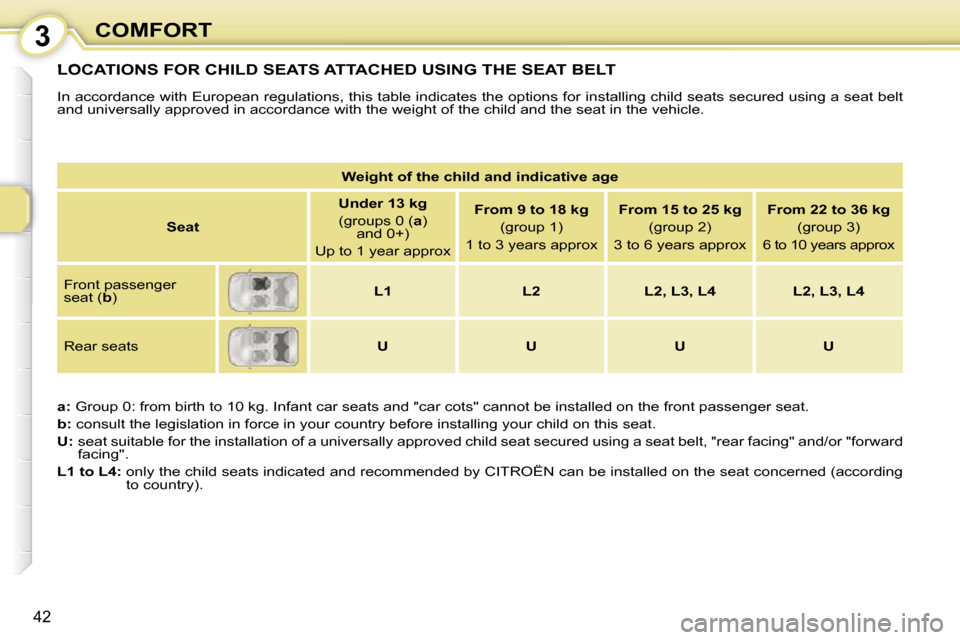

LOCATIONS FOR CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" can not be installed on the front passenger seat.
b: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a universally appro ved child seat secured using a seat belt, "rear facing" and/or "fo rward
facing".
L1 to L4: only the child seats indicated and recommended by CITROËN ca n be installed on the seat concerned (according
to country).
W e i g h t o f t h e c h i l d a n d i n d i c a t i v e a g e
Seat
U n d e r 1 3 k g
(groups 0 ( a )
and 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g
(group 1)
1 to 3 years approx
F r o m 1 5 t o 2 5 k g
(group 2)
3 to 6 years approx
F r o m 2 2 t o 3 6 k g
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
L1 L2 L 2 , L 3 , L 4 L 2 , L 3 , L 4
Rear seats U U U U
Page 43 of 97
3
43
COMFORT

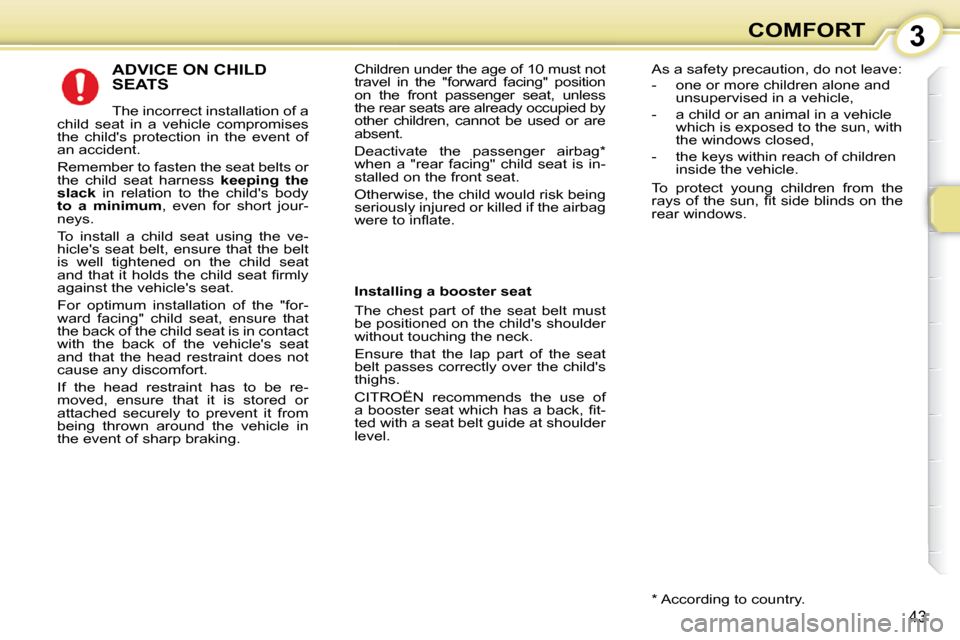

ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle compromises
the child's protection in the event of
an accident.
Remember to fasten the seat belts or
the child seat harness k e e p i n g t h e
s l a c k in relation to the child's body
to a minimum , even for short jour-
neys.
To install a child seat using the ve-
hicle's seat belt, ensure that the belt
is well tightened on the child seat
a n d t h a t i t h o l d s t h e c h i l d s e a t fi r m l y
against the vehicle's seat.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag *
when a "rear facing" child seat is in-
stalled on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
I n s t a l l i n g a b o o s t e r s e a t
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
* According to country.
Page 44 of 97
3
44
COMFORT

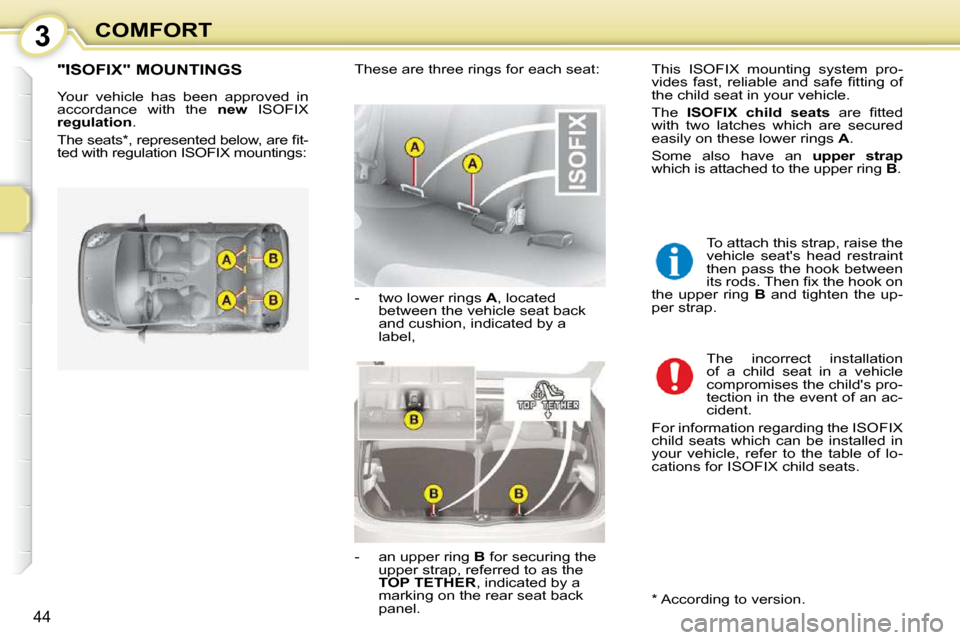

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the n e w I S O F I X
r e g u l a t i o n .
T h e s e a t s * , r e p r e s e n t e d b e l o w , a r e fi t -
t e d w i t h r e g u l a t i o n I S O F I X m o u n t i n g s : These are three rings for each seat:
T h i s I S O F I X m o u n t i n g s y s t e m p r o -
v i d e s f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The I S O F I X c h i l d s e a t s a r e fi t t e d
with two latches which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located
between the vehicle seat back
and cushion, indicated by a
label,
* According to version.
- an upper ring
B for securing the
upper strap, referred to as the
TOP TETHER , indicated by a
marking on the rear seat back
panel. To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k o n
the upper ring B and tighten the up-
per strap.
The incorrect installation
of a child seat in a vehicle
compromises the child's pro-
tection in the event of an ac-
cident.
F o r i n f o r m a t i o n r e g a r d i n g t h e I S O F I X
child seats which can be installed in
your vehicle, refer to the table of lo-
c a t i o n s f o r I S O F I X c h i l d s e a t s .
Page 45 of 97
3
45
COMFORT
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .

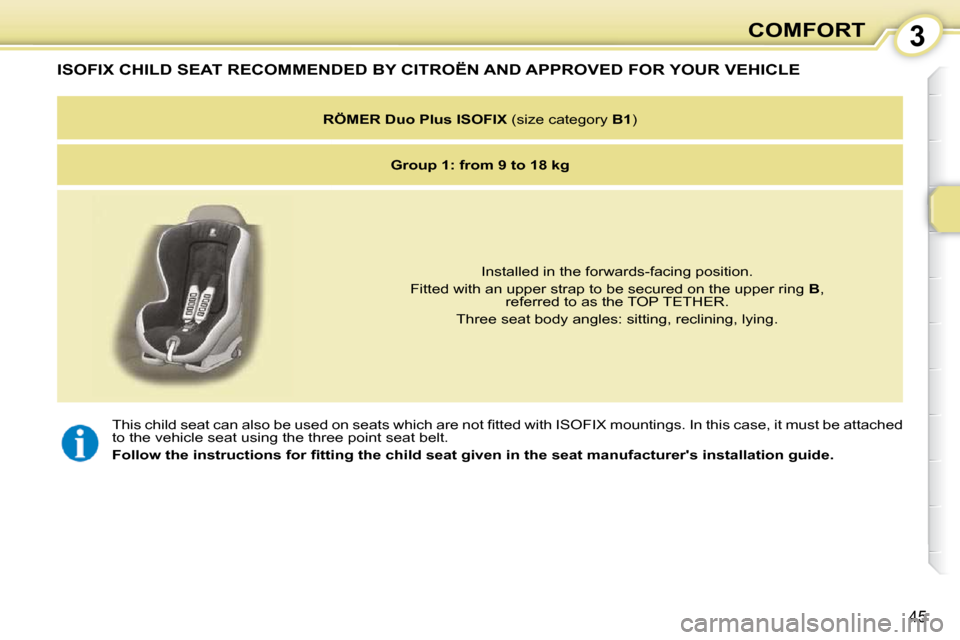

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHIC LE
R Ö M E R D u o P l u s I S O F I X (size category B1 )
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 46 of 97
3
46
COMFORT

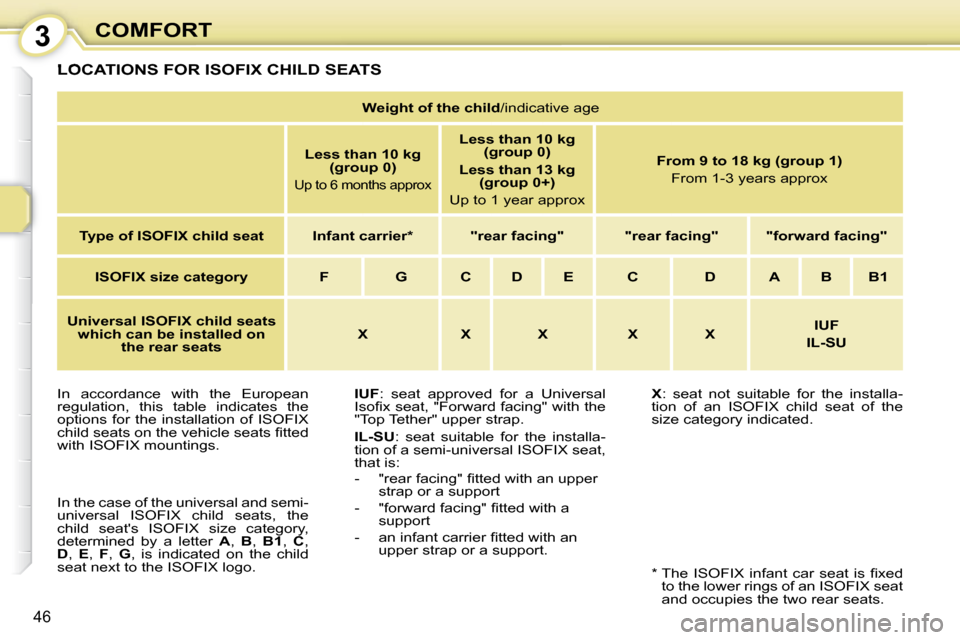

LOCATIONS FOR ISOFIX CHILD SEATS
IUF : seat approved for a Universal
I s o fi x s e a t , " F o r w a r d f a c i n g " w i t h t h e
"Top Tether" upper strap.
I L - S U : seat suitable for the installa-
t i o n o f a s e m i - u n i v e r s a l I S O F I X s e a t ,
that is:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r strap or a support
- " f o r w a r d f a c i n g " fi t t e d w i t h a support
- a n i n f a n t c a r r i e r fi t t e d w i t h a n upper strap or a support.
* T h e I S O F I X i n f a n t c a r s e a t i s fi x e d t o t h e l o w e r r i n g s o f a n I S O F I X s e a t
and occupies the two rear seats.
X : seat not suitable for the installa-
t i o n o f a n I S O F I X c h i l d s e a t o f t h e
size category indicated.
In accordance with the European
regulation, this table indicates the
o p t i o n s f o r t h e i n s t a l l a t i o n o f I S O F I X
c h i l d s e a t s o n t h e v e h i c l e s e a t s fi t t e d
w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-
u n i v e r s a l I S O F I X c h i l d s e a t s , t h e
c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y ,
determined by a letter
A , B , B1 , C ,
D , E , F , G , is indicated on the child
s e a t n e x t t o t h e I S O F I X l o g o .
W e i g h t o f t h e c h i l d /indicative age
L e s s t h a n 1 0 k g
(group 0)
Up to 6 months approx
L e s s t h a n 1 0 k g
(group 0)
L e s s t h a n 1 3 k g (group 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g ( g r o u p 1 )
From 1-3 years approx
T y p e o f I S O F I X c h i l d s e a t Infant carrier * "rear facing" "rear facing" " f o r w a r d f a c i n g "
ISOFIX size category F G C D E C D A B B1
U n i v e r s a l I S O F I X c h i l d s e a t s
w h i c h c a n b e i n s t a l l e d o n the rear seats
X X X X X
IUF
I L - S U
Page 47 of 97
3
47
COMFORT

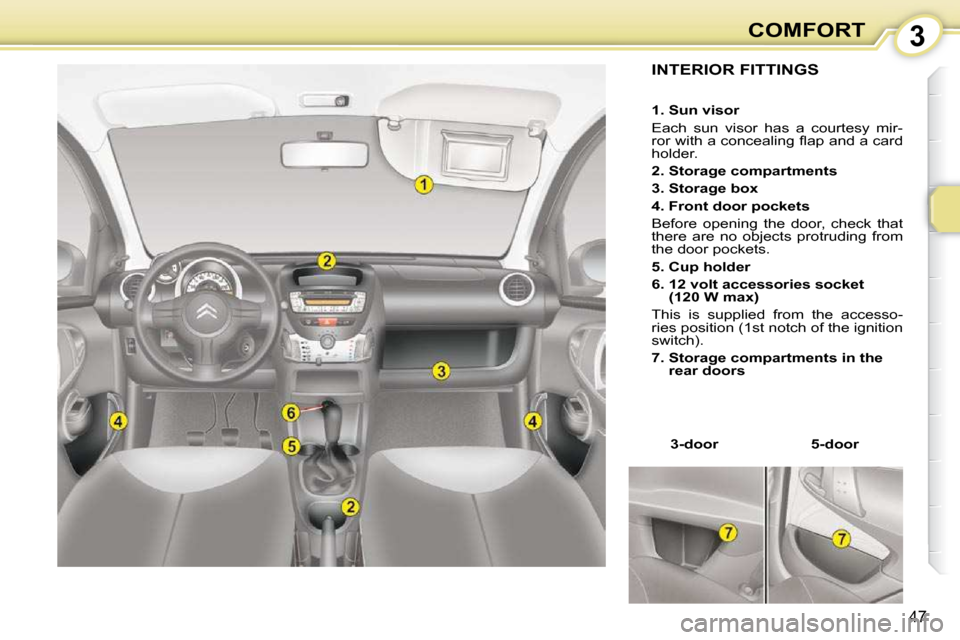

INTERIOR FITTINGS
3 - d o o r 5 - d o o r
1 . S u n v i s o r
Each sun visor has a courtesy mir-
r o r w i t h a c o n c e a l i n g fl a p a n d a c a r d
holder.
2. Storage compartments
3. Storage box
4.
F r o n t d o o r p o c k e t s
Before opening the door, check that
there are no objects protruding from
the door pockets.
5 . C u p h o l d e r
6 . 1 2 v o l t a c c e s s o r i e s s o c k e t
(120 W max)
This is supplied from the accesso-
ries position (1st notch of the ignition
switch).
7. Storage compartments in the
rear doors
Page 48 of 97
4
48
ACCESS

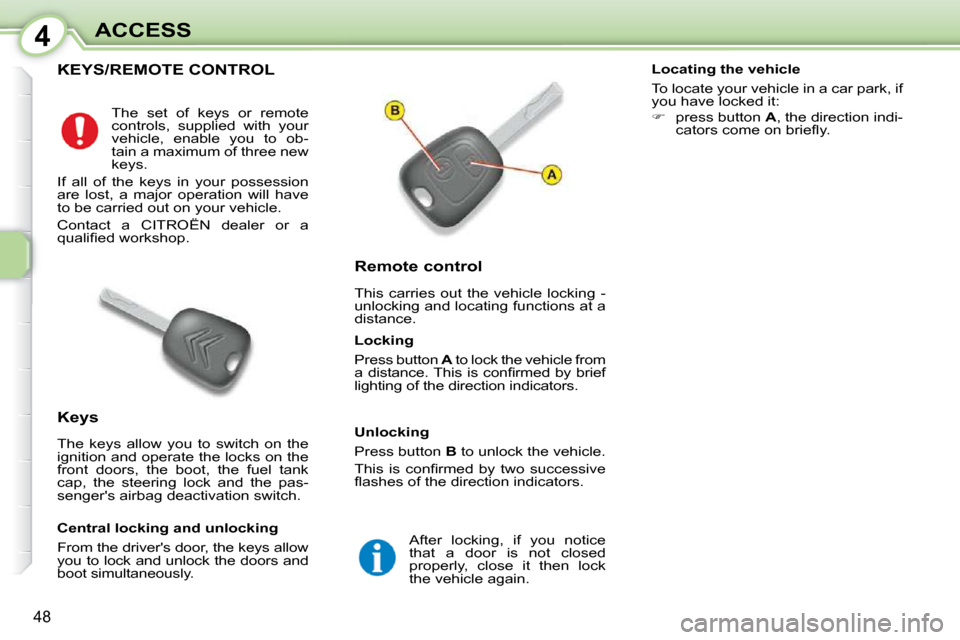

KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger's airbag deactivation switch. Locking
Press button
A to lock the vehicle from
a d i s t a n c e . T h i s i s c o n fi r m e d b y b r i e f
lighting of the direction indicators.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t w o s u c c e s s i v e
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Locating the vehicle
To locate your vehicle in a car park, if
you have locked it:
press button A , the direction indi-
c a t o r s c o m e o n b r i e fl y .
After locking, if you notice
that a door is not closed
properly, close it then lock
the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to ob-
tain a maximum of three new
keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Contact a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Page 49 of 97
4
49
ACCESS
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a CITROËN dealer or a quali-
fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be neces-
sary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a CITROËN d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 50 of 97
4
49
ACCESS
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a CITROËN dealer or a quali-
fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR 2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be neces-
sary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a CITROËN d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a CITROËN dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
