Citroen C1 RHD 2014 1.G Owner's Manual

04
229

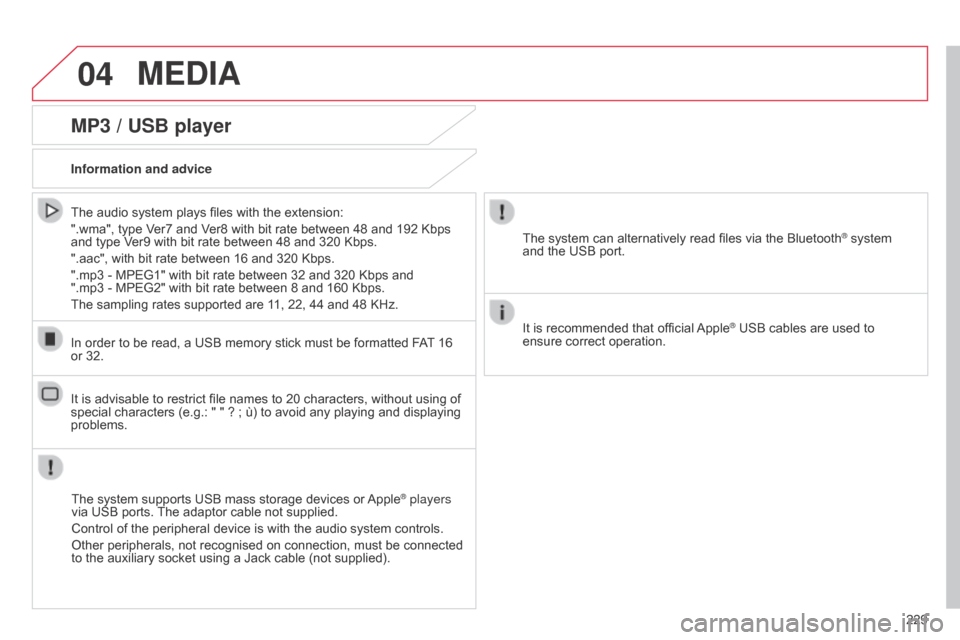

MEDIA
MP3 / USB player
Information and adviceThe system supports USB mass storage devices or Apple
® players
via USB ports. The adaptor cable not supplied.
Control of the peripheral device is with the audio system controls.
Other peripherals, not recognised on connection, must be connected
to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memory stick must be formatted FAT 16
or 32.
The system can alternatively read files via the Bluetooth
® system
and the USB port.
It is recommended that official Apple
® USB cables are used to
ensure correct operation.
The audio system plays files with the extension:
".wma", type Ver7 and Ver8 with bit rate between 48 and 192 Kbps
and type Ver9 with bit rate between 48 and 320 Kbps.
".aac", with bit rate between 16 and 320 Kbps.
".mp3 - MPEG1" with bit rate between 32 and 320 Kbps and

".mp3 - MPEG2" with bit rate between 8 and 160 Kbps.
The sampling rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict file names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

04
230

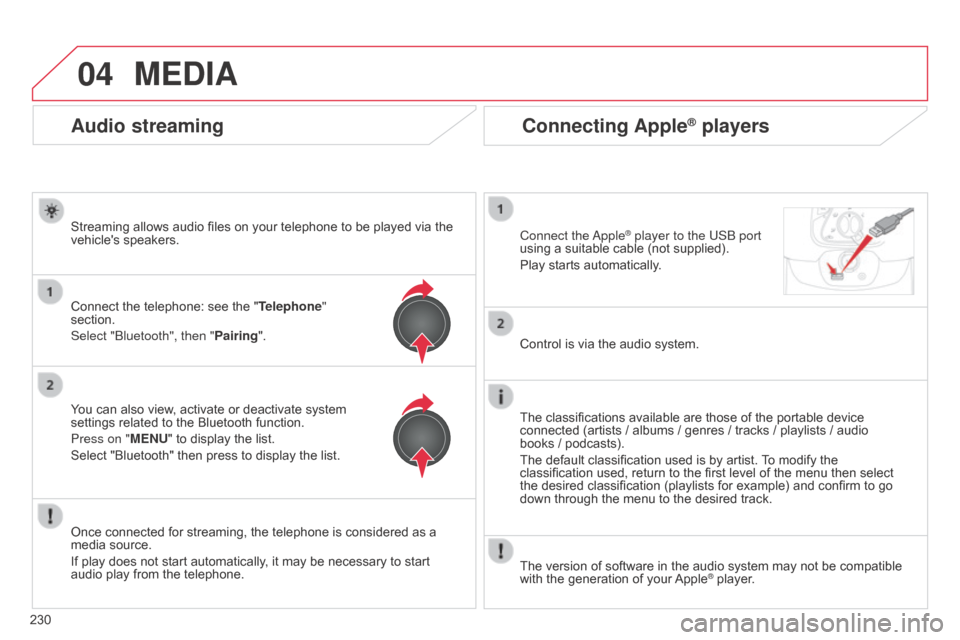

Connecting Apple® players
Connect the apple® player to the USb port
using a suitable cable (not supplied).
Play starts automatically
.
Control is via the audio system.
The classifications available are those of the portable device
connected (artists / albums / genres / tracks / playlists / audio
books

/ podcasts).
The default classification used is by artist. To modify the
classification used, return to the first level of the menu then select
the desired classification (playlists for example) and confirm to go
down through the menu to the desired track.
The version of software in the audio system may not be compatible
with the generation of your Apple
® player.
MEDIA
Audio streaming
Streaming allows audio files on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see the " Telephone"
section.
Select "
b luetooth", then "Pairing".
You can also view, activate or deactivate system
settings related to the Bluetooth function.
Press on "MENU" to display the list.
Select "Bluetooth" then press to display the list.
Once connected for streaming, the telephone is considered as a
media source.
If play does not start automatically, it may be necessary to start
audio play from the telephone.

05
231

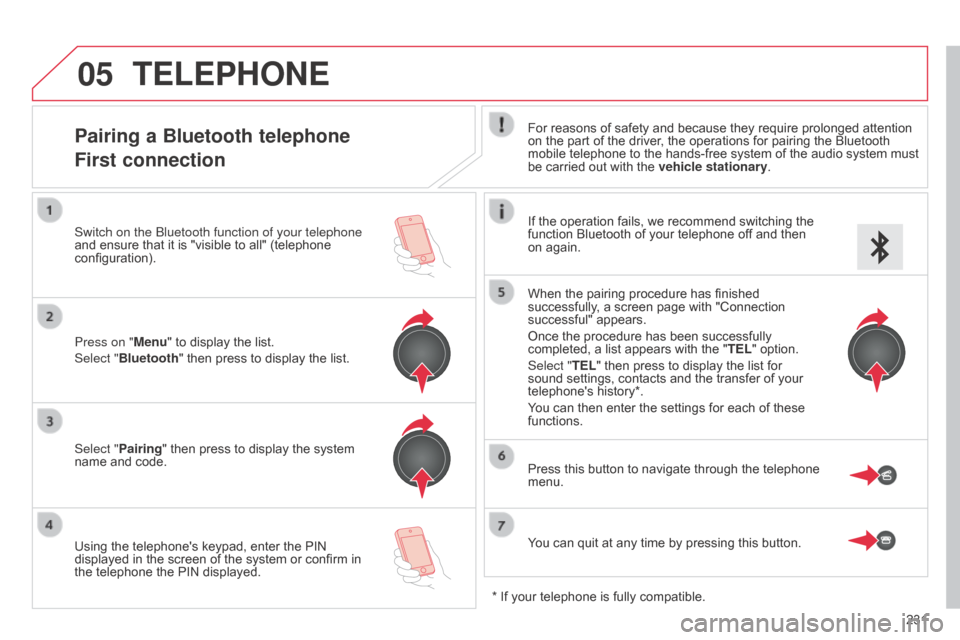

TELEPHONE
Pairing a Bluetooth telephone
First connectionFor reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio system must
be carried out with the vehicle stationary.
Select "Pairing" then press to display the system
name and code.
Using the telephone's keypad, enter the PIN
displayed in the screen of the system or confirm in
the telephone the PIN displayed. Press on "Menu" to display the list.
Select "Bluetooth" then press to display the list. Switch on the
b
luetooth function of your telephone
and ensure that it is "visible to all" (telephone
configuration). If the operation fails, we recommend switching the
function Bluetooth of your telephone off and then
on again.
When the pairing procedure has finished
successfully, a screen page with "Connection
successful" appears.
Once the procedure has been successfully
completed, a list appears with the "
TEL" option.
Select "TEL" then press to display the list for
sound settings, contacts and the transfer of your
telephone's history*.
You can then enter the settings for each of these
functions.
You can quit at any time by pressing this button. Press this button to navigate through the telephone
menu.
* If your telephone is fully compatible.

05
232

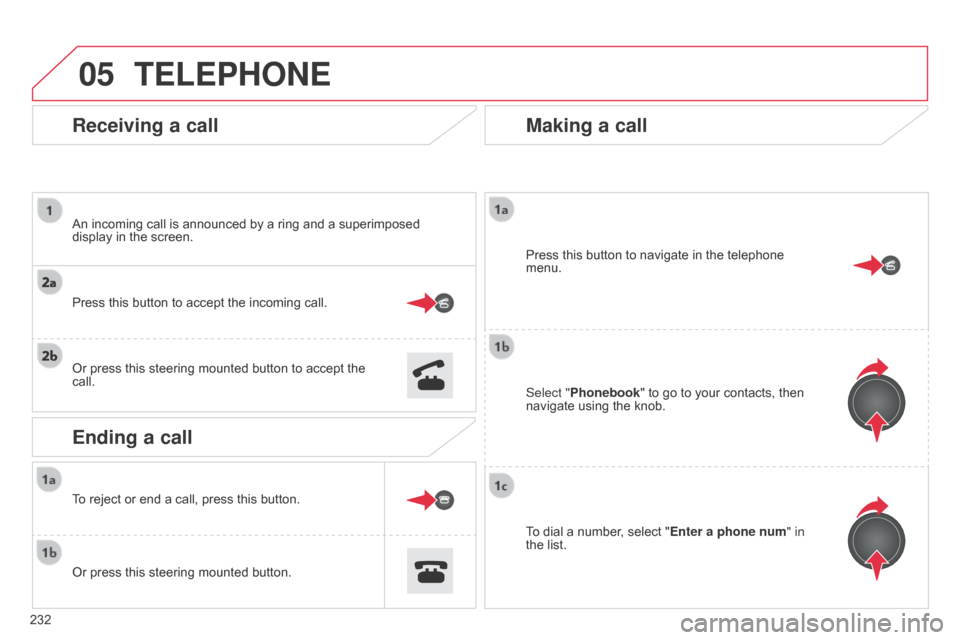

Receiving a call
An incoming call is announced by a ring and a superimposed
display in the screen.
Press this button to accept the incoming call.
Or press this steering mounted button to accept the
call.
Making a call
Select "Phonebook" to go to your contacts, then
navigate using the knob. Press this button to navigate in the telephone
menu.
To dial a number, select "Enter a phone num " in
the list.
TELEPHONE
Ending a call
To reject or end a call, press this button.
Or press this steering mounted button.

06
233

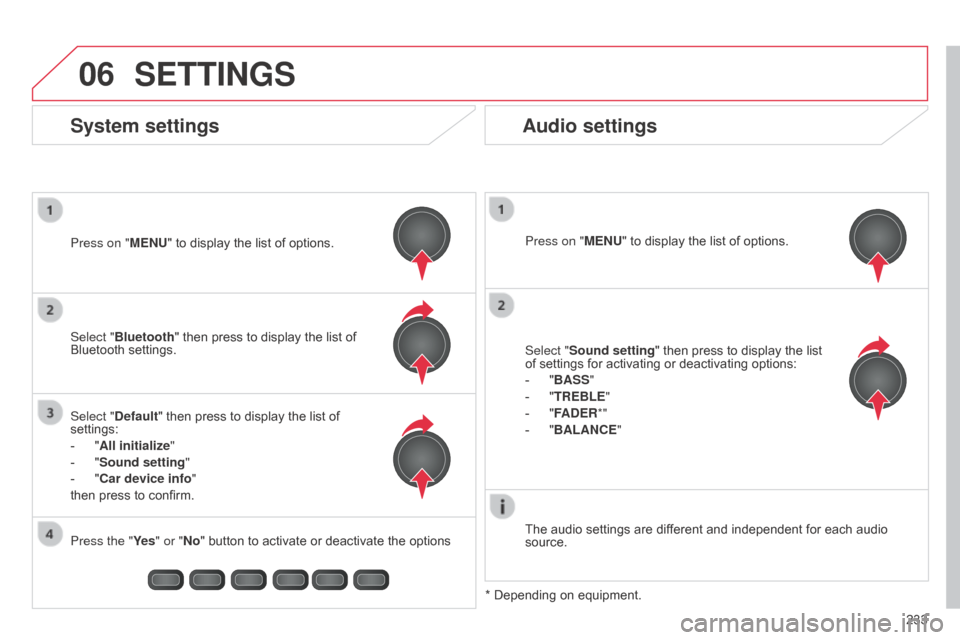

SETTINGS
Press on "MENU" to display the list of options.
The audio settings are different and independent for each audio
source.
* Depending on equipment.
System settings Audio settings
Select "Sound setting" then press to display the list
of settings for activating or deactivating options:
-

"
BASS"
-

"
TREBLE"
-

"
FADER*"
-

"
BALANCE "
Press on "MENU" to display the list of options.
Select "Default" then press to display the list of
settings:
-

"

All initialize "
-

"

Sound setting "
-

"

Car device info"
then press to confirm. Select "Bluetooth" then press to display the list of
Bluetooth settings.
Press the "Ye s " or "No" button to activate or deactivate the options

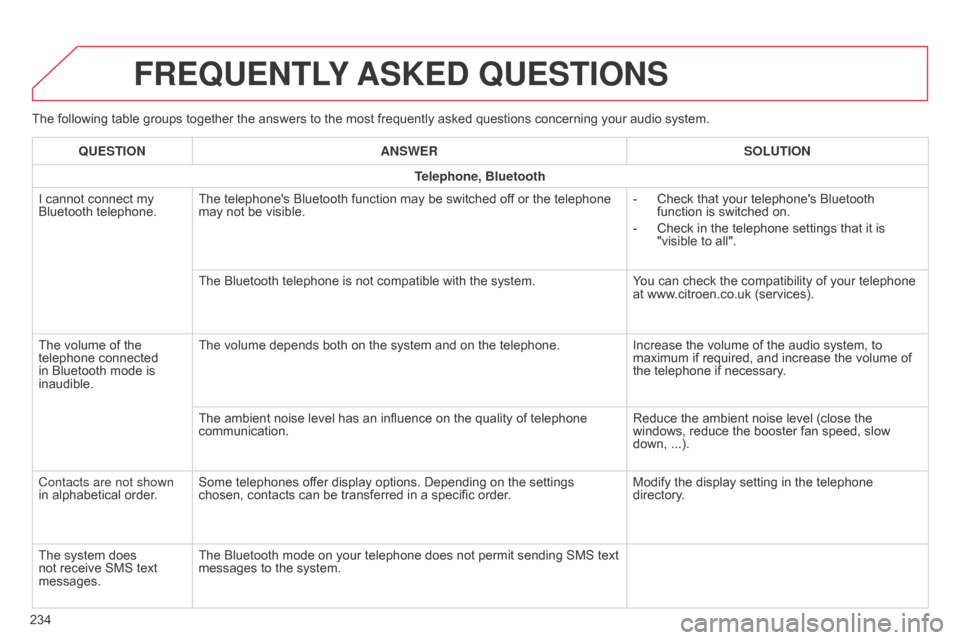

The following table groups together the answers to the most frequently asked questions concerning your audio system.
FREQUENTLY ASKED QUESTIONS
234QUESTION
ANSWER SOLUTION
Telephone, Bluetooth
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible. -
Check that your telephone's Bluetooth
function is switched on.
-

Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. Y
ou can check the compatibility of your telephone
at www.citroen.co.uk (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication. Reduce the ambient noise level (close the
windows, reduce the booster fan speed, slow
down, ...).
Contacts are not shown
in alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone
directory.
The system does
not receive SMS text
messages. The Bluetooth mode on your telephone does not permit sending SMS text
messages to the system.

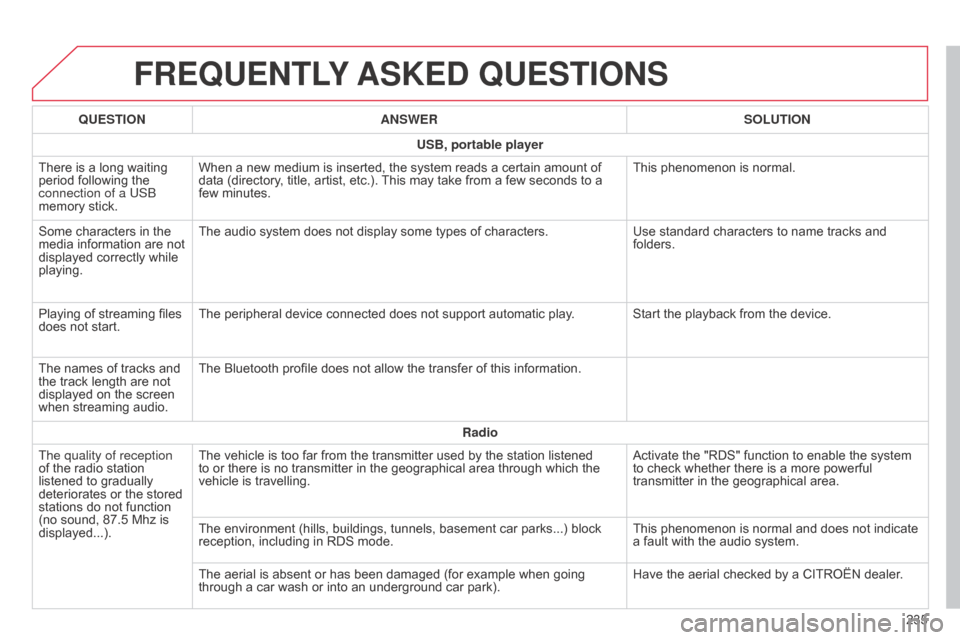

FREQUENTLY ASKED QUESTIONS
235
QUESTION
ANSWER SOLUTION
USB, portable player
There is a long waiting
period following the
connection of a US
b

memory stick. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes.
This phenomenon is normal.
Some characters in the
media information are not
displayed correctly while
playing. The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth profile does not allow the transfer of this information.
Radio
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5

Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the "RDS" function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.

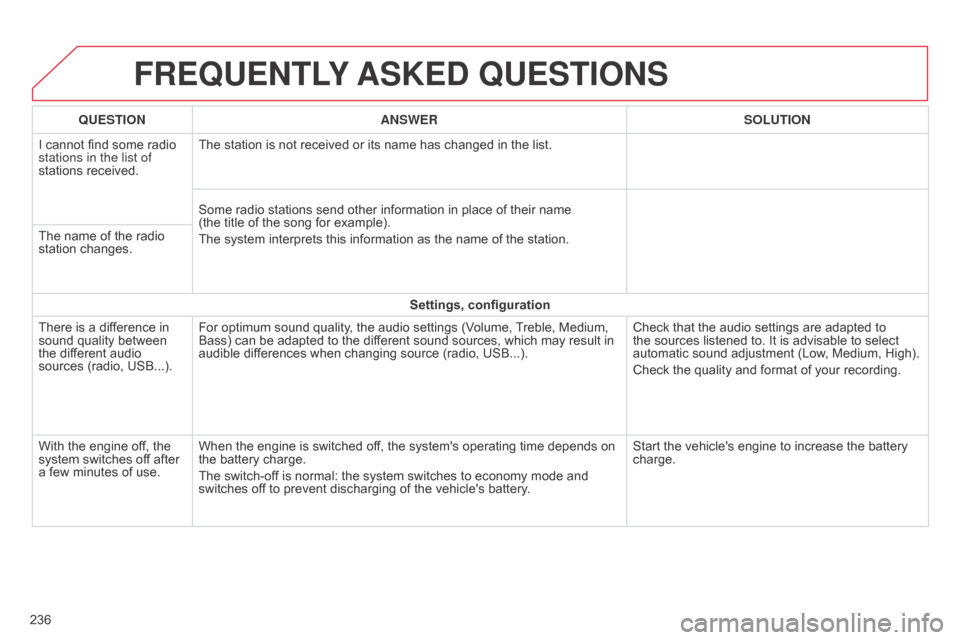

FREQUENTLY ASKED QUESTIONS
236QUESTION
ANSWER SOLUTION
I cannot find some radio
stations in the list of
stations received. The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name

(the title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
Settings, configuration
There is a difference in
sound quality between
the different audio
sources (radio, USB...). For optimum sound quality, the audio settings (Volume, Treble, Medium,
Bass) can be adapted to the different sound sources, which may result in
audible differences when changing source (radio, USB...).
Check that the audio settings are adapted to
the sources listened to. It is advisable to select
automatic sound adjustment (Low, Medium, High).
Check the quality and format of your recording.
With the engine off, the
system switches off after
a few minutes of use. When the engine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

237
Keys 30
Remote control 3 1-32
"Keyless Entry and Starting" system

3
3 -36
Remote control battery

3
2, 36
Starting

7
1, 73

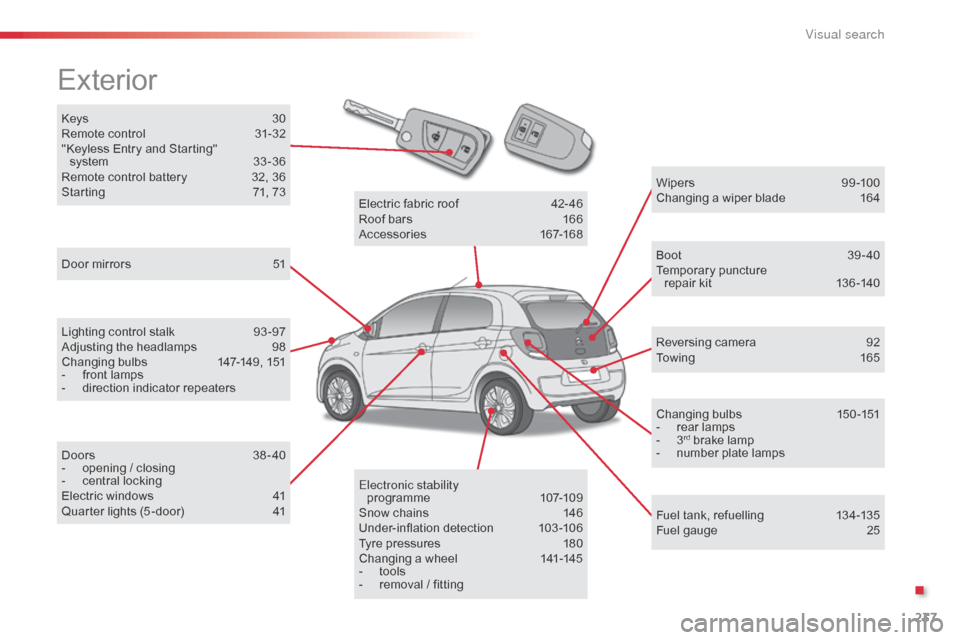

Exterior
Door mirrors 5 1
Lighting control stalk
9
3 -97
Adjusting the headlamps

9
8
Changing bulbs

1
47-149, 151
-

f
ront lamps
-

d
irection indicator repeaters
Doors
3

8-40
-

o
pening / closing
-

c
entral locking
Electric windows

4
1
Quarter lights (5 -door)

4
1 W ip e r s
9

9 -10 0
Changing a wiper blade
1
64
Boot 3 9-40
Temporary puncture
repair kit

1
36 -140
Reversing camera

9
2
To w i n g
1

6 5
Changing bulbs
1

50-151
-

r
ear lamps
-

3rd brake lamp
-
n
umber plate lamps
Fuel tank, refuelling

1
34-135
Fuel gauge

2
5
Electronic stability
programme
1

07-109
Snow chains

1

46
Under-inflation detection
1

03-106
Tyre pressures

1

80
Changing a wheel

1

41-145
-

t

ools
-

r

emoval / fitting
Electric fabric roof
4

2-46
Roof bars

1

66
Accessories
1

67-168
.
Visual search

238
Rear parcel shelf 68
Boot fittings 6 9 -70
-

h
ooks
-

s
torage box

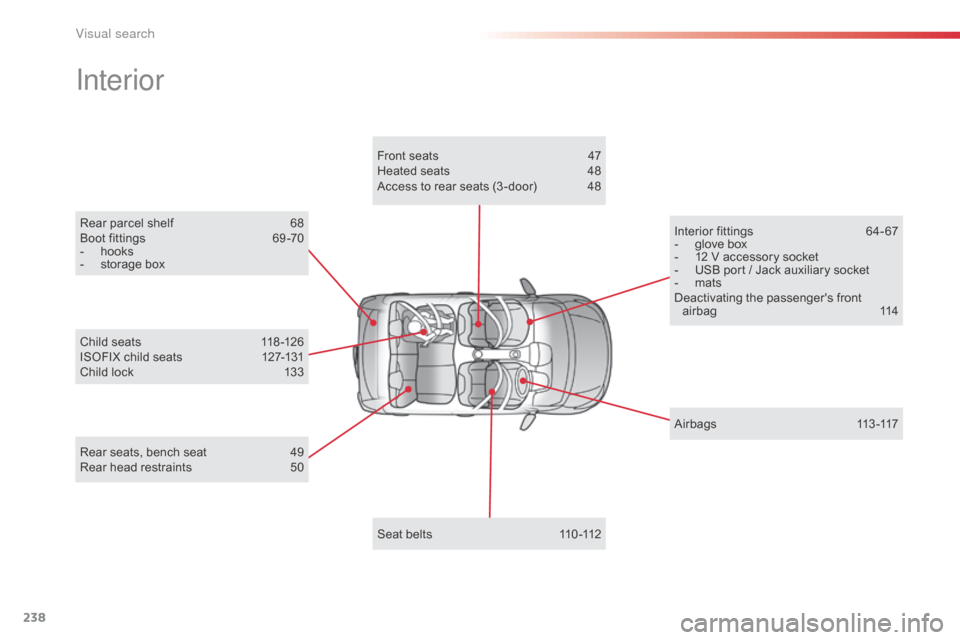

Interior
Child seats 1 18 -126
ISOFIX child seats 1 27-131
Child lock

1
33
Rear seats, bench seat

4
9
Rear head restraints

5
0 Interior fittings

6
4- 67
-
g
love box
-
1
2 V accessory socket
-
U
SB port / Jack auxiliary socket
-
m
ats
Deactivating the passenger's front airbag
1
14
A i r b a g s
11
3 -117
Seat belts

1
10 -112
Front seats

4
7
Heated seats
4
8
Access to rear seats (3 -door)
4
8
Visual search
