Citroen C1 RHD 2015 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2015, Model line: C1 RHD, Model: Citroen C1 RHD 2015 1.GPages: 260, PDF Size: 6.35 MB
Page 231 of 260
229

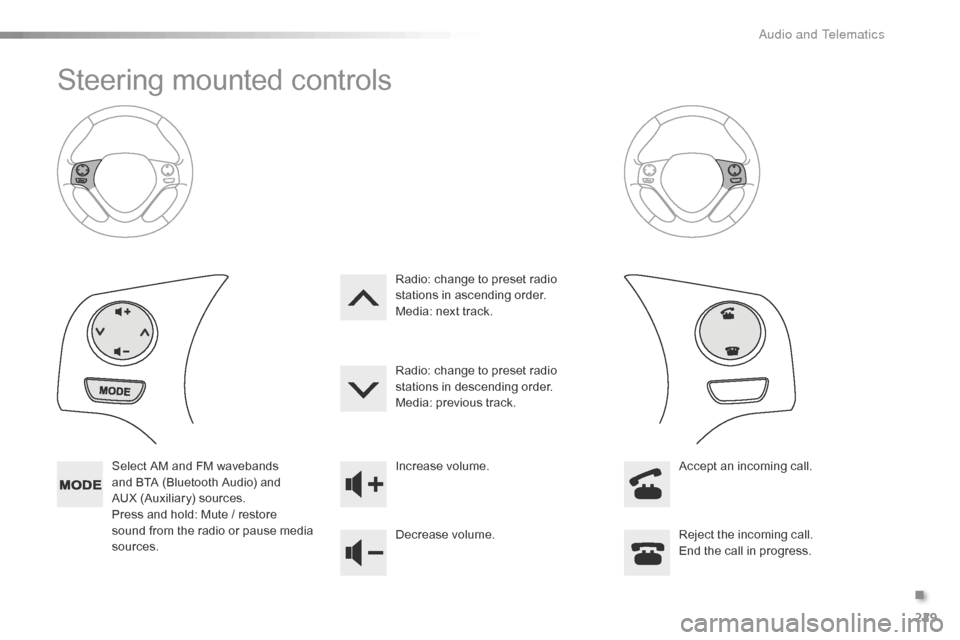

Steering mounted controls
Select AM and FM wavebands
and BTA (Bluetooth Audio) and
AUX (Auxiliary) sources.
Press and hold: Mute / restore
sound from the radio or pause media
sources. Increase volume.
Decrease volume.
Reject the incoming call.
End the call in progress.
Radio: change to preset radio
stations in ascending order.
Media: next track.
Radio: change to preset radio
stations in descending order.
Media: previous track.
Accept an incoming call.
.
A
Page 232 of 260
230
Radio
Selecting a stationPresetting a station
Press on "MODE" to select the FM or
AM waveband. Press on "
MODE" to select the FM or
AM waveband.
Turn the dial to carry out a manual
search down/up for radio stations.
In FM mode, press the " List" button
to display the list of stations received
locally.
Press on " Update" to refresh the list. Press and hold one of the buttons to
preset the current radio station. The
name of the station is displayed and
an audible signal confirms the preset.
Briefly press one of the buttons to
carry out an automatic search down/
up for radio stations.
Briefly press one of these buttons to
start an automatic search up/down
for frequencies.
Press one of the buttons to select the
chosen radio station then confirm. The surroundings (hills, buildings,
tunnel, parking, under ground...) may
prevent reception, including RDS
alternative frequencies, frequency
search.
This phenomenon is normal in the
propagation of radio waves and does
not in any way imply a fault with the
audio system.
Alternative frequencies
(AF) / RDS
Press on "
MENU" to display the list.
Turn the knob to select " Radio" then
press to confirm.
Turn the knob to select " FM AF" then
press to activate or deactivate the
frequency.
Turn the knob the select " Region
Code " then press to activate or
deactivate.
When alternative frequencies (AF) is
activated, the system selects the best
RDS frequency (Region code) for the
station being listened to.
However, in certain conditions, tracking
of a station is not available throughout
the whole country, as radio stations do
not cover 100% of the country. When
reception becomes poor, the frequency
changes to a regional station.
Audio and Telematics
Page 233 of 260
231
Press on "MENU" to display the list.
Turn the knob to select " Radio",
press to confirm.
Select " FM AF", press to switch
traffic announcements on or off.

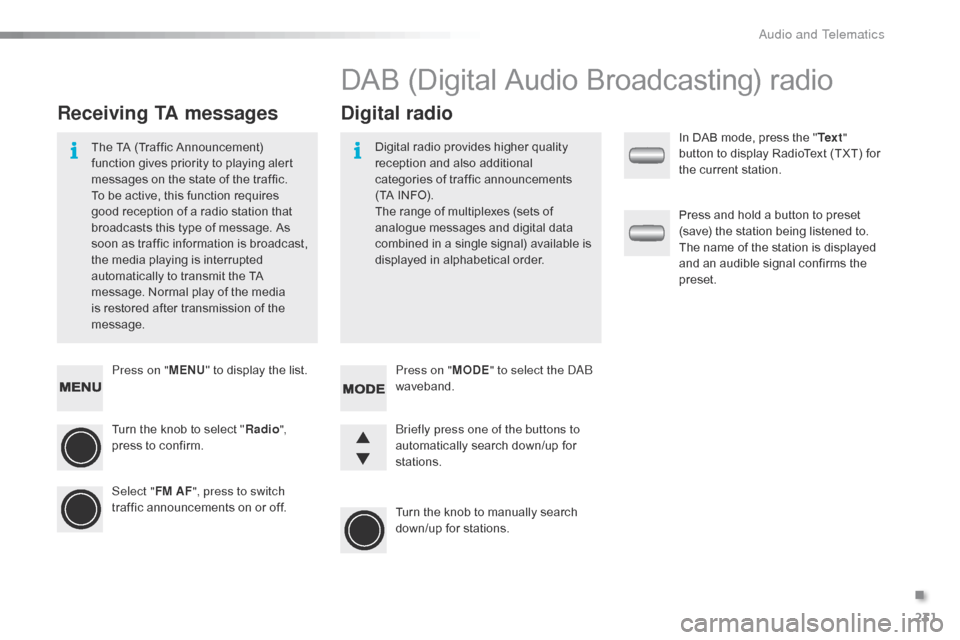

Receiving TA messages Digital radio
The TA (Traffic Announcement)
function gives priority to playing alert
messages on the state of the traffic.
To be active, this function requires
good reception of a radio station that
broadcasts this type of message. As
soon as traffic information is broadcast,
the media playing is interrupted
automatically to transmit the TA
message. Normal play of the media
is restored after transmission of the
message. Digital radio provides higher quality
reception and also additional
categories of traffic announcements
(TA INFO).
The range of multiplexes (sets of
analogue messages and digital data
combined in a single signal) available is
displayed in alphabetical order.
DAB (Digital Audio Broadcasting) radio
Press on "
MODE" to select the DAB
waveband.
Turn the knob to manually search
down/up for stations. Briefly press one of the buttons to
automatically search down/up for
stations. In DAB mode, press the "
Te x t"
button to display RadioText (TXT) for
the current station.
Press and hold a button to preset
(save) the station being listened to.
The name of the station is displayed
and an audible signal confirms the
preset.
.
Audio and Telematics
Page 234 of 260
232
Press on MENU to display the list.
Turn the knob to select " Radio" then
press to confirm.
Turn the knob to select " DAB AF",
press to activate or deactivate the
frequency.

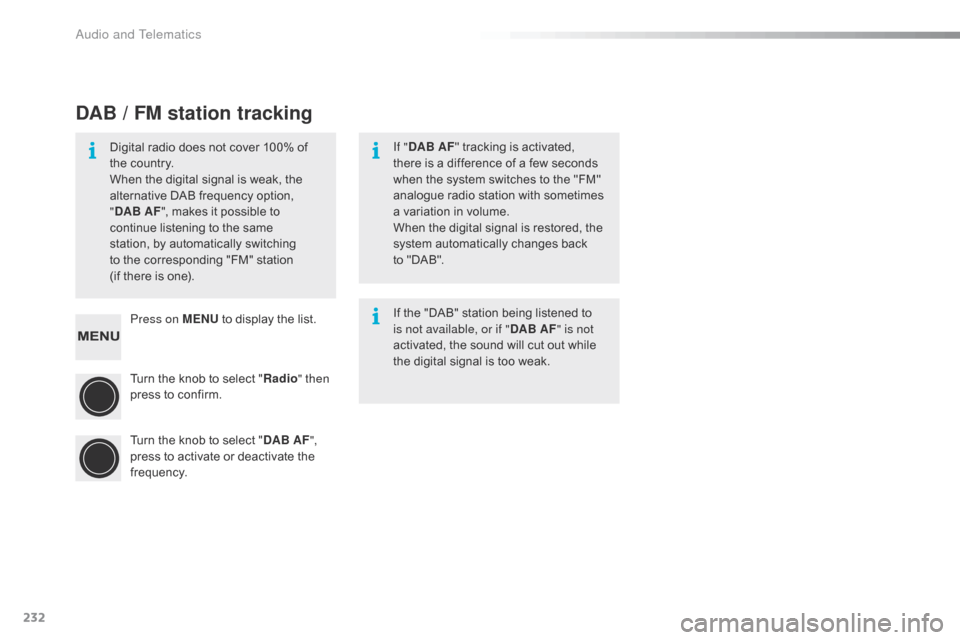

DAB / FM station tracking
Digital radio does not cover 100% of
the country.
When the digital signal is weak, the
alternative DAB frequency option,
" DAB AF ", makes it possible to
continue listening to the same
station, by automatically switching
to the corresponding "FM" station
(if
there is one). If "
DAB AF " tracking is activated,
there is a difference of a few seconds
when the system switches to the "FM"
analogue radio station with sometimes
a variation in volume.
When the digital signal is restored, the
system automatically changes back
to
"DAB".
If the "DAB" station being listened to
is not available, or if " DAB AF" is not
activated, the sound will cut out while
the digital signal is too weak.
Audio and Telematics
Page 235 of 260
233

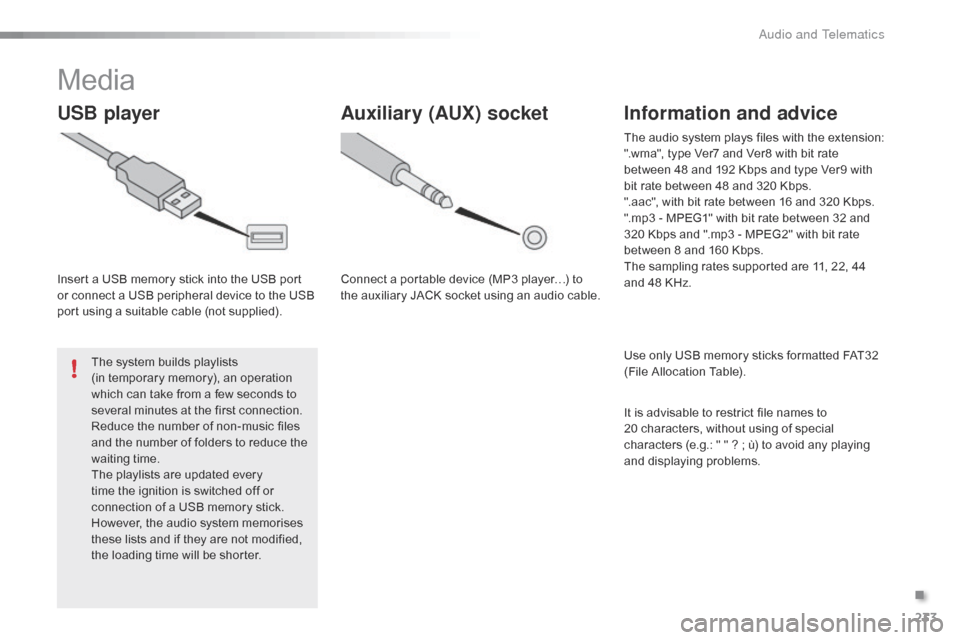

Media
USB player
Insert a USB memory stick into the USB port
or connect a USB peripheral device to the USB
port using a suitable cable (not supplied).The system builds playlists
(in temporary memory), an operation
which can take from a few seconds to
several minutes at the first connection.
Reduce the number of non-music files
and the number of folders to reduce the
waiting time.
The playlists are updated every
time the ignition is switched off or
connection of a USB memory stick.
However, the audio system memorises
these lists and if they are not modified,
the loading time will be shorter.
Auxiliary (AUX) socket
Connect a portable device (MP3 player…) to
the auxiliary JACK socket using an audio cable.
Information and advice
Use only USB memory sticks formatted FAT32
(File Allocation Table). The audio system plays files with the extension:
".wma", type Ver7 and Ver8 with bit rate
between 48 and 192 Kbps and type Ver9 with
bit rate between 48 and 320 Kbps.
".aac", with bit rate between 16 and 320 Kbps.
".mp3 - MPEG1" with bit rate between 32 and
320 Kbps and ".mp3 - MPEG2" with bit rate
between 8 and 160 Kbps.
The sampling rates supported are 11, 22, 44
and 48 KHz.
It is advisable to restrict file names to
20
characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
.
Audio and Telematics
Page 236 of 260
234

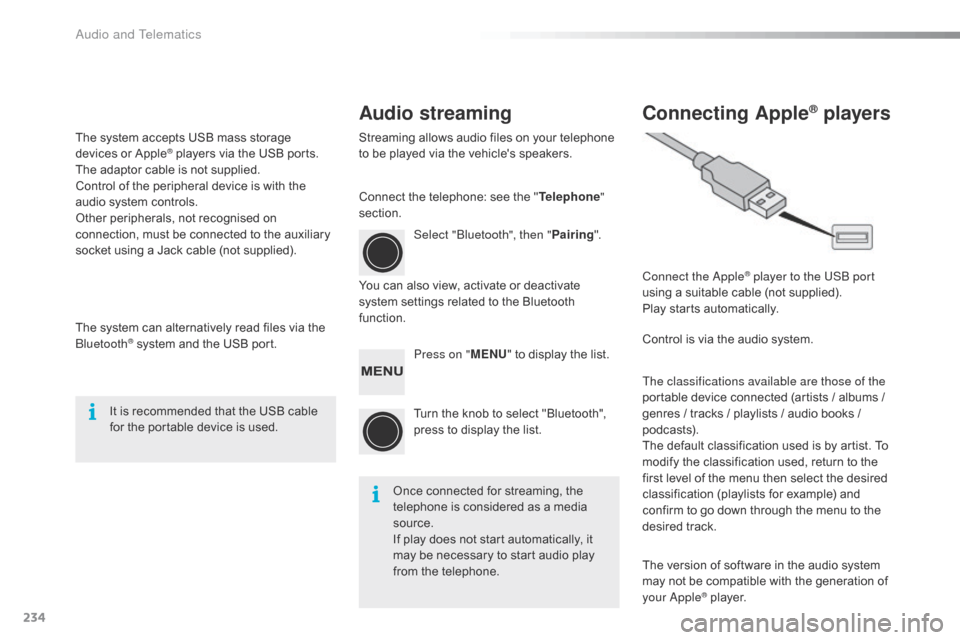

Audio streamingConnecting Apple® players
Streaming allows audio files on your telephone
to be played via the vehicle's speakers.
You can also view, activate or deactivate
system settings related to the Bluetooth
function.Select "Bluetooth", then "
Pairing".
Press on " MENU" to display the list.
Turn the knob to select "Bluetooth",
press to display the list.
Once connected for streaming, the
telephone is considered as a media
source.
If play does not start automatically, it
may be necessary to start audio play
from the telephone. Connect the Apple
® player to the USB port
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the
portable device connected (artists / albums
/
genres / tracks / playlists / audio books
/
podcasts).
The default classification used is by artist. To
modify the classification used, return to the
first level of the menu then select the desired
classification (playlists for example) and
confirm to go down through the menu to the
desired track.
The version of software in the audio system
may not be compatible with the generation of
your Apple
® player.
Connect the telephone: see the "
Telephone"
section.
The system accepts USB mass storage
devices or Apple
® players via the USB ports.
The adaptor cable is not supplied.
Control of the peripheral device is with the
audio system controls.
Other peripherals, not recognised on
connection, must be connected to the auxiliary
socket using a Jack cable (not supplied).
The system can alternatively read files via the
Bluetooth
® system and the USB port.
It is recommended that the USB cable
for the portable device is used.
Audio and Telematics
Page 237 of 260
235

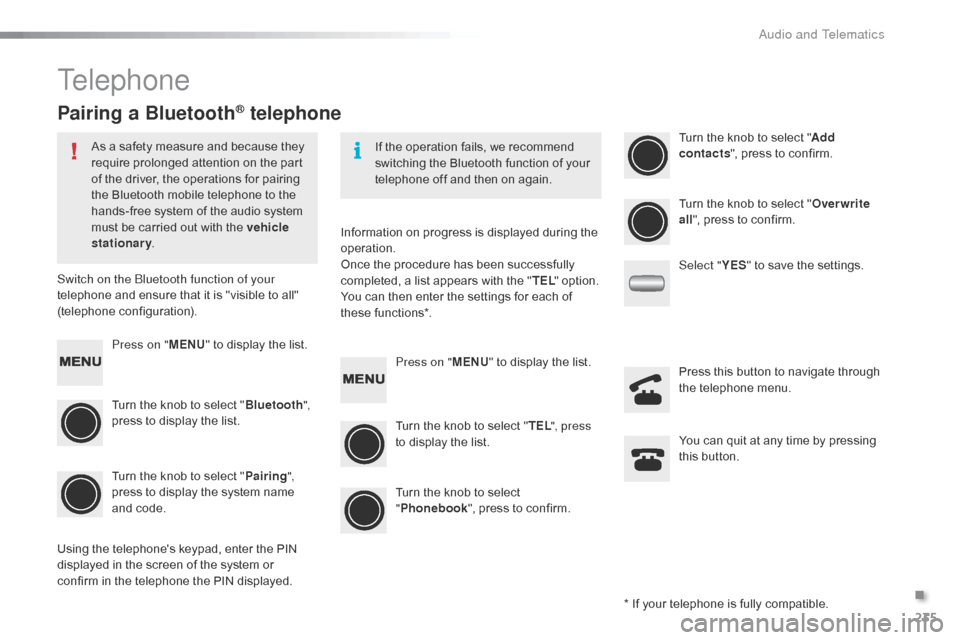

Telephone
Pairing a Bluetooth® telephone
As a safety measure and because they
require prolonged attention on the part
of the driver, the operations for pairing
the Bluetooth mobile telephone to the
hands-free system of the audio system
must be carried out with the vehicle
stationary.
Switch on the Bluetooth function of your
telephone and ensure that it is "visible to all"
(telephone configuration). If the operation fails, we recommend
switching the Bluetooth function of your
telephone off and then on again.
* If your telephone is fully compatible.
Information on progress is displayed during the
operation.
Once the procedure has been successfully
completed, a list appears with the "
TEL" option.
You can then enter the settings for each of
these functions*.
Using the telephone's keypad, enter the PIN
displayed in the screen of the system or
confirm in the telephone the PIN displayed. Press on "
MENU" to display the list.
Turn the knob to select " Bluetooth",
press to display the list.
Turn the knob to select " Pairing",
press to display the system name
and code. Press on "
MENU" to display the list.
Turn the knob to select " TEL", press
to display the list. Turn the knob to select "
Add
contacts ", press to confirm.
Turn the knob to select
" Phonebook ", press to confirm. Turn the knob to select "
Overwrite
all ", press to confirm.
Select " YES" to save the settings.
You can quit at any time by pressing
this button. Press this button to navigate through
the telephone menu.
.
Audio and Telematics
Page 238 of 260
236

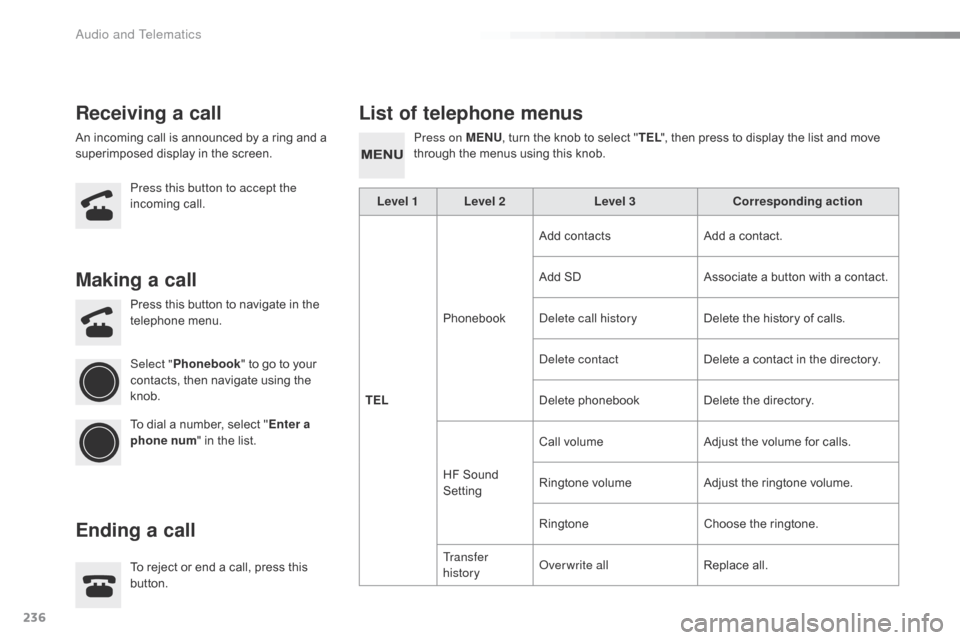

Receiving a callList of telephone menus
An incoming call is announced by a ring and a
superimposed display in the screen.
Press this button to accept the
incoming call. Press on MENU
, turn the knob to select " TEL", then press to display the list and move
through the menus using this knob.
To reject or end a call, press this
button. Press this button to navigate in the
telephone menu.
Making a call
Ending a call
Select " Phonebook " to go to your
contacts, then navigate using the
knob.
To dial a number, select " Enter a
phone num " in the list. Level 1 Level 2
Level 3Corresponding action
TEL Phonebook Add contacts
Add a contact.
Add SD Associate a button with a contact.
Delete call history Delete the history of calls.
Delete contact Delete a contact in the directory.
Delete phonebook Delete the directory.
HF Sound
Setting Call volume
Adjust the volume for calls.
Ringtone volume Adjust the ringtone volume.
Ringtone Choose the ringtone.
Tr a n s f e r
history Overwrite all
Replace all.
Audio and Telematics
Page 239 of 260
237

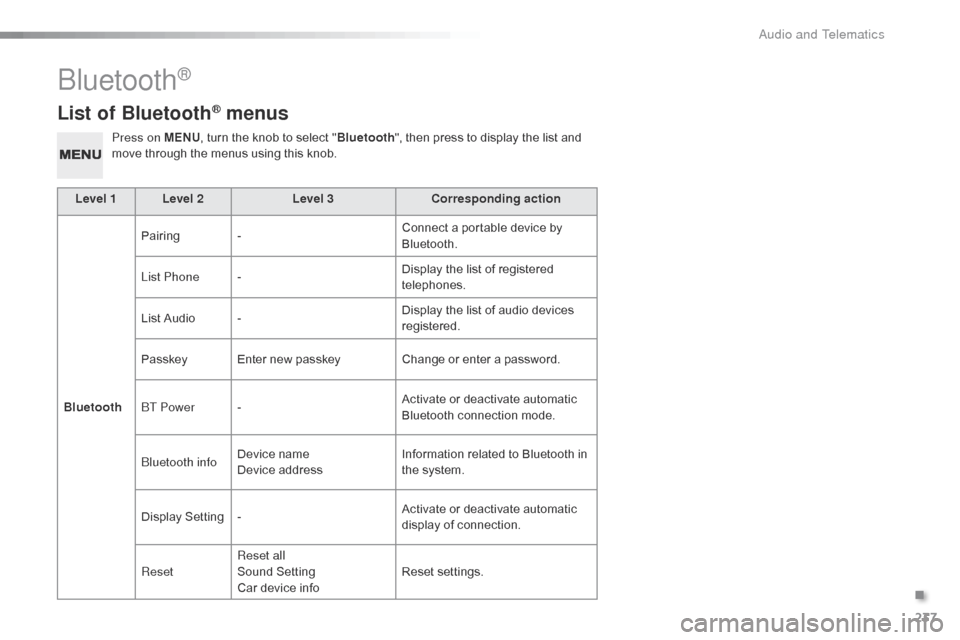

List of Bluetooth® menus
Press on MENU, turn the knob to select " Bluetooth", then press to display the list and
move through the menus using this knob.
Level 1 Level 2 Level 3Corresponding action
Bluetooth Pairing
- Connect a portable device by
Bluetooth.
List Phone - Display the list of registered
telephones.
List Audio - Display the list of audio devices
registered.
Passkey Enter new passkey Change or enter a password.
BT Power - Activate or deactivate automatic
Bluetooth connection mode.
Bluetooth info Device name
Device address Information related to Bluetooth in
the system.
Display Setting - Activate or deactivate automatic
display of connection.
Reset Reset all
Sound Setting
Car device info Reset settings.
Bluetooth®
.
Audio and Telematics
Page 240 of 260
238

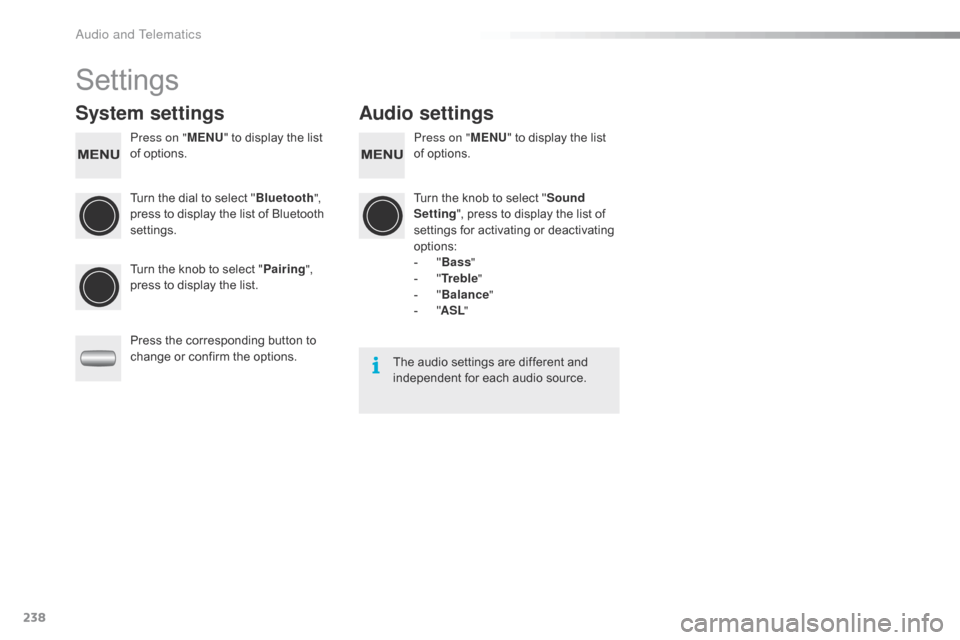

Settings
System settingsAudio settings
Press on "MENU" to display the list
of options. Press on "
MENU" to display the list
of options.
Turn the dial to select " Bluetooth",
press to display the list of Bluetooth
settings. Turn the knob to select "
Sound
Setting ", press to display the list of
settings for activating or deactivating
options:
-
"Ba
ss"
-
"T
r e b l e"
-
"B
alance"
-
"AS
L"
Turn the knob to select "
Pairing",
press to display the list.
Press the corresponding button to
change or confirm the options. The audio settings are different and
independent for each audio source.
Audio and Telematics
