A
1
4
3
2
B
II
6 8
S P E E D L I M I T E R
This driving assistance function enables you to select a maximum speed that you wish not to exceed. This must be greater than 30 km/h (approx. 20 mph).
Control A for the speed limiter is situated below the lighting/signalling control stalk.
Remark: The information relating to the speed limiter is displayed in the instrument panel screen at B. This display causes the trip computer information to disappear (if it is shown on the instrument panel).
To select the function
Turn control 1 to position "LIMIT".
On selection of the function via control 1, the last speed memorised is displayed.
To adjust the maximum speed
When the engine is running, you can adjust the memorised spee d by either short presses or long presses on:Button 4 to increase the memorised speed.
Button 2 to decrease the memorised speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h a n d a c o n t i n u o u s p r e s s i n s t e p s o f 5 k m / h ( 3 m p h ) .
Activation of the maximum speed
As the desired maximum speed is displayed, press control 3 to activate the speed limitation.
Page 52 of 178
II
6 9
S P E E D L I M I T E R
Disengagement of the maximum speed
Press button 3 located on the end of control A.
This action causes the information "OFF" to appear in the instrument panel screen.
The memorised speed remains displayed and is not cancelled.
Temporary override of the maximum speed
At any time, it is possible to go above the memorised maximum speed by pressing the accelerator pedal hard down past the tight spot.
W h i l e t h e m e m o r i s e d s p e e d i s b e i n g e x c e e d e d , t h e d i s p l a y e d s p e e d fl a s h e s .
You have only to release the accelerator pedal to return below the maximum speed, to restore the function.
Remark: If during speed limitation the system cannot keep to the maxi mum speed (especially on a steep descent or i f y o u a c c e l e r a t e t o o h a r d ) , t h e s p e e d fl a s h e s . A d a p t y o u r s p e e d a s n e c e s s a r y .
The function will re-engage when your speed has returned below the desired maximum.
To cancel the functionBy moving the control from position "LIMIT" to position 0.Or stop the engine.
The speed that you chose is memorised.
I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p "OFF" will come on permanently in the display. Contact a CITROËN dealer. I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p
Page 53 of 178
1
II
7 0
P A R K I N G A S S I S T A N C E
Proximity sensors are located in the rear bumper of your vehicle.
When you are manœuvring in reverse gear at a speed of less than around 10 km/h (approx. 6 m p h ) , t h e y i n f o r m y o u o f t h e p r e s -ence of any obstacle located within their detection zone, by means of:An audible signal emitted by the rear loudspeakers on the LH and/or RH side.Display of the outline of your vehicle with shading corresponding to the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal becomes more and more urgent and the shaded areas are displayed closer and closer to the vehicle.
When the obstacle is less than a r o u n d 2 5 c e n t i m e t r e s f r o m t h e vehicle, the sound signal becomes continuous with display of a "WARNING" panel on the screen.
Page 54 of 178
A
B
III
71
Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors or the tailgate is open or not properly closed, the central locking does not operate.
The warning lamp associated with the control A signals 3 statuses: l t fl a s h e s w h e n t h e i g n i t i o n k e y i s i n t h e s t o p p o s i t i o n o r w h e n t h e k e y i s not detected and the doors are locked.It lights up when the ignition key is in the "accessories" posit ion or "ignition + engine running" or starter position and if the doors are locked.
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.
Anti-theft
In all cases, as soon as the vehicle is moving above a speed of 10 km/h (approx. 6 mph), the tailgate locks automatically. The tailgate unlocks when a door is opened or when the interior locking/unlocking contro l is actioned.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors a s soon as you reach approximately 10 km/h (approx. 6 mph).Note: If a door has been opened, this will lock again automatically when the vehicle reaches approx. 10 km/h (approx. 6 mph).
Activation/Deactivation of the function
After switching on the ignition, give a long press on the ce ntral unlocking button until a message is displayed.
Page 55 of 178
2
1
2
1
B
CA
III
72
The boot can be accessed in two ways:
Open the upper tailgate 1 by pressing control A (The luggage- cover folds automatically against the upper tailgate to permit rapid access to the boot contents).
Open the upper tailgate 1 by press-ing control A, then the lower tailgate 2 by moving control B.
Closing the upper and lower rear tailgates
Close tailgate 2, then tailgate 1.Note: As soon as the vehicle is moving at around 10 km/h (approx. 6 mph), the tailgates lock automati-cally.
Unlocking in emergency
In the event of a malfunction in unlocking of the upper tailgate, it can be unlocked from the boot interior:Insert a screwdriver into the aperture C in the lock.
Move it until the upper tailgate unlocks.
Page 56 of 178
A
III
73
V E N T I L A T I O N - H E A T I N G
Warning: The automatic air conditioning system uses a temperature sensor located on the dashboard (see reference A), this sensor should not be obstructed.
Page 57 of 178
1
2
356
1
1
1
2
2
2
3
3
3
56
6
6
4
4
4
4
III
75

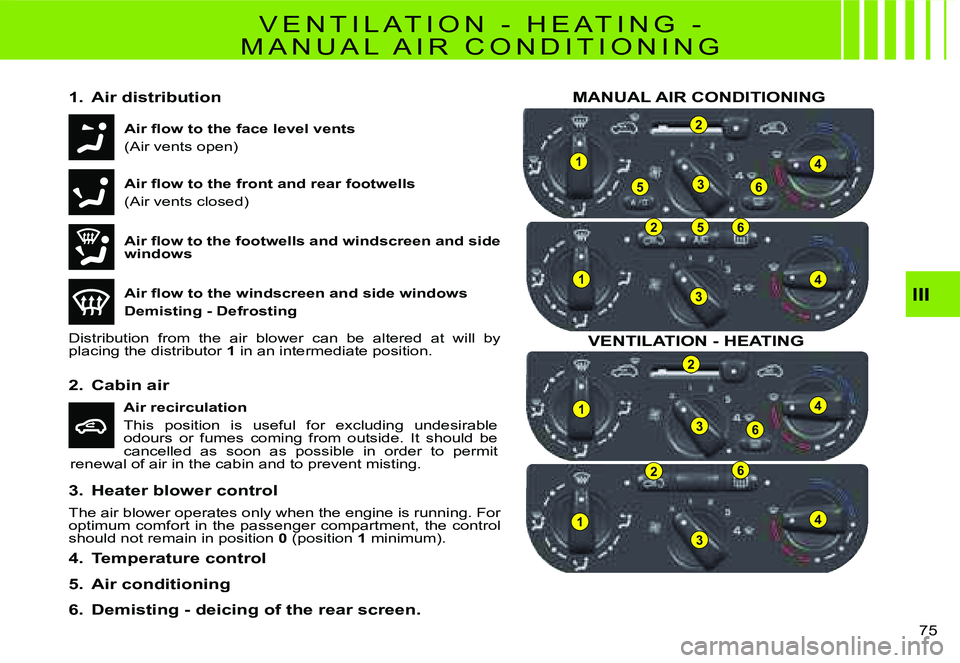

V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by placing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. For optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
M A N U A L A I R C O N D I T I O N I N G
V E N T I L A T I O N - H E A T I N G
Page 58 of 178
III
74
V E N T I L A T I O N - A I R C O N D I T I O N I N G
Air inlet
Check that the exterior grille for the air inlet, at the bottom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) have g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t - l e f t ) .
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear passengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r i n s t a l l a t i o n h a s a fi l t e r f o r k e e p i n g o u t d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See "Maintenance Guide".
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and misting.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See "Maintenance Guide".
The air conditioning operates by using power from the engine. This results in a slight increase in fuel consumption.
Demisting - deicing of the windscreen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
Page 59 of 178
1
2
356
1
1
1
2
2
2
3
3
3
56
6
6
4
4
4
4
III
75
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by placing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. For optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
M A N U A L A I R C O N D I T I O N I N G
V E N T I L A T I O N - H E A T I N G
Page 60 of 178
53
4
B
A5
3
4
III
76
Air conditioning
The air conditioning only operates when the engine is running.
Press the control located on the control panel.
Warning lamp on = in operation
Air conditioning is obtained by the mixing of hot air and cold air. Control 4 allows you to adjust the air conditioning while control 5 is in operation.
To obtain refrigerated air, you should check that the air blower control 3 is not on position "0".
Air recirculation
This function isolates the passen-ger compartment from disagree-able odours or smoke coming f r o m o u t s i d e a n d i n c r e a s e s t h e e f fi c i e n c y a n d rapidity of the air conditioning.
According to version, press on control A(warning lamp comes on), or move control B.
The entry of air from outside is blocked.
This function should be cancelled when no longer needed in order to permit a renewal of cabin air and to prevent misting.Note: To obtain a rapid rise in cabin temperature, place control A or B in the air recirculation posi-tion and control 4 on maximum in the red zone.4
If after a prolonged stop in bright sunlight, the cabin temperature is very high:Open the windows for a few moments to let in air, then cl ose the windows again.Adjust the temperature on control 4 to the maximum cold position.4
Open the air vents.Use the recycled cabin air position.
Place the air blower control 3 to the position close to maximum.
With comfort restored, action the air blower 3 and the temperature control 4 to adjust comfort.
