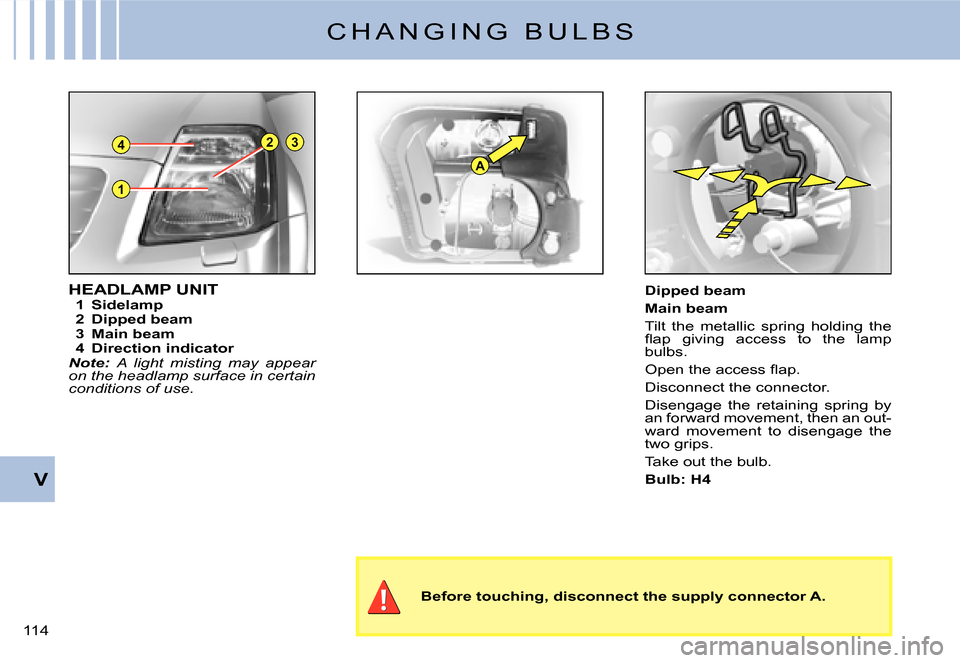

C H A N G I N G B U L B S
HEADLAMP UNIT1 Sidelamp2 Dipped beam3 Main beam4 Direction indicatorNote: A light misting may appear on the headlamp surface in certain conditions of use.
Dipped beam
Main beam
Tilt the metallic spring holding the fl a p g i v i n g a c c e s s t o t h e l a m p bulbs.
O p e n t h e a c c e s s fl a p .
Disconnect the connector.
Disengage the retaining spring by an forward movement, then an out-ward movement to disengage the two grips.
Take out the bulb.
Bulb: H4
Before touching, disconnect the supply connector A.
