IN BRIEF
16
I
Driver’s seat belt fastening detectionDeactivation of front passenger’s airbag
The warning lamp lights up if the driver’s seat belt has not been fastened when the ignition is switched on and between 0 and 20 km/h.
Over 20 km/h, the warning lamp fl ashes accompanied by a sound signal for approximately 2 minutes. After this it remains lit up.
1. With the ignition off, insert the key in switch A.
2. Turn the key to the «OFF»position, the passenger’s airbag is deactivated.
3. The front passenger’s airbag deactivation warning lamp, on the instrument panel, lights up when the ignition is switched on.
Isofi x fastening system
Two rings B, located between the backrest and the seat cushion, allow a child seat to be fi tted.
308889
P A S S E N G E R S A F E T Y

B
A1
23
II
A N T I - I N T R U S I O N A L A R M
Your vehicle may be equipped with an ANTI-INTRUSION ALARM. This provides:Exterior perimeter protection by means of detectors on the vehi-cle access points (doors, boot, bonnet) as well as on the elec-trical supply.Interior volumetric protection by means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control 1.


The installation also has a siren, and a warning lamp on the con-trol 1 which is visible from outside the vehicle, indicating the three possible statuses of the alarm:Alarm not active (disarmed), warning lamp off.Alarm active (armed), the warn-ing lamp fl ashes slowly.
Alarm triggered (signalling an intrusion), the warning lamp fl ashes rapidly if the alarm is deactivated by a press on the control B. It stops as soon as you switch on the ignition.Note: If there is a malfunction, the warning lamp remains perma-nently on.



Deactivation of the alarm usng the remote control
The alarm is disarmed when you unlock the vehicle (with a press on button B on the remote control).
Deactivation of the alarm with the key
Unlock the doors with the key. The siren triggers. Enter the vehicle, insert the key in the ignition and turn it to the drive position to stop the siren. Otherwise the siren will continue for approximately 30 sec-onds.

EDCB
AE
231
38
II
M U L T I F U N C T I O N D I S P L A Y
D I S P L A Y C
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Outside temperature.3. Date - Display zone.
When the outside temperature is between +3 °C and –3 °C, the temperature display fl ashes (risk of ice).
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. Validation and Selection in the menus, of the function chosen or value modifi ed.D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation you wish to see perma-nently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Radio-CD
(See radio-CD handbook).
Trip computer, giving you:Entering the distance to the destination.
Access to the log of alerts (recall of the alerts signalled previously.
Access to status of functions, for example activation/deacti-vation of automatic lighting of headlamps, ESP, windscreen wipers.



Personalisation - Confi g-uration, allowing you to activate or deactivate:Triggering of rear screen wipe.
The automatic guide-me-home lighting.
Automatic lighting of headlamps.
And choosing:The brightness, the time, the date and the display units.
The display language.





Bluetooth® hands-free kit®
(See radio-CD handbook).
Note: The outside tem-perature displayed may be higher than the actual temperature if the vehicle is stationary in bright sun-light.

46
II

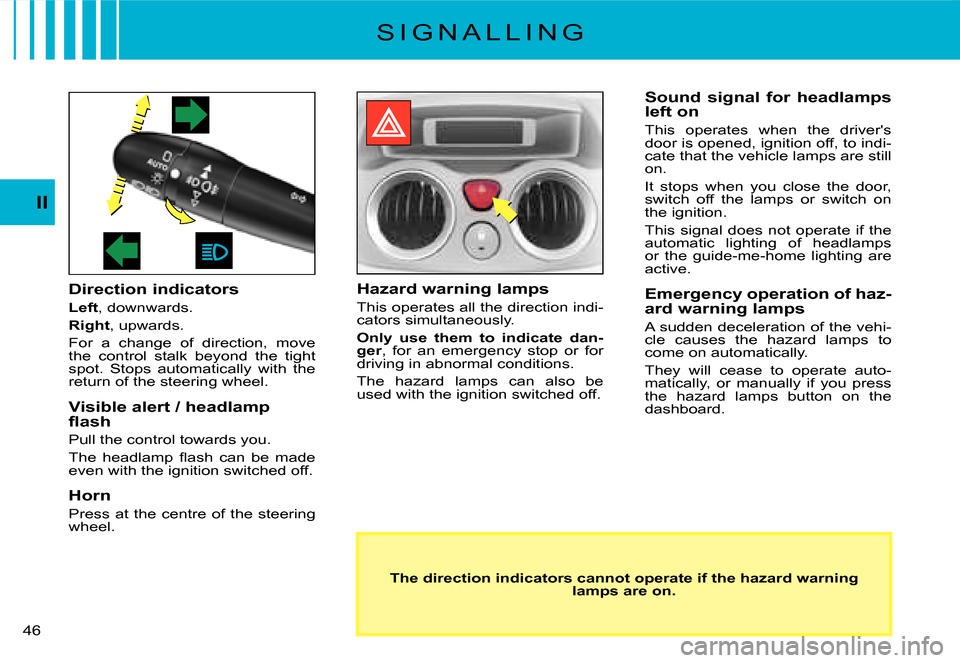

S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl ash
Pull the control towards you.
The headlamp fl ash can be made even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indi-cate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.

A
1
4
3
2
B
70
II

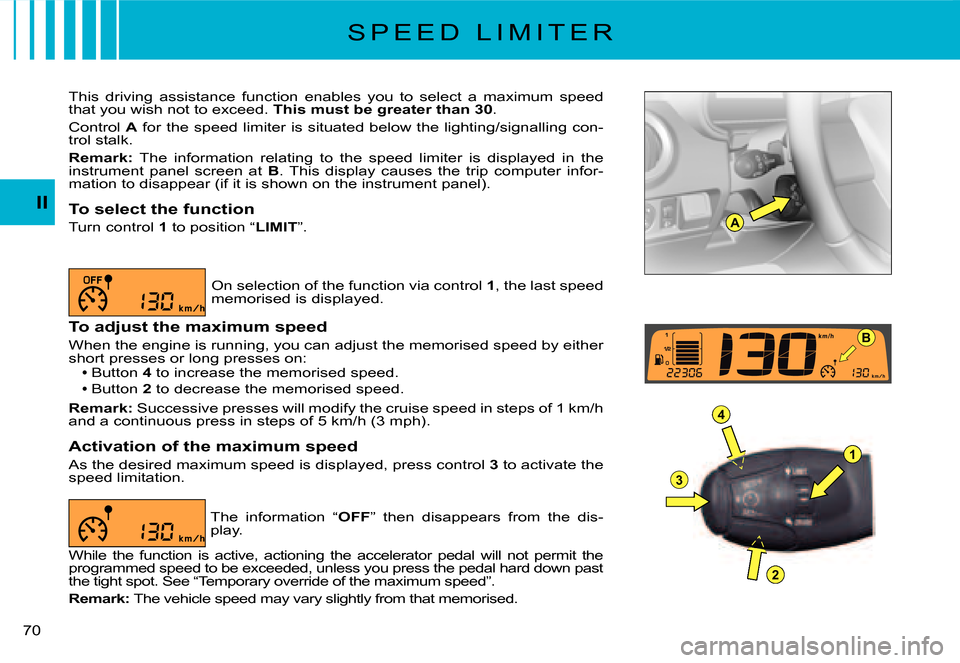

S P E E D L I M I T E R
This driving assistance function enables you to select a maximum speed that you wish not to exceed. This must be greater than 30.
Control A for the speed limiter is situated below the lighting/signalling con-trol stalk.
Remark: The information relating to the speed limiter is displayed in the instrument panel screen at B. This display causes the trip computer infor-mation to disappear (if it is shown on the instrument panel).
To select the function
Turn control 1 to position “LIMIT”.
On selection of the function via control 1, the last speed memorised is displayed.
To adjust the maximum speed
When the engine is running, you can adjust the memorised spee d by either short presses or long presses on:Button 4 to increase the memorised speed.
Button 2 to decrease the memorised speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h and a continuous press in steps of 5 km/h (3 mph).
Activation of the maximum speed
As the desired maximum speed is displayed, press control 3 to activate the speed limitation.


The information “OFF” then disappears from the dis-play.
While the function is active, actioning the accelerator pedal will not permit the programmed speed to be exceeded, unless you press t he pedal hard down past the tight spot. See “Temporary override of the maximum speed”.
Remark: The vehicle speed may vary slightly from that memo rised.

NAV

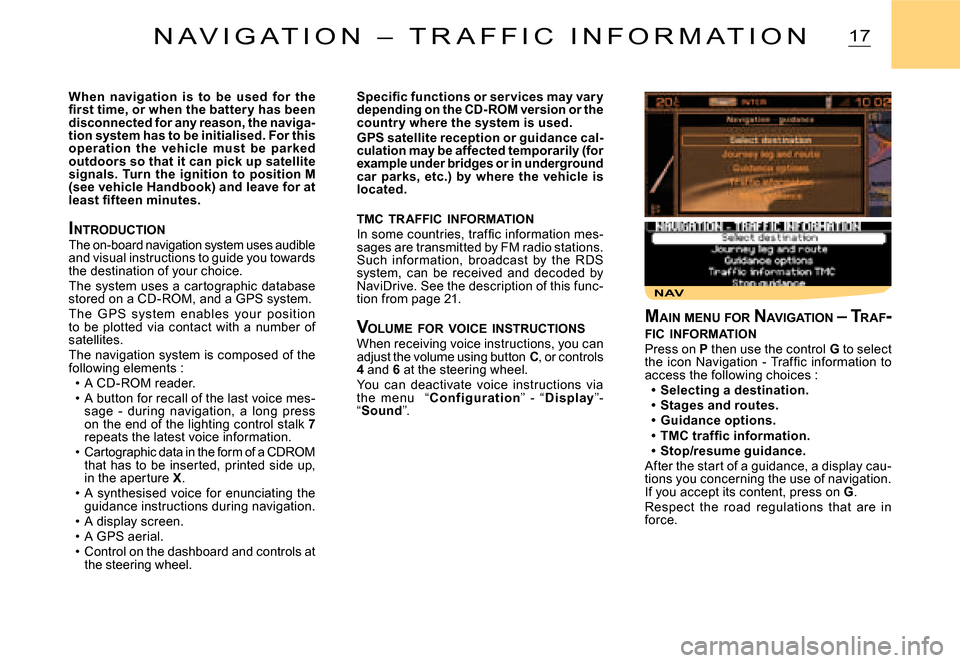

17N A V I G A T I O N – T R A F F I C I N F O R M A T I O N
When navigation is to be used for the fi rst time, or when the batter y has been disconnected for any reason, the naviga-tion system has to be initialised. For this operation the vehicle must be parked outdoors so that it can pick up satellite signals. Turn the ignition to position M (see vehicle Handbook) and leave for at least fi fteen minutes.
INTRODUCTIONThe on-board navigation system uses audible and visual instructions to guide you towards the destination of your choice.The system uses a cartographic database stored on a CD-ROM, and a GPS system.The G PS system enables your position to be plotted via contact with a number of satellites.The navigation system is composed of the following elements :A CD-ROM reader.A button for recall of the last voice mes-sage - during navigation, a long press on the end of the lighting control stalk 7repeats the latest voice information.Cartographic data in the form of a CDROM that has to be inserted, printed side up, in the aperture X.A synthesised voice for enunciating the guidance instructions during navigation.A display screen.A GPS aerial.Control on the dashboard and controls at the steering wheel.
