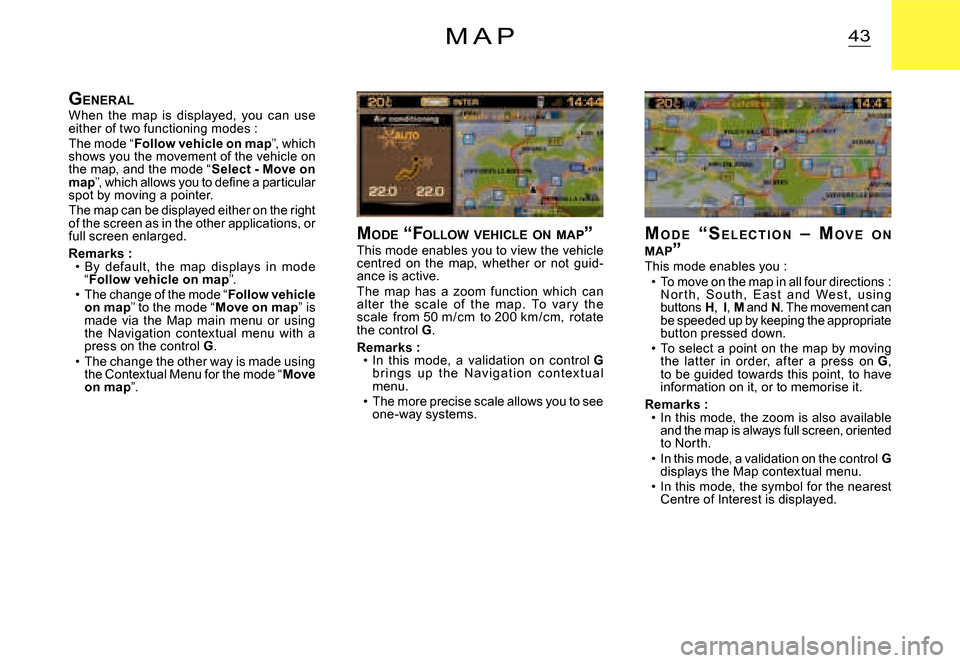

Page 171 of 178
43M A P
MO D E “ S E L E C T I O N – MO V E O N MAP ”This mode enables you :To move on the map in all four directions : N o r t h, S o u t h, E a s t a n d We s t , u s i n g buttons H, I, M and N. The movement can be speeded up by keeping the appropriate button pressed down.To select a point on the map by moving the lat ter in order, af ter a press on G, to be guided towards this point, to have information on it, or to memorise it.
Remarks :In this mode, the zoom is also available and the map is always full screen, oriented to North.In this mode, a validation on the control Gdisplays the Map contextual menu.In this mode, the symbol for the nearest Centre of Interest is displayed.
Page 172 of 178
CAR
44M A P
MAP MAIN MENUPress on P then use control G to select the Map icon and validate to have access to the following choices :Move the map, to change to the mode “Select - Move on map”.Orient the map, to orient the map either to North or to the direction in which the vehicle is moving.Centre around the vehicle, to recentre the map on the vehicle if it no longer appears on the map.Details of the map, for selecting the points of interest to be displayed using symbols on the map (see next page).M e m o r i s e t h e c u r r e n t p o s i t i o n, to display the panel for entering a label for recording the vehicle's current position in a fi l e i n t h e c u r r e n t d i r e c t o r y .

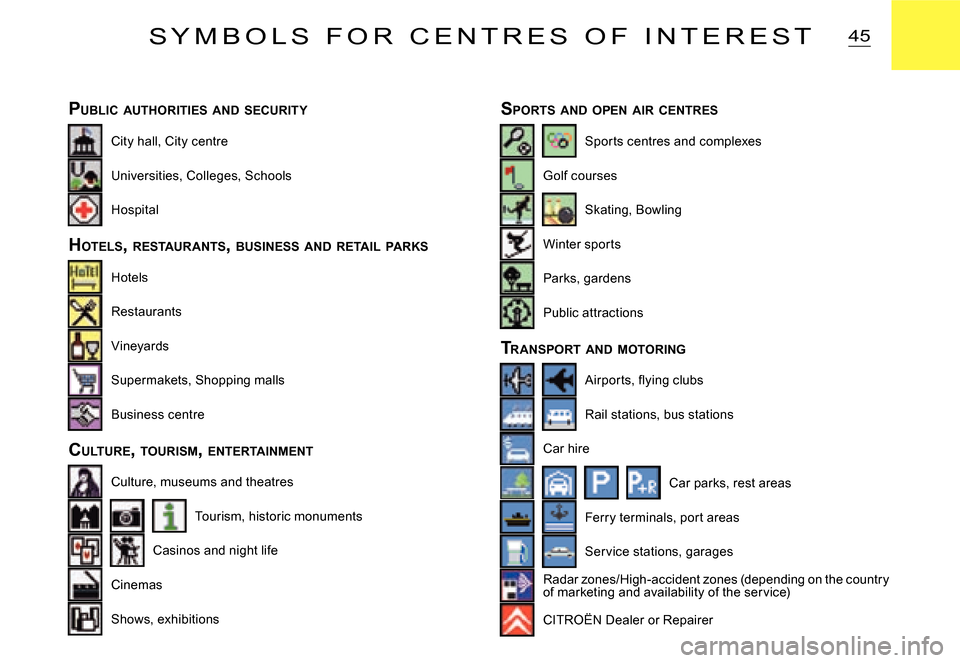

Page 173 of 178
45S Y M B O L S F O R C E N T R E S O F I N T E R E S T
City hall, City centre
Hospital
Universities, Colleges, Schools
Hotels
Vineyards
Restaurants
Business centre
Supermakets, Shopping malls
Sports centres and complexes
Golf courses
Parks, gardens
Winter sports
Public attractions
Culture, museums and theatres
Tourism, historic monuments
Shows, exhibitions
Cinemas
Skating, Bowling
A i r p o r t s , fl y i n g c l u b s
Rail stations, bus stations
Car hire
Car parks, rest areas
Ferry terminals, port areas
Service stations, garages
Radar zones/High-accident zones (depending on the country of marketing and availability of the service)
CITROËN Dealer or Repairer
Casinos and night life
PUBLIC AUTHORITIES AND SECURITY
H OTELS , RESTAURANTS , BUSINESS AND RETAIL PARKS
S PORTS AND OPEN AIR CENTRES
C ULTURE , TOURISM , ENTERTAINMENT
TRANSPORT AND MOTORING

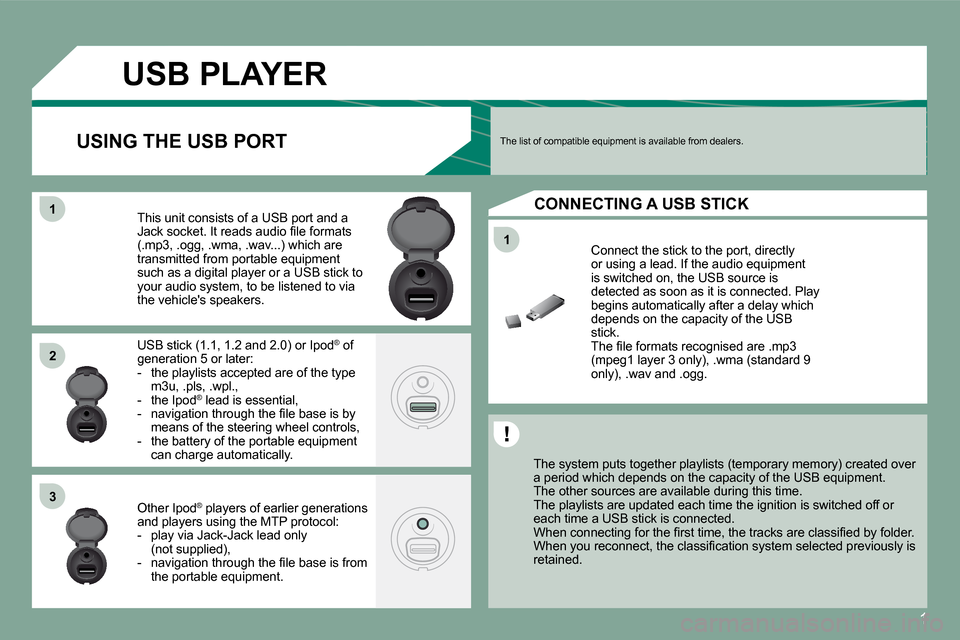

Page 174 of 178
1
11
11
22
33
USB PLAYER
The system puts together playlists (temporary memory) created over a period which depends on the capacity of the USB e quipment. The other sources are available during this time. The playlists are updated each time the ignition is switched off or each time a USB stick is connected. W h e n c o n n e c t i n g f o r t h e fi r s t t i m e , t h e t r a c k s a r e c l a s s i fi e d b y f o l d e r . W h e n y o u r e c o n n e c t , t h e c l a s s i fi c a t i o n s y s t e m s e l e c t e d p r e v i o u s l y i s retained.
C o n n e c t t h e s t i c k t o t h e p o r t , d i r e c t l y or using a lead. If the audio equipment i s s w i t c h e d o n , t h e U S B s o u r c e i s detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 l a y e r 3 o n l y ) , . w m a ( s t a n d a r d 9 o n l y ) , . w a v a n d . o g g .
This unit consists of a USB port and a J a c k s o c k e t . I t r e a d s a u d i o fi l e f o r m a t s ( . m p 3 , . o g g , . w m a , . w a v . . . ) w h i c h a r e transmitted from portable equipment such as a digital player or a USB stick to y o u r a u d i o s y s t e m , t o b e l i s t e n e d t o v i a the vehicle's speakers.
U S B s t i c k ( 1 . 1 , 1 . 2 a n d 2 . 0 ) o r I p o d ® of ®
generation 5 or later: - the playlists accepted are of the type m 3 u , . p l s , . w p l . , - the Ipod ® l e a d i s e s s e n t i a l , ®
- n a v i g a t i o n t h r o u g h t h e fi l e b a s e i s b y m e a n s o f t h e s t e e r i n g w h e e l c o n t r o l s , - the battery of the portable equipment can charge automatically.
Other Ipod ® players of earlier generations ®
and players using the MTP protocol: - play via Jack-Jack lead only ( n o t s u p p l i e d ) , - n a v i g a t i o n t h r o u g h t h e fi l e b a s e i s f r o m the portable equipment.
The list of compatible equipment is available from dealers. USING THE USB PORT
CONNECTING A USB STICK

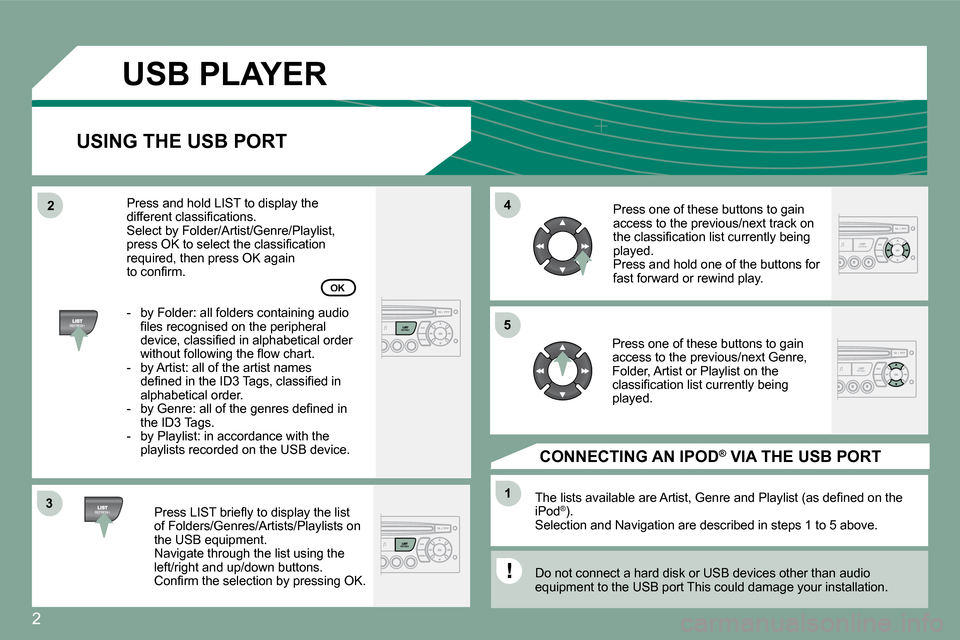

Page 175 of 178
2
33
44
11
55
22
USB PLAYER
USING THE USB PORT
P r e s s L I S T b r i e fl y t o d i s p l a y t h e l i s t of Folders/Genres/Artists/Playlists on the USB equipment. Navigate through the list using the left/right and up/down buttons. C o n fi r m t h e s e l e c t i o n b y p r e s s i n g O K .
T h e l i s t s a v a i l a b l e a r e A r t i s t , G e n r e a n d P l a y l i s t ( a s d e fi n e d o n t h e iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio equipment to the USB port This could damage your in stallation.
CONNECTING AN IPOD ®AN IPOD AN IPOD VIA THE USB PORT ®
Press one of these buttons to gain access to the previous/next track on t h e c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played. Press and hold one of the buttons for fast forward or rewind play.
Press one of these buttons to gain a c c e s s t o t h e p r e v i o u s / n e x t G e n r e , F o l d e r , A r t i s t o r P l a y l i s t o n t h e c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played.
Press and hold LIST to display the d i f f e r e n t c l a s s i fi c a t i o n s . S e l e c t b y F o l d e r / A r t i s t / G e n r e / P l a y l i s t , p r e s s O K t o s e l e c t t h e c l a s s i fi c a t i o n r e q u i r e d , t h e n p r e s s O K a g a i n t o c o n fi r m .
- by Folder: all folders containing audio fi l e s r e c o g n i s e d o n t h e p e r i p h e r a l d e v i c e , c l a s s i fi e d i n a l p h a b e t i c a l o r d e r w i t h o u t f o l l o w i n g t h e fl o w c h a r t . - by Artist: all of the artist names d e fi n e d i n t h e I D 3 T a g s , c l a s s i fi e d i n alphabetical order. - b y G e n r e : a l l o f t h e g e n r e s d e fi n e d i n t h e I D 3 T a g s . - by Playlist: in accordance with the playlists recorded on the USB device.
OK

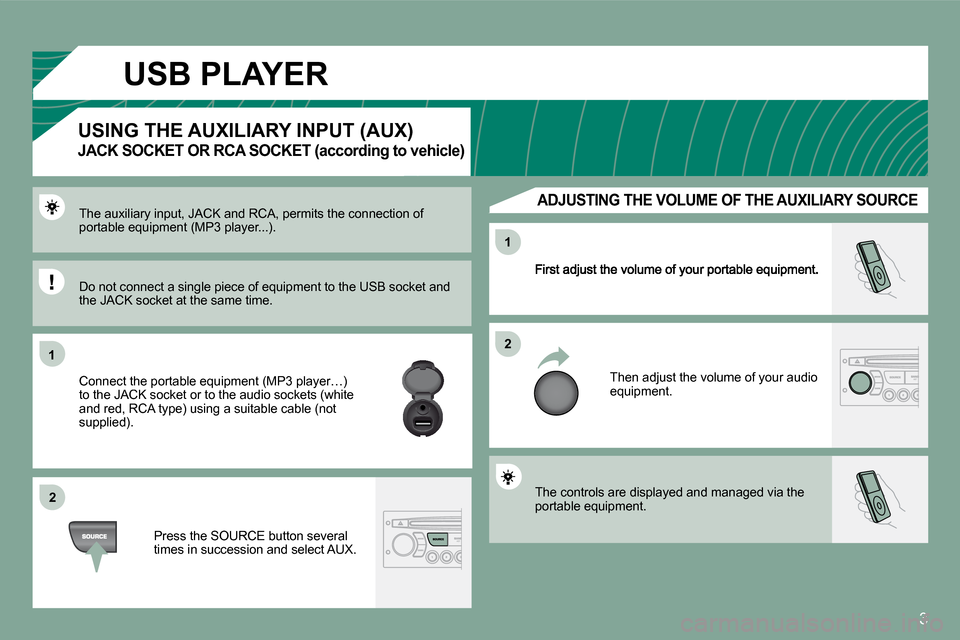

Page 176 of 178
3
11
22
22
11
Then adjust the volume of your audio equipment.
T h e a u x i l i a r y i n p u t , J A C K a n d R C A , p e r m i t s t h e c o n n e c t i o n o f p o r t a b l e e q u i p m e n t ( M P 3 p l a y e r . . . ) .
C o n n e c t t h e p o r t a b l e e q u i p m e n t ( M P 3 p l a y e r … ) t o t h e J A C K s o c k e t o r t o t h e a u d i o s o c k e t s ( w h i t e a n d r e d , R C A t y p e ) u s i n g a s u i t a b l e c a b l e ( n o t supplied).
P r e s s t h e S O U R C E b u t t o n s e v e r a l times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK SOCKET OR RCA SOCKET (according to vehicle)
ADJUSTING THE VOLUME OF THE AUXILIARY SOURCE
Do not connect a single piece of equipment to the USB socket and t h e J A C K s o c k e t a t t h e s a m e t i m e .
The controls are displayed and managed via the portable equipment.
USB PLAYER

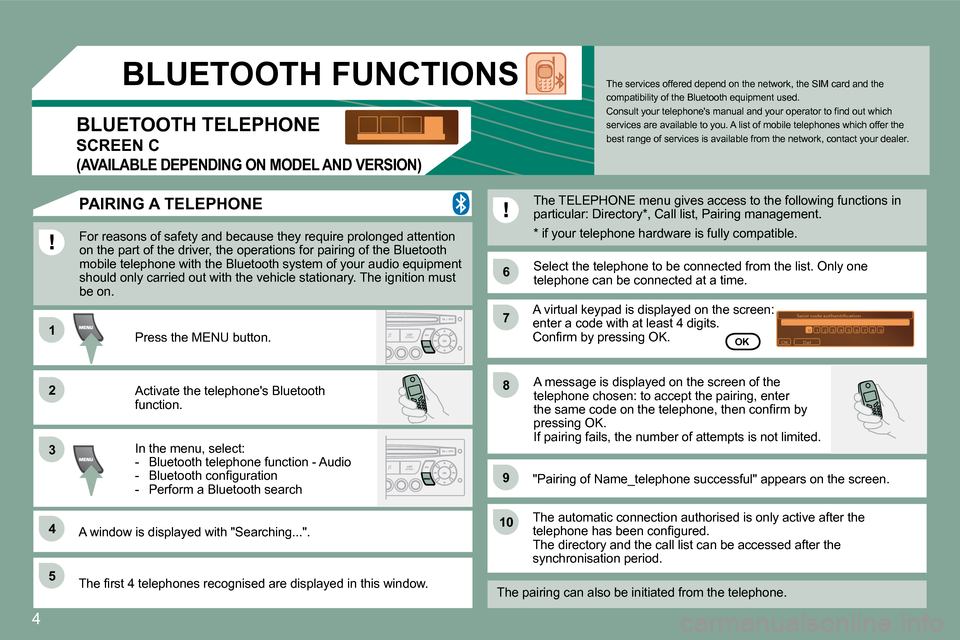

Page 177 of 178
4
11
66
22
77
44
99
55
1010
33
88
S a i s i r c o d e a u t h e n t i i c a t i o n 0 1 O K D e l 2 3 4 5 6 7 8 9 _
BLUETOOTH FUNCTIONS
For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth system of your audio equipment should only carried out with the vehicle stationary. The ignition must be on.
Activate the telephone's Bluetooth function.
A window is displayed with "Searching...".
Press the MENU button.
In the menu, select: - Bluetooth telephone function - Audio - B l u e t o o t h c o n fi g u r a t i o n - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. C o n s u l t y o u r t e l e p h o n e ' s m a n u a l a n d y o u r o p e r a t o r t o fi n d o u t w h i c h services are available to you. A list of mobile telephones which offer the best range of services is available from the networ k, contact your dealer. BLUETOOTH TELEPHONE
SCREEN C
(AVAILABLE DEPENDING ON MODEL AND VERSION)
The TELEPHONE menu gives access to the following f unctions in particular: Directory * , Call list, Pairing management.
T h e fi r s t 4 t e l e p h o n e s r e c o g n i s e d a r e d i s p l a y e d i n t h i s w i n d o w .
"Pairing of Name_telephone successful" appears on the screen.
The automatic connection authorised is only active after the t e l e p h o n e h a s b e e n c o n fi g u r e d . The directory and the call list can be accessed after the synchronisation period.
OK
PAIRING A TELEPHONE
The pairing can also be initiated from the telepho ne.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. C o n fi r m b y p r e s s i n g O K .
Select the telephone to be connected from the list . Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter t h e s a m e c o d e o n t h e t e l e p h o n e , t h e n c o n fi r m b y p r e s s i n g O K . If pairing fails, the number of attempts is not limited.
* if your telephone hardware is fully compatibl e.

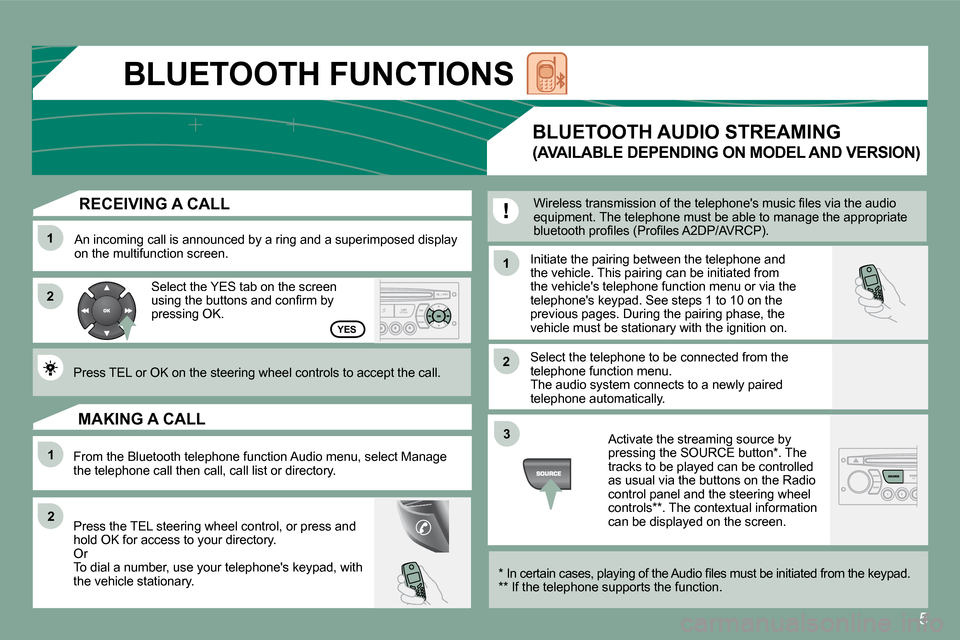

Page 178 of 178
5
11
22
11
22
11
22
33
YES
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen.
Select the YES tab on the screen u s i n g t h e b u t t o n s a n d c o n fi r m b y p r e s s i n g O K .
P r e s s T E L o r O K o n t h e s t e e r i n g w h e e l c o n t r o l s t o a c c e p t t h e c a l l .
From the Bluetooth telephone function Audio menu, select Manage the telephone call then call, call list or directory.
Press the TEL steering wheel control, or press and h o l d O K f o r a c c e s s t o y o u r d i r e c t o r y . Or To dial a number, use your telephone's keypad, with the vehicle stationary.
MAKING A CALL
Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the ignition on.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
BLUETOOTH AUDIO STREAMING
(AVAILABLE DEPENDING ON MODEL AND VERSION)
W i r e l e s s t r a n s m i s s i o n o f t h e t e l e p h o n e ' s m u s i c fi l e s v i a t h e a u d i o equipment. The telephone must be able to manage the appropriate b l u e t o o t h p r o fi l e s ( P r o fi l e s A 2 D P / A V R C P ) .
* I n c e r t a i n c a s e s , p l a y i n g o f t h e A u d i o fi l e s m u s t b e i n i t i a t e d f r o m t h e k e y p a d . ** If the telephone supports the function.
Activate the streaming source by p r e s s i n g t h e S O U R C E b u t t o n * . T h e tracks to be played can be controlled a s u s u a l v i a t h e b u t t o n s o n t h e R a d i o control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.
BLUETOOTH FUNCTIONS
