Page 41 of 201
II

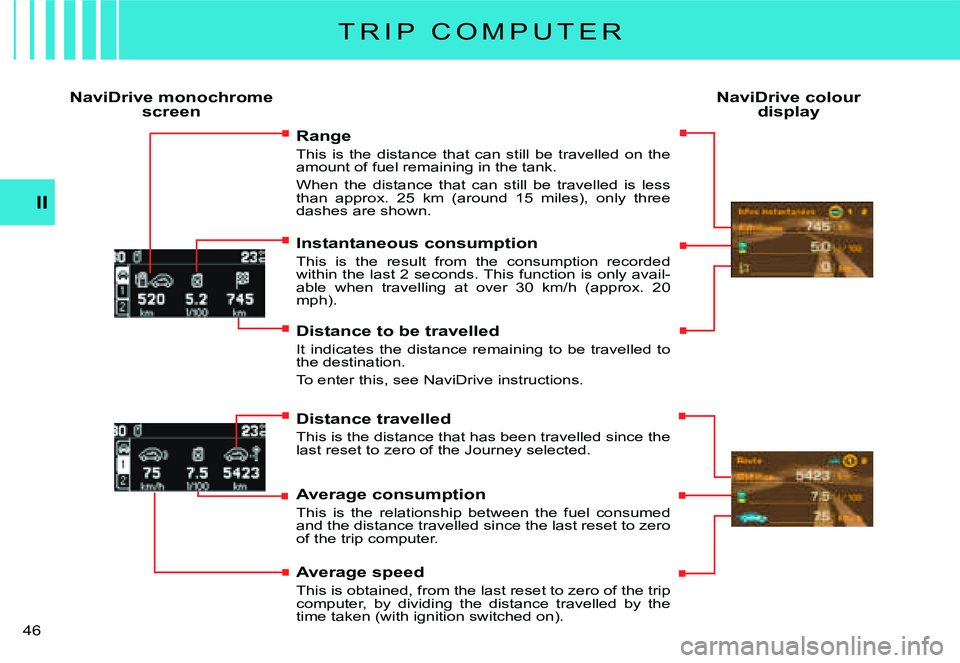

4 6
T R I P C O M P U T E R
NaviDrive monochrome screenNaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled is less t h a n a p p r o x . 2 5 k m ( a r o u n d 1 5 m i l e s ) , o n l y t h r e e dashes are shown.
Instantaneous consumption
This is the result from the consumption recorded w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c t i o n i s o n l y a v a i l - a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h ( a p p r o x . 2 0 mph).
Distance to be travelled
It indicates the distance remaining to be travelled to the destination.
To enter this, see NaviDrive instructions.
Distance travelled
This is the distance that has been travelled since the l a s t r e s e t t o z e r o o f t h e J o u r n e y s e l e c t e d .
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Page 42 of 201
B
C
A
EBD
12345

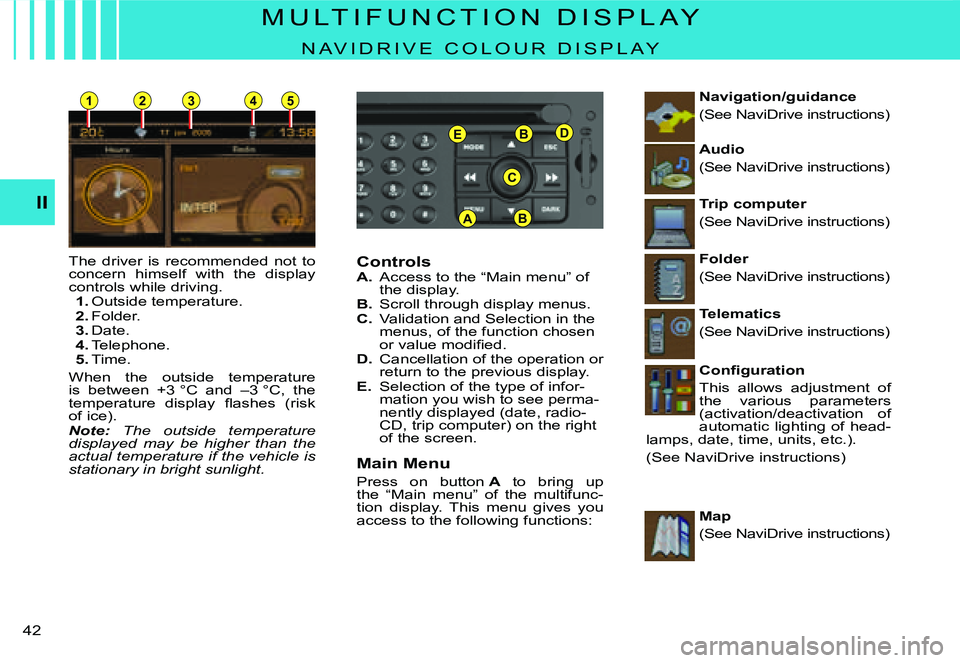

II
4 2
M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E C O L O U R D I S P L A Y
The driver is recommended not to concern himself with the display controls while driving.1. Outside temperature.2. Folder.3. Date.4. Telephone.5. Time.
When the outside temperature i s b e t w e e n + 3 ° C a n d – 3 ° C , t h e t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
ControlsA. Access to the “Main menu” of the display.B. Scroll through display menus.C. V a l i d a t i o n a n d S e l e c t i o n i n t h e menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of infor-mation you wish to see perma-nently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Navigation/guidance
(See NaviDrive instructions)
C o n fi g u r a t i o n
This allows adjustment of the various parameters (activation/deactivation of automatic lighting of head-lamps, date, time, units, etc.).
(See NaviDrive instructions)
Audio
(See NaviDrive instructions)
Trip computer
(See NaviDrive instructions)
Folder
(See NaviDrive instructions)
Telematics
(See NaviDrive instructions)
Map
(See NaviDrive instructions)
Page 43 of 201
II
4 6
T R I P C O M P U T E R
NaviDrive monochrome screenNaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled is less t h a n a p p r o x . 2 5 k m ( a r o u n d 1 5 m i l e s ) , o n l y t h r e e dashes are shown.
Instantaneous consumption
This is the result from the consumption recorded w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c t i o n i s o n l y a v a i l - a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h ( a p p r o x . 2 0 mph).
Distance to be travelled
It indicates the distance remaining to be travelled to the destination.
To enter this, see NaviDrive instructions.
Distance travelled
This is the distance that has been travelled since the l a s t r e s e t t o z e r o o f t h e J o u r n e y s e l e c t e d .
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Page 44 of 201

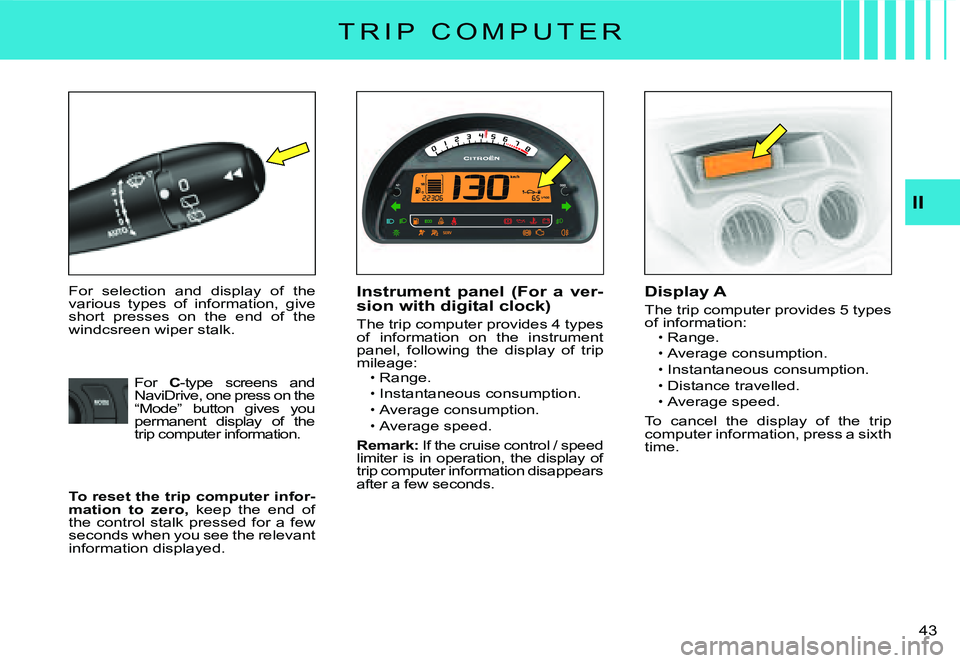

II
4 3
T R I P C O M P U T E R
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Instrument panel (For a ver-sion with digital clock)
T h e t r i p c o m p u t e r p r o v i d e s 4 t y p e s of information on the instrument panel, following the display of trip mileage:Range.
Instantaneous consumption.Average consumption.
Average speed.
Remark: If the cruise control / speed limiter is in operation, the display of trip computer information disappears after a few seconds.
Page 45 of 201

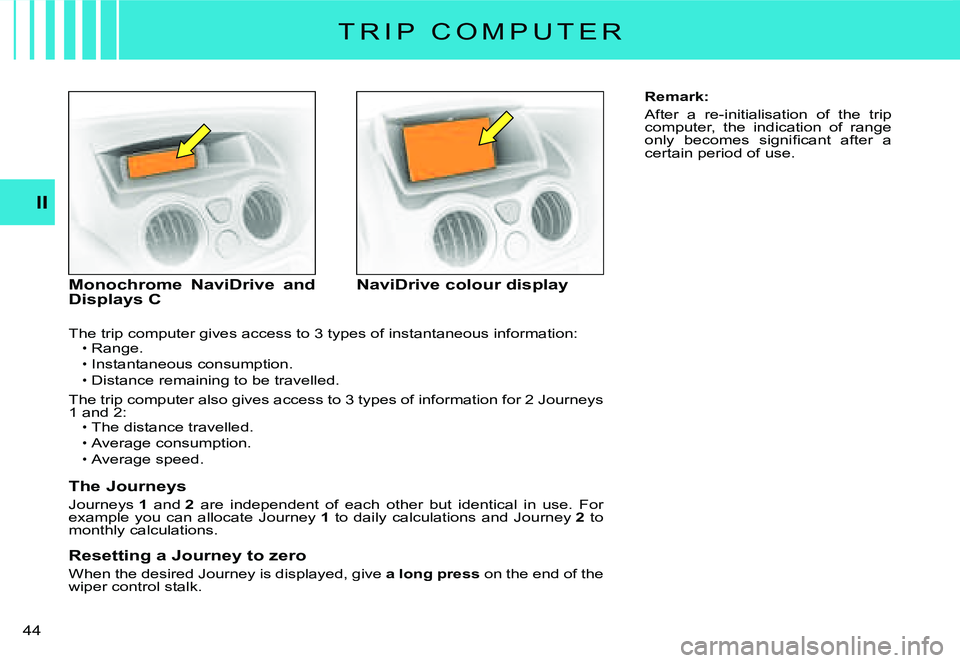

II
4 4
T h e t r i p c o m p u t e r g i v e s a c c e s s t o 3 t y p e s o f i n s t a n t a n e o u s i n f o r m a t i o n :Range.
Instantaneous consumption.
Distance remaining to be travelled.
T h e t r i p c o m p u t e r a l s o g i v e s a c c e s s t o 3 t y p e s o f i n f o r m a t i o n f o r 2 J o u r n e y s 1 a n d 2 :The distance travelled.
Average consumption.
Average speed.
The Journeys
J o u r n e y s 1 and 2 are independent of each other but identical in use. For e x a m p l e y o u c a n a l l o c a t e J o u r n e y 1 t o d a i l y c a l c u l a t i o n s a n d J o u r n e y 2 to monthly calculations.
Resetting a Journey to zero
W h e n t h e d e s i r e d J o u r n e y i s d i s p l a y e d , g i v e a long press on the end of the wiper control stalk.
Page 46 of 201

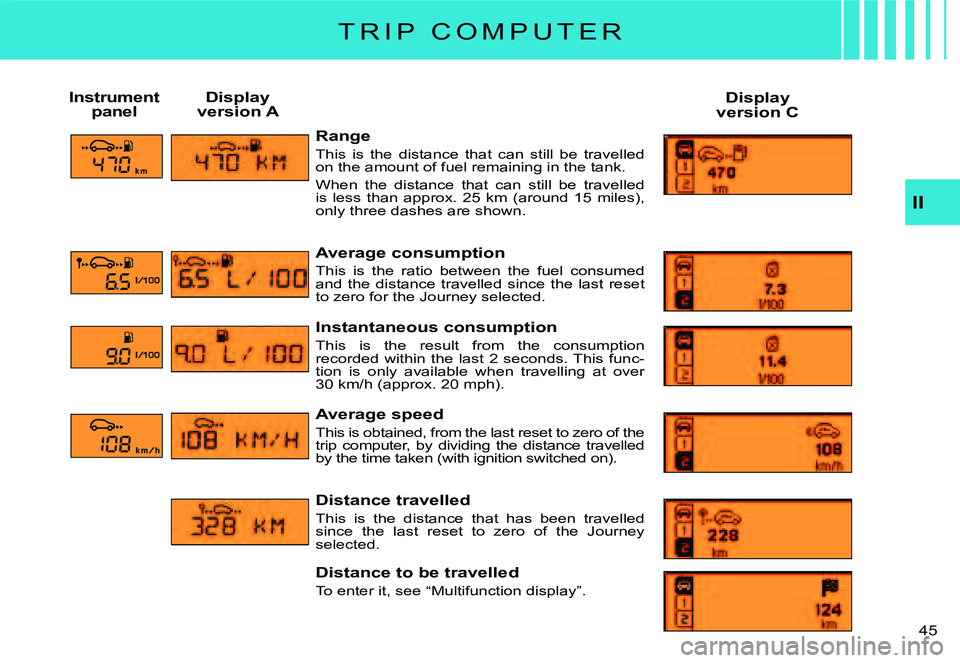

II
4 5
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled i s l e s s t h a n a p p r o x . 2 5 k m ( a r o u n d 1 5 m i l e s ) , only three dashes are shown.
Average consumption
This is the ratio between the fuel consumed and the distance travelled since the last reset t o z e r o f o r t h e J o u r n e y s e l e c t e d .
Instantaneous consumption
This is the result from the consumption r e c o r d e d w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c -tion is only available when travelling at over 3 0 k m / h ( a p p r o x . 2 0 m p h ) .
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Distance travelled
This is the distance that has been travelled s i n c e t h e l a s t r e s e t t o z e r o o f t h e J o u r n e y selected.
Distance to be travelled
To enter it, see “Multifunction display”.
Instrument panelDisplay version ADisplay version C
T R I P C O M P U T E R
Page 47 of 201
II
4 6
T R I P C O M P U T E R
NaviDrive monochrome screenNaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled is less t h a n a p p r o x . 2 5 k m ( a r o u n d 1 5 m i l e s ) , o n l y t h r e e dashes are shown.
Instantaneous consumption
This is the result from the consumption recorded w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c t i o n i s o n l y a v a i l - a b l e w h e n t r a v e l l i n g a t o v e r 3 0 k m / h ( a p p r o x . 2 0 mph).
Distance to be travelled
It indicates the distance remaining to be travelled to the destination.
To enter this, see NaviDrive instructions.
Distance travelled
This is the distance that has been travelled since the l a s t r e s e t t o z e r o o f t h e J o u r n e y s e l e c t e d .
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Page 48 of 201
II
4 7
S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indi-cate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.
Page 49 of 201
A
II
4 8
S I G N A L L I N G
Lighting control stalk
All vehicle lamps off
Sidelamps on
The instrument panel lights up.
Dipped beams/main beams onRotate the ring A forwards.
Rotate the ring A forwards.
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the ambient light again b e c o m e s u f fi c i e n t o r w h e n t h e w i p -ers cease to operate.
Guide-me-home lighting
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the lighting stalk towards you, ignition off.
Automatically, provided:The automatic lighting of headlamps is activated.To activate the guide-me-home lighting function, select in the “Main menu”, then in “Personalisation/Configura-tion”, the sub-menu for light-ing and signalling, then acti-vate the function.See “Multifunction display”.Note:It is possible to modify the dura-tion of the guide-me-home lighting (approx. 60, 30 or 15 seconds) in the menu “Personalisation/Con- fi g u r a t i o n ” .
On screen A, the length is fi x e d .Note: On vehicles equipped with daytime running lamps, automatic headlamp lighting and guide-me-home lighting are not available.
Page 50 of 201
BCII
4 9
S I G N A L L I N G
Rear foglamps on
Front foglamps and rear foglamps on
The warning lamp lights up.
The foglamps operate only with either headlamp dipped beam or headlamp main beam switched on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.
Front and rear foglamps (ring C)
Switch on your dipped/main beams.
In foggy conditions, if the ambient light is not such that th e headlamps come on automatically, it is up to the driver to switch on dipped beams, and/or foglamps, manually
Rear FOGLAMPS (Ring B)
Switch on your dipped/main beams.
Rotate the ring B forwards.
Front foglamps on
Rotate the ring C forwards.
Rotate the ring C forwards.
