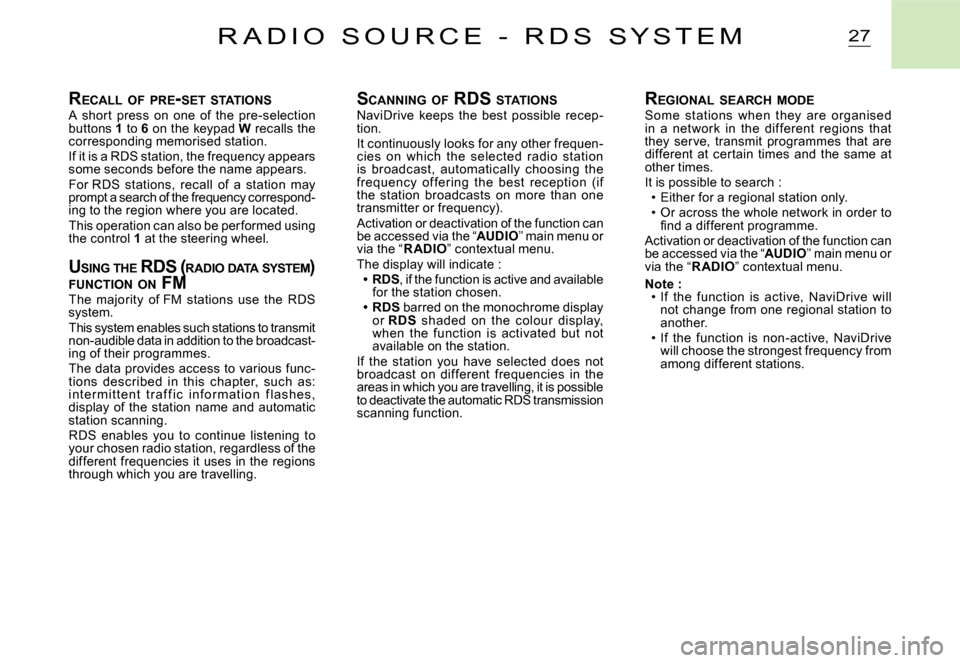

27R A D I O S O U R C E - R D S S Y S T E M
RECALL OF PRE -SET STATIONSA shor t press on one of the pre-selection buttons 1 to 6 on the keypad W recalls the corresponding memorised station.If it is a RDS station, the frequency appears some seconds before the name appears.For RDS stations, recall of a station may prompt a search of the frequency correspond-ing to the region where you are located.This operation can also be performed using the control 1 at the steering wheel.
U SING THE RDS ( RADIO DATA SYSTEM ) FUNCTION ON FMUSING THE RDS ( R RDS (R
The majority of FM stations use the RDS system.This system enables such stations to transmit non-audible data in addition to the broadcast-ing of their programmes.The data provides access to various func-tions described in this chapter, such as: i nte r m i t te nt t r a f f i c i n f o r m at i o n f l a s h e s, display of the station name and automatic station scanning.RDS enables you to continue listening to your chosen radio station, regardless of the different frequencies it uses in the regions through which you are travelling.
SCANNING OF RDS STATIONSNaviDrive keeps the best possible recep-tion.It continuously looks for any other frequen-cies on which the selected radio station is broadcast, automatically choosing the frequency of fering the best reception (if the station broadcasts on more than one transmitter or frequency).Activation or deactivation of the function can be accessed via the “AUDIO” main menu or via the “R ADIO” contextual menu.The display will indicate :RDS, if the function is active and available for the station chosen.RDS barred on the monochrome display or RDS shaded on the colour display, when the function is activated but not available on the station.If the station you have selected does not broadcast on dif ferent frequencies in the areas in which you are travelling, it is possible to deactivate the automatic RDS transmission scanning function.

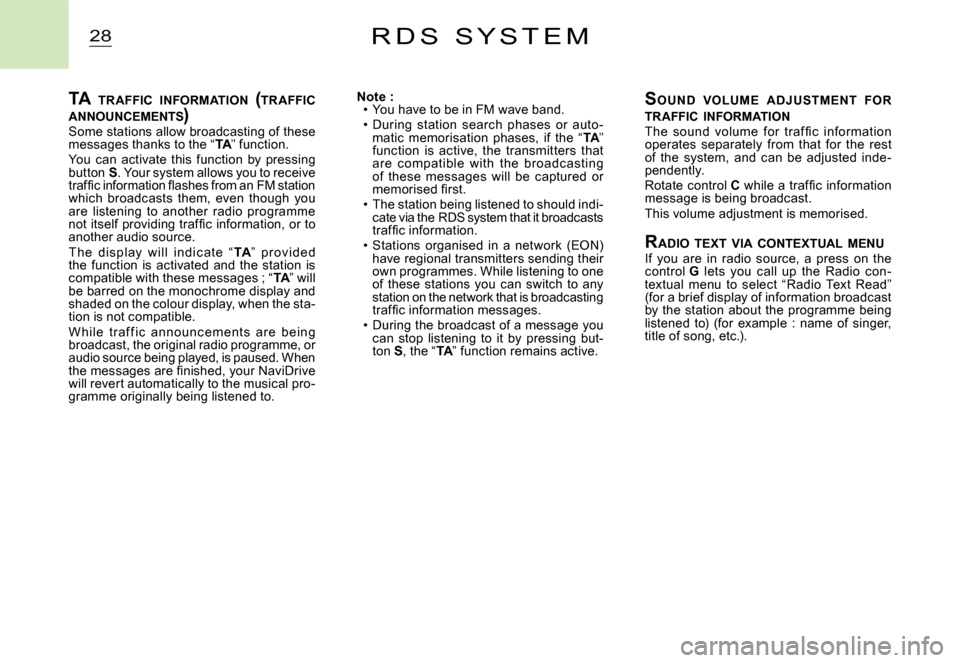

28R D S S Y S T E M
TA TR AFFIC INFORMATION (TR AFFIC ANNOUNCEMENTS )TA TR AFFIC INFOR INFOR
Some stations allow broadcasting of these messages thanks to the “TA” function.TATAYou can activate this function by pressing button S. Your system allows you to receive traffi c information fl ashes from an FM station which broadcasts them, even though you are listening to another radio programme not itself providing traffi c information, or to another audio source.T h e di s p l ay w i ll in di c ate “TA” p r ov i de d the function is activated and the station is compatible with these messages ; “TA” will TATAbe barred on the monochrome display and shaded on the colour display, when the sta-tion is not compatible.W hile t r af f ic announc em ent s are being broadcast, the original radio programme, or audio source being played, is paused. When the messages are fi nished, your NaviDrive will revert automatically to the musical pro-gramme originally being listened to.
Note :You have to be in FM wave band.During station search phases or auto -matic memorisation phases, if the “TA” TATAfunction is active, the transmitters that are c ompatible with the broadc asting of these messages will be captured or memorised fi rst.The station being listened to should indi-cate via the RDS system that it broadcasts traffi c information.Stations organised in a network (EON) have regional transmitters sending their own programmes. While listening to one of these stations you can switch to any station on the network that is broadcasting traffi c information messages.During the broadcast of a message you can stop listening to it by pressing but-ton S, the “TA” function remains active.TATA

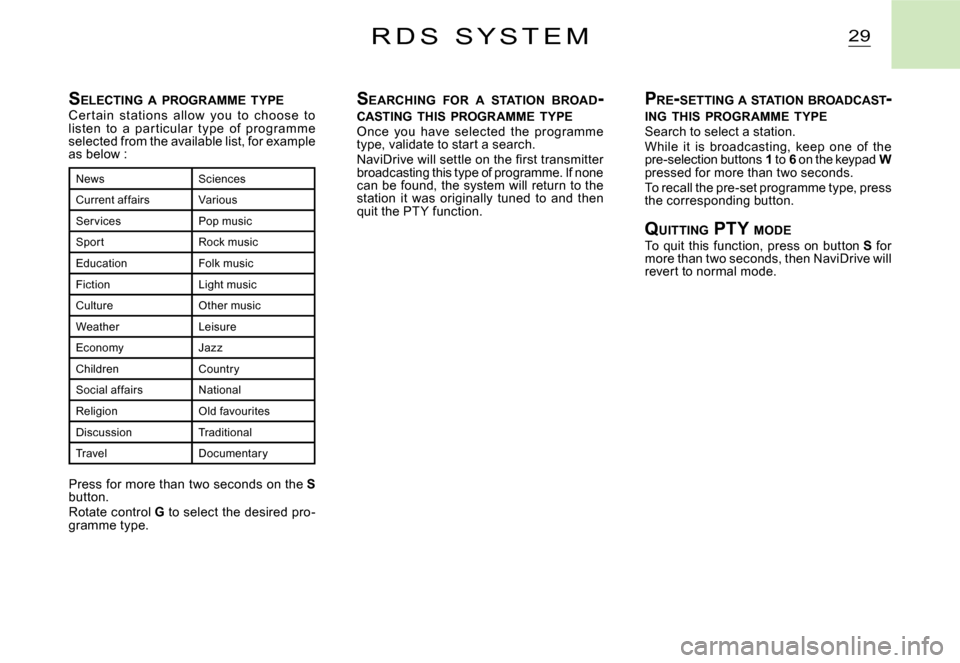

29R D S S Y S T E M
SELECTING A PROGRAMME TYPECer t ain st ations allow you to choose to listen to a par ticular t ype of programme selected from the available list, for example as below :
NewsSciences
Current affairsVarious
Ser vicesPop music
Spor tRock music
EducationFolk music
FictionLight music
CultureOther music
WeatherLeisure
EconomyJazz
ChildrenCountr y
Social affairsNational
ReligionOld favourites
DiscussionTraditional
TravelDocumentar y
Press for more than two seconds on the Sbutton.Rotate control G to select the desired pro-gramme type.
S EARCHING FOR A STATION BROAD -CASTING THIS PROGRAMME TYPEOnce you have selected the programme type, validate to start a search.NaviDrive will settle on the fi rst transmitter broadcasting this type of programme. If none can be found, the system will return to the station it was originally tuned to and then quit the PT Y function.
P RE -SETTING A STATION BROADCAST -ING THIS PROGRAMME TYPESearch to select a station.While it is broadcasting, keep one of the pre-selection buttons 1 to 6 on the keypad Wpressed for more than two seconds.To recall the pre-set programme type, press the corresponding button.
Q UITTING PTY MODETo quit this function, press on button S for more than two seconds, then NaviDrive will revert to normal mode.

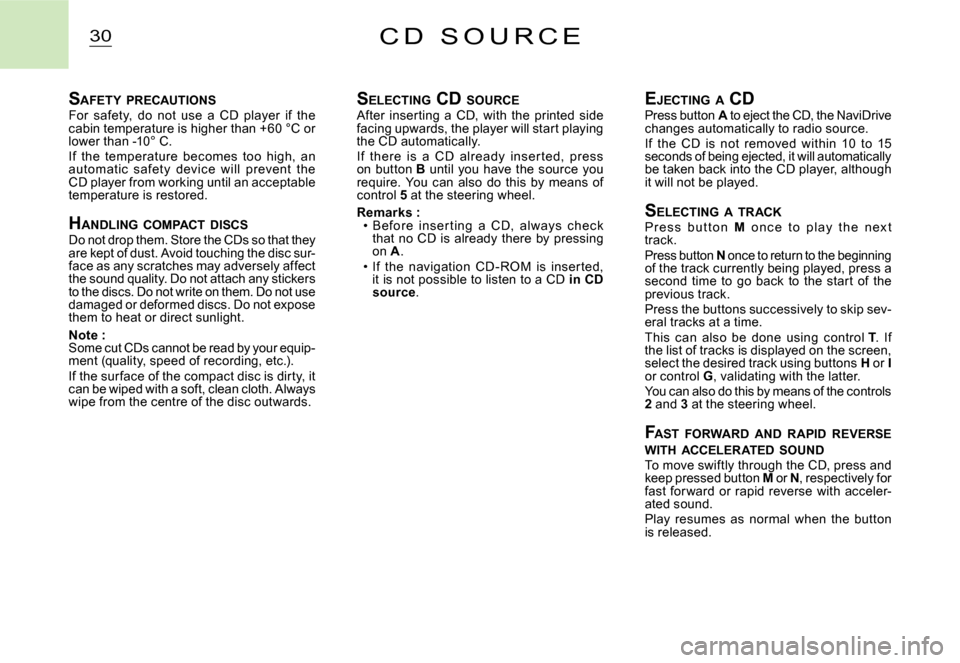

30C D S O U R C E
SAFETY PRECAUTIONSFor safety, do not use a CD player if the cabin temperature is higher than +60 °C or lower than -10° C.If the temperature becomes too high, an automatic safet y devic e will prevent the CD player from working until an acceptable temperature is restored.
H ANDLING COMPACT DISCSDo not drop them. Store the CDs so that they are kept of dust. Avoid touching the disc sur-face as any scratches may adversely affect the sound quality. Do not attach any stickers to the discs. Do not write on them. Do not use damaged or deformed discs. Do not expose them to heat or direct sunlight.
Note :Some cut CDs cannot be read by your equip-ment (quality, speed of recording, etc.).If the sur face of the compact disc is dirty, it can be wiped with a soft, clean cloth. Always wipe from the centre of the disc outwards.
S ELECTING CD SOURCEAfter inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.If there is a CD already inser ted, press on button B until you have the source you require. You can also do this by means of control 5 at the steering wheel.
Remarks :Before inser ting a CD, always c hec k that no CD is already there by pressing on A.If the navigation CD - ROM is inser ted, it is not possible to listen to a CD in CD source.

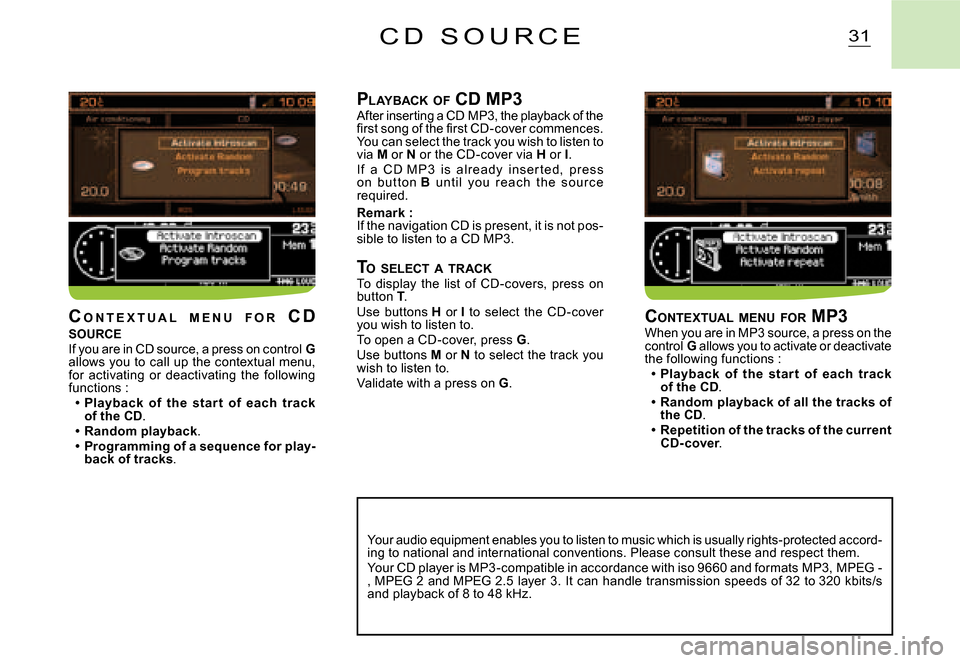

31C D S O U R C E
PLAYBACK OF CD MP3After inserting a CD MP3, the playback of the fi rst song of the fi rst CD-cover commences. You can select the track you wish to listen to via M or N or the CD-cover via H or I.I f a C D M P 3 i s alr e ady ins er te d, p r e s s o n but to n B unt il you r e ac h t he s o ur c e required.
Remark :If the navigation CD is present, it is not pos-sible to listen to a CD MP3.
TO SELECT A TRACKTo display the list of CD-covers, press on button T.Use buttons H or I to select the CD-cover you wish to listen to.To open a CD-cover, press G.Use buttons M or N to select the track you wish to listen to.Validate with a press on G.
Your audio equipment enables you to listen to music which is usually rights-protected accord-ing to national and international conventions. Plea se consult these and respect them. Your CD player is MP3-compatible in accordance with iso 9660 and formats MP3, MPEG -, MPEG 2 and MPEG 2.5 layer 3. It can handle transmi ssion speeds of 32 to 320 kbits/s and playback of 8 to 48 kHz.
CONTEXTUAL MENU FOR MP3When you are in MP3 source, a press on the control G allows you to activate or deactivate the following functions :Playback of the star t of each track of the CD.Random playback of all the tracks of the CD.Repetition of the tracks of the current CD- cover.

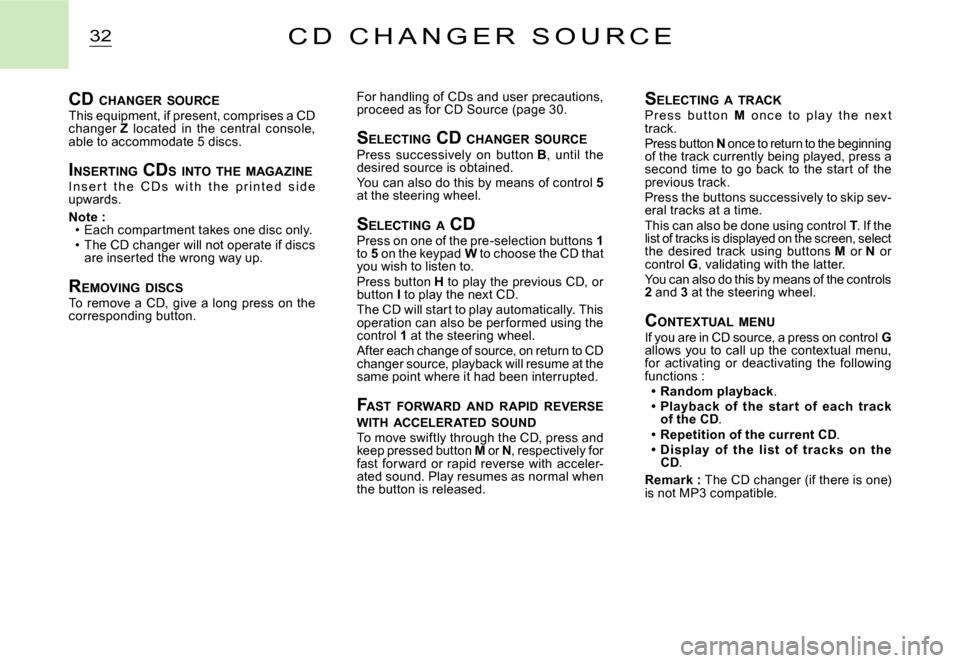

32C D C H A N G E R S O U R C E
SELECTING A TRACKP r e s s b u t t o n M o n c e t o p l a y t h e n ex t track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip sev-eral tracks at a time.This can also be done using control T. If the list of tracks is displayed on the screen, select the desired track using buttons M or N or control G, validating with the latter.You can also do this by means of the controls 2 and 3 at the steering wheel.
C ONTEXTUAL MENUIf you are in CD source, a press on control Gallows you to call up the contextual menu, for activating or deactivating the following functions :Random playback.Playback of the star t of each track of the CD.Repetition of the current CD.Display of t he list of t racks on t he CD.
Remark : The CD changer (if there is one) is not MP3 compatible.

ODB 2ODBODB 1
33T R I P C O M P U T E R
DIAGNOSISThis menu allows you to :Display the log of alerts. This gives you a list of the most recent alerts which have been signalled to you by a message on the multifunction screen, whether or not accompanied by the lighting of one of the alert warning lamps.Display the level of charge of the sys-tem back-up battery. The latter enables you to make an emergency call should there be a disconnection of the vehicle's main battery.Display the status of the GPS coverage. This enables you to see how many satel-lites are available, as well as the status of the location of your vehicle.
Remark :The back-up battery has a life of 4 years. It must be disposed of by a specialist operator, never thrown into the public refuse.National regulations should be consulted and complied with.

REP 1REP 2
34D I R E C T O R Y
The director y can contain up to 396 fi les s p r e a d o v e r 4 i n d e p e n d e n t s u b - d i r e c -tor ies (“User 1”, “User 2”, “User 3” and “User 4”).On delivery of the system, the current direc-tory is by default the directory “User 4”.One fi le can contain :An address.Five telephone nos..Five e-mails.A note.A v o i c e l a b e l f o r u s e i n v o i c e c o m -mands.The address is entered by inputting the town and the street.
Note :If you enter the address in the absence of the navigation CD-ROM, you will not be able to use this address for navigation.

REP 3. bREP 3. a
a
a
35D I R E C T O R Y
EXCHANGE WITH THE SIM CARDThis menu allows you :To send all the fi les to the SIM card, from the current directory of your NaviDrive.To send a fi le to the SIM card, from the current directory of your NaviDrive.To receive all the fi les from the SIM card into the current director y of your NaviDrive.To receive one fi le from the SIM card into the current directory of your NaviDrive.
Reminder :When you transfer a fi le from the NaviDrive to the SIM card, only the fi rst number on the fi le is recorded.
Remark :The SIM card represents an independent source of information: the telephone nos. can be consulted in the current directory.

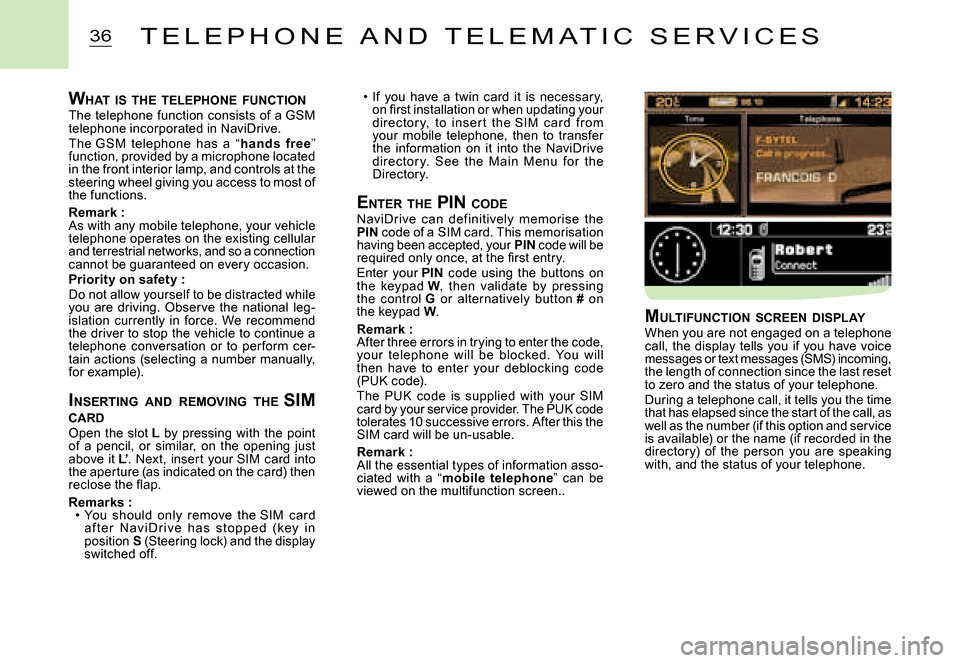

36
If you have a twin card it is necessary, on fi rst installation or when updating your director y, to inser t the SIM c ard from your mobile telephone, then to transfer the information on it into the NaviDrive director y. See the Main Menu for the Directory.
ENTER THE PIN CODENaviDrive c an def initively memorise the PIN code of a SIM card. This memorisation having been accepted, your PIN code will be required only once, at the fi rst entry.Enter your PIN code using the buttons on the keypad W, then validate by pressing the control G or alternatively button # on the keypad W.
Remark :After three errors in trying to enter the code, your telephone will be blocked. You will then have to enter your deblocking code (PUK code).The PUK code is supplied with your SIM card by your service provider. The PUK code tolerates 10 successive errors. After this the SIM card will be un-usable.
Remark :All the essential types of information asso-ciated with a “mobile telephone” can be viewed on the multifunction screen..
