Citroen C3 2008 1.G Owner's Guide
Manufacturer: CITROEN, Model Year: 2008, Model line: C3, Model: Citroen C3 2008 1.GPages: 184, PDF Size: 6.14 MB
Page 21 of 184
EDCB
AE
231
38
II
M U L T I F U N C T I O N D I S P L A YD I S P L A Y C
The driver is recommended not to concern himself with the display controls while driving.1. Time.2. Outside temperature.3. Date - Display zone.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).
ControlsA. Access to the "Main menu" of the display.B. Scroll through display menus.C. Validation and Selection in the menus, of the function chosen o r v a l u e m o d i fi e d .D. Cancellation of the operation or return to the previous display.E. Selection of the type of information you wish to see permanently displayed (date, radio-CD, trip computer) on the right of the screen.
Main Menu
Press on button A to bring up the "Main menu" of the multifunc-tion display. This menu gives you access to the following functions:
Radio-CD
(See radio-CD handbook).
Trip computer,giving you:Entering the distance to the destination.Access to the log of alerts (recall of the alerts signalled previously.
Access to status of functions, for example activation/deactivation of automatic lighting of headlamps, ESP, windscreen wipers.
Page 22 of 184
39
II
M U L T I F U N C T I O N D I S P L A YD I S P L A Y C
Trip computer
To enter the distance to be tra-velled on the trip computer:Press button A.
Use B to select the icon "Trip c o m p u t e r " , t h e n c o n fi r m w i t h a press on C.Select entry of distance using B . C o n fi r m y o u r c h o i c e with a press on C.
To choose the distance, select t h e fi g u r e y o u w i s h t o m o d i f y by using B , t h e n c o n fi r m w i t h a press on C.
Use B to adjust the value, then validate by pressing C.Validate "OK" on the screen.
To access the trip computer's log of alerts:Press button A.
Use B to select the icon "Trip c o m p u t e r " , t h e n c o n fi r m w i t h a press on C.Select the log of alerts.
When the list displays, use Bto scroll through it.
Press D to return to the permanent display.
To access the status of functions: proceed in a similar manner.
Page 23 of 184
EDCB
AE
40
II

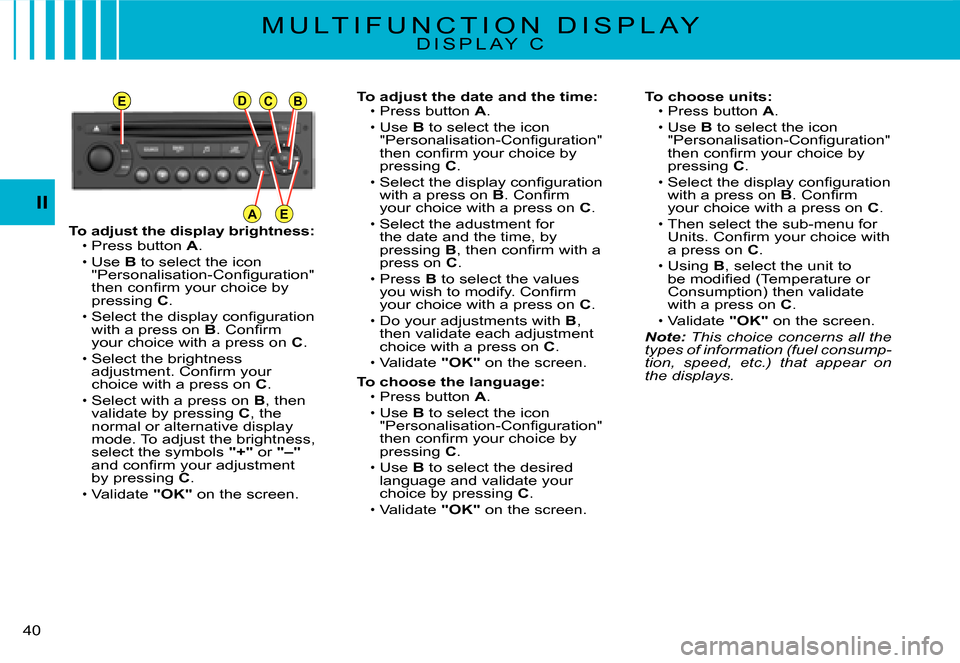

To adjust the display brightness:Press button A.Use B to select the icon " P e r s o n a l i s a t i o n - C o n fi g u r a t i o n " t h e n c o n fi r m y o u r c h o i c e b y pressing C.
S e l e c t t h e d i s p l a y c o n fi g u r a t i o n with a press on B . C o n fi r m your choice with a press on C.
Select the brightness a d j u s t m e n t . C o n fi r m y o u r choice with a press on C.Select with a press on B, then validate by pressing C, the normal or alternative display mode. To adjust the brightness, select the symbols "+" or "–" a n d c o n fi r m y o u r a d j u s t m e n t by pressing C.
Validate "OK" on the screen.
Page 24 of 184
41
II
T R I P C O M P U T E R

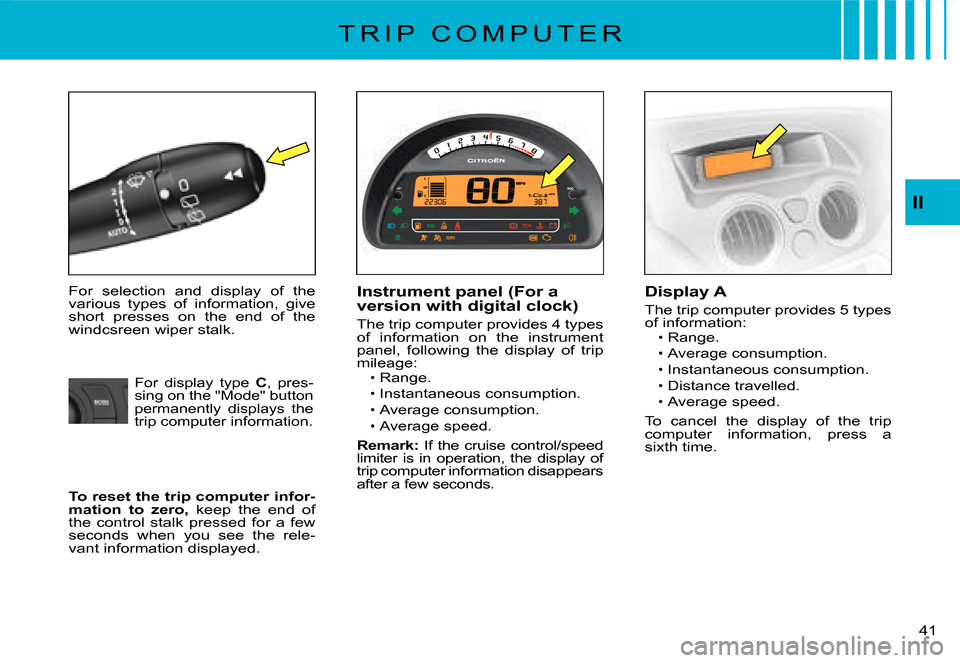

For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Instrument panel (For a version with digital clock)
The trip computer provides 4 types of information on the instrument panel, following the display of trip mileage:Range.
Instantaneous consumption.
Average consumption.Average speed.
Remark: If the cruise control/speed limiter is in operation, the display of trip computer information disappears after a few seconds.
Page 25 of 184
42
II

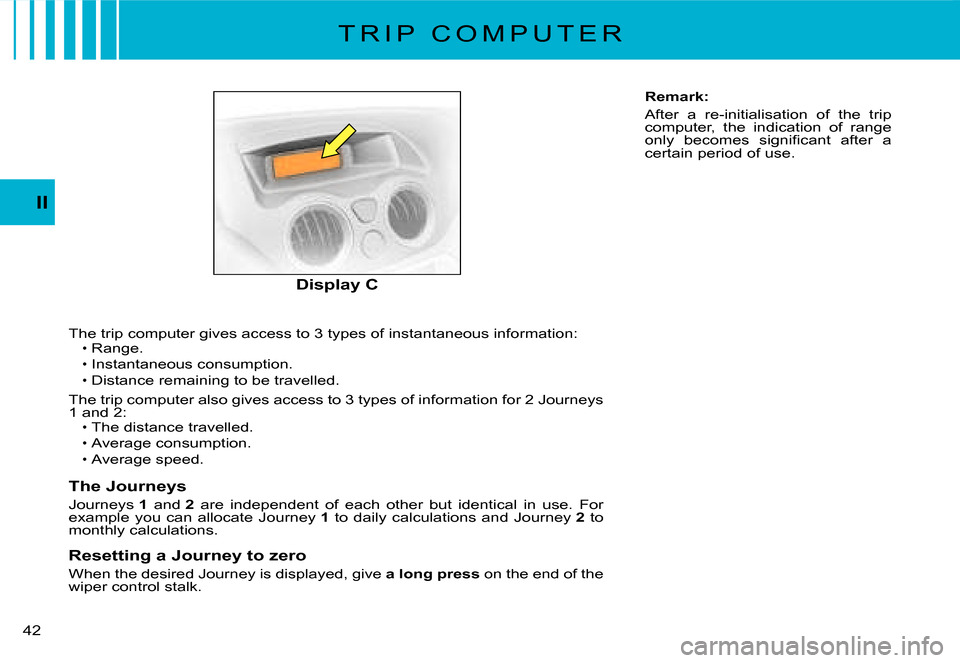

The trip computer gives access to 3 types of instantaneous information:Range.
Instantaneous consumption.Distance remaining to be travelled.
The trip computer also gives access to 3 types of information for 2 Journeys 1 and 2:The distance travelled.
Average consumption.
Average speed.
The Journeys
Journeys 1 and 2 are independent of each other but identical in use. For example you can allocate Journey 1 to daily calculations and Journey 2 to monthly calculations.
Resetting a Journey to zero
When the desired Journey is displayed, give a long press on the end of the wiper control stalk.
Page 26 of 184
43
II

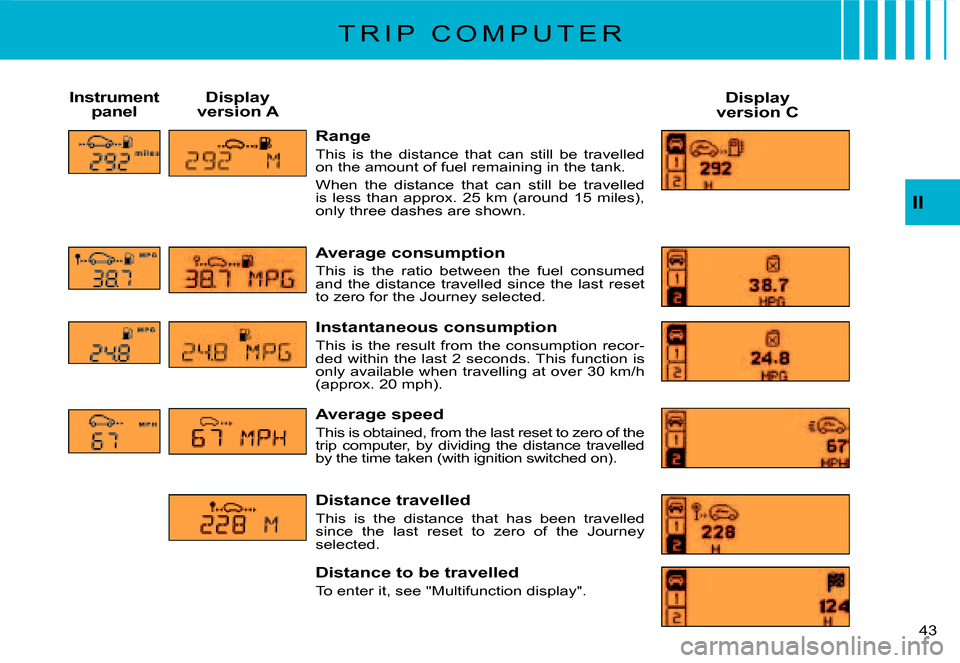

Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance that can still be travelled is less than approx. 25 km (around 15 miles), only three dashes are shown.
Average consumption
This is the ratio between the fuel consumed and the distance travelled since the last reset to zero for the Journey selected.
Instantaneous consumption
This is the result from the consumption recor-ded within the last 2 seconds. This function is only available when travelling at over 30 km/h (approx. 20 mph).
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Distance travelled
This is the distance that has been travelled since the last reset to zero of the Journey selected.
Distance to be travelled
To enter it, see "Multifunction display".
Instrument panelDisplay version ADisplay version C
T R I P C O M P U T E R
Page 27 of 184
44
II
S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
V i s i b l e a l e r t / h e a d l a m p fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indicators simultaneously.
Only use them to indicate danger,for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indicate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of hazard warning lamps
A sudden deceleration of the vehicle causes the hazard lamps to come on automatically.
They will cease to operate automa-tically, or manually if you press the hazard lamps button on the dash-board.
The direction indicators cannot operate if the hazard warning lamps are on.
Page 28 of 184
A
45
II
S I G N A L L I N G
Lighting control stalk
All vehicle lamps off
Sidelamps on
The instrument panel lights up.
Dipped beams/main beams onRotate the ring A forwards.
Rotate the ring A forwards.
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the ambient light a g a i n b e c o m e s u f fi c i e n t o r w h e n the wipers cease to operate.
Guide-me-home lighting
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the lighting stalk towards you, ignition off.
Automatically, provided:The automatic lighting of headlamps is activated.To activate the guide-me-homelighting function, select in the "Main menu", then in " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n " ,the sub-menu for lighting and signalling, then activate the function.See "Multifunction display".Note:It is possible to modify the duration of the guide-me-home lighting (approx. 60, 30 or 15 seconds) in the menu " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n " .
On screen A, the length is fi x e d .Note: On vehicles equipped with daytime running lamps, automatic headlamp lighting and guide-me-home lighting are not available.
Page 29 of 184
BC
46
II
S I G N A L L I N G
Rear foglamps on
Front foglamps and rear foglamps on
The warning lamp lights up.
The foglamps operate only with either headlamp dipped beam or headlamp main beam switched on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.
Front and rear foglamps (ring C)
Switch on your dipped/main beams.
In foggy conditions, if the ambient light is not such that th e headlamps come on automatically, it is up to the driver to switch on dipped beams, and/or foglamps, manually
Rear foglamps (Ring B)
Switch on your dipped/main beams.
Rotate the ring B forwards.
Front foglamps on
Rotate the ring C forwards.
Rotate the ring C forwards.
Page 30 of 184
47
II
W I P E R S
For safety, the wiper system is deactivated when the ignition is switched off.
If the ignition has been switched
off for more than 1 minute, you
will need to reactivate auto-
matic wipe, by pressing the
control stalk downwards.
Position I: The wipe speed adjusts automatically to the speed of the vehicle.
Positions 1 and 2: When the vehicle is stationary, the speed of the wipers will reduce automatically.
For safety, the wiper system is deactivated when the ignition is switched off.
When you switch the ignition on again, to reactivate the function:Return to position0.
Or go to the desired position.
A c t i v a t i o n o f t h e f u n c t i o n i s c o n fi r m e d b y o n e s w e e p o f t h e w i p e r s .
Vehicle with rain sensor
Activation of automatic wipe:
One touch downwards: "AUTO". The wipe speed will adjust according to the intensity of the rain.Note: If automatic wipe is active, a touch downwards triggers a singl e wipe, without deactivating automatic wipe.
Deactivation of automatic wipe:Go to position I, then return to position 0.
Or stop the engine.
WARNING
Do not cover the rain detector which is located behind the interior rear detectorview mirror and visible from outside the windscreen.
For washing the vehicle, switch off the ignition or deactivate the automatic wipe.
