Page 144 of 209
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren.
F9 30 A A u d i o s y s t e m ( a f t e r - m a r k e t ) , 1 2 V s o c k e t , p o r t a b l e
navigation support supply.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox
control unit.
F12 15 A Rain/brightness sensor, trailer relay unit, driving
school module.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, airbag control unit,
instrument panel, automatic air conditioning,
U S B B o x , H i F i a m p l i fi e r .
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and exterior mirrors demisting/
defrosting.
SH - PARC shunt.
Page 145 of 209
11
PRACTICAL INFORMATION
Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) ,
EGR electrovalve ( D i e s e l ) , f u e l p u m p ( 1 . 1 i a n d 1 . 4 i ) , b l o w - b y h e a t e r
a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A ABS/ESP control unit, secondary stop switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A Heater blower.
Page 148 of 209
11
PRACTICAL INFORMATION

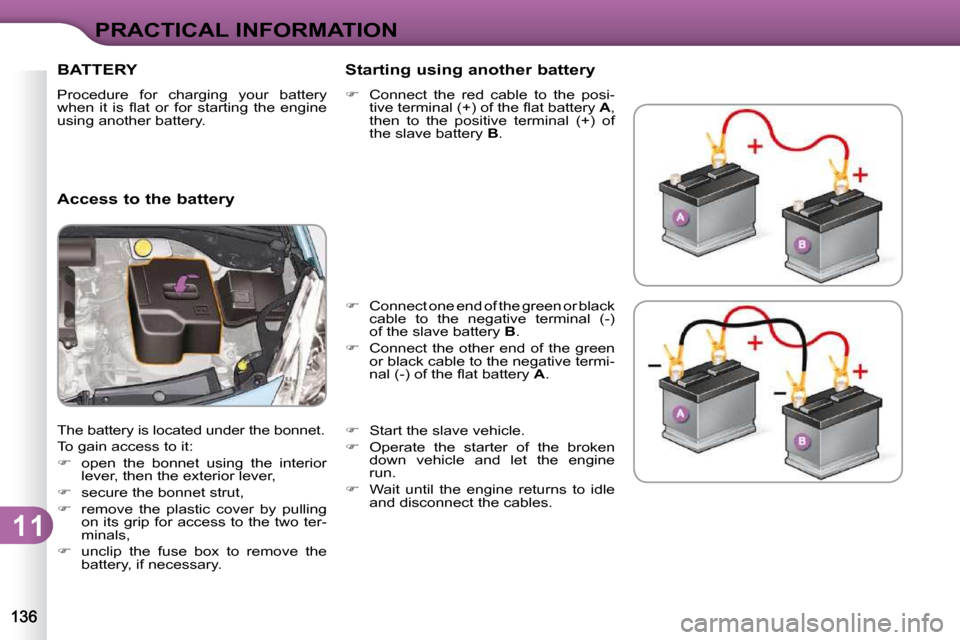

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover by pulling
on its grip for access to the two ter-
minals,
unclip the fuse box to remove the
battery, if necessary.
Access to the battery
Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
Connect one end of the green or black
c a b l e t o t h e n e g a t i v e t e r m i n a l ( - )
of the slave battery B .
Connect the other end of the green
or black cable to the negative termi-
n a l ( - ) o f t h e fl a t b a t t e r y A .
Start the slave vehicle.
Operate the starter of the broken
down vehicle and let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 149 of 209
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 150 of 209
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 151 of 209
11
PRACTICAL INFORMATION
If the telephone is being used
at the same time on the MyWay
audio navigation system, it will
be interrupted after 10 minutes. A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .

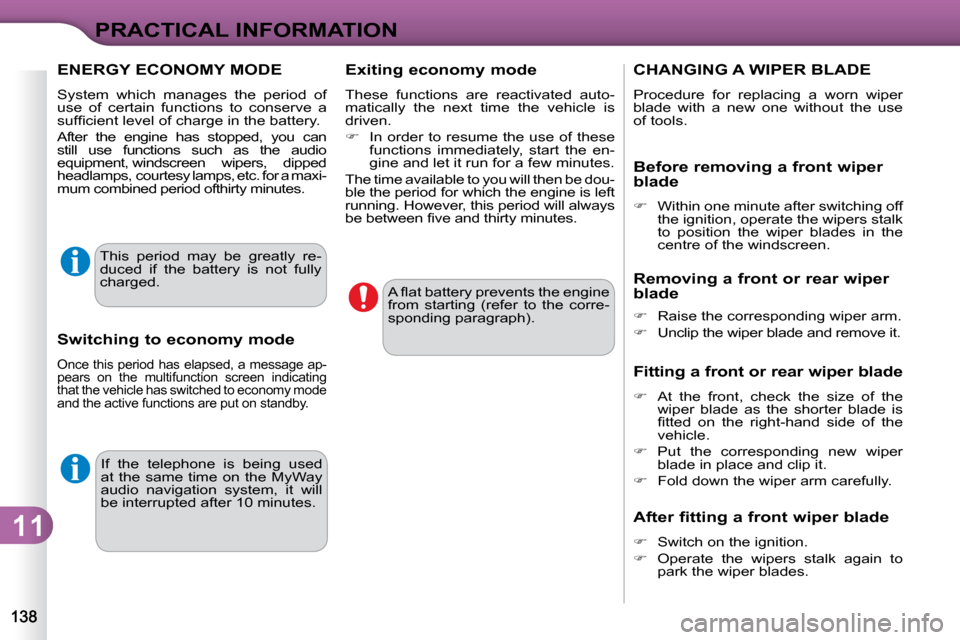

ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lamps, etc. for a maxi-
mum combined period ofthirty minutes.
Switching to economy mode
Once this period has elapsed, a message ap-
pears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 152 of 209
11
PRACTICAL INFORMATION
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking as-
sistance the next time the engine
is started. When towing with all four wheels
on the ground, always use a
towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any assistance
for braking or steering.

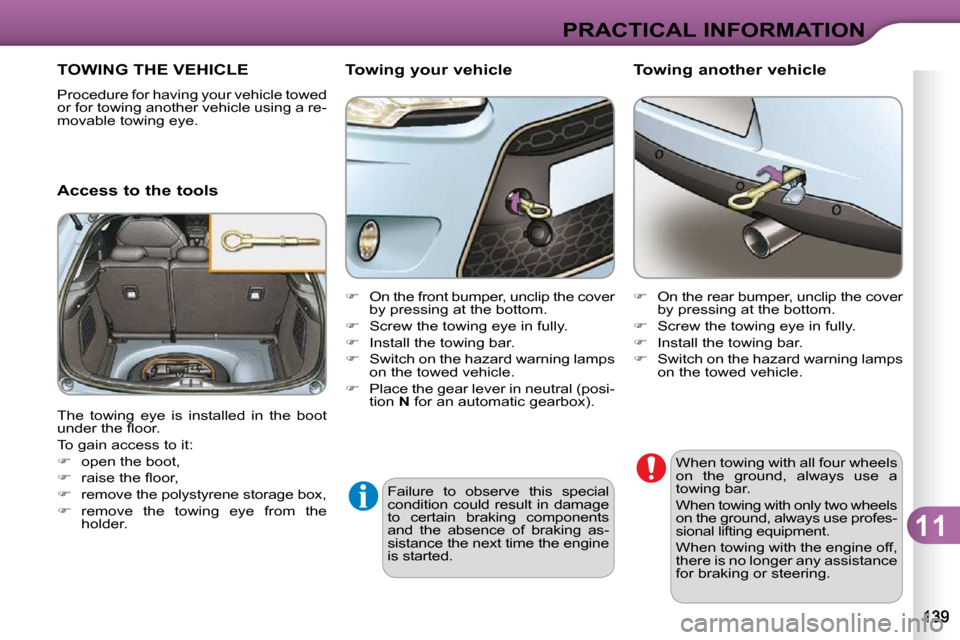

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
remove the polystyrene storage box,
remove the towing eye from the
holder. Towing your vehicle
On the front bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Place the gear lever in neutral (posi-
tion N f o r a n a u t o m a t i c g e a r b o x ) . Towing another vehicle
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Page 153 of 209
11
PRACTICAL INFORMATION
We recommend the use of genu-
ine CITROËN towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle, and that
t h e fi t t i n g o f t h e t o w b a r i s e n -
trusted to a CITROËN dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
CITROËN dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i -
cal pre-equipment installed at
the rear of the vehicle, in accord-
ance with the manufacturer's in-
structions.
TOWING A TRAILER,
A CARAVAN, ETC.
The rear parking assistance will
be deactivated automatically if
a genuine CITROËN towbar is
used.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical signalling on
the trailer.
Page 157 of 209
1 2

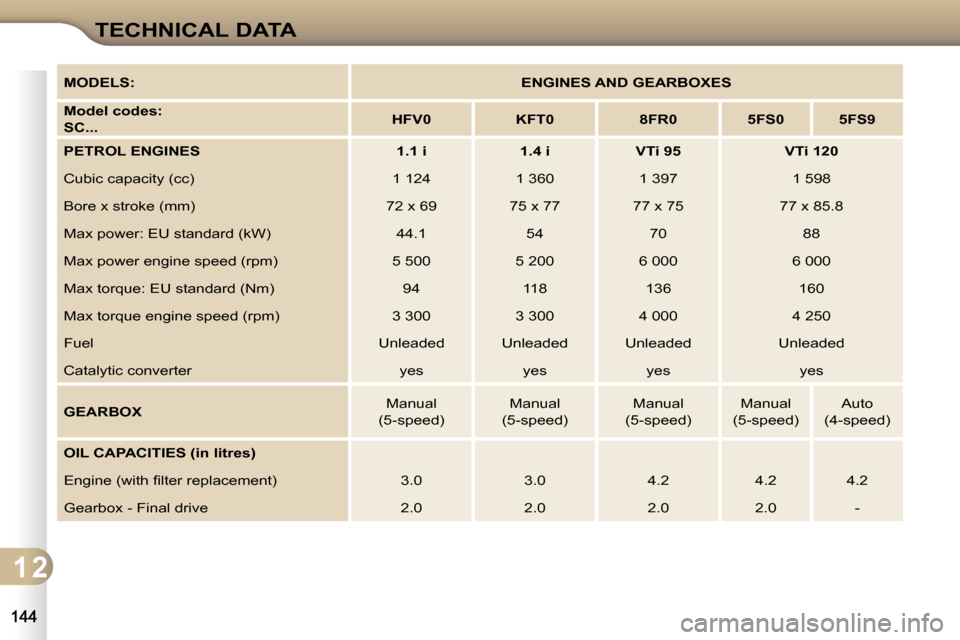

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
SC...
HFV0 KFT0 8FR0 5FS0 5FS9
PETROL ENGINES 1.1 i 1.4 i VTi 95 VTi 120
Cubic capacity (cc) 1 124 1 360 1 397 1 598
Bore x stroke (mm) 72 x 69 75 x 77 77 x 75 77 x 85.8
Max power: EU standard (kW) 44.1 54 70 88
Max power engine speed (rpm) 5 500 5 200 6 000 6 000
Max torque: EU standard (Nm) 94 118 136 160
Max torque engine speed (rpm) 3 300 3 300 4 000 4 250
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter yes yes yes yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Auto
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.0 3.0 4.2 4.2 4.2
Gearbox - Final drive 2.0 2.0 2.0 2.0 -
Page 158 of 209
1 2

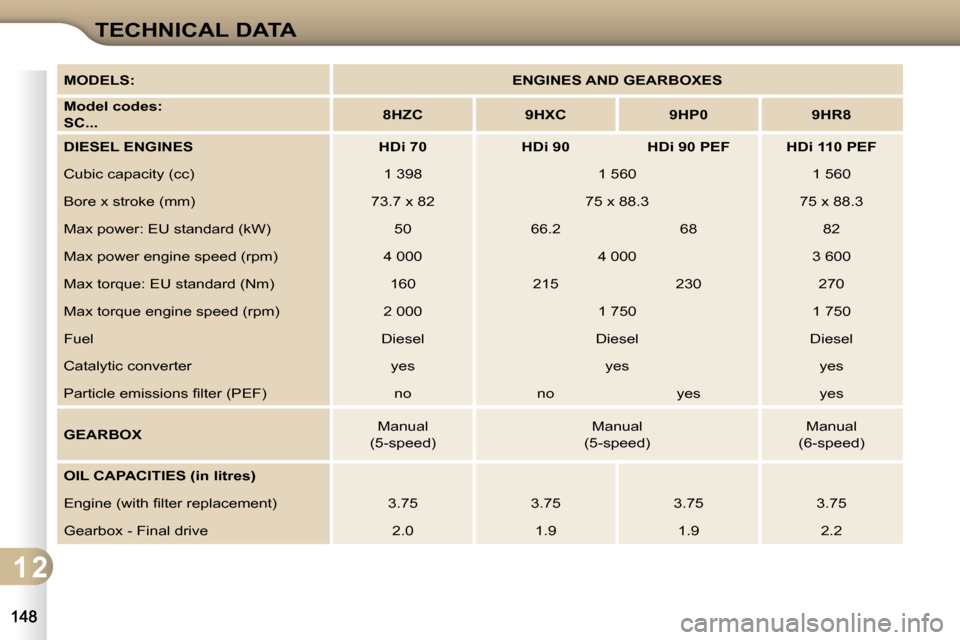

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
SC...
8HZC 9HXC 9HP0 9HR8
DIESEL ENGINES HDi 70 HDi 90 HDi 90 PEF HDi 110 PEF
Cubic capacity (cc) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 50 66.2 68 82
Max power engine speed (rpm) 4 000 4 000 3 600
Max torque: EU standard (Nm) 160 215 230 270
Max torque engine speed (rpm) 2 000 1 750 1 750
Fuel D i e s e l D i e s e l D i e s e l
Catalytic converter yes yes yes
P a r t i c l e e m i s s i o n s fi l t e r ( P E F ) no no yes yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 3.75 3.75 3.75
Gearbox - Final drive 2.0 1.9 1.9 2.2
