Page 143 of 209
11
PRACTICAL INFORMATION

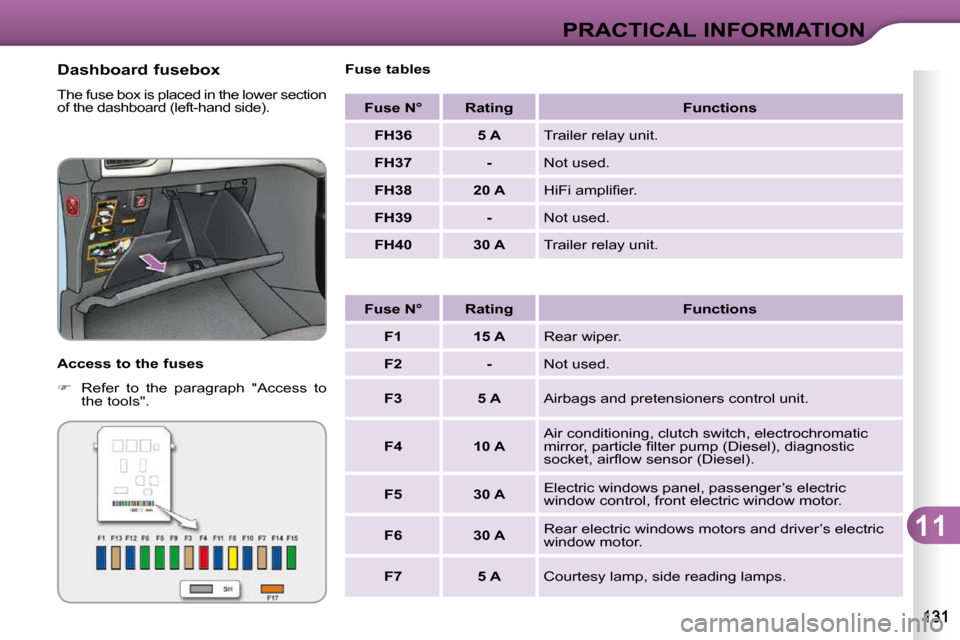

Dashboard fusebox
The fuse box is placed in the lower section
o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
Refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 - Not used.
FH38 20 A H i F i a m p l i fi e r .
FH39 - Not used.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Air conditioning, clutch switch, electrochromatic
m i r r o r , p a r t i c l e fi l t e r p u m p ( D i e s e l ) , d i a g n o s t i c
s o c k e t , a i r fl o w s e n s o r ( D i e s e l ) .
F5 30 A Electric windows panel, passenger’s electric
window control, front electric window motor.
F6 30 A Rear electric windows motors and driver’s electric
window motor.
F7 5 A Courtesy lamp, side reading lamps.
Page 144 of 209
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren.
F9 30 A A u d i o s y s t e m ( a f t e r - m a r k e t ) , 1 2 V s o c k e t , p o r t a b l e
navigation support supply.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox
control unit.
F12 15 A Rain/brightness sensor, trailer relay unit, driving
school module.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, airbag control unit,
instrument panel, automatic air conditioning,
U S B B o x , H i F i a m p l i fi e r .
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and exterior mirrors demisting/
defrosting.
SH - PARC shunt.
Page 145 of 209
11
PRACTICAL INFORMATION
Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) ,
EGR electrovalve ( D i e s e l ) , f u e l p u m p ( 1 . 1 i a n d 1 . 4 i ) , b l o w - b y h e a t e r
a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A ABS/ESP control unit, secondary stop switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A Heater blower.
