CITROEN C3 2009 Owner's Manual
Manufacturer: CITROEN, Model Year: 2009, Model line: C3, Model: CITROEN C3 2009Pages: 209, PDF Size: 7.71 MB

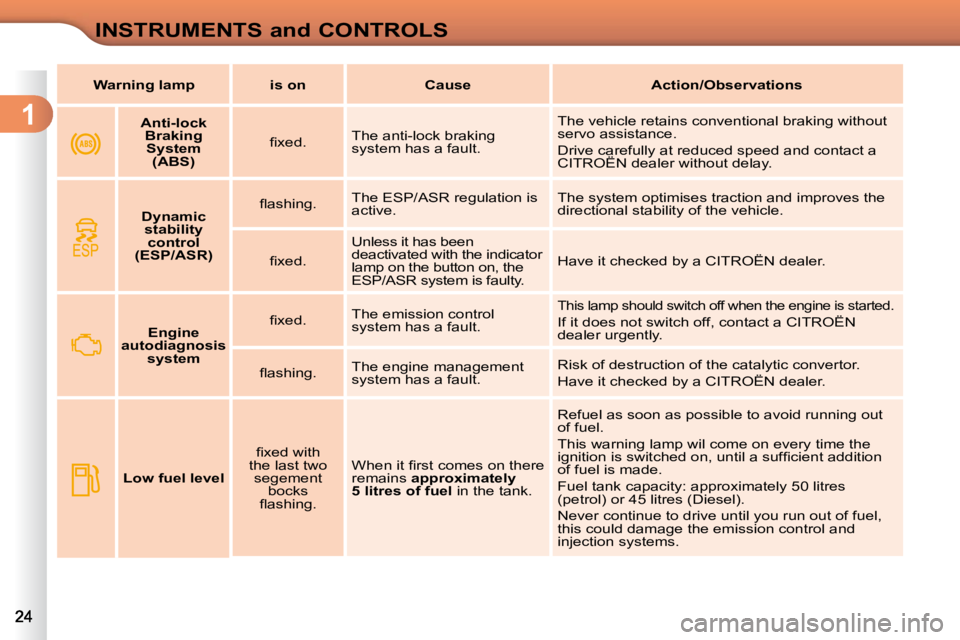

Page 21 of 209
1
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking
system has a fault. The vehicle retains conventional braking without
servo assistance.
Drive carefully at reduced speed and contact a
CITROËN dealer without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.
fi x e d . Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty. Have it checked by a CITROËN dealer.
Engine
autodiagnosis system fi x e d .
The emission control
system has a fault.
This lamp should switch off when the engine is star
ted.
If it does not switch off, contact a CITROËN
dealer urgently.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic convertor.
Have it checked by a CITROËN dealer.
Low fuel level fi x e d w i t h
the last two segement bocks
fl a s h i n g . W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
5 litres of fuel in the tank. Refuel as soon as possible to avoid running out
of fuel.
This warning lamp wil come on every time the
i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t a d d i t i o n
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 45 litres (Diesel).
Never continue to drive until you run out of fuel,
this could damage the emission control and
injection systems.

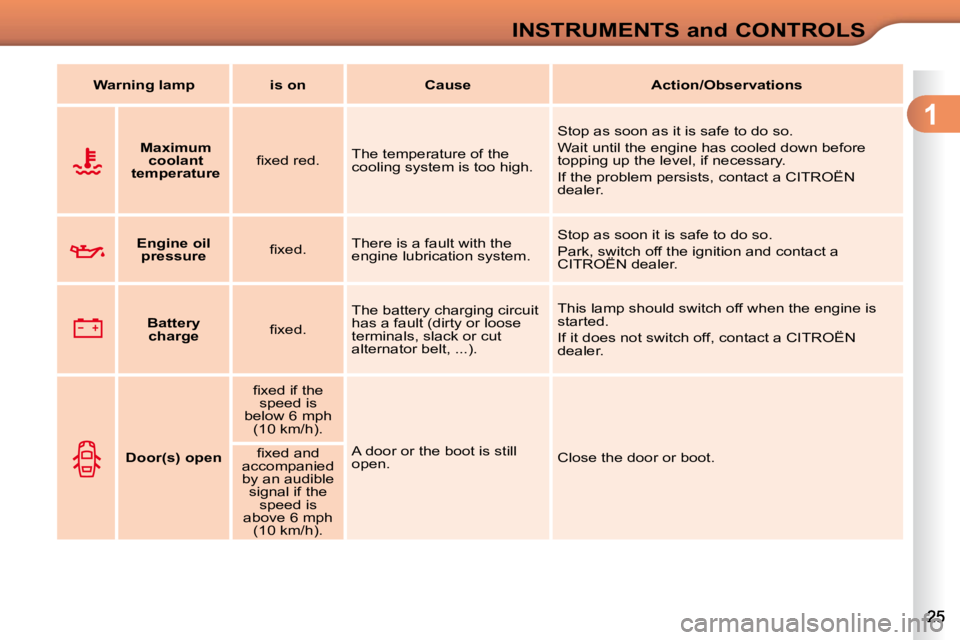

Page 22 of 209
1
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN
dealer.
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
Door(s) open fi x e d i f t h e
speed is
below 6 mph (10 km/h).
A door or the boot is still
open. Close the door or boot.
fi x e d a n d
accompanied
by an audible signal if the speed is
above 6 mph (10 km/h).
Page 23 of 209
1
INSTRUMENTS and CONTROLS

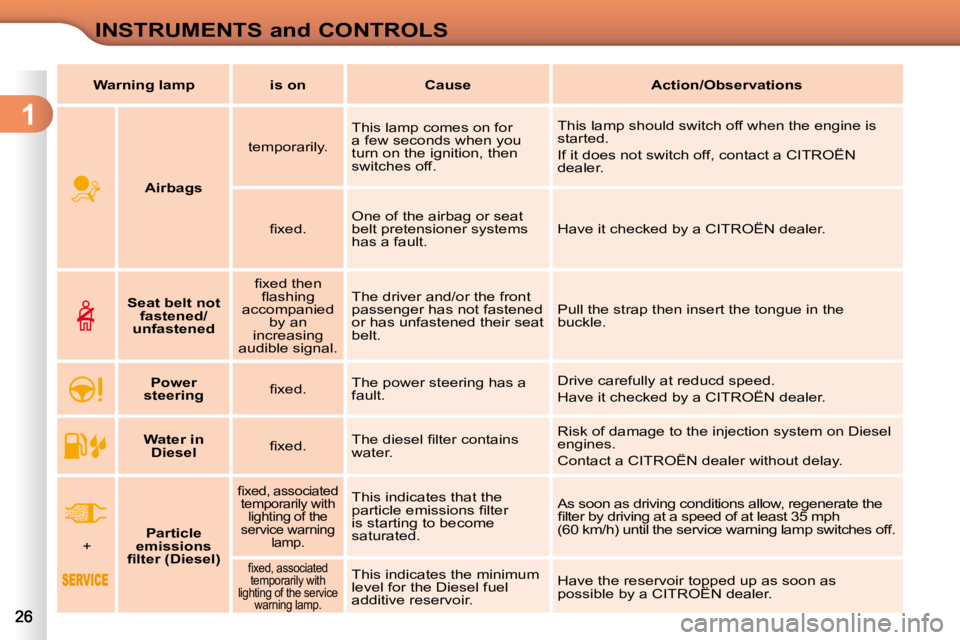

Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off. This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer.
Seat belt not
fastened/
unfastened fi x e d t h e n
fl a s h i n g
accompanied by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Water in
Diesel fi x e d . T h e d i e s e l fi l t e r c o n t a i n s
water. Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer without delay.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reducd speed.
Have it checked by a CITROËN dealer.
+
Particle
emissions
fi l t e r ( D i e s e l )
fi x e d , a s s o c i a t e d
temporarily with lighting of the
service warning lamp. This indicates that the
p a r t i c l e e m i s s i o n s fi l t e r
is starting to become
saturated. As soon as driving conditions allow, regenerate th
e
fi l t e r b y d r i v i n g a t a s p e e d o f a t l e a s t 3 5 m p h
(60 km/h) until the service warning lamp switches o ff.
fi x e d , a s s o c i a t e d
temporarily with
lighting of the service warning lamp. This indicates the minimum
level for the Diesel fuel
additive reservoir. Have the reservoir topped up as soon as
possible by a CITROËN dealer.
Warning lamp is on Cause Action/Observations

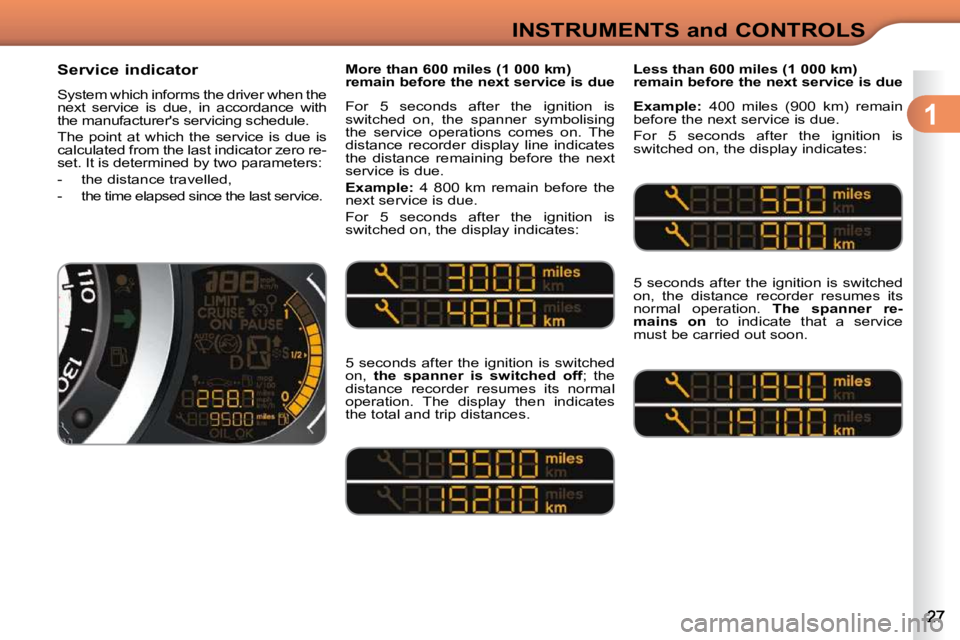

Page 24 of 209
1
INSTRUMENTS and CONTROLS
Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. More than 600 miles (1 000 km)
remain before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 4 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates: Less than 600 miles (1 000 km)
remain before the next service is due
Example: 400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. 5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation.
The spanner re-
mains on to indicate that a service
must be carried out soon.

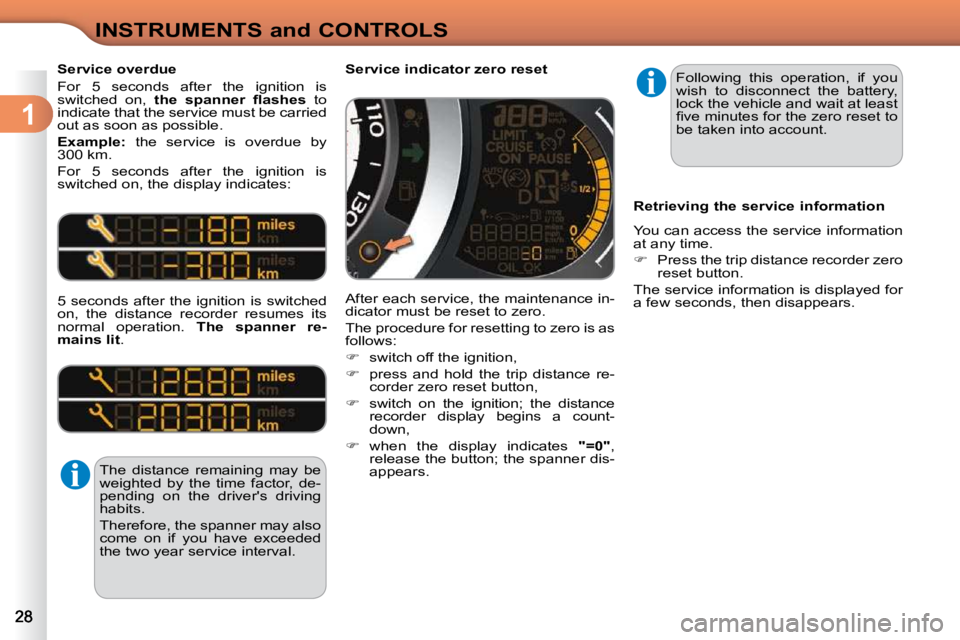

Page 25 of 209
1
INSTRUMENTS and CONTROLS
Service overdue
For 5 seconds after the ignition is
switched on, t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval. Service indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" ,
release the button; the spanner dis-
appears. Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for
a few seconds, then disappears. Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi v e m i n u t e s f o r t h e z e r o r e s e t t o
be taken into account.
Page 26 of 209
1
INSTRUMENTS and CONTROLS
Service overdue
For 5 seconds after the ignition is
switched on, t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval. Service indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" ,
release the button; the spanner dis-
appears. Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for
a few seconds, then disappears. Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi v e m i n u t e s f o r t h e z e r o r e s e t t o
be taken into account.

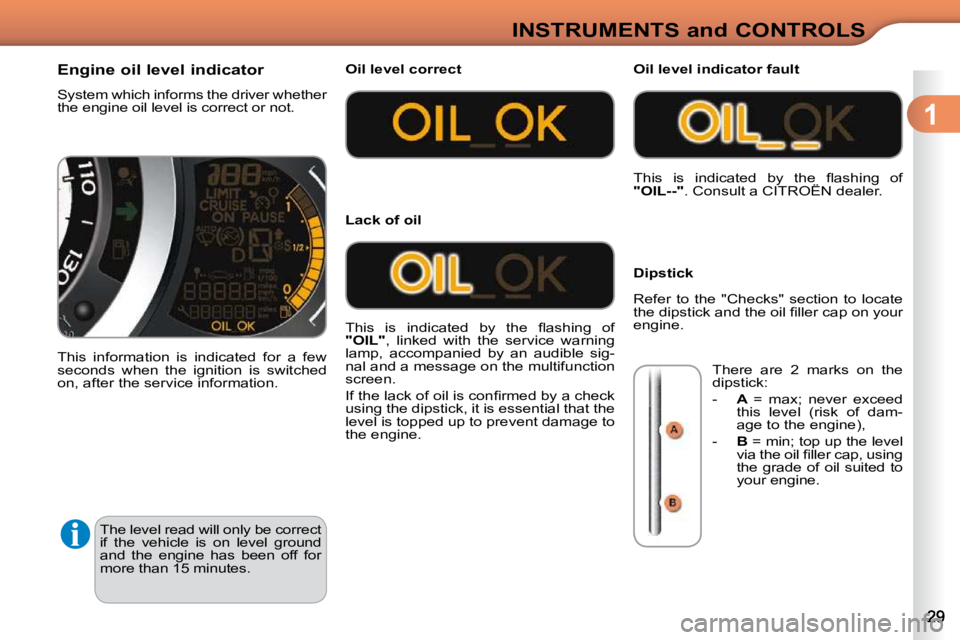

Page 27 of 209
1
INSTRUMENTS and CONTROLS
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.
Lack of oil
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--"
. Consult a CITROËN dealer.
Oil level indicator fault
Dipstick
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the grade of oil suited to
your engine.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.

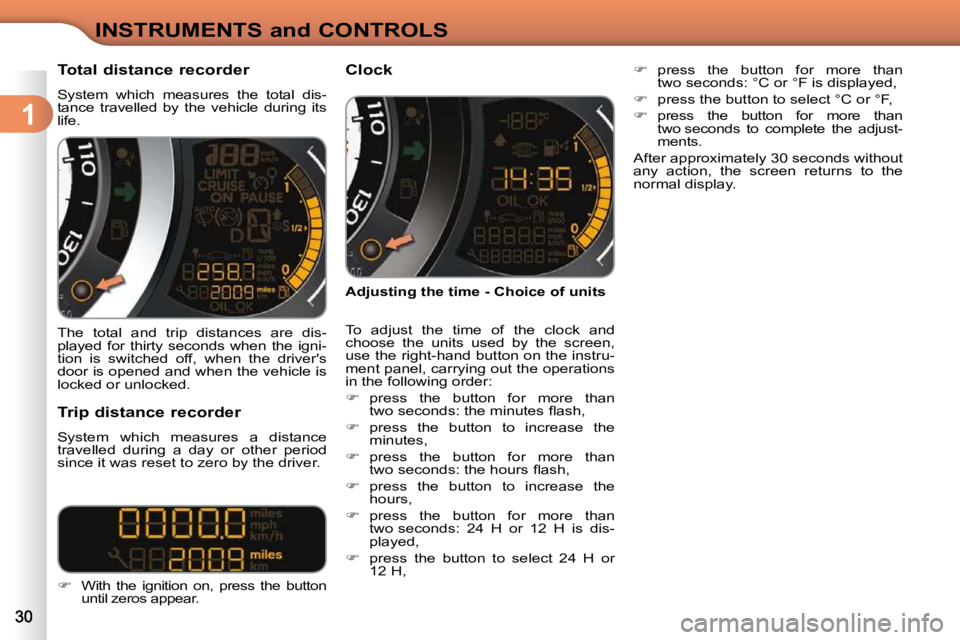

Page 28 of 209
1
INSTRUMENTS and CONTROLS
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
With the ignition on, press the button
until zeros appear.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver. Clock
Adjusting the time - Choice of units
press the button for more than
two seconds: °C or °F is displayed,
press the button to select °C or °F,
press the button for more than
two seconds to complete the adjust-
ments.
After approximately 30 seconds without
any action, the screen returns to the
normal display.
To adjust the time of the clock and
choose the units used by the screen,
use the right-hand button on the instru-
ment panel, carrying out the operations
in the following order:
press the button for more than
t w o s e c o n d s : t h e m i n u t e s fl a s h ,
press the button to increase the
minutes,
press the button for more than
t w o s e c o n d s : t h e h o u r s fl a s h ,
press the button to increase the
hours,
press the button for more than
two seconds: 24 H or 12 H is dis-
played,
press the button to select 24 H or
12 H,
Page 29 of 209
1
INSTRUMENTS and CONTROLS
The instrument panel remains lit with
the vehicle speed and cruise control or
speed limiter information, if in use.
If there is an alert or a change in a func-
tion or to a setting, the black panel mode
is interrupted.
Activation
With the lighting on, press the left
hand button of the instrument panel
several times to progressively re-
duce the dashboard lighting level.
Press the button again to reduce the
lighting to the minimum level and
switch off the ambience lighting.
Press the button again to activate
the black panel.
The dashboard lighting rheostat re-
mains operational when in black panel
mode.

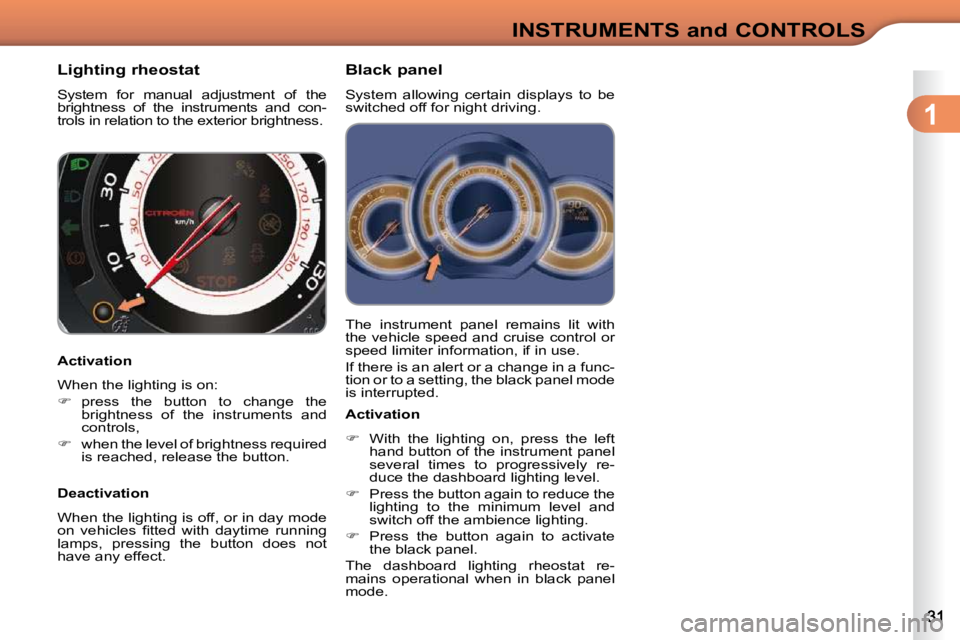

Black panel
System allowing certain displays to be
switched off for night driving.
Activation
When the lighting is on:
press the button to change the
brightness of the instruments and
controls,
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, pressing the button does not
have any effect.
Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Page 30 of 209
1
INSTRUMENTS and CONTROLS

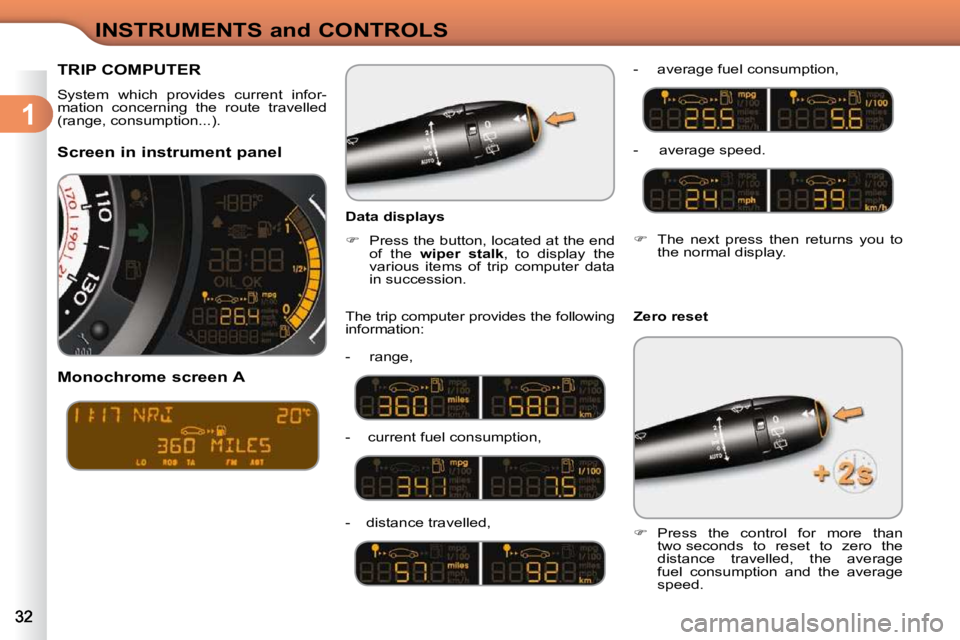

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption...).
Screen in instrument panel
Monochrome screen A Zero reset
Data displays
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession.
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
The trip computer provides the following
information:
- range,
- current fuel consumption,
- distance travelled, - average fuel consumption,
- average speed.
The next press then returns you to
the normal display.
