FAMILIARISATION
Remote control key Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
60
71
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
123
Bonnet
ACCESS
Other functions...
C. Normal locking of the vehicle.
or
Deadlocking of the vehicle.
Vehicle location. Tank capacity:
- a p p r o x i m a t e l y 5 0 l i t r e s ( p e t r o l ) ,
- a p p r o x i m a t e l y 4 8 l i t r e s ( D i e s e l ) .
Page 23 of 240
1
MONITORING

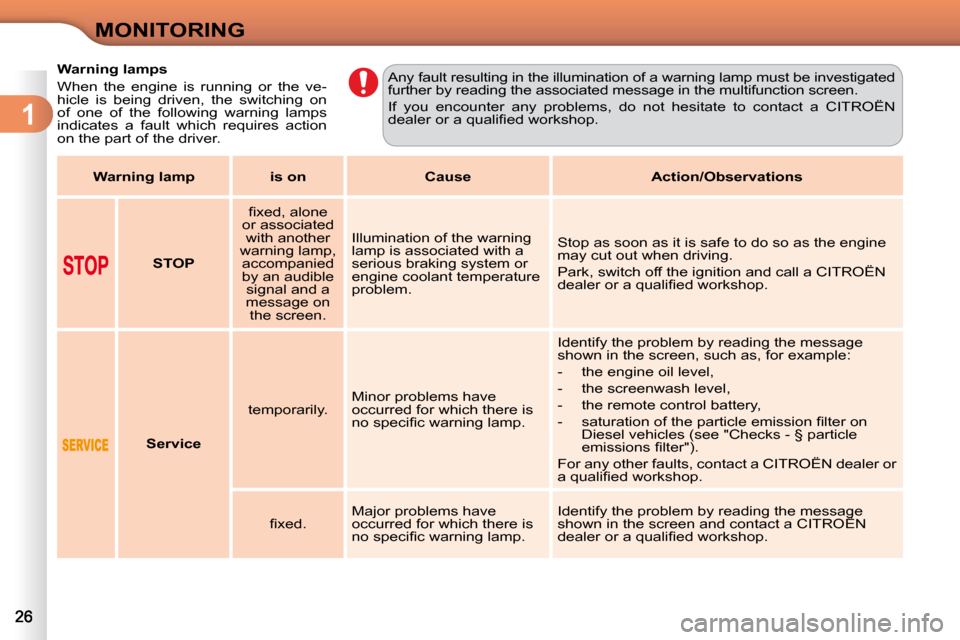

Warning lamps
When the engine is running or the ve-
hicle is being driven, the switching on
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver. Any fault resulting in the illumination of a warni
ng lamp must be investigated
further by reading the associated message in the mu ltifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
STOP fi x e d , a l o n e
or associated with another
warning lamp, accompanied
by an audible signal and a
message on the screen. Illumination of the warning
lamp is associated with a
serious braking system or
engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine
may cut out when driving.
Park, switch off the ignition and call a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Service temporarily.
Minor problems have
occurred for which there is
n o s p e c i fi c w a r n i n g l a m p . Identify the problem by reading the message
shown in the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r o n
Diesel vehicles (see "Checks - § particle
e m i s s i o n s fi l t e r " ) .
For any other faults, contact a CITROËN dealer or
a q u a l i fi e d w o r k s h o p .
fi x e d . Major problems have
occurred for which there is
n o s p e c i fi c w a r n i n g l a m p . Identify the problem by reading the message
shown in the screen and contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Warning lamp is on Cause Action/Observations
Page 60 of 240
4
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unlocking the vehicle
Unfolding the key
First press this button to unfold
the key.
Unlocking using the remote control
Press the open padlock to
unlock the vehicle. Unlocking using the key
Turn the key to the right in the driv-
er’s door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote control
Press the closed padlock
to lock the vehicle.
Locking using the key
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely. If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
relock automatically after thirty
seconds unless a door or the
boot is open.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
According to version, the door mirrors
fold at the same time.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
o f t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i -
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Page 61 of 240
4
ACCESS
Folding the key
First press this button to fold the key.
Deadlocking using the remote
control
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
Deadlocking using the key
Press the closed padlock
to lock the vehicle com-
pletely.
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e -
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,
an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locating your vehicle
Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 62 of 240
4

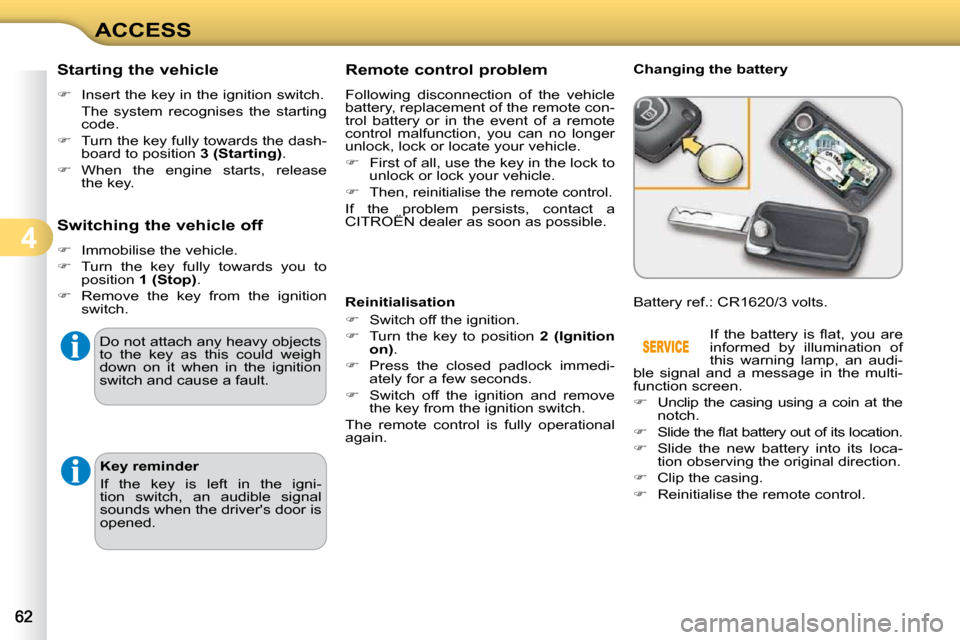

ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition
on) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Changing the battery
Battery ref.: CR1620/3 volts.
I f t h e b a t t e r y i s fl a t , y o u a r e
informed by illumination of
this warning lamp, an audi-
ble signal and a message in the multi-
function screen.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release
the key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
Page 63 of 240
4
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the
transponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n .
Locking the vehicle
Driving with the doors locked may make access to t he passenger compart-
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r
system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the
keys in your possession are the only ones which can start the vehicle .
Page 64 of 240
4
ACCESS
Folding the key
First press this button to fold the key.
Deadlocking using the remote
control
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
Deadlocking using the key
Press the closed padlock
to lock the vehicle com-
pletely.
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e -
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,
an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locating your vehicle
Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 65 of 240
4
ACCESS
Folding the key
First press this button to fold the key.
Deadlocking using the remote
control
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
Deadlocking using the key
Press the closed padlock
to lock the vehicle com-
pletely.
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Turn the key to the left again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g r e n d e r s t h e e x t e -
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
p r o x i m a t e l y t w o s e c o n d s .
According to version, the door mirrors
fold at the same time.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,
an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locating your vehicle
Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Page 66 of 240
4
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the
transponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n .
Locking the vehicle
Driving with the doors locked may make access to t he passenger compart-
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r
system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the
keys in your possession are the only ones which can start the vehicle .
Page 67 of 240
4
ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition
on) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Changing the battery
Battery ref.: CR1620/3 volts.
I f t h e b a t t e r y i s fl a t , y o u a r e
informed by illumination of
this warning lamp, an audi-
ble signal and a message in the multi-
function screen.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release
the key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
