Citroen C3 2010.5 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3, Model: Citroen C3 2010.5 2.GPages: 240, PDF Size: 8.72 MB
Page 1 of 240
FAMILIARISATION Rear parking sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.
120
Stop & Start
This system puts the engine temporarily
i n t o s t a n d b y d u r i n g s t o p s i n t h e t r a f fi c ( r e d
l i g h t s , t r a f fi c j a m s , e t c . . . ) . T h e e n g i n e
restarts as soon as you want to move
off. The Stop & Start system reduces
fuel consumption and exhaust emis-
sions, and provides the comfort of total
silence when stationary.
113 Temporary puncture repair kit
This kit is a complete system consisting
of a compressor and a sealant cartridge,
for the temporary repair of a tyre.
129
Zenith windscreen
This large windscreen provides incom-
parable visibility and light in the passen-
ger compartment.
6
EXTERIOR
Page 2 of 240

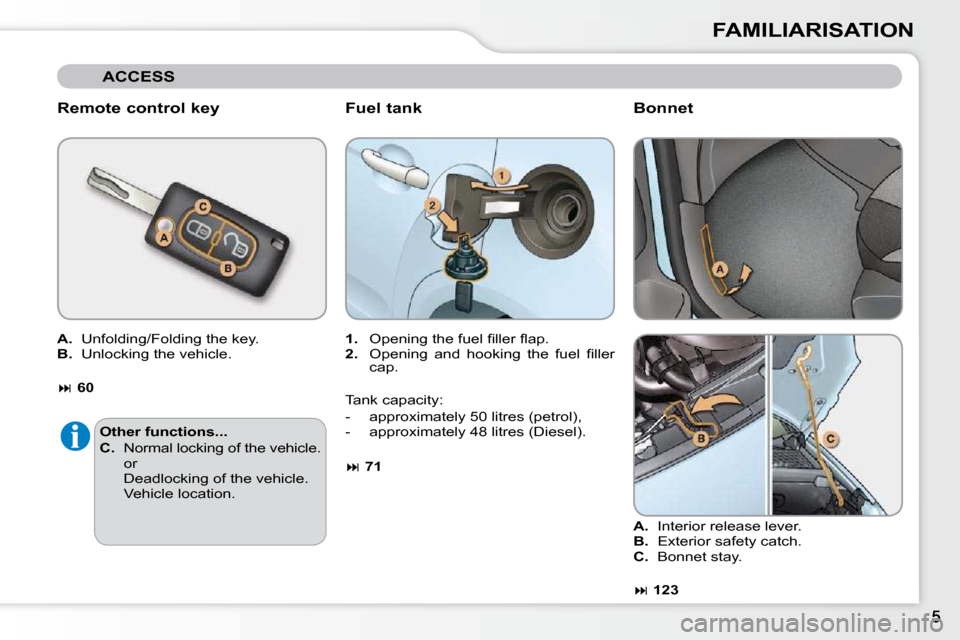

FAMILIARISATION
Remote control key Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
60
71
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
123
Bonnet
ACCESS
Other functions...
C. Normal locking of the vehicle.
or
Deadlocking of the vehicle.
Vehicle location. Tank capacity:
- a p p r o x i m a t e l y 5 0 l i t r e s ( p e t r o l ) ,
- a p p r o x i m a t e l y 4 8 l i t r e s ( D i e s e l ) .
Page 3 of 240

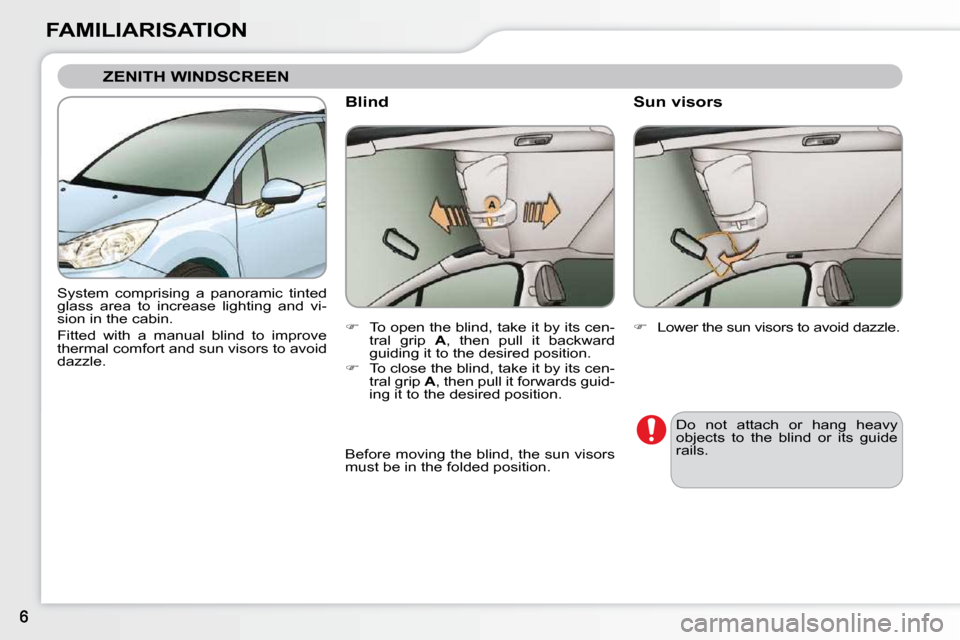

FAMILIARISATION
ZENITH WINDSCREEN
System comprising a panoramic tinted
glass area to increase lighting and vi-
sion in the cabin.
Fitted with a manual blind to improve
thermal comfort and sun visors to avoid
dazzle.
To open the blind, take it by its cen-
tral grip A , then pull it backward
guiding it to the desired position.
To close the blind, take it by its cen-
tral grip A , then pull it forwards guid-
ing it to the desired position.
Lower the sun visors to avoid dazzle.
Do not attach or hang heavy
o b j e c t s t o t h e b l i n d o r i t s g u i d e
rails.
Blind Sun visors
Before moving the blind, the sun visors
must be in the folded position.
Page 4 of 240

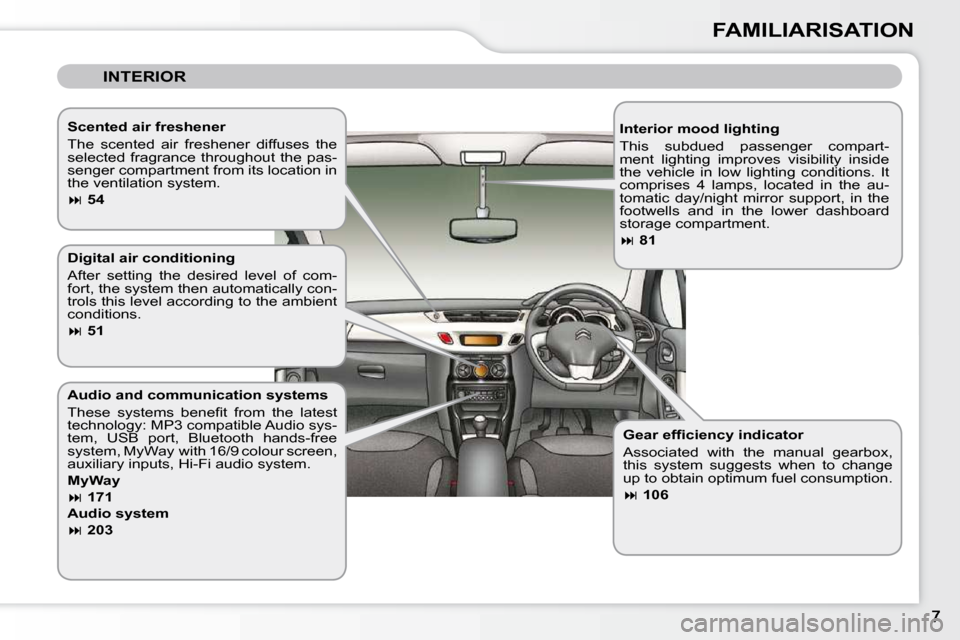

FAMILIARISATION
INTERIOR
Interior mood lighting
This subdued passenger compart-
ment lighting improves visibility inside
the vehicle in low lighting conditions. It
comprises 4 lamps, located in the au-
tomatic day/night mirror support, in the
footwells and in the lower dashboard
storage compartment.
81
G e a r e f fi c i e n c y i n d i c a t o r
Associated with the manual gearbox,
this system suggests when to change
up to obtain optimum fuel consumption.
106
Scented air freshener
The scented air freshener diffuses the
selected fragrance throughout the pas-
senger compartment from its location in
the ventilation system.
54
Digital air conditioning
After setting the desired level of com-
fort, the system then automatically con-
trols this level according to the ambient
conditions.
51
Audio and communication systems
T h e s e s y s t e m s b e n e fi t f r o m t h e l a t e s t
technology: MP3 compatible Audio sys-
tem, USB port, Bluetooth hands-free
system, MyWay with 16/9 colour screen,
auxiliary inputs, Hi-Fi audio system.
MyWay
171
Audio system
203
Page 5 of 240
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment steering mounted
controls.
2. Steering lock and ignition.
3. Wipers/screenwash/trip computer
control stalk.
4. Instrument panel.
5. Scented air freshener.
6. Driver’s airbag.
Horn.
7. Gear lever.
8. Parking brake.
9. Central armrest with storage.
10. Door mirror controls.
Electric window controls.
Rear doors and electric windows deactivation control.
11. Storage compartment.
12. Electric child lock button or
alarm button.
Electronic stability programme b u t t o n ( E S P / A S R ) .
Stop & Start button.
13. S i d e a d j u s t a b l e a i r v e n t .
14. Front door window demisting/
defrosting vent.
15. S p e a k e r ( t w e e t e r ) .
16. Windscreen demisting/defrosting
vent.
Page 6 of 240
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
2. H e a d l a m p h e i g h t a d j u s t m e n t .
3. Cruise control/speed limiter
switches.
4. Lighting and direction indicator
control stalk.
5. Microphone.
6. Central locking button.
7. Multifunction screen.
8. Hazard warning lamps switch.
9. C e n t r a l a d j u s t a b l e a i r v e n t s .
10. Sunshine sensor.
Hi-Fi audio system central speaker.
11. Passenger’s airbag.
12. Glove box/Passenger’s airbag
deactivation/Fusebox.
13. Bonnet release lever.
14. 12 V accessory socket.
USB port/auxiliary socket.
15. Upper and lower storage.
16. MyWay or Audio system.
17. Heating/air conditioning controls.
Page 7 of 240

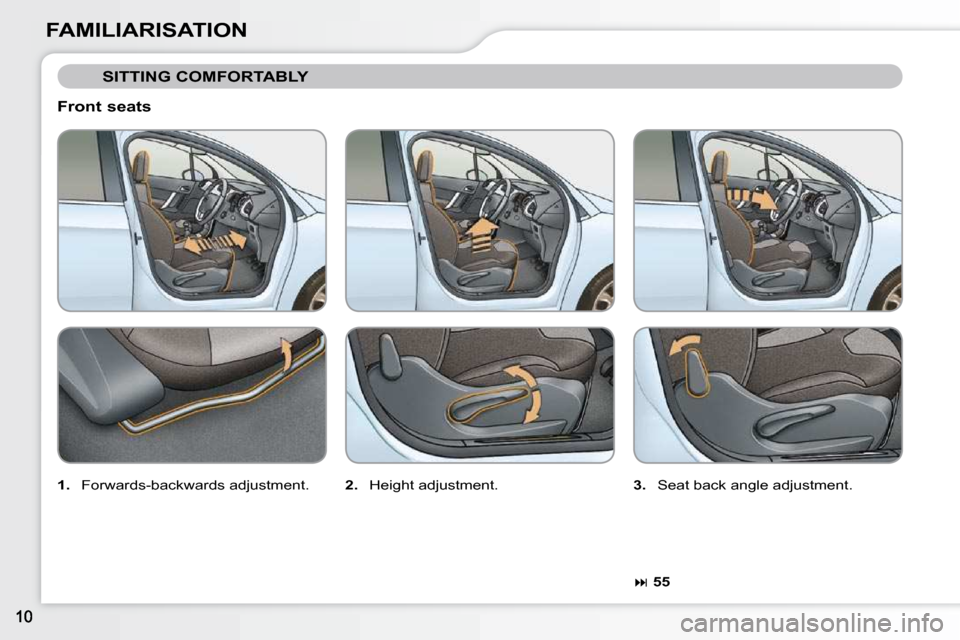

FAMILIARISATION Front seats
SITTING COMFORTABLY
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. H e i g h t a d j u s t m e n t .
3. S e a t b a c k a n g l e a d j u s t m e n t .
55
Page 8 of 240

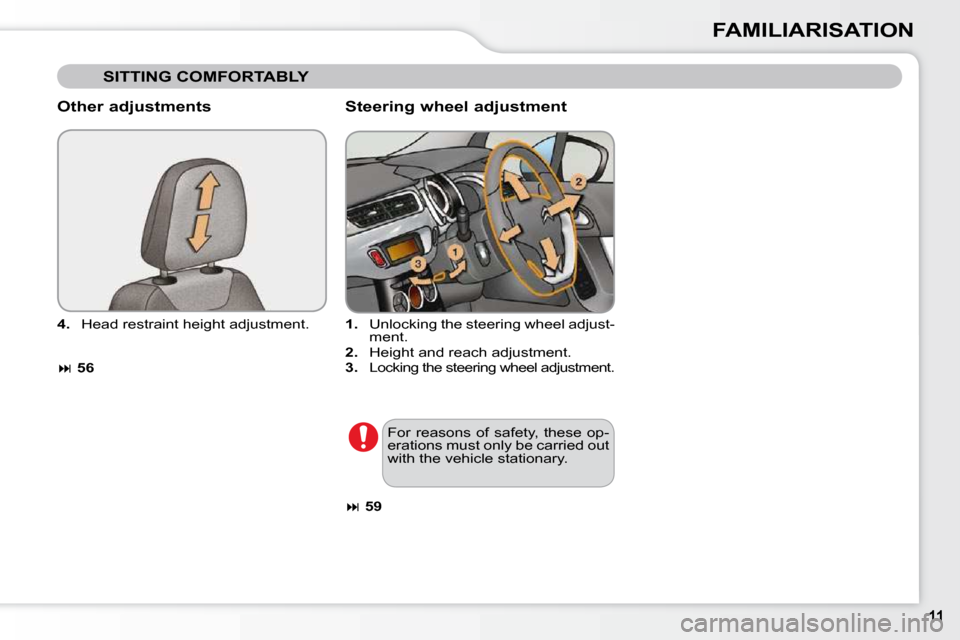

FAMILIARISATION
Other adjustments
4. H e a d r e s t r a i n t h e i g h t a d j u s t m e n t .
56 Steering wheel adjustment
1. U n l o c k i n g t h e s t e e r i n g w h e e l a d j u s t -
ment.
2. H e i g h t a n d r e a c h a d j u s t m e n t .
3.
L o c k i n g t h e s t e e r i n g w h e e l a d j u s t m e n t .
59 For reasons of safety, these op-
erations must only be carried out
with the vehicle stationary.
SITTING COMFORTABLY
Page 9 of 240

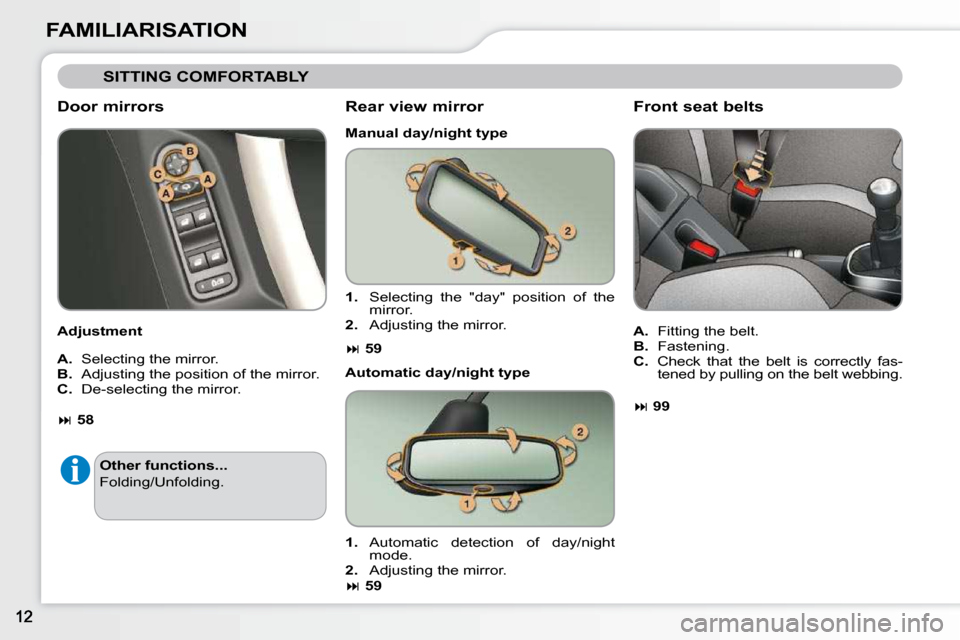

FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment
A. Selecting the mirror.
B. A d j u s t i n g t h e p o s i t i o n o f t h e m i r r o r .
C. De-selecting the mirror. Rear view mirror
Manual day/night type
1. Selecting the "day" position of the
mirror.
2. A d j u s t i n g t h e m i r r o r .
59
58 Automatic day/night type Front seat belts
A. Fitting the belt.
B. Fastening.
C. Check that the belt is correctly fas-
tened by pulling on the belt webbing.
99
1. Automatic detection of day/night
mode.
2. A d j u s t i n g t h e m i r r o r .
59
Other functions...
Folding/Unfolding.
Page 10 of 240

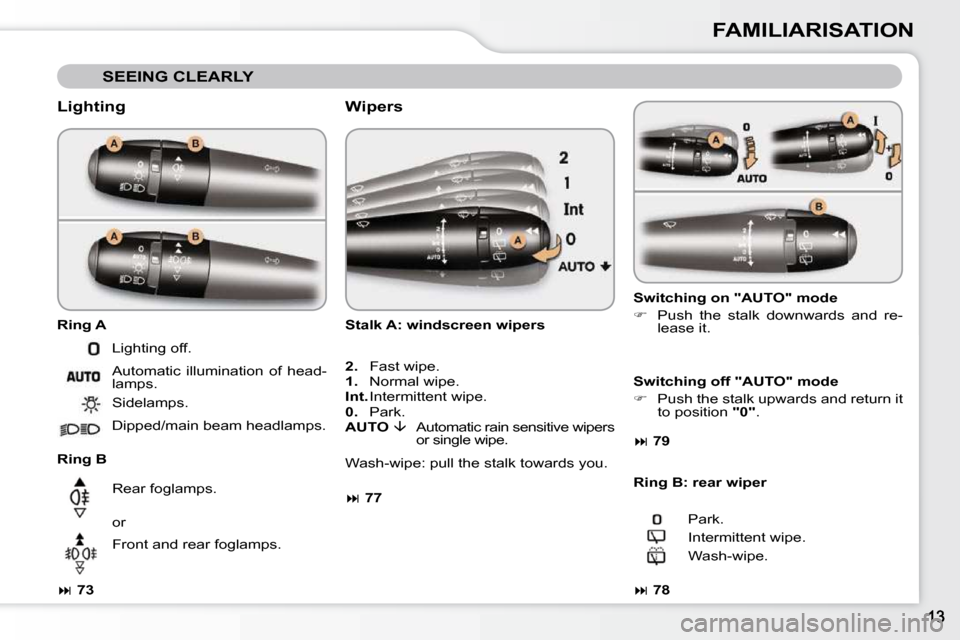

FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B
73 Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamps.
or
Front and rear foglamps. Wipers
2. Fast wipe.
1. Normal wipe.
Int. Intermittent wipe.
0. Park.
AUTO
Automatic rain sensitive wipers
or single wipe.
77
78 Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
Wash-wipe: pull the stalk towards you.
Switching on "AUTO" mode
Push the stalk downwards and re-
lease it.
Switching off "AUTO" mode
Push the stalk upwards and return it
to position "0" .
Ring B: rear wiper
79
