stop start Citroen C3 2013 2.G User Guide

4
Access
67

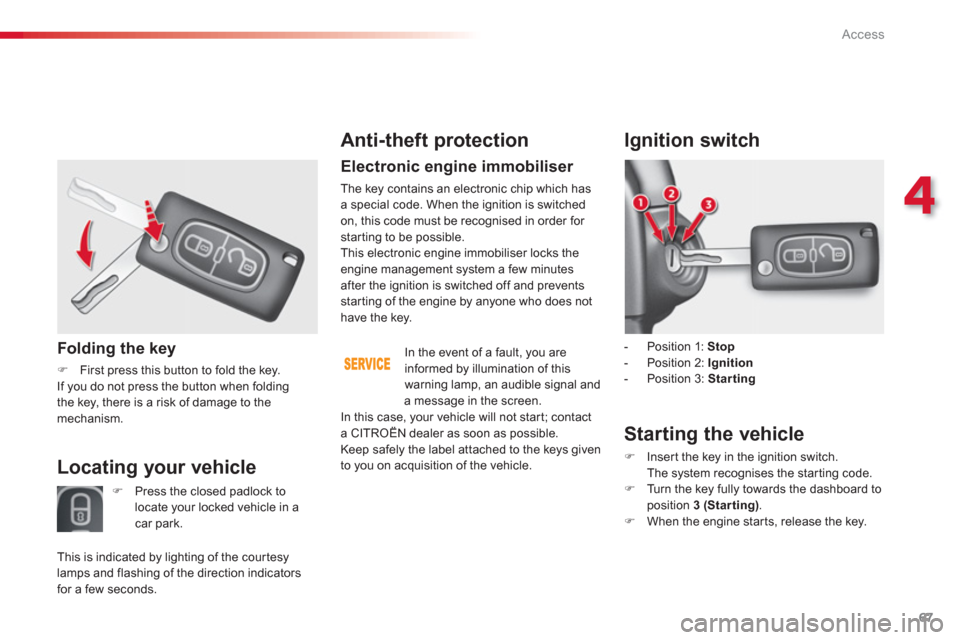

Folding the key
)First press this button to fold the key.
If you do not press the button when foldingthe key, there is a risk of damage to themechanism.

Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched
on, this code must be recognised in order for
startin
g to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
In the event o
f a fault, you are
informed by illumination of this
warning lamp, an audible signal anda message in the screen.
Ignition switch


- Position 1: Stop

- Position 2: Ignition

- Position 3: Starting


Starting the vehicle
)
Inser t the key in the ignition switch.
The system recognises the star ting code.) Turn the key fully towards the dashboard toposition 3 (Starting).)
When the engine star ts, release the key.

Locating your vehicle
)
Press the closed padlock to locate your locked vehicle in acar park.
This is indicated b
y lighting of the cour tesylamps and flashing of the direction indicators for a few seconds. In this case,
your vehicle will not start; contact a CITROËN dealer as soon as possible.
Keep safely the label attached to the keys given
to you on acquisition of the vehicle.

4
Access
69

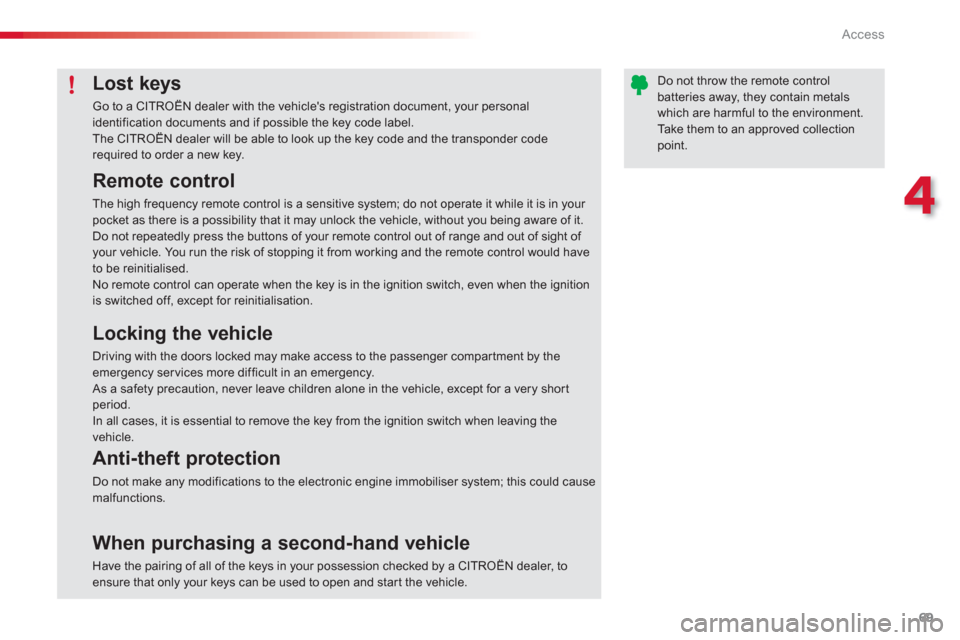

Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal identification documents and if possible the key code label. The CITROËN dealer will be able to look up the key code and the transponder coderequired to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reinitialised.No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by theemergency ser vices more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, except for a very shor t period.In all cases, it is essential to remove the key from the ignition switch when leaving thevehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and start the vehicle.
Do not throw the remote control batteries away, they contain metalswhich are harmful to the environment.
Take them to an approved collectionpoint.

9
Driving
115

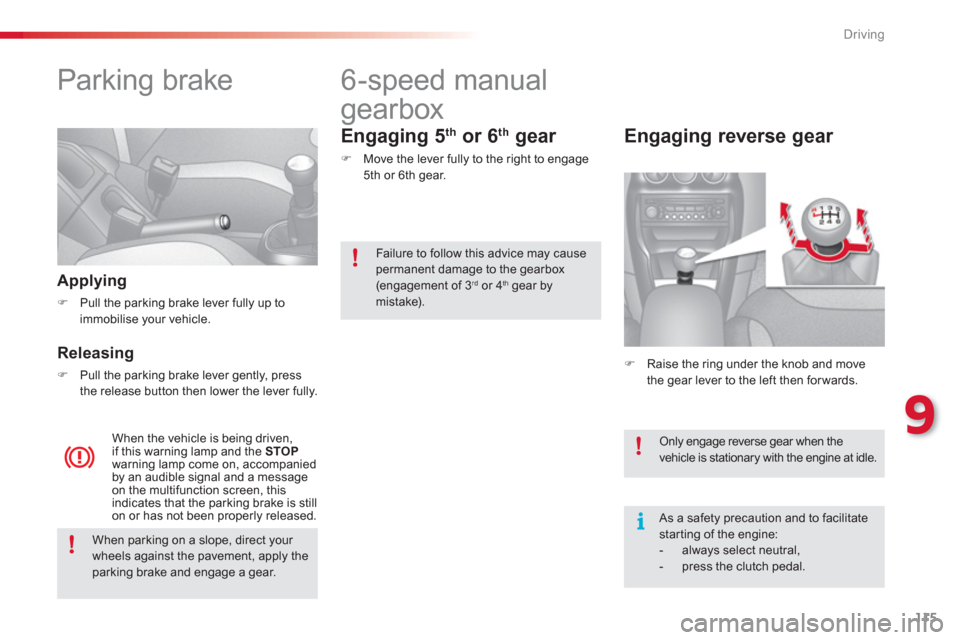

Parking brake


Applying
)Pull the parking brake lever fully up to
immobilise your vehicle.

Releasing
)Pull the parking brake lever gently, press
the release button then lower the lever fully.
When the vehicle is bein
g driven,if this warning lamp and the STOPwarning lamp come on, accompanied
by an audible signal and a message
on the multifunction screen, this indicates that the parking brake is still
on or has not been properly released.








6-speed manual
gearbox
Engaging 5th or 6thgear
)
Move the lever fully to the right to engage 5th or 6th gear.
)
Raise the ring under the knob and move
the gear lever to the left then forwards.

Engaging reverse gear
Only engage reverse gear when thevehicle is stationary with the engine at idle.

As a safety precaution and to facilitate starting of the engine:


- always select neutral,

- press the clutch pedal.


When parking on a slope, direct your wheels against the pavement, apply the parking brake and engage a gear.

Failure to follow this advice may cause permanent damage to the gearbox (engagement of 3rdor 4 thgear bymistake).

Driving
120

In exceptional circumstances, the gearbox may need an automaticreinitialisation: starting and gear changing are no longer possible.
Reverse
To e ngage reverse, the vehicle must be
immobilised with your foot on the brake. )Select position R.

Operating fault

With the ignition on, if this warninglamp comes on and AUTOflashes,
accompanied by an audible signal
and a message in the multifunction
screen, this indicates a gearbox
fault.Have it checked by a CITROËN
dealer or a qualified workshop.
At low speed, if reverse gear is requested,
the N warning lamp flashes and the gearbox
goes into neutral automatically.
To e n
gage reverse, put the gear lever intoposition N
, then to position R
.
Stopping the vehicle
Before switching off the engine:
- change to position N
to be in neutral,or
- leave the vehicle in gear; in this case the
vehicle cannot be moved.

Reinitialisation
(5-speed electronic
gearbox)

Following disconnection of the battery, it is
necessary to reinitialise the gearbox.) Switch on the ignition.
AUTO
and - -
appear in the
instrument panel.
) Select position N
. )
Press the brake pedal.)
Wait for around 30 seconds until N
or agear appears in the instrument panel.)
Move the gear lever to position A , then to
position N.) With your foot still on the brake pedal, start
the engine.
The gearbox is operational again.
AUTOand --appear in the
instrument panel.

Follow the procedure described above.

Before doing anything under thebonnet, ensure that the gear lever is in neutral (position N) and that the parking brake is applied.
There is an audible signal on engagement of reverse.

For all parking situations, you mustapply the parking braketo immobilise the vehicle.
When immobilising the vehicle with the engine running, you must put the gear lever into neutral (position N)
.

Driving
124

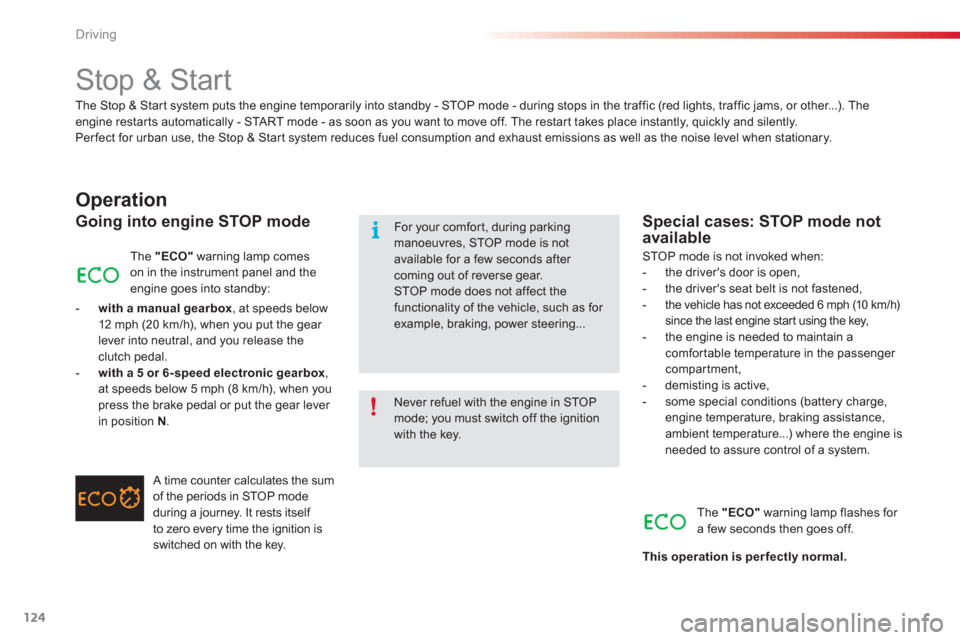

The Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
-with a manual gearbox , at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal. - with a 5 or 6-speed electronic gearbox
, at speeds below 5 mph (8 km/h), when you press the brake pedal or put the gear lever in position N.
Going into engine STOP mode

The "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:

A time counter calculates the sumof the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is switched on with the key.


Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h)since the last engine star t using the key,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,
ambient temperature...) where the engine isneeded to assure control of a system.

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.











Stop & Start
Never refuel with the engine in STOPmode; you must switch off the ignition with the key.
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...

9
Driving
125

Going into engine START mode
The "ECO"warning lamp goes off and the engine starts:


- with a manual
gearbox
, when you
depress the clutch pedal,

-
with a 5-speed or 6-speed electronic gearbox:●
gear lever in position Aor M
, when yourelease the brake pedal,
●
or gear lever in position Nand the brake pedal released, when you move the gear lever to position A
or M,
●
or when you engage reverse gear.


Special cases: START invoked
automatically
For reasons of safety and for your comfort,START mode is invoked automatically when:
-
you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 7 mph
(11 k m / h) with the electronic gearbox system,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.

Deactivation
At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.
Th
e "ECO"
warning lamp flashes for
a few seconds, then
goes off.
This operation is per fectly normal.
With a manual gearbox in STOP mode,if you engage a gear without fully depressing the clutch pedal, a message
is displayed asking you to fully depressthe clutch pedal so that the engine can restart.


If the system has been deactivatedin STOP mode, the engine restar ts immediately.

Driving
126

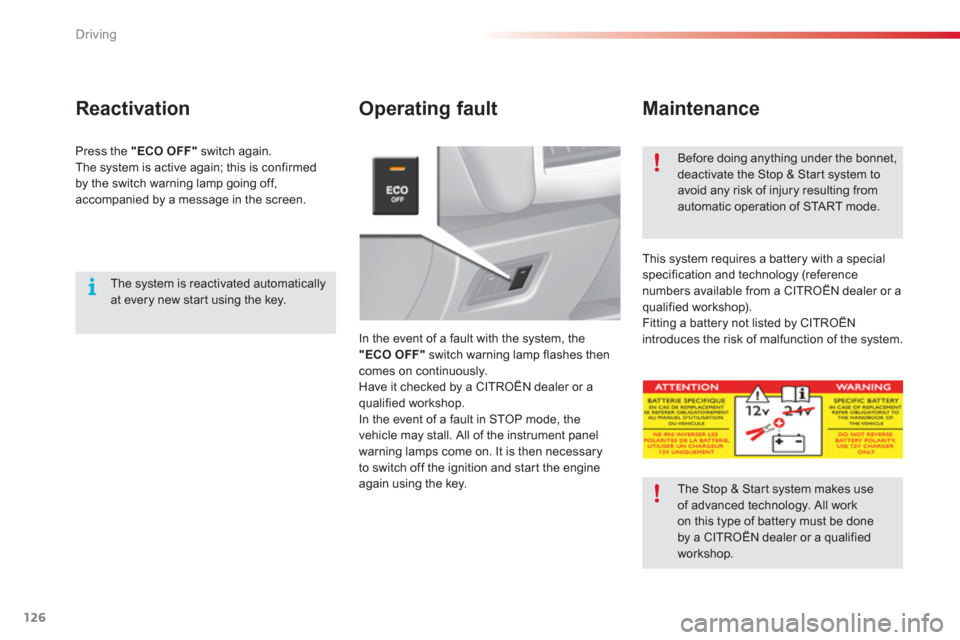

Operating fault
Maintenance

In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle ma
y stall. All of the instrument panel
warning lamps come on. It is then necessary
to switch o
ff the ignition and star t the engine
again using the key. This s
ystem requires a battery with a specialspecification and technology (reference numbers available from a CITROËN dealer or a qualified workshop).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system.
Press the "ECO OFF"switch again.
The system is active again; this is con
firmed
by the switch warning lamp going off,accompanied by a message in the screen.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting from automatic operation of STA R T m o d e .


The system is reactivated automaticallyat every new star t using the key.


The Stop & Star t system makes use of advanced technology. All workon this type of battery must be doneby a CITROËN dealer or a qualifiedworkshop.
Reactivation

Checks
136

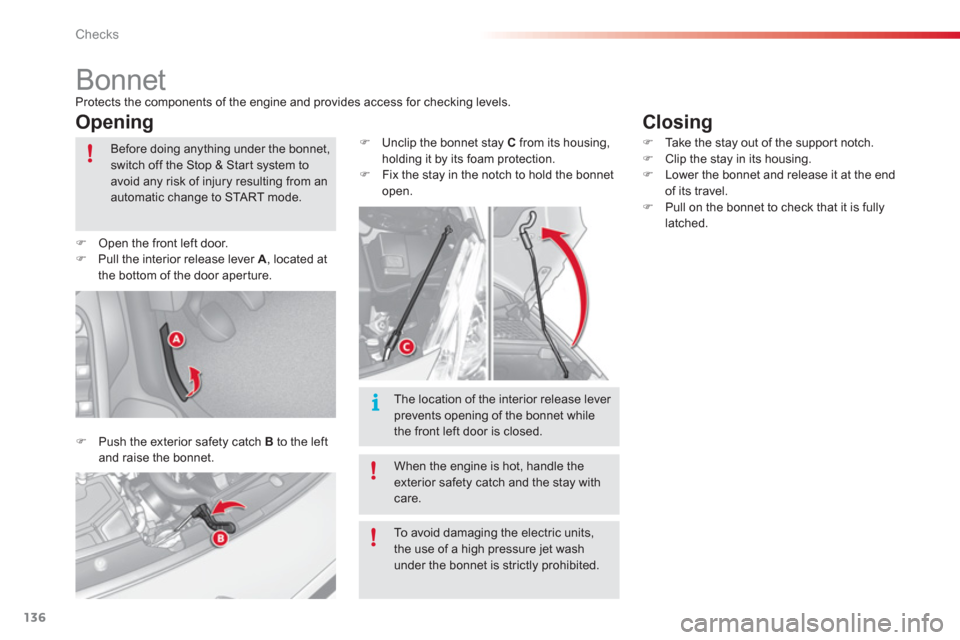

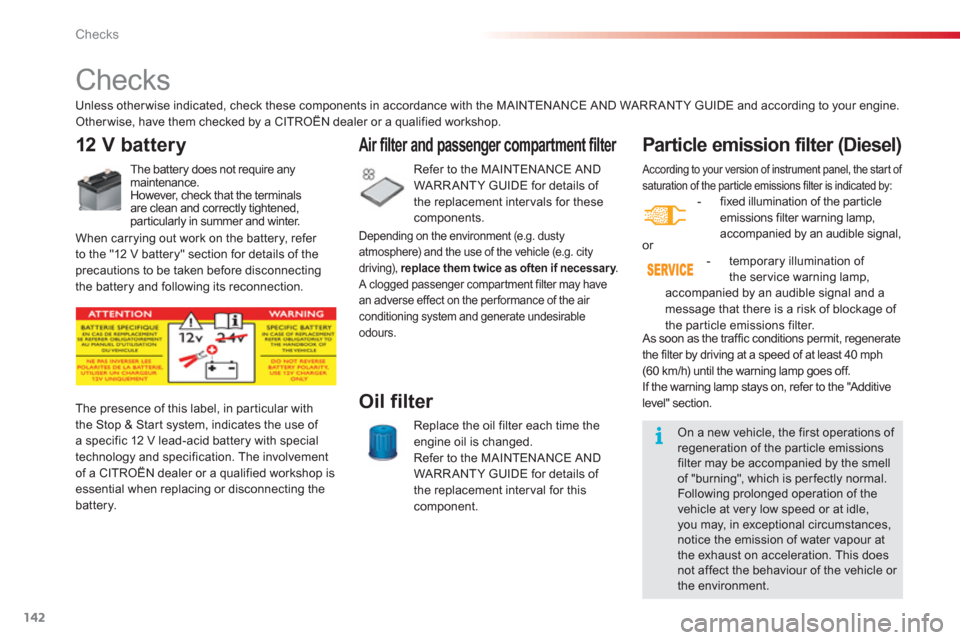

Bonnet Protects the components of the engine and provides access for checking levels.
Opening
)Push the exterior safety catch B
to the left and raise the bonnet.
)Unclip the bonnet stay C
from its housing,
holdin
g it by its foam protection. )Fix the stay in the notch to hold the bonnet open.
)Take the stay out of the support notch.
)Clip the stay in its housing. )Lower the bonnet and release it at the end of its travel. )Pull on the bonnet to check that it is fully
latched.
)Open the front left door.)Pull the interior release lever A
, located at
the bottom of the door aperture.
The location of the interior release lever prevents opening of the bonnet while the front left door is closed.
When the engine is hot, handle the exterior safety catch and the stay with care.
Before doing anything under the bonnet,
switch off the Stop & Star t system toavoid any risk of injury resulting from anautomatic change to START mode.


Closing
To a v o i d d a m aging the electric units,the use of a high pressure jet wash under the bonnet is strictly prohibited.

Checks
142
According to your version of instrument panel, the start of
saturation of the par ticle emissions filter is indicated by:

- fixed illumination of the par ticleemissions filter warning lamp,
accompanied by an audible signal, or

- temporary illumination of
the ser vice warning lamp,

As soon as the traffic conditions permit, regenerate
the filter by driving at a speed of at least 40 mph (60 km/h) until the warning lamp goes off.
If the warning lamp stays on, refer to the "Additivelevel" section.







Checks
12 V battery

The battery does not require anymaintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
The presence of this label, in particular with
the Stop & Star t s
ystem, indicates the use of a specific 12 V lead-acid battery with special
technology and specification. The involvement
of a CITROËN dealer or a qualified workshop isessential when replacing or disconnecting the battery. When carr
ying out work on the battery, refer
to the "12 V battery" section for details of theprecautions to be taken before disconnecting
the battery and following its reconnection. Unless other wise indicated, check these components in accordance with the MAINTENANCE AND WARR ANT Y GUIDE and accordin
g to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
On a new vehicle, the first operations of regeneration of the par ticle emissions filter may be accompanied by the smellof "burning", which is per fectly normal. Following prolonged operation of the vehicle at very low speed or at idle, you may, in exceptional circumstances,notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.
Particle emission filter (Diesel)
accompanied by an audible signal and amessage that there is a risk of blockage of
the particle emissions filter.
Air filter and passenger compartment filter
Refer to the MAINTENANCE AND
WARR ANT Y GUIDE for details of
the replacement intervals for thesecomponents.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g. city
driving), replace them twice as often if necessar y.y A clogged passenger compar tment filter may have
an adverse effect on the performance of the air conditioning system and generate undesirableodours.

Replace the oil filter each time the
engine oil is changed.
Refer to the MAINTENANCE AND
WARR ANT Y GUIDE for details of
the replacement interval for thiscomponent.
Oil filter

11
Practical information
171

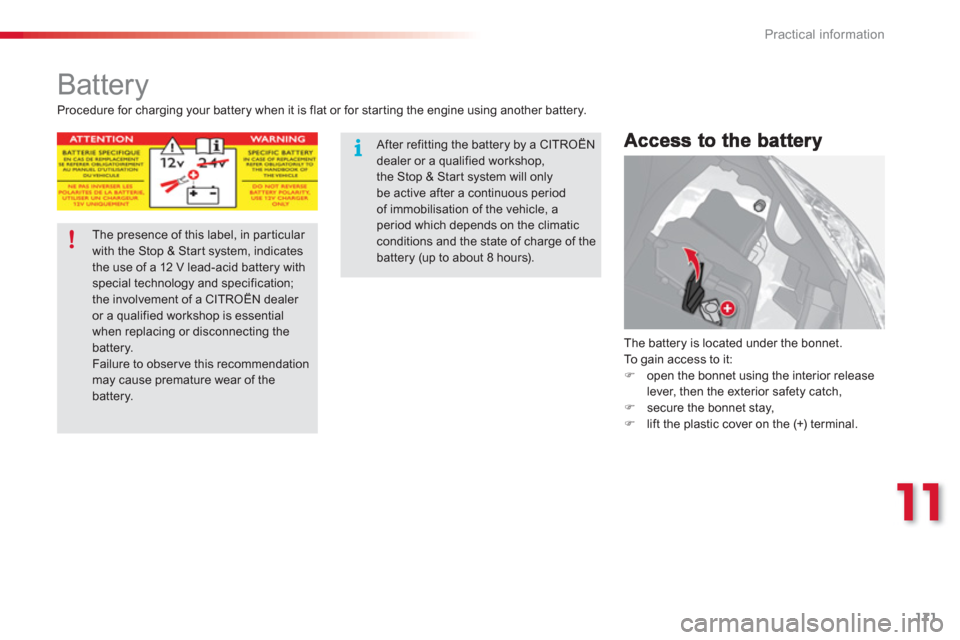

Battery

The battery is located under the bonnet.
To gain access to it: )
open the bonnet using the interior release
lever, then the exterior safety catch, ) secure the bonnet stay,)
lift the plastic cover on the (+) terminal.
The presence of this label, in particular with the Stop & Start system, indicatesthe use of a 12 V lead-acid battery withspecial technology and specification;the involvement of a CITRO
