139
according to your version of instrument panel, the start of
saturation of the particle emissions filter is indicated by:
- fixed illumination of the particle emissions filter warning lamp,
accompanied by an audible signal,
or
-

t
emporary illumination of
the service warning lamp,
as s

oon as the traffic conditions permit, regenerate
the filter by driving at a speed of at least 40
mph
(60

km/h) until the warning lamp goes off.
If the warning lamp stays on, refer to the "Additive
level" section.
Checks
12 V battery
The battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.
The presence of this label, in particular with
the Stop & Start system, indicates the use of
a specific 12
V lead-acid battery with special
technology and specification. The involvement
of a CITROËN dealer or a qualified workshop
is essential when replacing or disconnecting
the battery. When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection. Unless other wise indicated, check these components in accordance with the maintenance and warranty guide and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
On a new vehicle, the first operations of
regeneration of the particle emissions
filter may be accompanied by the smell
of "burning", which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Particle emission filter (Diesel)
accompanied by an audible signal and a
message that there is a risk of blockage of
the particle emissions filter.
Air filter and passenger compartment filter
Refer to the maintenance and
warranty guide for details of the
replacement intervals for these
components.
de

pending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as
often if necessar y .
a c

logged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
Replace the oil filter each time the
engine oil is changed.
Refer to the maintenance and
warranty guide for details of the
replacement interval for this
component.
Oil filter
10
Checks

140
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for the checking
interval for this component.
Automatic
gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the level
checking interval for this component.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the
checking interval for this component.
Brake pads
Brake disc wear
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
on
ly use products recommended by
CITRoËn or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITR
oËn

selects and
offers very specific products.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Checking this system must be done by a
CITROËN dealer or a qualified workshop. After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checks

141
C3_en_Chap11_Info-pratiques_ed01-2014

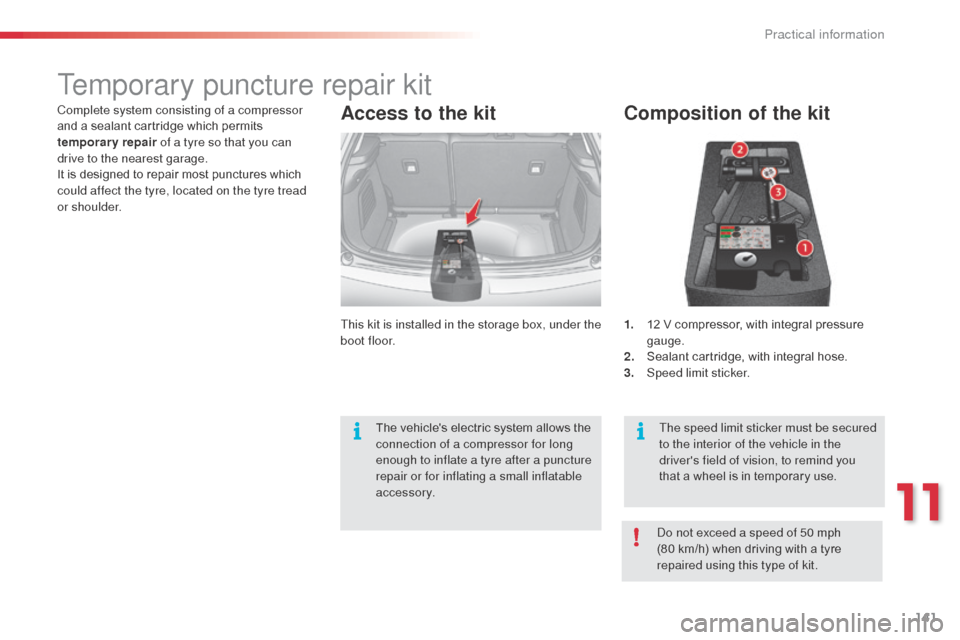

Temporary puncture repair kit
Composition of the kit
1. 12 V compressor, with integral pressure gauge.
2.
S

ealant cartridge, with integral hose.
3.
Spe

ed limit sticker.
Access to the kit
This kit is installed in the storage box, under the
boot floor.
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
Complete system consisting of a compressor
and a sealant cartridge which permits
temporary repair
of a tyre so that you can
drive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
do n

ot exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
The vehicle's electric system allows the
connection of a compressor for long
enough to inflate a tyre after a puncture
repair or for inflating a small inflatable
accessory.
11
Practical information

142
C3_en_Chap11_Info-pratiques_ed01-2014
Repair procedure
F Uncoil the pipe stowed under the compressor.
F

C
onnect the pipe from the compressor to
the sealant cartridge.
F

T
urn the the sealant cartridge and secure it
in the cut-out provided on the compressor.
av

oid removing any foreign bodies
which have penetrated into the tyre.
F
S
witch off the ignition.
F
S
ecure the speed limit sticker inside the
vehicle. F
R emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F

C
onnect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
Practical information

143
C3_en_Chap11_Info-pratiques_ed01-2014

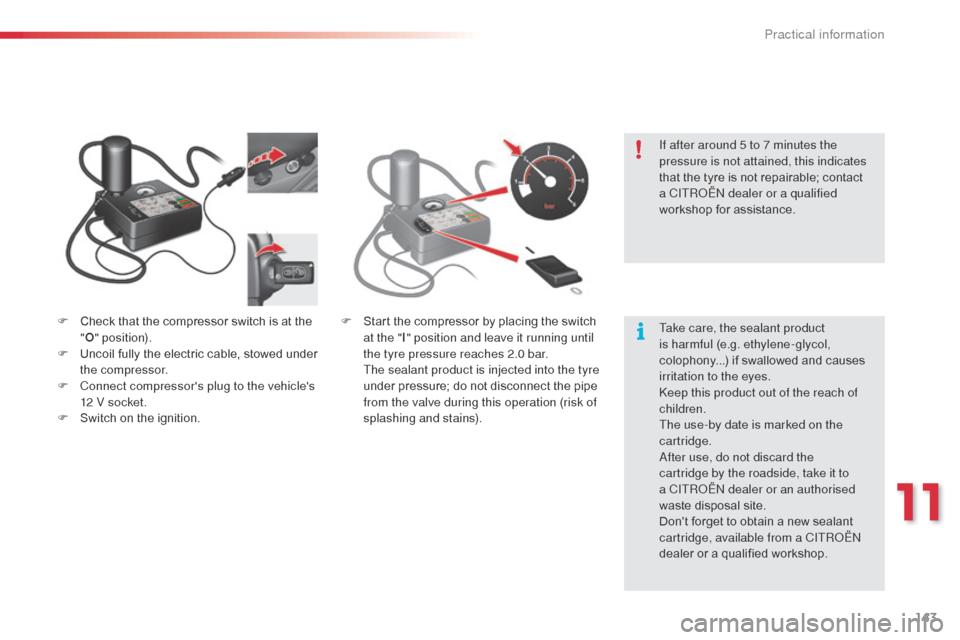

F Check that the compressor switch is at the "O " position).
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect compressor's plug to the vehicle's
12 V socket.
F

S
witch on the ignition. F
S tart the compressor by placing the switch
at the " I" position and leave it running until
the tyre pressure reaches 2.0 bar.
T

he sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains). If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITR
oËn

dealer or a qualified
workshop for assistance.
Take care, the sealant product
is harmful (e.g. ethylene-glycol,
colophony...) if swallowed and causes
irritation to the eyes.
ke

ep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
af

ter use, do not discard the
cartridge by the roadside, take it to
a CITR
oËn

dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a CITR
oËn


dealer or a qualified workshop.
11
Practical information

144
C3_en_Chap11_Info-pratiques_ed01-2014
F Place the switch in the "O" position.
F R emove the kit.
F
d
r
ive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures
F

R
emove the valve cap from the tyre and
place it in a clean area.
F

U
ncoil the pipe stowed under the
compressor.
F

S
crew the pipe onto the valve and tighten
f i r m l y. F
C heck that the compressor switch is at the
" O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect compressor's plug to the vehicle's
12 V socket.
F

S
witch on the ignition.
Practical information

145
C3_en_Chap11_Info-pratiques_ed01-2014

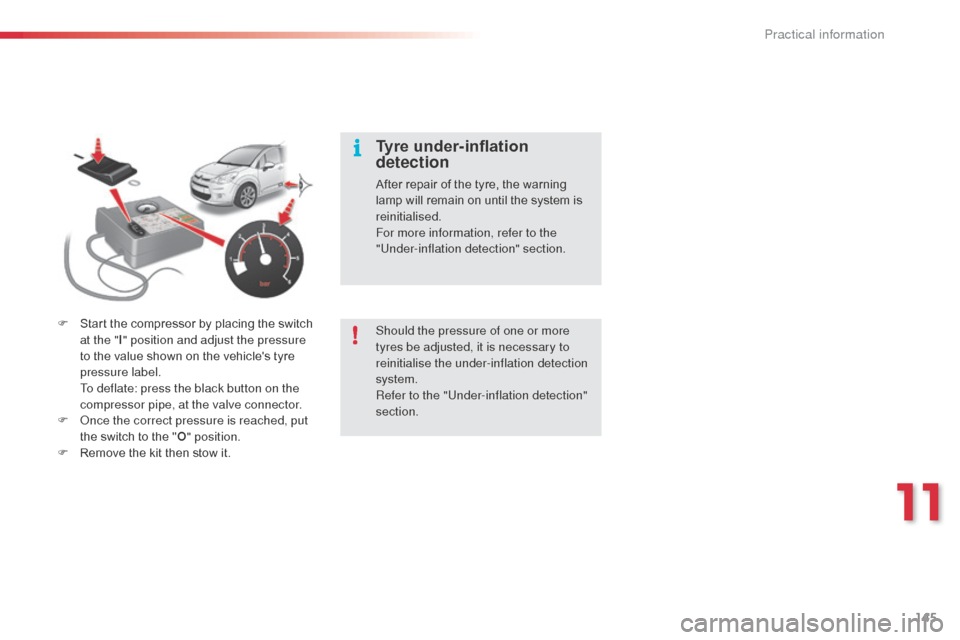

F Start the compressor by placing the switch at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
T

o deflate: press the black button on the
compressor pipe, at the valve connector.
F
o
n
ce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it. Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
Refer to the "Under-inflation detection"
section.
Tyre under-inflation
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information, refer to the
"Under-inflation detection" section.
11
Practical information

146
C3_en_Chap11_Info-pratiques_ed01-2014

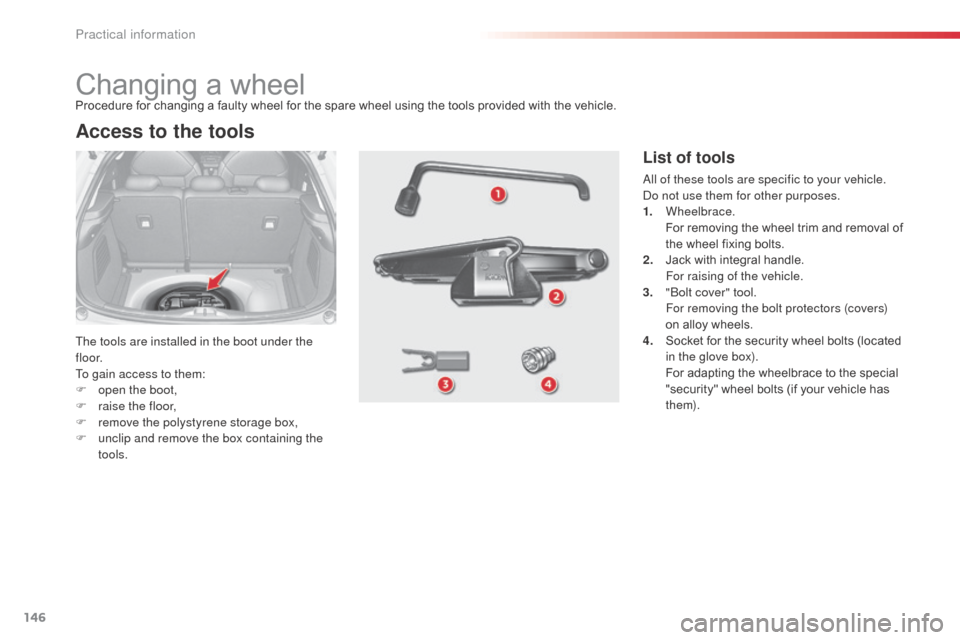

Changing a wheel
The tools are installed in the boot under the
f l o o r.
To gain access to them:
F
o
pen the boot,
F

r
aise the floor,
F

r
emove the polystyrene storage box,
F

u
nclip and remove the box containing the
tools.
Access to the tools
Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.
List of tools
all of these tools are specific to your vehicle. do n ot use them for other purposes.
1.


Wheelbrace.
F

or removing the wheel trim and removal of
the wheel fixing bolts.
2.
J

ack with integral handle.
F

or raising of the vehicle.
3.
"bo

lt cover" tool.
F

or removing the bolt protectors (covers)
on alloy wheels.
4.
S

ocket for the security wheel bolts (located
in the glove box).
F

or adapting the wheelbrace to the special
"security" wheel bolts (if your vehicle has
them).
Practical information

147
C3_en_Chap11_Info-pratiques_ed01-2014

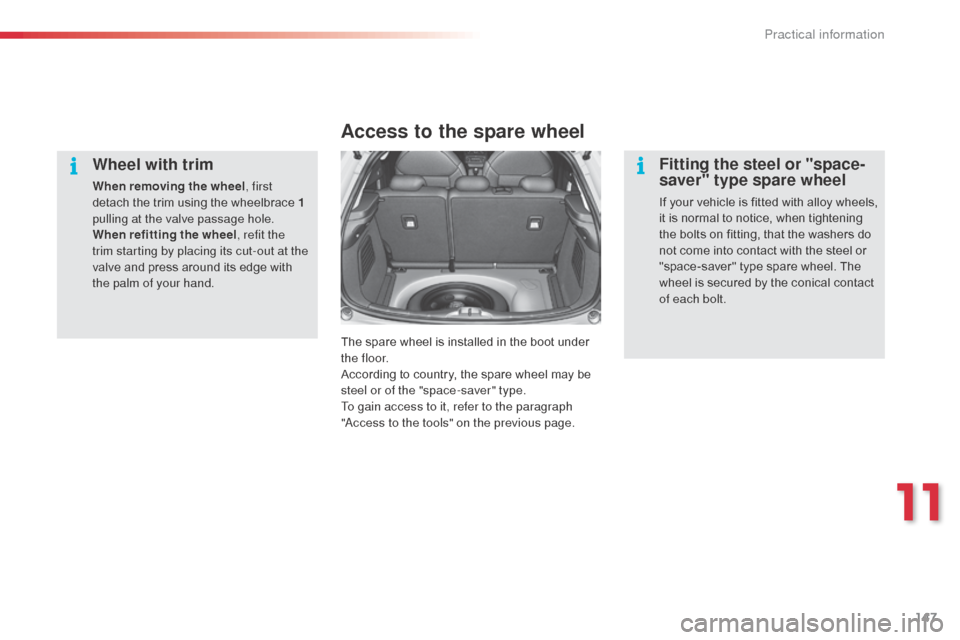

Wheel with trim
When removing the wheel, first
detach the trim using the wheelbrace 1
pulling at the valve passage hole.
When refitting the wheel , refit the
trim starting by placing its cut-out at the
valve and press around its edge with
the palm of your hand.
Access to the spare wheel
The spare wheel is installed in the boot under
t h e f l o o r.
According to country, the spare wheel may be
steel or of the "space-saver" type.
To gain access to it, refer to the paragraph
"
ac

cess to the tools" on the previous page.
Fitting the steel or "space-
saver" type spare wheel
If your vehicle is fitted with alloy wheels,
it is normal to notice, when tightening
the bolts on fitting, that the washers do
not come into contact with the steel or
"space-saver" type spare wheel. The
wheel is secured by the conical contact
of each bolt.
11
Practical information

148
C3_en_Chap11_Info-pratiques_ed01-2014

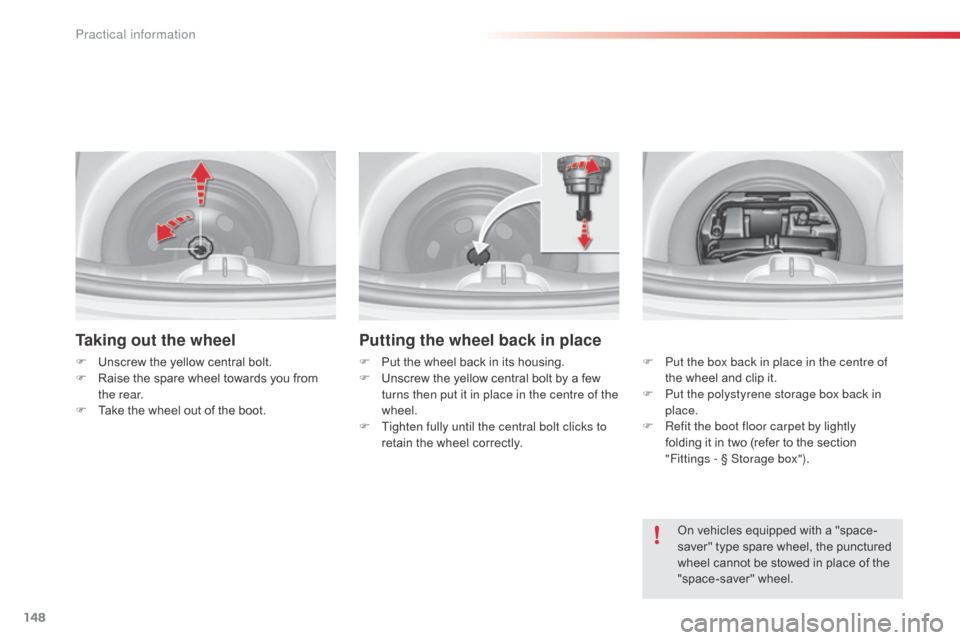

Taking out the wheel
F Unscrew the yellow central bolt.
F R aise the spare wheel towards you from
the rear.
F

T
ake the wheel out of the boot.
Putting the wheel back in place
F Put the wheel back in its housing.
F U nscrew the yellow central bolt by a few
turns then put it in place in the centre of the
wheel.
F

T
ighten fully until the central bolt clicks to
retain the wheel correctly. F
P ut the box back in place in the centre of
the wheel and clip it.
F

P
ut the polystyrene storage box back in
place.
F

R
efit the boot floor carpet by lightly
folding it in two (refer to the section
"Fittings
- § Storage box").
On vehicles equipped with a "space-
saver" type spare wheel, the punctured
wheel cannot be stowed in place of the
"space-saver" wheel.
Practical information
