Citroen C3 2014 2.G Owner's Manual

189
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel weights and towed loads (in kg)
EnginesHDi 90HDi 90 PEF e- HDi 90 PEF e- HDi 115 PEF
Gearboxes ManualManualManual Electronic Manual
Model codes:
SC... 9HJ0
9HP09HPK /S 9HP8/PS 9HR8/S
-

U
nladen weight 1 1421 080 1 0851 090 1 090
-

K
erb weight 1 2171 155 1 160 1 1651 165
-

G
ross vehicle weight (GV W) 1 6051 608 1 6251 634 1 648
-

G
ross train weight (GTW)
o

n a 12 % slope 2 505
2 508 2 5252 534 2 548
-

B
raked trailer (within the GTW limit)
o

n a 12 % slope 900
900900900900
-

B
raked trailer* (with transfer of load within
the GTW limit) 1 150
1 1501 1501 1501 150
-
U

nbraked trailer 570570570570570
-

R
ecommended nose weight 4646464646
*

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
12
Technical data

190
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
dimensions (in mm)
Technical data

191
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
Identification markings
B. Vehicle identification number on the dashboard.
This number is indicated on a self-adhesive
label which is visible through the windscreen. C. Manufacturer's label.
The VI
n

is indicated on a self-destroying label
affixed to the left hand centre pillar. It bears the following information:
-
t
he tyre pressures, laden and unladen,
-
t
he tyre sizes (including the load index and
speed rating for the tyre),
-
t
he tyre pressure for the spare wheel,
-
t
he paint colour code.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
A.

V
ehicle identification number (VIN)
under the bonnet.
This number is engraved on the bodywork near
the passenger compartment filter. Various visible markings for the identification of your vehicle.
D. Tyre/paint label.
This label is affixed to the left hand centre
pillar.
12
Technical data

192
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
C3_en_Chap12_Caracteristiques_ed01-2014
Technical data

193
C3_en_Chap13a_bTa_ed01-2014

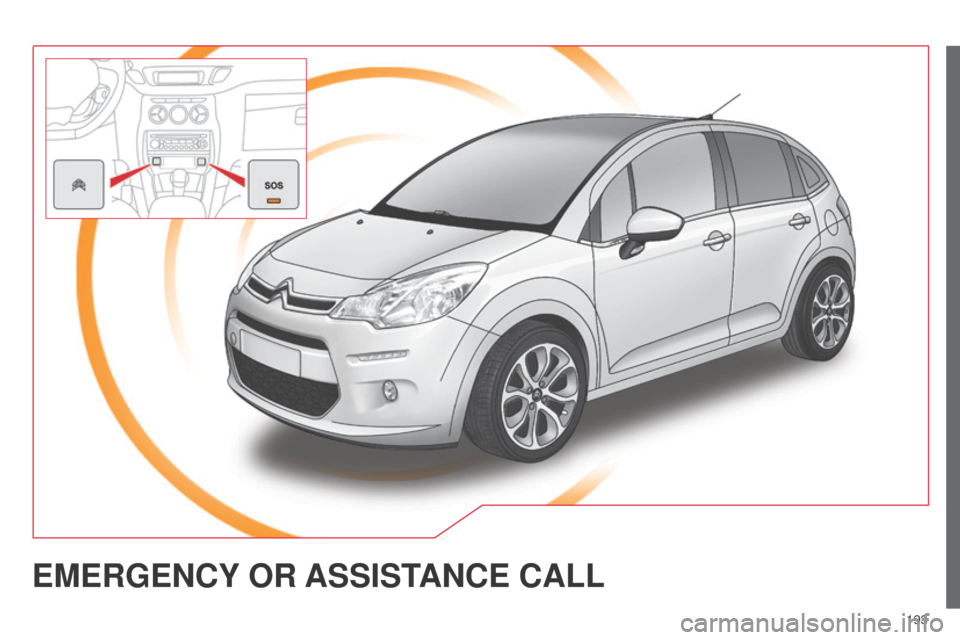

EMERGENCY OR ASSIST ANCE CALL

194
C3_en_Chap13a_bTa_ed01-2014
EMERGENCY OR ASSIST ANCE CALL
CITROËN Localised Emergency Call
In an emergency, press this button for more than
2
seconds. Flashing of the green LE d and a voice
message confirm that the call has been made to the
C
ITR o Ë n Localised Emergency Call centre*.
Pressing this button again immediately cancels the call. The green LE
d
goes off.
Pressing this button (at any time) for more than 8 seconds cancels the\

call.
CITROËN Localised Assistance Call
When the ignition is switched on, the
green LE d comes on for 3 seconds
indicating that the system is operating
correctly.
If the orange LED flashes: there is a
system fault.
If the orange LE
d is on continuously: the
backup battery must be replaced.
In either case, contact a CITR
o Ë n
dealer.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made*.
Operation of the system
The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.
This call is dealt with by the
C
ITR o Ë n Localised Emergency Call centre
which receives locating information from the vehicle and can send a
detailed alert to the appropriate emergency services. In countries in
which the team is not operational, or when the locating service has
been expressly declined, the call is dealt with directly by the emergency
services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*

These services are subject to conditions and availability
.


Consult a CITR
o Ë n dealer. If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country
,
configuration is possible in the official national language of your choice.
For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out \
updates to the vehicle's on-board telematic system.
If you benefit from the CITROËN eTouch offer, you also have available
additional services in your MyCITR
o Ë n personal space, via the CITR o Ë n
Internet website in your country, accessible on www.citroen.com.

195
C3_en_Chap13b_RT6-2-8_ed01-2014
The system is protected in such a way that it will only
operate in your vehicle.
eMyWay
01 First steps - Control panel
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

Steering mounted
controls
03

General operation
04


Navigation
- Guidance
05

T
raffic information
06

Using
the telephone
07
Radio
08

Music media players
09


Audio
settings
10
Configuration
11

Screen menu
map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
196
198
199
201
214
217
227
230
236
237
238
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM
Frequently asked questions p.
242

01
196
C3_en_Chap13b_RT6-2-8_ed01-2014
Select:
-
the next lower / higher radio
frequency automatically

.
-

the previous / next C
d track, MP3
track or media.
-

the left / right of the screen when a
menu is displayed.
Move left / right in "

Move the map" mode.a
bandon the current
operation, up one level
in the menu.
Long press: return to
the permanent display.
o

pen the
"Configuration " menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.o
pen the "Traffic
information" menu
and display the current
traffic alerts. Select:
-

the previous/next line in a list or menu.
-

the previous / next media folder
.
-
step by step selection of the previous/
next radio frequency

.
-
the previous / next MP3 folder
.
Move up/down, in " Move the map" mode.
FIRST STEPS
access to the
" Navigation - guidance "
menu and display the
recent destinations.
Short press without the
engine running: on / off.
Short press with the engine
running: audio source off

/
restore.
MODE button: Selection
of the type of permanent
display.
Long press: black screen
(
da
R
k
).
Selection and confirmation OK knob:
Selection of an item on the screen or in a list or a menu,
then confirmation with a short press.
o

ther than for menus and lists, a short press displays a
contextual menu depending on the current screen.
Rotation with map displayed: zoom the map scale in and
out.
Volume adjustment (each
source is independent,
including T
a messages and
navigation instructions).

01
197
C3_en_Chap13b_RT6-2-8_ed01-2014
Continuous press:
reinitialisation of the system.
o

pen the "Telephone" menu
and display the list of recent
calls or accept an incoming call.
FIRST STEPS
Short press: select pre-set radio station.
Long press: pre-set the current station.
a
ccess to the "MUSIC" menu, and display of the C d /MP3/
a

pple
® tracks and folders.
Long press: display the audio settings screen for the
"MEDIA" (C
d /US b /iPod/Streaming/ a UX) sources.a
ccess to the "RADIO" menu and
display the list of stations received.
Long press: display the audio settings
screen for the radio tuner source.

02
198
C3_en_Chap13b_RT6-2-8_ed01-2014
RadIo: select the previous/next preset
station.
Select the next entry in the address book. SRC/TEL
button:
change the audio source,
start a call from the address book,
call/end call on the telephone,
press for more than 2 seconds: access
to the address book.
R ad I o : change to the previous radio
station in the list.
Long press: automatic search for a
lower frequency.
C d : select the previous track.
C d : continuous press: fast reverse.
R ad I o : change to the next radio station in the list.
Long press: automatic search for a higher frequency.
C d : select the next track.
CD: continuous press: fast forward play.
Volume increase.
Volume decrease.Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.
STEERING MOUNTED CONTROLS
