Page 51 of 102
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
50
III

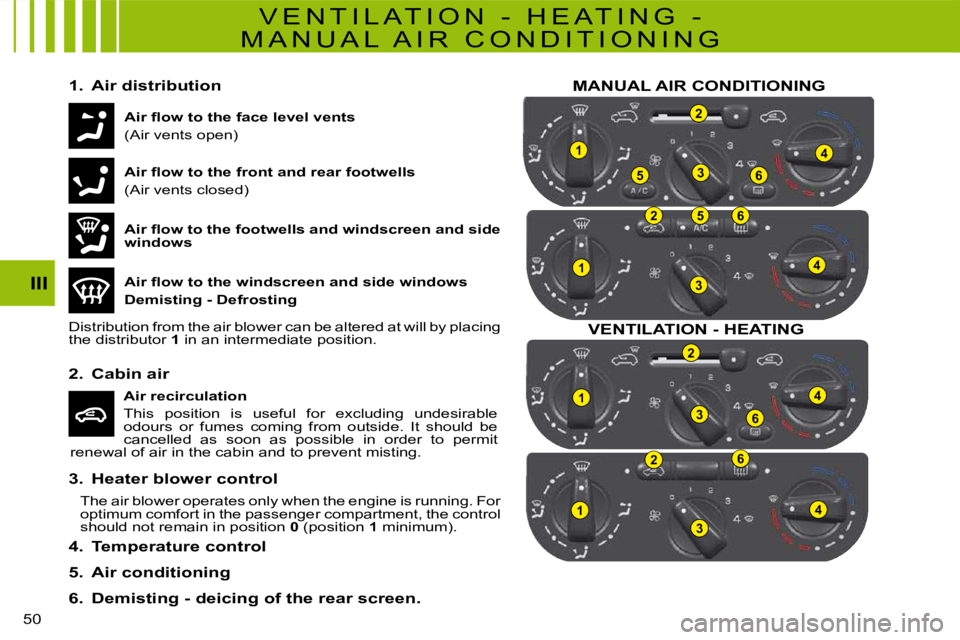

V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by placing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 52 of 102
53
4
B
A5
3
4
51
III

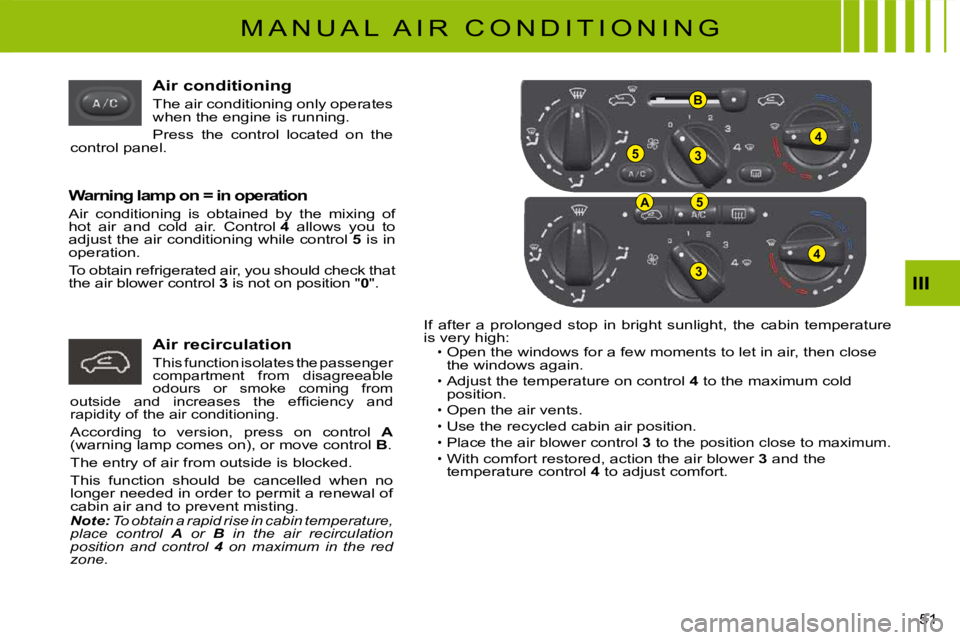

Air conditioning
The air conditioning only operates when the engine is running.
Press the control located on the control panel.
Warning lamp on = in operation
Air conditioning is obtained by the mixing of hot air and cold air. Control 4 allows you to adjust the air conditioning while control 5 is in operation.
To obtain refrigerated air, you should check that the air blower control 3 is not on position "0".
Air recirculation
This function isolates the passenger compartment from disagreeable odours or smoke coming from o u t s i d e a n d i n c r e a s e s t h e e f fi c i e n c y a n d rapidity of the air conditioning.
According to version, press on control A(warning lamp comes on), or move control B.
The entry of air from outside is blocked.
This function should be cancelled when no longer needed in order to permit a renewal of cabin air and to prevent misting.Note: To obtain a rapid rise in cabin temperature, place control A or B in the air recirculation position and control 4 on maximum in the red 4zone.
If after a prolonged stop in bright sunlight, the cabin temperature is very high:Open the windows for a few moments to let in air, then cl ose the windows again.
Adjust the temperature on control 4 to the maximum cold position.Open the air vents.
Use the recycled cabin air position.
Place the air blower control 3 to the position close to maximum.With comfort restored, action the air blower 3 and the temperature control 4 to adjust comfort.
Page 53 of 102
2
5
4
1
3
52
III

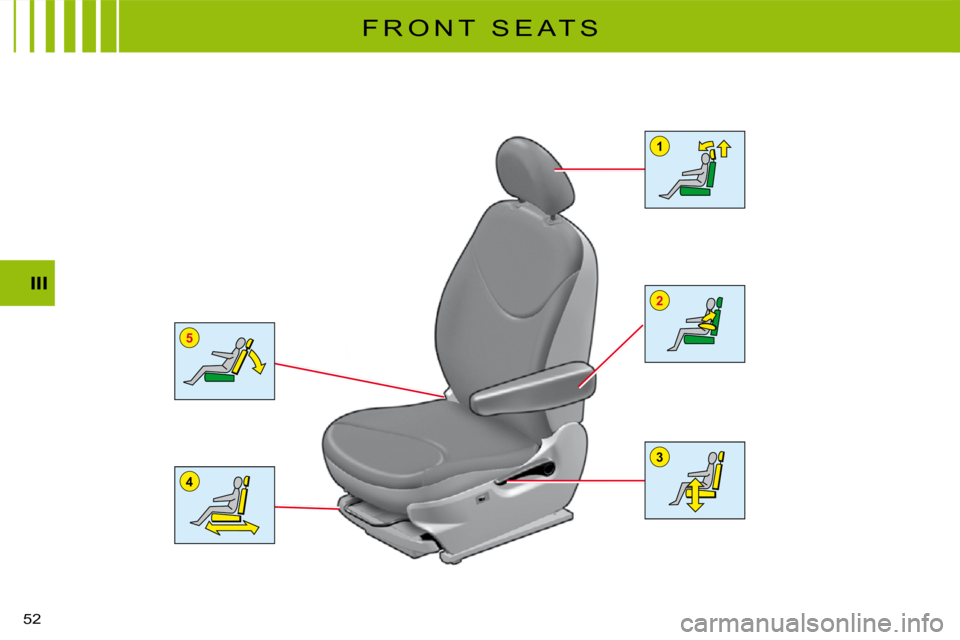

F R O N T S E A T S
Page 54 of 102
1
2
4
3
5
53
III
F R O N T S E A T S

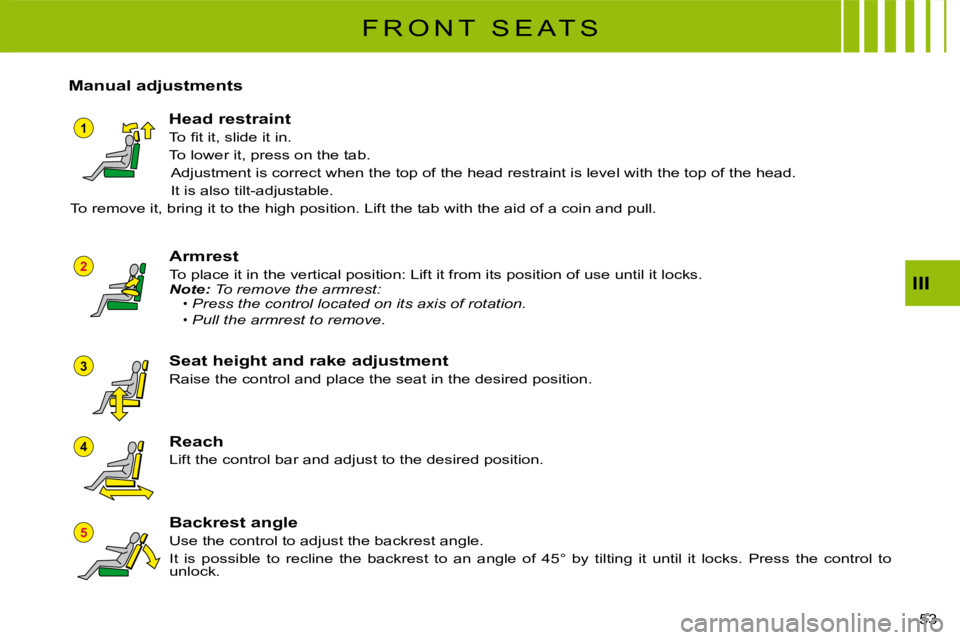

Manual adjustments
Head restraint
T o fi t i t , s l i d e i t i n .
To lower it, press on the tab.
Adjustment is correct when the top of the head restraint is level with the top of the head.
It is also tilt-adjustable.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Use the control to adjust the backrest angle.
It is possible to recline the backrest to an angle of 45° by tilting it until it locks. Press the control to unlock.
Seat height and rake adjustment
Raise the control and place the seat in the desired position.
Reach
Lift the control bar and adjust to the desired position.
Armrest
To place it in the vertical position: Lift it from its position of use until it locks.Note: To remove the armrest:Press the control located on its axis of rotation.Pull the armrest to remove.
Page 55 of 102
54
III

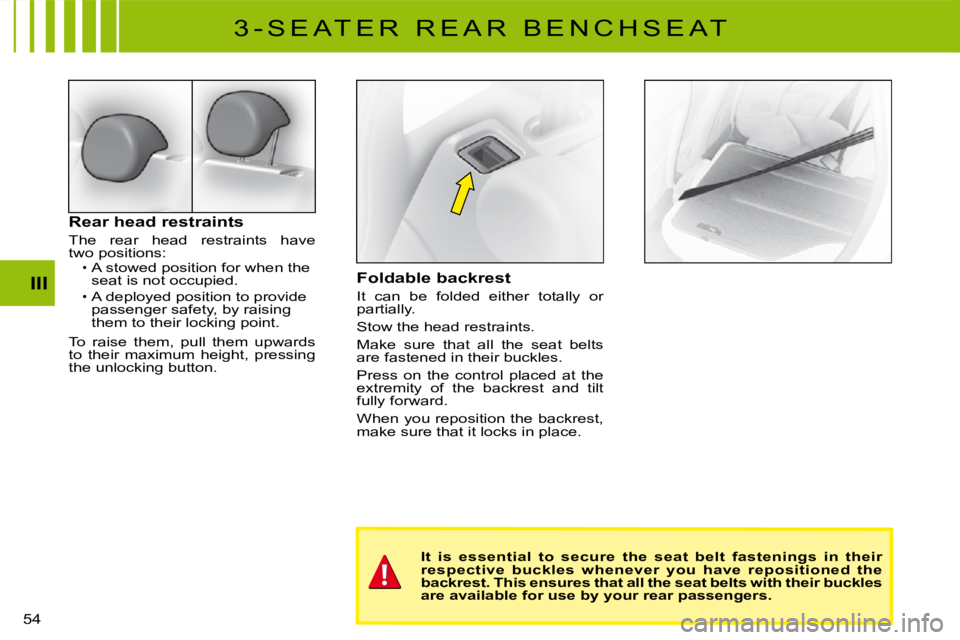

Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.
A deployed position to provide passenger safety, by raising them to their locking point.
To raise them, pull them upwards to their maximum height, pressing the unlocking button.
Page 56 of 102
A
55
III

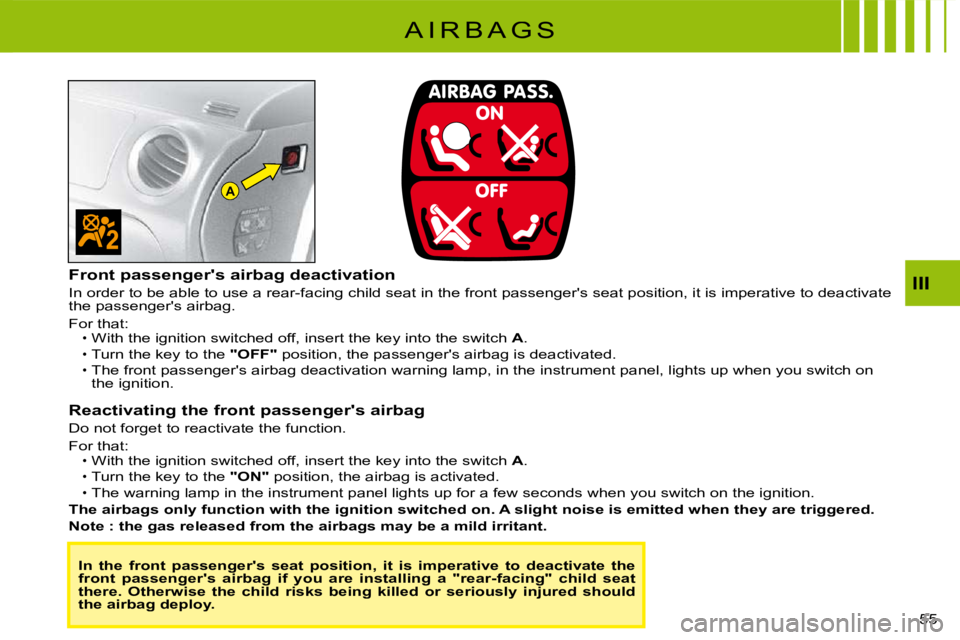

A I R B A G S
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "r ear-facing" child seat there. Otherwise the child risks being killed or serio usly injured should the airbag deploy.
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "OFF" position, the passenger's airbag is deactivated.The front passenger's airbag deactivation warning lamp, in th e instrument panel, lights up when you switch on the ignition.
Reactivating the front passenger's airbag
Do not forget to reactivate the function.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "ON" position, the airbag is activated.
The warning lamp in the instrument panel lights up for a f ew seconds when you switch on the ignition.
The airbags only function with the ignition switched on. A slight noise is emitted when they are triggered.
Note : the gas released from the airbags may be a mild irritant.
Page 57 of 102
56
III
C H I L D R E S T R A I N T S

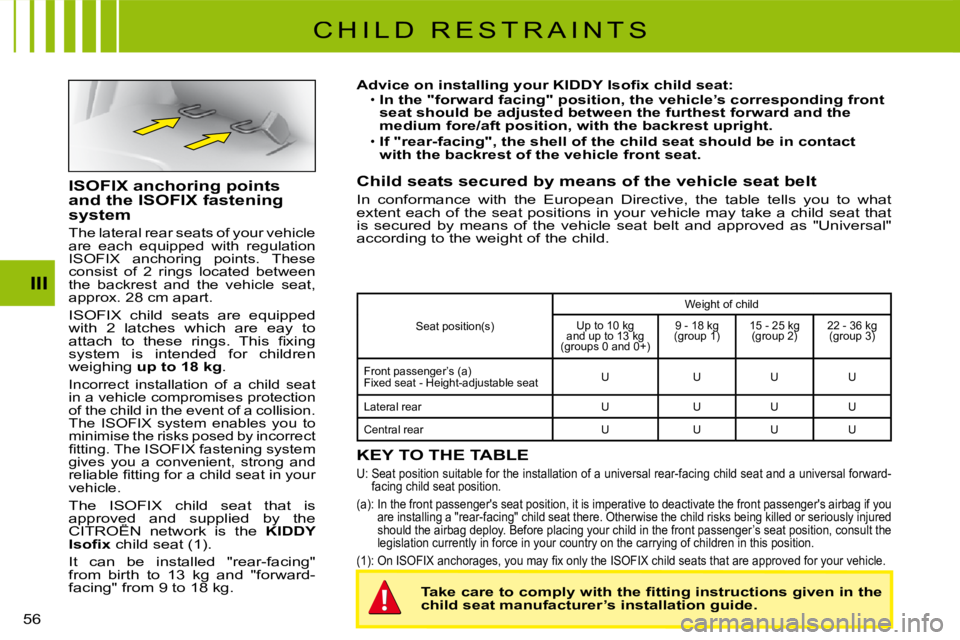

ISOFIX anchoring points and the ISOFIX fastening system
The lateral rear seats of your vehicle are each equipped with regulation ISOFIX anchoring points. These consist of 2 rings located between the backrest and the vehicle seat, approx. 28 cm apart.
ISOFIX child seats are equipped with 2 latches which are eay to a t t a c h t o t h e s e r i n g s . T h i s fi x i n g system is intended for children weighing up to 18 kg.
Incorrect installation of a child seat in a vehicle compromises protection of the child in the event of a collision. The ISOFIX system enables you to minimise the risks posed by incorrect fi t t i n g . T h e I S O F I X f a s t e n i n g s y s t e m gives you a convenient, strong and r e l i a b l e fi t t i n g f o r a c h i l d s e a t i n y o u r vehicle.
The ISOFIX child seat that is approved and supplied by the CITROËN network is the approved and supplied by approved KIDDY I s o fi x child seat (1).
It can be installed "rear-facing" from birth to 13 kg and "forward-facing" from 9 to 18 kg.
A d v i c e o n i n s t a l l i n g y o u r K I D D Y I s o fi x c h i l d s e a t :In the "forward facing" position, the vehicle’s corresponding front seat should be adjusted between the furthest forward and the medium fore/aft position, with the backrest upright.If "rear-facing", the shell of the child seat should be in contact with the backrest of the vehicle front seat.
Child seats secured by means of the vehicle seat belt
In conformance with the European Directive, the table tells yo u to what extent each of the seat positions in your vehicle may take a child seat that is secured by means of the vehicle seat belt and approved as "Uni versal" according to the weight of the child.
Page 58 of 102
122
57
III

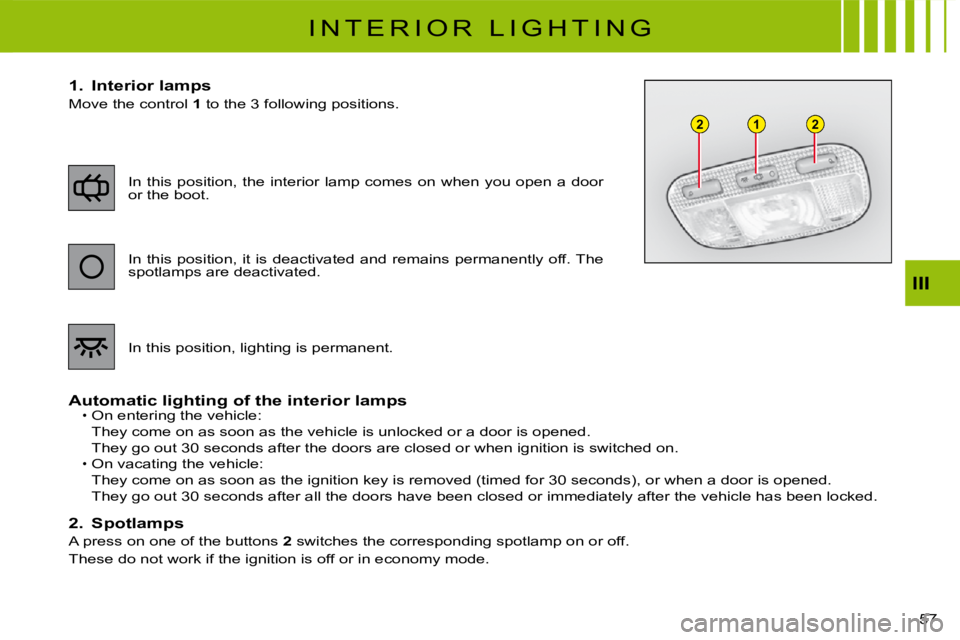

I N T E R I O R L I G H T I N G
1. Interior lamps
Move the control 1 to the 3 following positions.
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.On vacating the vehicle:
They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.
2. Spotlamps
A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.
Page 59 of 102
58
III

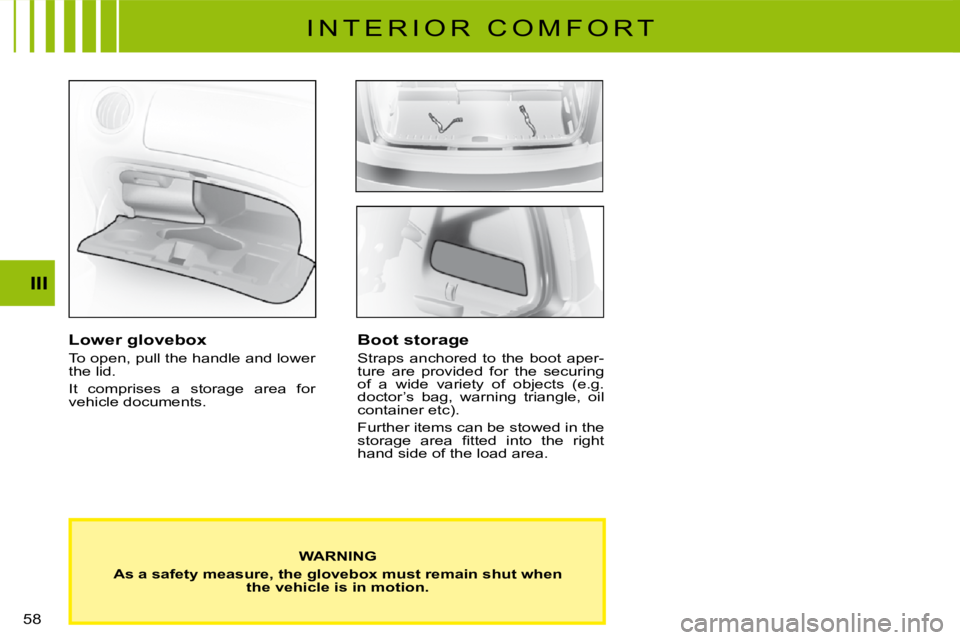

I N T E R I O R C O M F O R T
L o w e r g l o v e b o x
To open, pull the handle and lower the lid.
It comprises a storage area for vehicle documents.
Boot storage
Straps anchored to the boot aper-ture are provided for the securing of a wide variety of objects (e.g. doctor’s bag, warning triangle, oil container etc).
Further items can be stowed in the s t o r a g e a r e a fi t t e d i n t o t h e r i g h t hand side of the load area.
WARNING
A s a s a f e t y m e a s u r e , t h e g l o v e b o x m u s t r e m a i n s h u t w h e n the vehicle is in motion.
Page 60 of 102
59
III
I N T E R I O R C O M F O R T

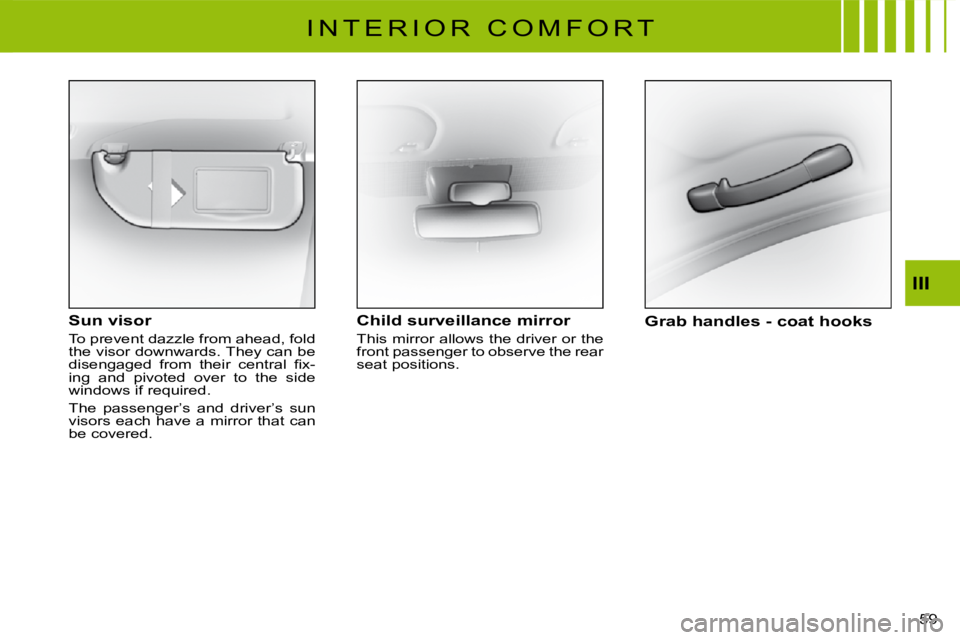

Sun visor
To prevent dazzle from ahead, fold the visor downwards. They can be d i s e n g a g e d f r o m t h e i r c e n t r a l fi x -ing and pivoted over to the side windows if required.
The passenger’s and driver’s sun visors each have a mirror that can be covered.
Child surveillance mirror
This mirror allows the driver or the front passenger to observe the rear seat positions.
Grab handles - coat hooks
