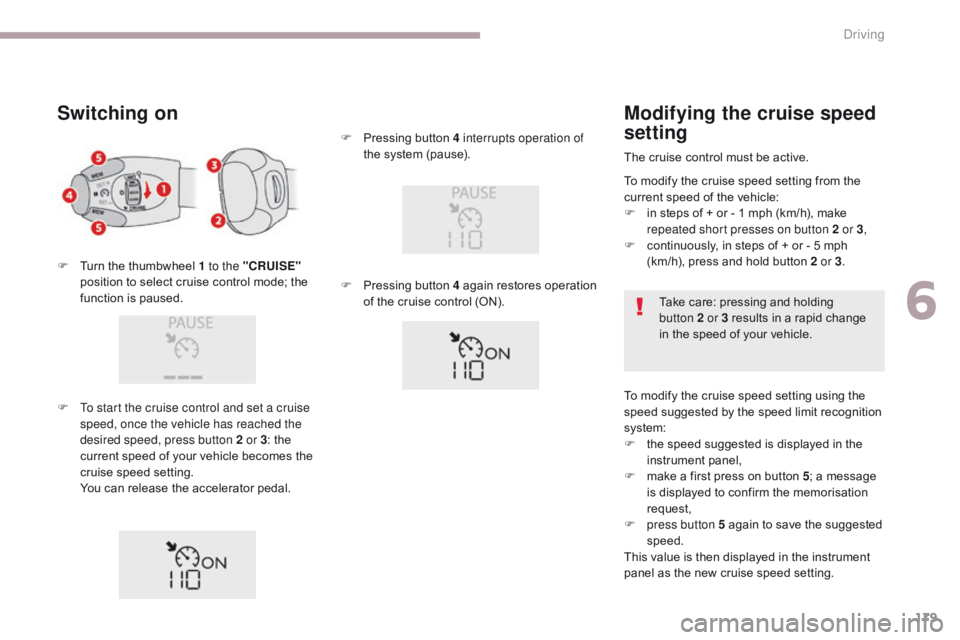

Switching on
F Turn the thumbwheel 1 to the "CRUISE"
position to select cruise control mode; the
function is paused.
F

T
o start the cruise control and set a cruise
speed, once the vehicle has reached the
desired speed, press button 2 or 3 : the
current speed of your vehicle becomes the
cruise speed setting.
Y

ou can release the accelerator pedal. F

P
ressing button 4 interrupts operation of
the system (pause).
F
P
ressing button 4 again restores operation
of the cruise control (ON). Take care: pressing and holding
button
2 or 3 results in a rapid change
in the speed of your vehicle.
Modifying the cruise speed
setting
The cruise control must be active.
To modify the cruise speed setting from the
current speed of the vehicle:
F

i
n steps of + or - 1 mph (km/h), make
repeated short presses on button 2 or 3 ,
F

c
ontinuously, in steps of + or - 5 mph
(km/h), press and hold button 2 or 3 .
To modify the cruise speed setting using the
speed suggested by the speed limit recognition
system:
F

t
he speed suggested is displayed in the
instrument panel,
F

m
ake a first press on button 5 ; a message
is displayed to confirm the memorisation
request,
F

p
ress button 5 again to save the suggested
speed.
This value is then displayed in the instrument
panel as the new cruise speed setting.
6
Driving

180
B618_en_Chap06_conduite_ed01-2016
When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.
As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle. When required (overtaking manoeuvre, etc.), it
is possible to exceed the programmed speed
by pressing the accelerator pedal.
The cruise control is temporarily overridden
and the programmed speed setting flashes.
You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, with the speed
of the vehicle above 25 mph (40 km/h), press
button 4.

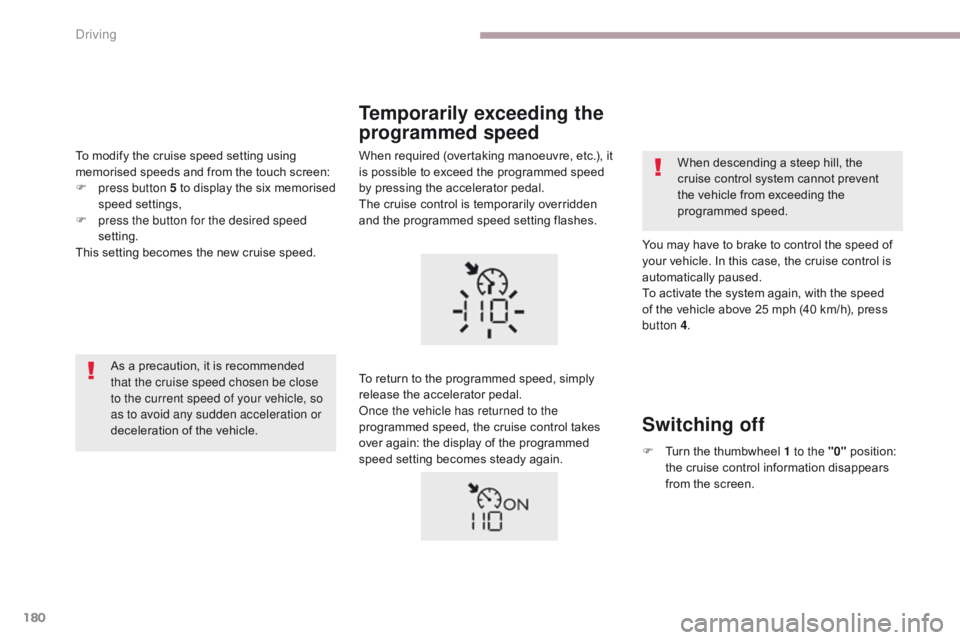

Temporarily exceeding the
programmed speed
To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.
Switching off
F Turn the thumbwheel 1 to the "0" position:
the cruise control information disappears
from the screen.
To modify the cruise speed setting using
memorised speeds and from the touch screen:
F

p

ress button 5 to display the six memorised
speed settings,
F

p

ress the button for the desired speed
setting.
This setting becomes the new cruise speed.
Driving

181
B618_en_Chap06_conduite_ed01-2016

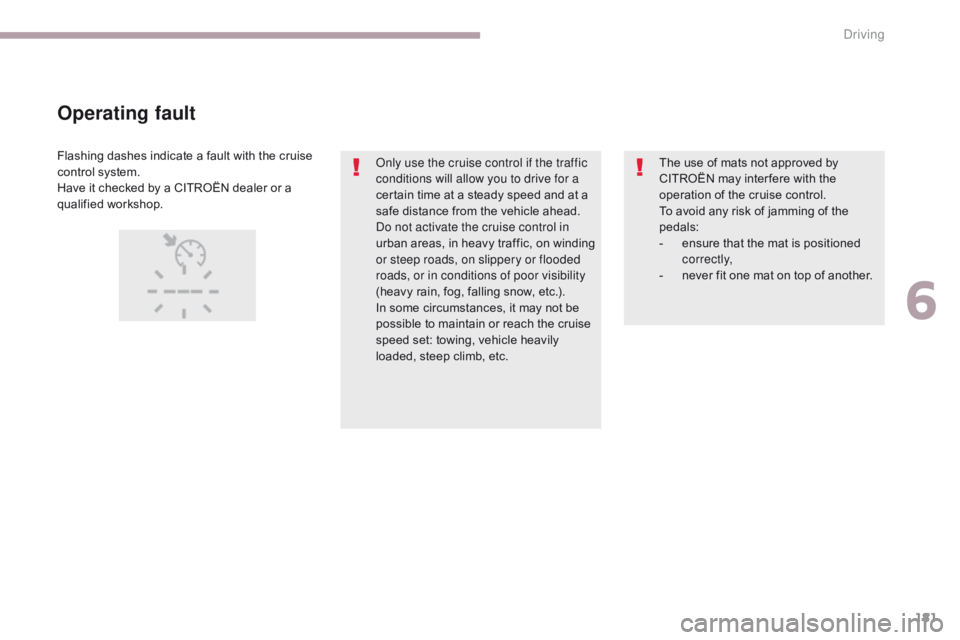

Operating fault
Flashing dashes indicate a fault with the cruise
control system.
Have it checked by a CITROËN dealer or a
qualified workshop.Only use the cruise control if the traffic
conditions will allow you to drive for a
certain time at a steady speed and at a
safe distance from the vehicle ahead.
Do not activate the cruise control in
urban areas, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, or in conditions of poor visibility
(heavy rain, fog, falling snow, etc.).
In some circumstances, it may not be
possible to maintain or reach the cruise
speed set: towing, vehicle heavily
loaded, steep climb, etc.The use of mats not approved by
CITROËN may inter fere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

n
ever fit one mat on top of another.
6
Driving

182
B618_en_Chap06_conduite_ed01-2016

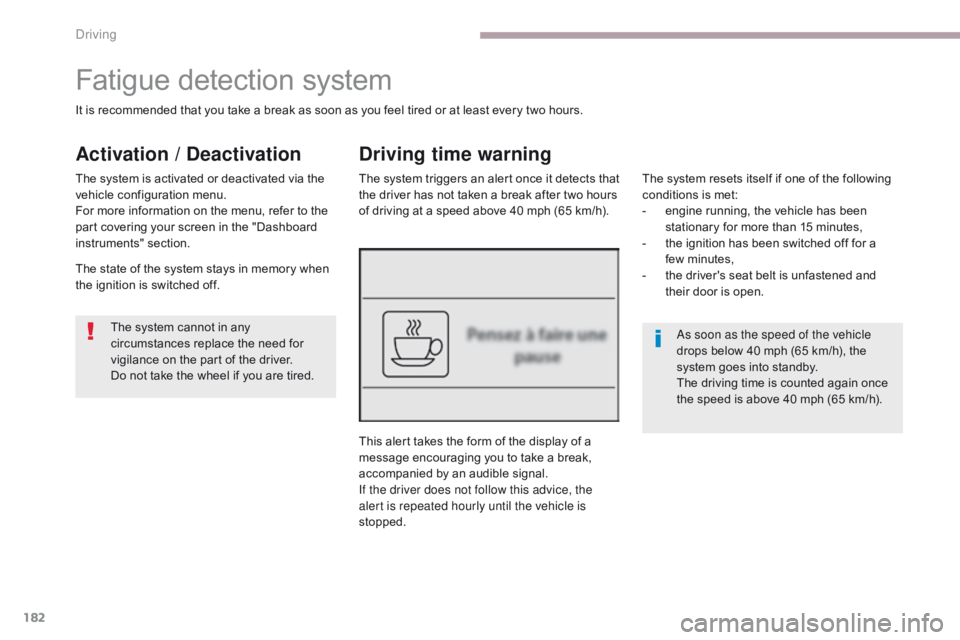

Fatigue detection system
As soon as the speed of the vehicle
drops below 40 mph (65 km/h), the
system goes into standby.
The driving time is counted again once
the speed is above 40 mph (65 km/h).
It is recommended that you take a break as soon as you feel tired or at least every two hours.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
Do not take the wheel if you are tired.
Driving time warning
The system triggers an alert once it detects that
the driver has not taken a break after two hours
of driving at a speed above 40 mph (65 km/h).
This alert takes the form of the display of a
message encouraging you to take a break,
accompanied by an audible signal.
If the driver does not follow this advice, the
alert is repeated hourly until the vehicle is
stopped. The system resets itself if one of the following
conditions is met:
-

e
ngine running, the vehicle has been
stationary for more than 15 minutes,
-

t
he ignition has been switched off for a
few
m

inutes,
-

t
he driver's seat belt is unfastened and
their door is open.
Activation / Deactivation
The system is activated or deactivated via the
vehicle configuration menu.
For more information on the menu, refer to the
part covering your screen in the "Dashboard
instruments" section.
The state of the system stays in memory when
the ignition is switched off.
Driving

183
B618_en_Chap06_conduite_ed01-2016

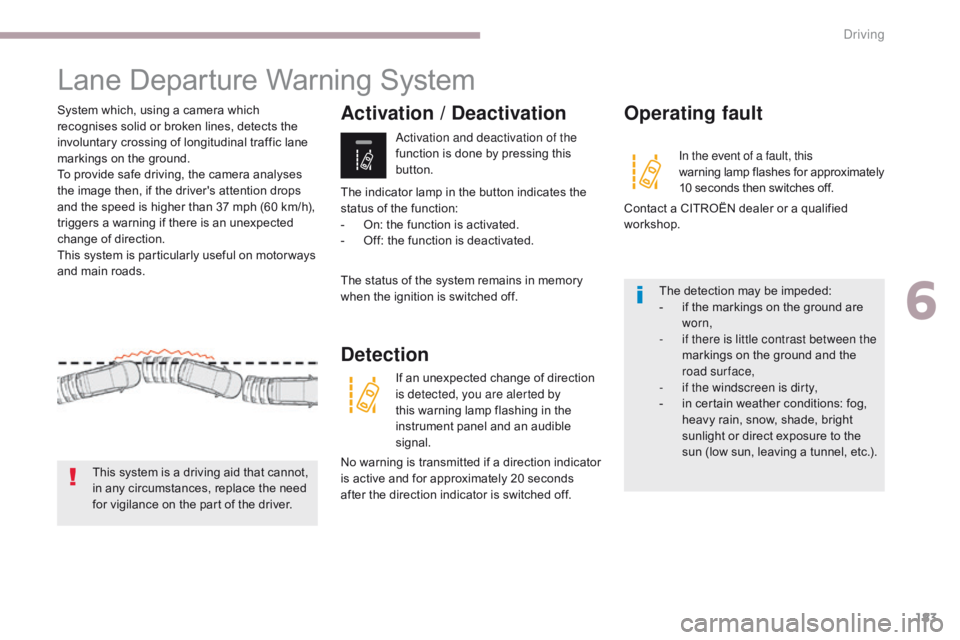

Lane Departure Warning System
System which, using a camera which
recognises solid or broken lines, detects the
involuntary crossing of longitudinal traffic lane
markings on the ground.
To provide safe driving, the camera analyses
the image then, if the driver's attention drops
and the speed is higher than 37 mph (60 km/h),
triggers a warning if there is an unexpected
change of direction.
This system is particularly useful on motor ways
and main roads.This system is a driving aid that cannot,
in any circumstances, replace the need
for vigilance on the part of the driver. The detection may be impeded:
-

i
f the markings on the ground are
worn,
-

i
f there is little contrast between the
markings on the ground and the
road surface,
-

i
f the windscreen is dirty,
-

i
n certain weather conditions: fog,
heavy rain, snow, shade, bright
sunlight or direct exposure to the
sun (low sun, leaving a tunnel, etc.).Activation / Deactivation
Activation and deactivation of the
function is done by pressing this
button.
The status of the system remains in memory
when the ignition is switched off.
Detection
If an unexpected change of direction
is detected, you are alerted by
this warning lamp flashing in the
instrument panel and an audible
signal.
No warning is transmitted if a direction indicator
is active and for approximately 20 seconds
after the direction indicator is switched off.
Operating fault
In the event of a fault, this
warning lam p flashes for approximately
10 seconds then switches off.
Contact a CITROËN dealer or a qualified
workshop.
The indicator lamp in the button indicates the
status of the function:
-

O

n: the function is activated.
-

O

ff: the function is deactivated.
6
Driving

184
B618_en_Chap06_conduite_ed01-2016
Blind Spot Monitoring System
This system warns the driver of the presence of
another vehicle in the blind spot angle of their
vehicle (areas masked from the driver's field
of vision), as soon as this presents a potential
danger.A fixed warning lamp appears in the door mirror
on the side in question:
-

i
mmediately, when being overtaken,
-

a
fter a delay of about one second, when
overtaking a vehicle slowly.
This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
This system is a driving aid that cannot, in any circumstances, replace the need for
vigilance on the part of the driver.
Activation / Deactivation
Activation and deactivation of the system is
done in the vehicle configuration menu. This indicator lamp comes on in the
instrument panel.
Sensors fitted in the front and rear bumpers
monitor the blind spots.
To deactivate the system, go to the vehicle
configuration menu again.
The indicator lamp goes off.
The system is automatically deactivated
when towing with a towbar approved by
CITROËN.
The status of the system remains in memory on
switching off the ignition.
Driving

185
B618_en_Chap06_conduite_ed01-2016

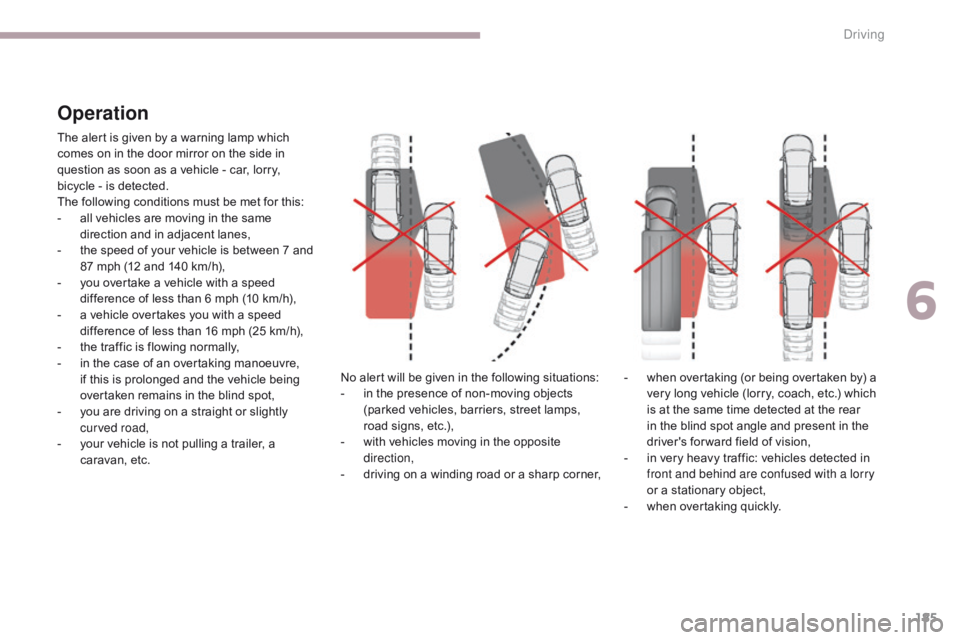

Operation
The alert is given by a warning lamp which
comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
bicycle - is detected.
The following conditions must be met for this:
-
a
ll vehicles are moving in the same
direction and in adjacent lanes,
-

t
he speed of your vehicle is between 7 and
87 mph (12 and 140 km/h),
-

y
ou overtake a vehicle with a speed
difference of less than 6 mph (10 km/h),
-

a v
ehicle overtakes you with a speed
difference of less than 16 mph (25 km/h),
-

t
he traffic is flowing normally,
-

i
n the case of an overtaking manoeuvre,
if this is prolonged and the vehicle being
overtaken remains in the blind spot,
-

y
ou are driving on a straight or slightly
curved road,
-

y
our vehicle is not pulling a trailer, a
caravan, etc. No alert will be given in the following situations:
-

i
n the presence of non-moving objects
(parked vehicles, barriers, street lamps,
road signs, etc.),
-

w
ith vehicles moving in the opposite
direction,
-

d
riving on a winding road or a sharp corner,-

w
hen overtaking (or being overtaken by) a
very long vehicle (lorry, coach, etc.) which
is at the same time detected at the rear
in the blind spot angle and present in the
driver's for ward field of vision,
-

i
n very heavy traffic: vehicles detected in
front and behind are confused with a lorry
or a stationary object,
-

w
hen overtaking quickly.
6
Driving

186
B618_en_Chap06_conduite_ed01-2016
In the event of a fault, this warning
lamp flashes for a few moments in
the instrument panel, accompanied
by illumination of the Service warning
lamp and the display of a message.The system may suffer temporary
interference in certain weather
conditions (rain, hail, etc.).
In particular, driving on a wet sur face
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud,
ice
or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
Driving

187
B618_en_Chap06_conduite_ed01-2016
Parking sensors
This system indicates the proximity of an
obstacle (e.g. pedestrian, vehicle, tree, gate)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (e.g. stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.
This system cannot in any circumstances replace
the need for vigilance on the part of the driver.
Rear parking sensors
The system is switched on by engaging reverse
g e a r.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right-hand
or left-hand) indicates the side on which the
obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
6
Driving

188
B618_en_Chap06_conduite_ed01-2016
Deactivation or activation of the system is done
via the vehicle configuration menu.The system will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations). In bad or wintry weather, ensure that
the sensors are not covered with mud,
ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.High pressure jet wash
When washing your vehicle, do not
direct the lance within 30 cm of the
sensors.
Deactivation / Activation
In the event of a fault, when reverse
gear is engaged, this warning lamp
lights up in the instrument panel,
accompanied by a message and an
audible signal.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
Driving
