CITROEN C3 2021 Owners Manual

229
B618_en_Chap08_En-cas-de-panne_ed01-2016
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake, switch off the
ignition and engage first gear* to block
the wheels.
Check that the parking brake warning
lamp in the instrument panel comes on
fixed.
The occupants must get out of the
vehicle and wait where they are safe.
Ensure that the jack is correctly
positioned at one of the vehicle's
jacking points.
Incorrect use of the jack could cause
the vehicle to drop.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Wheel with wheel trim
When removing the wheel, first
remove the wheel trim using the
wheelbrace 1 by pulling at the valve
aperture.
When refitting the wheel , refit the
wheel trim, starting by placing its
cut-out in line with the valve and then
pressing around its edge with the palm
of your hand.
Do not use a jack other than the one
supplied by the manufacturer.
* Position P for an automatic gearbox. F

R
emove the wheel bolt cover(s) using the
tool 3 (depending on version).
F

S
lacken the bolts using the wheelbrace 1
o n l y.
List of operations
8
In the event of a breakdown

230
B618_en_Chap08_En-cas-de-panne_ed01-2016
F Place the foot of the jack 2 on the ground and ensure that it is directly below the
front
A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed. F
E xtend the jack 2 until its head comes into contact with the jacking point A or B used; the
vehicle’s contact sur face at A or B must engage with the central part of the head of the jack.
F

R
aise the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
Ensure that the jack is stable. If the ground is slippery or loose, the jack might slip or drop - Risk of
injury!
Take care to position the jack only at one of the vehicle’s jacking points A or B under the vehicle,
ensuring that the contact sur face of the vehicle’s jacking point is centred on the head of the jack.
Other wise there is a risk of damage to the vehicle and/or that the jack might drop - Risk of injury!
In the event of a breakdown

231
B618_en_Chap08_En-cas-de-panne_ed01-2016

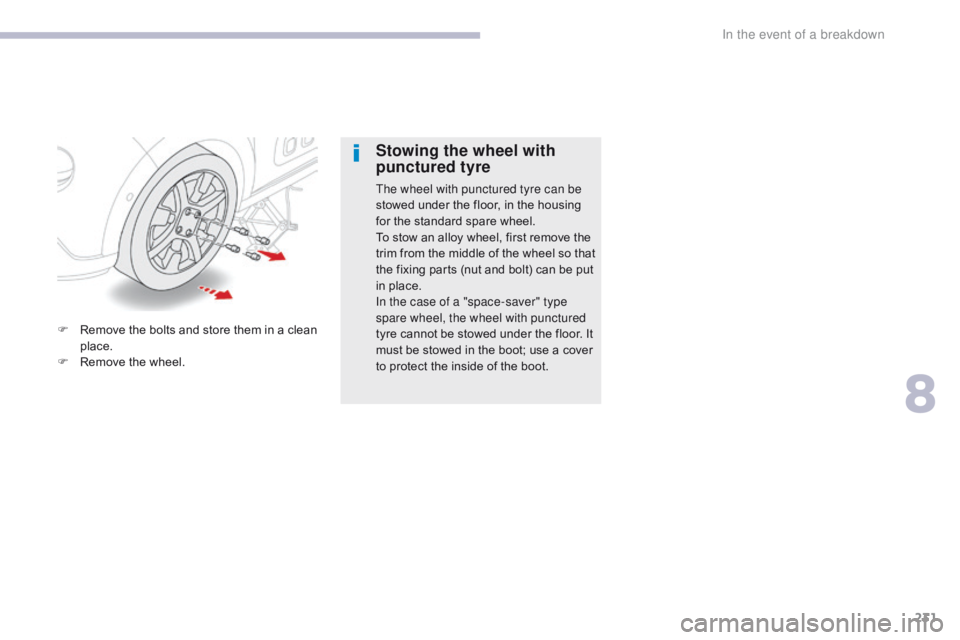

F Remove the bolts and store them in a clean place.
F

R
emove the wheel.
Stowing the wheel with
punctured tyre
The wheel with punctured tyre can be
stowed under the floor, in the housing
for the standard spare wheel.
To stow an alloy wheel, first remove the
trim from the middle of the wheel so that
the fixing parts (nut and bolt) can be put
in place.
In the case of a "space-saver" type
spare wheel, the wheel with punctured
tyre cannot be stowed under the floor. It
must be stowed in the boot; use a cover
to protect the inside of the boot.
8
In the event of a breakdown

232
B618_en_Chap08_En-cas-de-panne_ed01-2016
List of operations

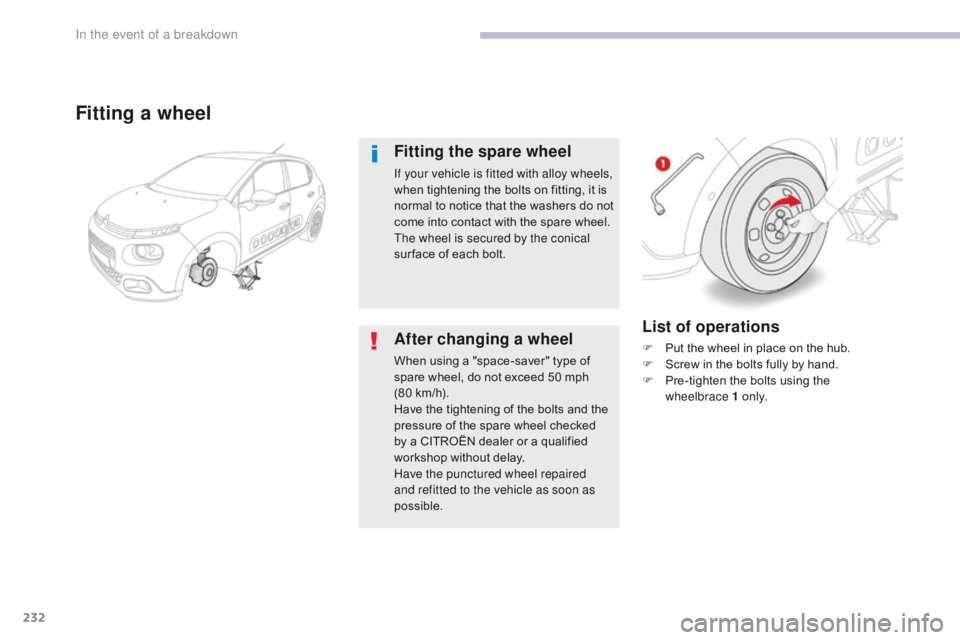

F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

P
re-tighten the bolts using the
wheelbrace


1 o n l y.
Fitting a wheel
Fitting the spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
sur face of each bolt.
After changing a wheel
When using a "space-saver" type of
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
In the event of a breakdown

233
B618_en_Chap08_En-cas-de-panne_ed01-2016

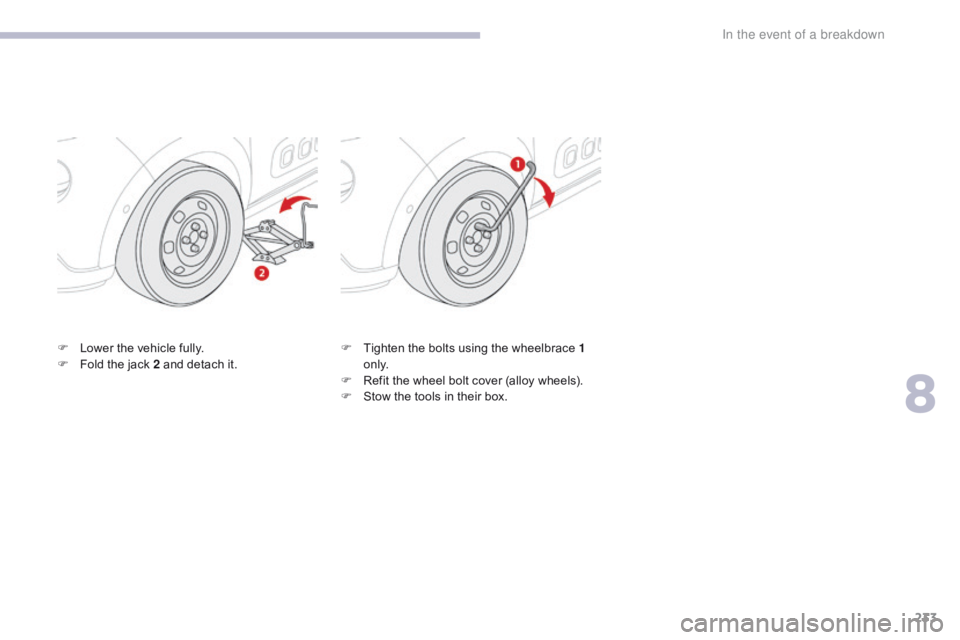

F Lower the vehicle fully.
F F old the jack 2 and detach it. F
T ighten the bolts using the wheelbrace 1
o n l y.
F

R
efit the wheel bolt cover (alloy wheels).
F

S
tow the tools in their box.
8
In the event of a breakdown

234
B618_en_Chap08_En-cas-de-panne_ed01-2016
Changing a bulb
Front lamps
Model with halogen lamps
1. Daytime running lamps / Sidelamps ( W21/5W ).
2.
D

irection indicators (PY21W).
3.
D

ipped beam headlamps (H7).
4.
M

ain beam headlamps (H7).
5.
F

ront foglamps (PSX24W).In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes. The headlamps have polycarbonate
lenses with a protective coating:
F

d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* LEDs: light-emitting diodes.
Model with LED lamps
1. Daytime running lamps / Sidelamps (LEDs)*.
2.
D

irection indicators (PY21W).
3.
D

ipped beam headlamps (H7).
4.
M

ain beam headlamps (H7).
5.
F

ront foglamps (PSX24W).
In the event of a breakdown

235
B618_en_Chap08_En-cas-de-panne_ed01-2016
Daytime running lamps / sidelamps
F Turn the bulb holder an eighth of a turn anticlockwise and pull it out.
F

R
emove the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
Daytime running lamps /
sidelamps (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop. Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Direction indicators
Amber coloured bulbs, such as the direction
indicators, must be replaced with bulbs of
identical specifications and colour. F

T
urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F
R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Dipped beam headlamps
F Remove the protective cover by pulling the tab.
F

D
isconnect the bulb connector.
F

R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb alignment
lug upwards .
8
In the event of a breakdown

236
B618_en_Chap08_En-cas-de-panne_ed01-2016
Front foglamps
Contact a CITROËN dealer or a qualified
workshop for the replacement of these bulbs.
Main beam headlamps
F Remove the protective cover by pulling the tab.
F

D
isconnect the bulb connector.
F

R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb positioning
lug downwards .
In the event of a breakdown

237
B618_en_Chap08_En-cas-de-panne_ed01-2016

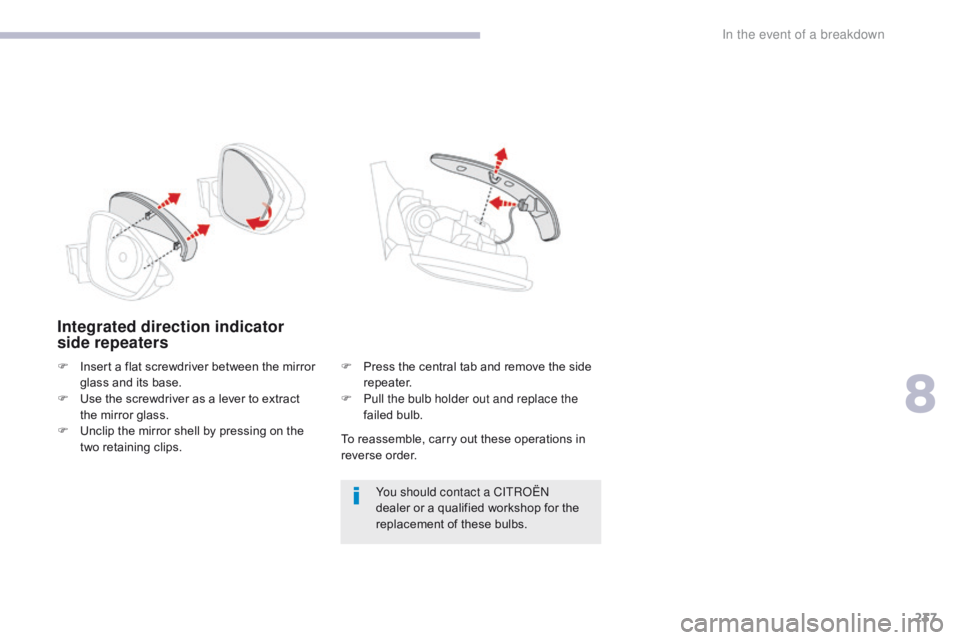

Integrated direction indicator
side repeaters
To reassemble, carry out these operations in
reverse order.You should contact a CITROËN
dealer or a qualified workshop for the
replacement of these bulbs.
F

P
ress the central tab and remove the side
repeater.
F
P
ull the bulb holder out and replace the
failed bulb.
F

I

nsert a flat screwdriver between the mirror
glass and its base.
F

U

se the screwdriver as a lever to extract
the mirror glass.
F
U
nclip the mirror shell by pressing on the
two retaining clips.
8
In the event of a breakdown

238
B618_en_Chap08_En-cas-de-panne_ed01-2016
1. Sidelamps (R10W).
2. Brake lamps (P21W).
3.
D

irection indicators (PY21W).
4.
R

eversing lamp (P21W), right-hand side or
Foglamp (PR21W), left-hand side.
Rear lamps
Changing bulbs
To reassemble, carry out these operations in
reverse order. F
S
pread the bulb holder retaining tabs and
remove the bulb holder.
F
T
urn the bulb a quarter turn and change it.
These bulbs are changed from inside the boot.
F

O

pen the boot.
F

R

emove the access cover on the
corresponding side trim.
F
D
isconnect the lamp unit connector.
F
S
lacken and remove the nut ( take care not
to drop it inside the wing ).
F

U

nclip the lamp unit and carefully remove
it by pulling it horizontally towards the
outside. Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without damaging the lamp.
It may be necessary to use slip joint pliers or
the wheelbrace (depending on equipment) to
remove the nut.
In the event of a breakdown
