249
B618_en_Chap08_En-cas-de-panne_ed01-2016

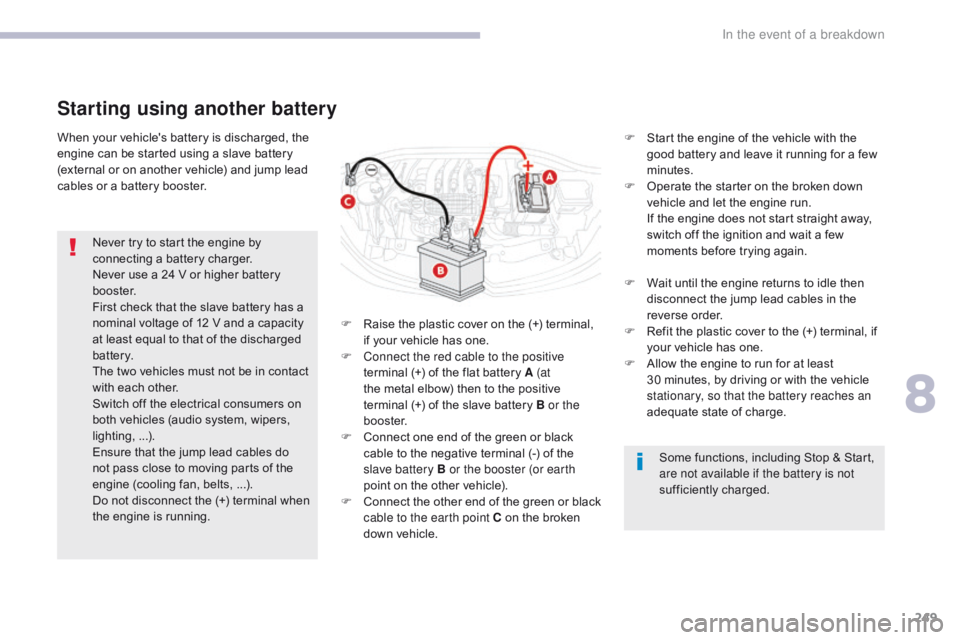

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
Starting using another battery
F Raise the plastic cover on the (+) terminal, if your vehicle has one.
F

C
onnect the red cable to the positive
terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal
(+) of the slave battery B or the
b o o s t e r.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F

C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle. F

S
tart the engine of the vehicle with the
good battery and leave it running for a few
minutes.
F
O
perate the starter on the broken down
vehicle and let the engine run.
I
f the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting,
...

).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts,

...).
Do not disconnect the (+) terminal when
the engine is running. F

W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F R efit the plastic cover to the (+) terminal, if
your vehicle has one.
F

A
llow the engine to run for at least
30
minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
8
In the event of a breakdown

260
B618_en_Chap11_index-alpha_ed01-2016
Accessories ...........................................117, 157
AdBlue® ............................... ......26, 36, 215, 216
Adjusting headlamps .................................... 11
2
Adjusting head restraints

................................ 77
A

djusting seat
................................................. 76
A

djusting the air distribution
.....................8
5, 88
Adjusting the air flow

.................................8
5, 88
Adjusting the date

..................................... 4
1, 54
Adjusting the height and reach of the steering wheel

...............................
.........82
Adjusting the temperature

........................8
5, 88
Adjusting the time

............................... 4
1, 54, 55
Advice on driving

..............................
....151, 152
Airbags
...............

............................. 29, 129, 137
Airbags, curtain
..................................... 13

2, 13 3
Airbags, front......................................... 13 0, 13 3
Airbags, lateral
...................................... 13

1, 13 3
AIRBUMP
® .................................................... 2 19
Air conditioning ............................... ............ 9, 87
Air conditioning, automatic

.......................8

4, 88
Air conditioning, manual
........................... 8

4, 86
Air intake

...............
.................................... 86, 88
Air vents
..............................

............................ 83
Alarm
............................................................... 72
A

nti-lock braking system (ABS)
....................12

3
Anti-slip regulation (ASR)

............................. 12

3
Anti-theft
..............................

.........................153
Armrest, front

............................................9
6, 98
Assistance call
...............................

....... 119, 121
Assistance, emergency braking
................... 12

3
Audio system

...............................
....................41
Auxiliary socket

............................................... 98
ABChild seats, ISOFIX .......................14 3 -145, 147
C ITROËN C onnect Box ....................... 1 19, 121
C
ITROËN
L
ocalised Emergency Call... 119, 121
Closing the boot

...............................
......... 57, 69
Closing the doors

.......................... 5
7, 60, 61, 68
Coat hanger
..............................

......................99
Configuration, vehicle
......................... 4

1, 44, 46
ConnectedCAM C
ITROËN
™

.......................19

3
Control, electric windows
................................ 74
C

ontrol, emergency boot release
...................69
C

ontrol, emergency door
................................ 64
C

ontrol, heated seats
...................................... 78
C

ontrol stalk, lighting
.............. 1
6, 105, 106, 110
Control stalk, wipers

..............................11

3 -115
Courtesy lamp

...............................
..........94, 240
Cruise control
................................ 1

70, 173, 178
Cruise control by speed limit recognition

.....17

3
Cup holder

...............................
........................96
Capacity, fuel tank

..............................

.......... 19 6
Cap, fuel filler

................................................ 19

6
Central locking

.................................... 6

0, 61, 70
Changing a bulb
........................... 2

34, 238, 240
Changing a fuse
............................ 2

41, 243, 246
Changing a wheel

...............................

. 226, 227
Changing a wiper blade

........................ 11

6 , 2 0 4
Changing the remote control battery

.............. 66
C

hecking the engine oil level

.......................... 35
C

hecking the levels

............................... 2

0 9 -212
Checking tyre pressures (using the kit)

........ 2

21
Checks
...............

................... 207, 208, 213, 214
Child lock

...............................

........................ 150
Children
...............................

... 141, 143 -145, 147
Children (safety)
...............................

............. 150
Child seats

............ 1

28, 134-136, 140, 141, 149
Child seats, conventional
...................... 14

0, 141
Child seats, i-Size

...............................

.......... 147 Date (setting)

...............................
.............. 41, 54
Daytime running lamps

.........1
06, 110, 234, 235
Deactivating the passenger airbag
....... 13

0, 137
Deadlocking
...............................

............... 57, 62
Demisting - defrosting

...............................9
2, 93
Dimensions
..............................

.....................257
Dipstick
................

....................................35, 209
Direction indicators
...... 1

08, 110, 234, 235, 238
Display screen, instrument panel

.................16

5
Doors
..............................................................

.68
Driving economically ......................................... 9
Driving time warning

..................................... 18

2
Dynamic stability control (DSC)

...... 2
2, 123, 125
C
D
Battery ................................... 203, 213, 248 -251
Battery, charging ............................... ............250
Battery, remote control

.............................6
3, 66
Blanking screen (snow shield)

......................2

01
Blind, panoramic roof

...................................... 95
B

lind spot monitoring system
........................18

4
Blind spot sensors
.................................. 18

, 18 4
BlueHDi
...............................

......32, 36, 215, 220
Bonnet
...............

............................................ 206
Boot
........

.......................................... 69, 95, 100
Brake discs

.................................................... 2

14
Brake lamps

...............................
...................238
Brakes
..................................................... 2

2, 214
Bulbs (changing)
...............................

... 234, 238
Alphabetical index

262
B618_en_Chap11_index-alpha_ed01-2016
Maintenance (advice) ....................................2 19
Maintenance, routine ........................................ 9
M
ap reading lamps
......................................... 94
M

arkings, identification
................................. 25

8
Mat
.......

.....................................................96, 99
Memorising a speed

..................................... 17

0
Mirror, rear view

............................................ 10

4
Mirrors, door ..........................................103, 184
Misfuel prevention
...............................

..........198
Mountings, Isofix
...............................

............143
Oil change

...............................
......................209
Oil consumption

............................................ 20

9
OIl, engine
...............................

......................209
Opening the bonnet

...................................... 20

6
Opening the boot

..............................
.. 57, 59, 69
Opening the doors

.............................. 5
7, 59, 68Pads, brake ...................................................
2
14
Paint colour code
..........................................25
8
Panoramic glass sunroof

................................95
P

arcel shelf, rear
...................................10

1, 102
Parking brake

.................................. 1
7, 159, 214
Parking sensors, rear.................................... 187
Plates, identification ...................................... 258
Port, USB

..................................................9
6, 98
Pre-heater, Diesel
...............................

............17
Pressures, tyres
....................................2

25, 258
Pre-tensioning seat belts

..............................12

8
Priming the fuel system

................................2

20
Protecting children

........................13

0, 13 4 -13 6,
141, 143 -145, 147
Protectors
...................................................... 2

19
Puncture
................

........................................221
M
O
P
Number plate lamps ......................................23 9
N
L
Range, AdBlue ..........................................26, 36
Rear screen, demisting ................................... 93
R
echarging the battery
.................................25

0
Recirculation, air
...............................

........86, 88
Reduction of electrical load
.......................... 20

3
Regeneration of the particle filter

.................2

13
Reinitialisation of the under-inflation detection system

................................. 19

1, 192
Reinitialising the remote control

.....................67
R

eminder, key in ignition
...............................15

5
Reminder, lighting on

.................................... 10

8
Remote control

........................ 5
6, 57, 59 - 61, 63
Removing a wheel

..............................
..........229
R
Labels, identification ..................................... 25 8
Lamp, boot ............................... ...............95, 240
Lamps, parking
............................................. 11

0
Lane Departure Warning System (LDWS)

...18

3
LEDs - Light-emitting diodes

........................11

0
Level, AdBlue
................................................ 2

12
Level, brake fluid

........................................... 2

10
Level, Diesel additive
.................................... 2

12
Level, engine coolant

.............................. 3
1, 211
Level, engine oil

...............................
.......35, 209
Levels and checks

..............................
...2 07-212
Level, screenwash fluid

................................2

11
Light-emitting diodes - LEDs

................11

0 , 2 4 0
Lighting
................

............................................ 16
Lighting, guide-me home

..............................111
L

ighting, interior
.............................................. 94
L

ighting, welcome
......................................... 111
Lo

ading
..............................
............................... 9
Load reduction mode

.................................... 20

3
Localised Assistance Call
..................... 1

19, 121
Locating your vehicle

...................................... 58
Lo

cking
...................................................... 5
7, 63
Locking from the inside

...................................70
L

ow fuel level
..............................
..................19 6
Alphabetical index

94
Audio and Telematics

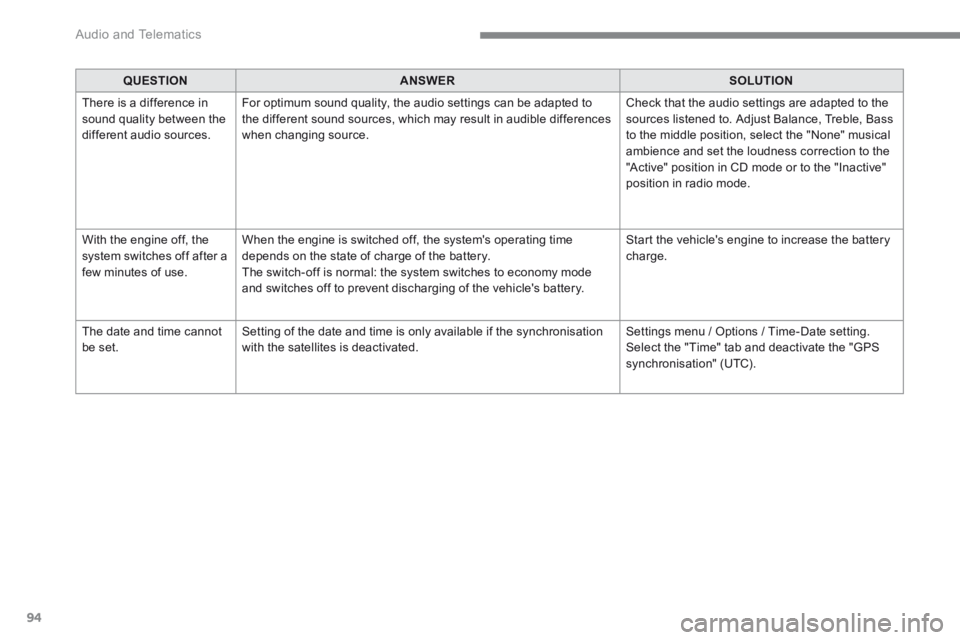

QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources.
For optimum sound quality, the audio settings can be adapted to the different sound sources, which may result in audible differences when changing source.
Check that the audio settings are adapted to the sources listened to. Adjust Balance, Treble, Bass to the middle position, select the "None" musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the state of charge of the battery. The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The date and time cannot be set. Setting of the date and time is only available if the synchronisation with the satellites is deactivated. Settings menu / Options / Time-Date setting. Select the "Time" tab and deactivate the "GPS synchronisation" (UTC).

146
Audio and Telematics
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

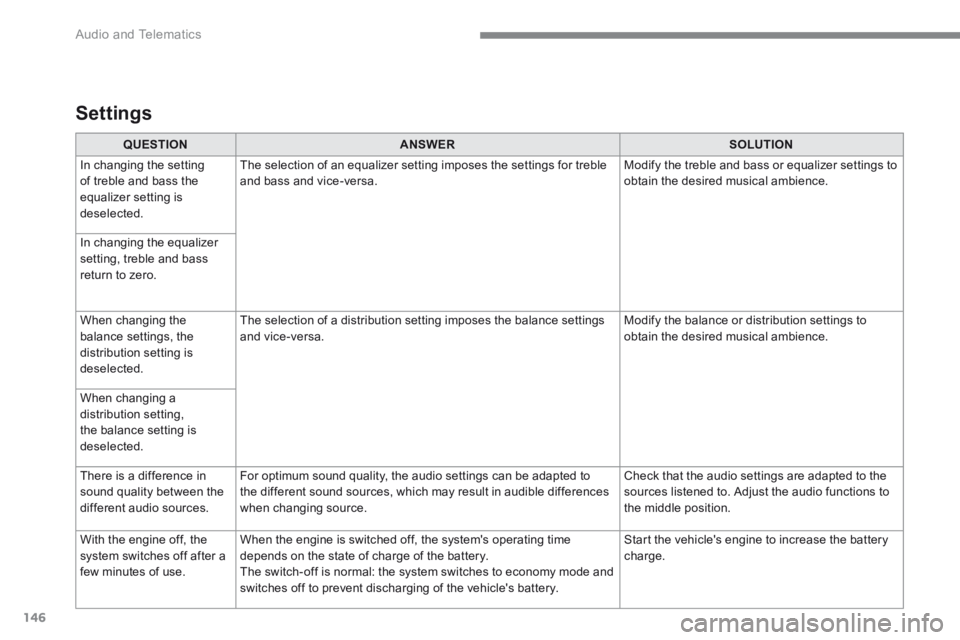

QUESTIONANSWERSOLUTION
In changing the setting of treble and bass the equalizer setting is deselected.
The selection of an equalizer setting imposes the settings for treble and bass and vice-versa. Modify the treble and bass or equalizer settings to obtain the desired musical ambience.
In changing the equalizer setting, treble and bass return to zero.
When changing the balance settings, the distribution setting is deselected.
The selection of a distribution setting imposes the balance settings and vice-versa. Modify the balance or distribution settings to obtain the desired musical ambience.
When changing a distribution setting, the balance setting is deselected.
There is a difference in sound quality between the different audio sources.
For optimum sound quality, the audio settings can be adapted to the different sound sources, which may result in audible differences when changing source.
Check that the audio settings are adapted to the sources listened to. Adjust the audio functions to the middle position.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the state of charge of the battery. The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
Settings

166
Audio and Telematics
The table below gives answers to the most frequently asked questions on your audio system.
QUESTIONANSWERSOLUTION
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the state of charge of the battery. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode leading to a reduction in volume or CD play stopping.
Switch the audio system off for a few minutes to allow the system to cool.
Frequently asked questions
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience and Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience and Loudness) are adapted to the sources listened to. It is advisable to set the audio functions (Bass, Treble, Front-Rear Balance and Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
Radio
