warning CITROEN C3 2021 Owner's Manual

29
B618_en_Chap01_Instruments-de-bord_ed01-2016
Engine oil
pressurefixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge
fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Maximum
coolant
temperature fixed.
The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Water in Diesel *fixed. The Diesel fuel filter contains water. Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer or a qualified workshop
without delay.
Airbags
on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
* Only on the Symbols LCD instrument panel.
1
Instruments

30
Under-inflationfixed, accompanied by
an audible signal and
a message. The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection
,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.The system has a fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Foot on the
brake fixed.
The brake pedal is not pressed
sufficiently. With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P
.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Warning / indicator lamp
StateCause Action / Observations
Instruments

31
B618_en_Chap01_Instruments-de-bord_ed01-2016

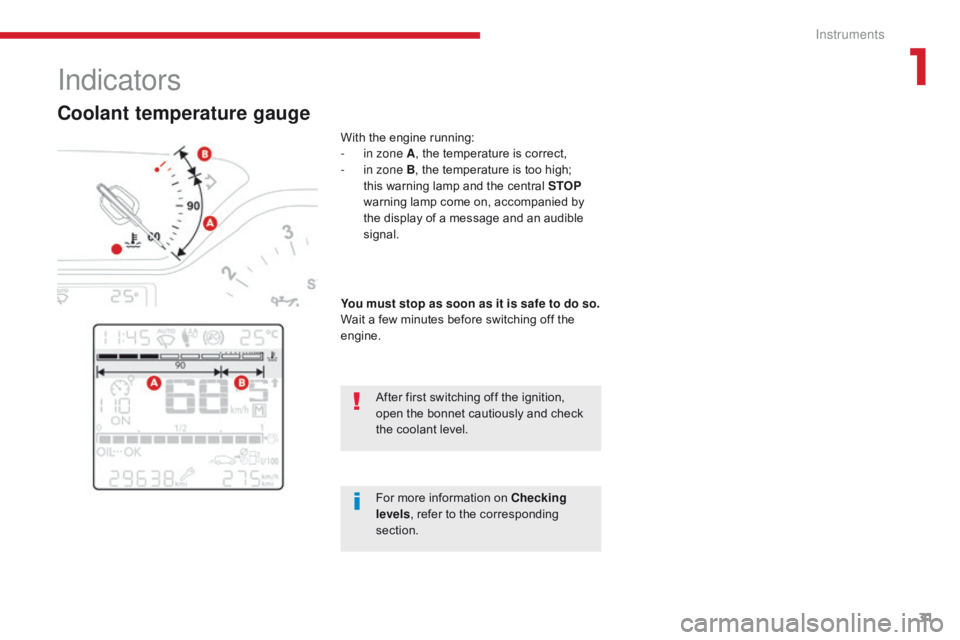

Indicators
With the engine running:
- i n zone A , the temperature is correct,
-

i
n zone B, the temperature is too high;
this warning lamp and the central STOP
warning lamp come on, accompanied by
the display of a message and an audible
signal.
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Coolant temperature gauge
After first switching off the ignition,
open the bonnet cautiously and check
the coolant level.
For more information on Checking
levels , refer to the corresponding
section.
1
Instruments

33
B618_en_Chap01_Instruments-de-bord_ed01-2016
Service overdue
For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
For BlueHDi Diesel versions, this alert
may also be accompanied by the fixed
illumination of the service warning lamp
when the ignition is on.
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation.
The spanner remains on .The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
Less than 600 miles (1 000 km)
remain before the next service is due
Example:
560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon. For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.
1
Instruments

35
B618_en_Chap01_Instruments-de-bord_ed01-2016
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
m

inutes.
Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
For more information on Checking
levels , refer to the corresponding
section.
* Depending on version. In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels
,
refer to the corresponding section.
1
Instruments

37
B618_en_Chap01_Instruments-de-bord_ed01-2016

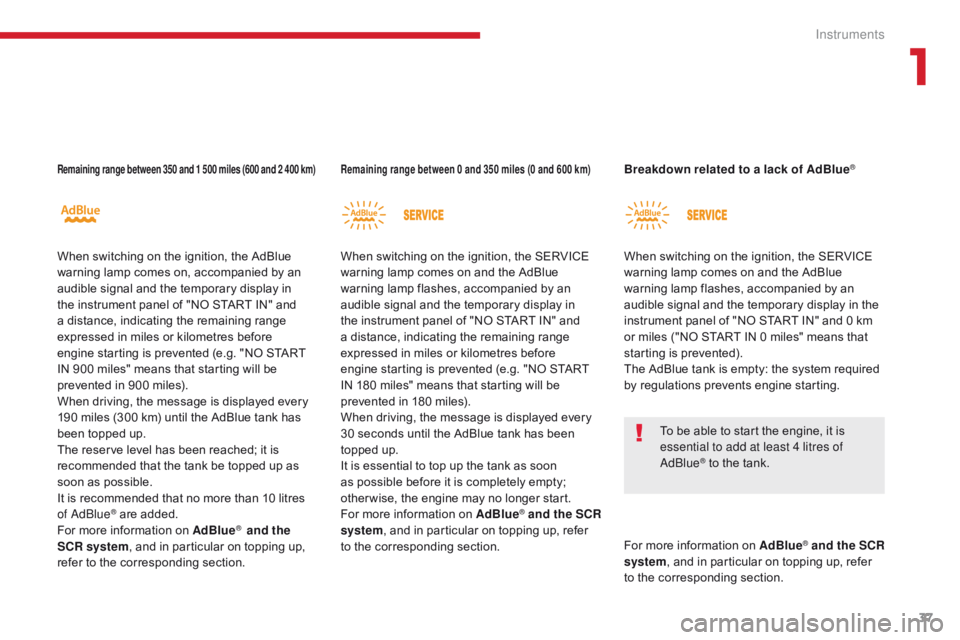

Remaining range between 350 and 1 500 miles (600 and 2 400 km)Remaining range between 0 and 350 miles (0 and 600 km)
To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
® to the tank.
When switching on the ignition, the AdBlue
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 900

miles" means that starting will be
prevented in 900 miles).
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped up.
The reserve level has been reached; it is
recommended that the tank be topped up as
soon as possible.
It is recommended that no more than 10 litres
of AdBlue
® are added.
For more information on AdBlue® and the
SCR system , and in particular on topping up,
refer to the corresponding section. When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 180
miles" means that starting will be
prevented in 180 miles).
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped up.
It is essential to top up the tank as soon
as possible before it is completely empty;
other wise, the engine may no longer start.
For more information on AdBlue
® and the SCR
system, and in particular on topping up, refer
to the corresponding section. When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in the
instrument panel of "NO START IN" and 0 km
or miles ("NO START IN 0 miles" means that
starting is prevented).
The AdBlue tank is empty: the system required
by regulations prevents engine starting. Breakdown related to a lack of AdBlue
®
For more information on
AdBlue® and the SCR
system, and in particular on topping up, refer
to the corresponding section.
1
Instruments

38

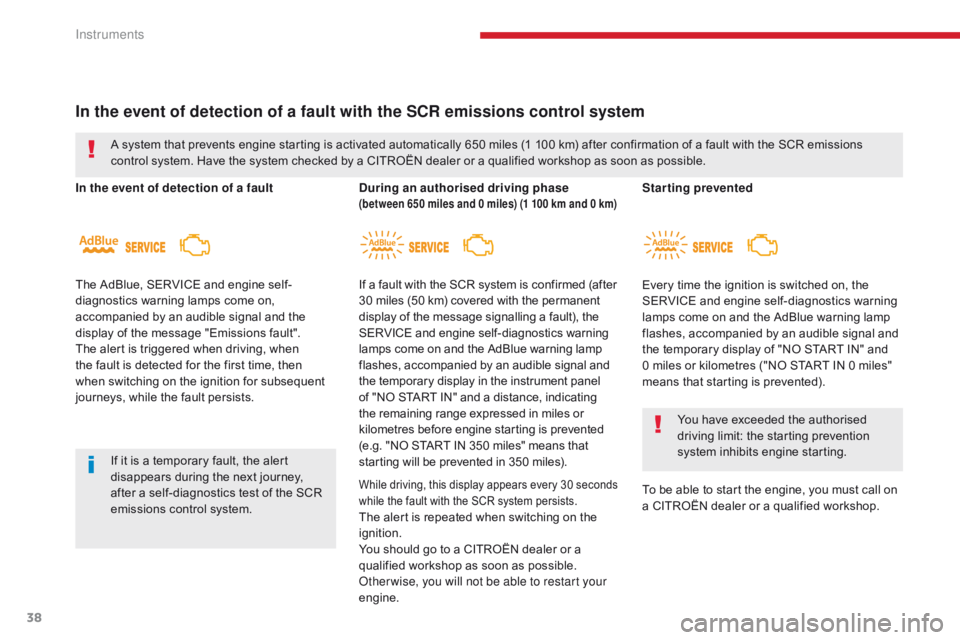

In the event of detection of a fault with the SCR emissions control system
In the event of detection of a faultDuring an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
A system that prevents engine starting is activated automatically 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after a self-diagnostics test of the SCR
emissions control system.
The AdBlue, SERVICE and engine self-
diagnostics warning lamps come on,
accompanied by an audible signal and the
display of the message "Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display in the instrument panel
of "NO START IN" and a distance, indicating
the remaining range expressed in miles or
kilometres before engine starting is prevented
(e.g. "NO START IN 350
miles" means that
starting will be prevented in 350 miles).
While driving, this display appears every 30 seconds
while the fault with the SCR system persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine. Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Every time the ignition is switched on, the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display of "NO START IN" and
0 miles or kilometres ("NO START IN 0 miles"
means that starting is prevented).
Instruments

42
"Multimedia" menu
"Telephone" menu"Trip computer" menu
Warning log
This summarises the warning messages for
systems, displaying them on the screen.
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB

/

FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and telematics"
supplement.
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and telematics"
supplement. This menu allows you to view information on
the status of the vehicle.
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio and telematics"
supplement.
Instruments

44

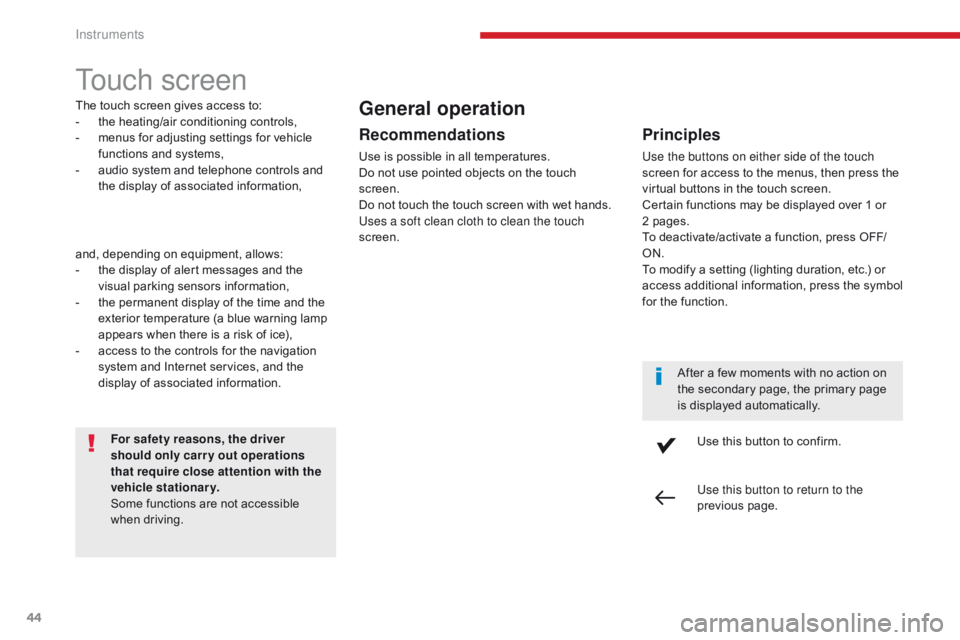

Touch screen
The touch screen gives access to:
- t he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
For safety reasons, the driver
should only carr y out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Use this button to confirm.
Use this button to return to the
previous page.
Principles
Use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
Certain functions may be displayed over 1 or
2 pages.
To deactivate/activate a function, press OFF/
ON.
To modify a setting (lighting duration, etc.) or
access additional information, press the symbol
for the function.After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
and, depending on equipment, allows:
-

t

he display of alert messages and the
visual parking sensors information,
-

t

he permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a risk of ice),
-

a

ccess to the controls for the navigation
system and Internet services, and the
display of associated information.
Instruments

68
B618_en_Chap02_ouvertures_ed01-2016

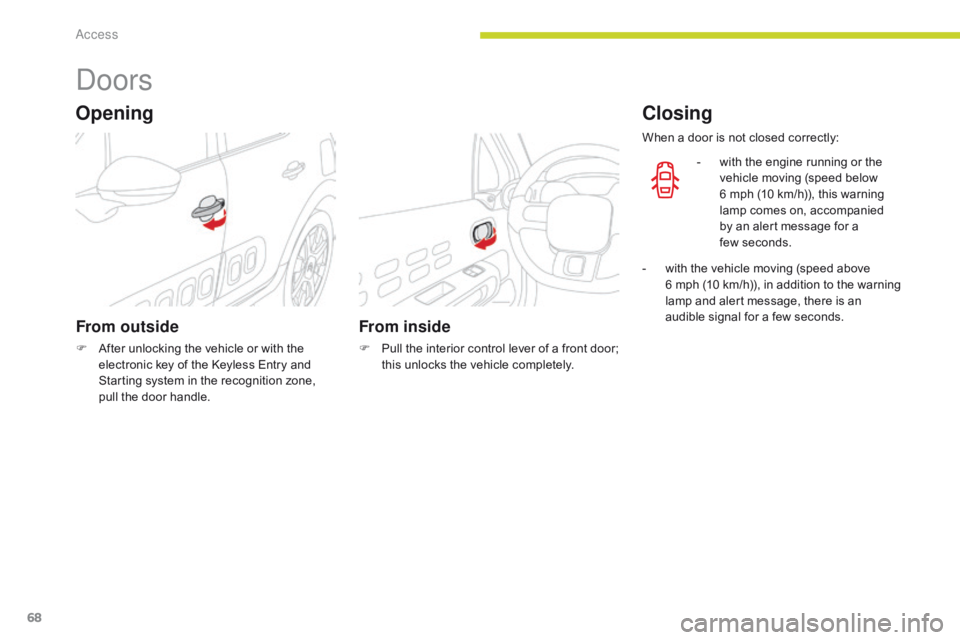

Doors
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
Opening
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely. When a door is not closed correctly:
Closing
- with the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a
few
seconds.
-

w

ith the vehicle moving (speed above
6

mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
Access
