warning CITROEN C3 2021 Owner's Guide

69
B618_en_Chap02_ouvertures_ed01-2016
Boot
F With the vehicle unlocked or with the Keyless Entry and Starting electronic key
in the recognition zone, press the tailgate
central control.
F

Ra
ise the tailgate.
Closing
F Lower the tailgate using one of the interior grab handles.
If the tailgate is not closed correctly:
-

w
hen the engine is running ,
this warning lamp comes on,
accompanied by a message for a
few seconds,
Back-up release
To manually unlock the boot in the event of a
battery or central locking failure.
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Opening
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message for a few seconds.
2
Access

75
B618_en_Chap02_ouvertures_ed01-2016
Deactivating the rear
window controlsReinitialising the electric
windows
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch is not active during these
operations:
-

l
ower the window completely, then raise
it; it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-

p
ress and hold the switch upwards for
at least one second after reaching this
position, window closed.
For the safety of your children, press switch 5
to prevent operation of the windows of the rear
doors, irrespective of their position.
With the warning lamp on, the rear switches
are deactivated. With the warning lamp off, the
switches are active. Always remove the key when leaving
the vehicle, even for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be aware of children when operating
the windows.
2
Access

109
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016

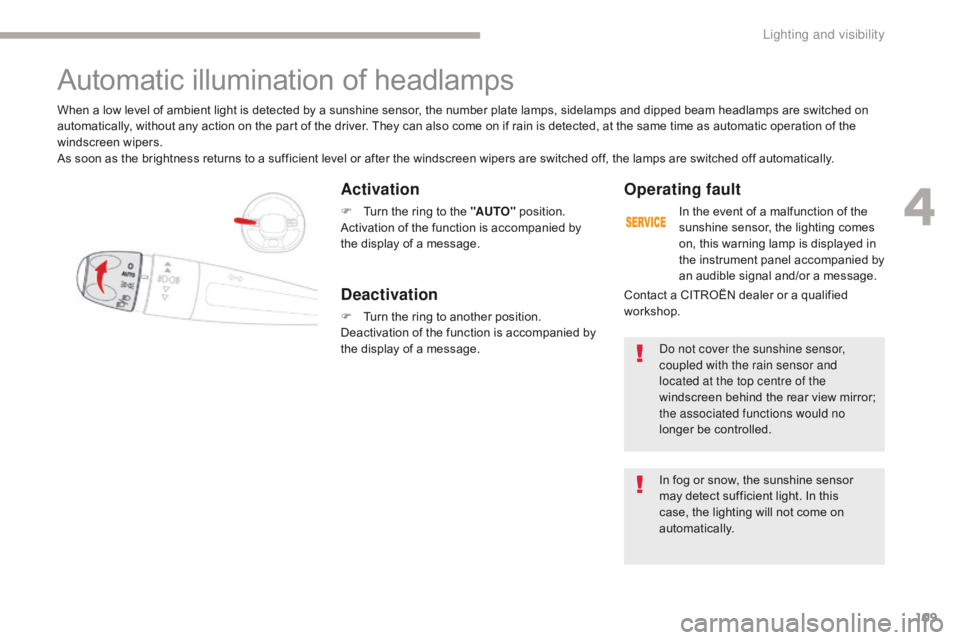

Activation
F Turn the ring to the "AUTO" position.
Activation of the function is accompanied by
the display of a message.
When a low level of ambient light is detected by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are switched on
automatically, without any action on the part of the driver. They can also come on if rain is detected, at the same time as automatic operation of the
windscreen wipers.
As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Deactivation
F Turn the ring to another position.
Deactivation of the function is accompanied by
the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed in
the instrument panel accompanied by
an audible signal and/or a message.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located at the top centre of the
windscreen behind the rear view mirror;
the associated functions would no
longer be controlled.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
4
Lighting and visibility

110
B618_en_Chap04_Eclairage-et-visibilite_ed01-2016

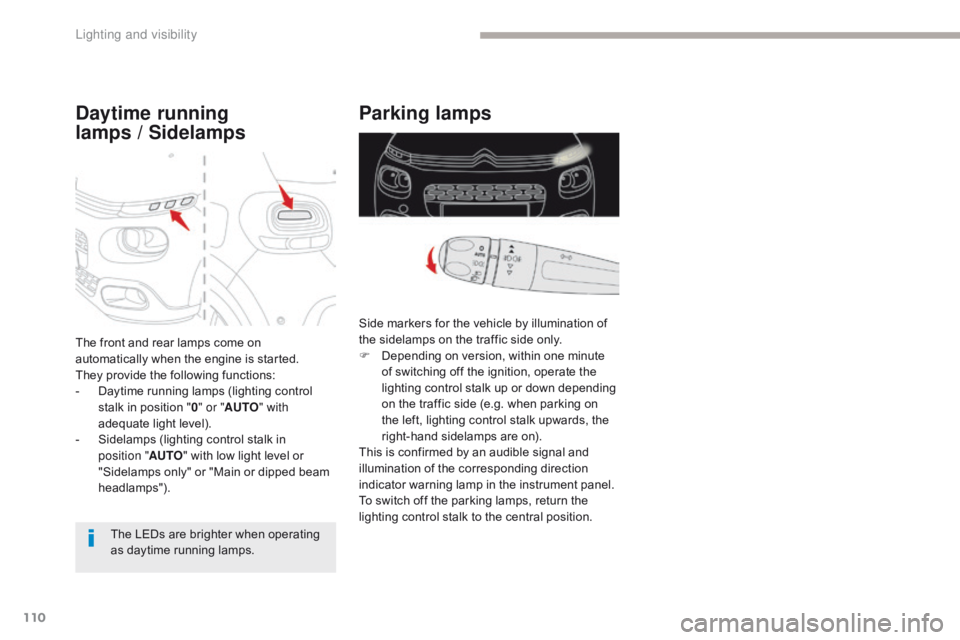

Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F
D
epending on version, within one minute
of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (e.g. when parking on
the left, lighting control stalk upwards, the
right-hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.
The front and rear lamps come on
automatically when the engine is started.
They provide the following functions:
-

D

aytime running lamps (lighting control
stalk in position " 0" or " AUTO " with
adequate light level).
-

S

idelamps (lighting control stalk in
position " AUTO" with low light level or
"Sidelamps only" or "Main or dipped beam
headlamps").
The LEDs are brighter when operating
as daytime running lamps.
Daytime running
lamps / Sidelamps
Lighting and visibility

117
B618_en_Chap05_securite_ed01-2016

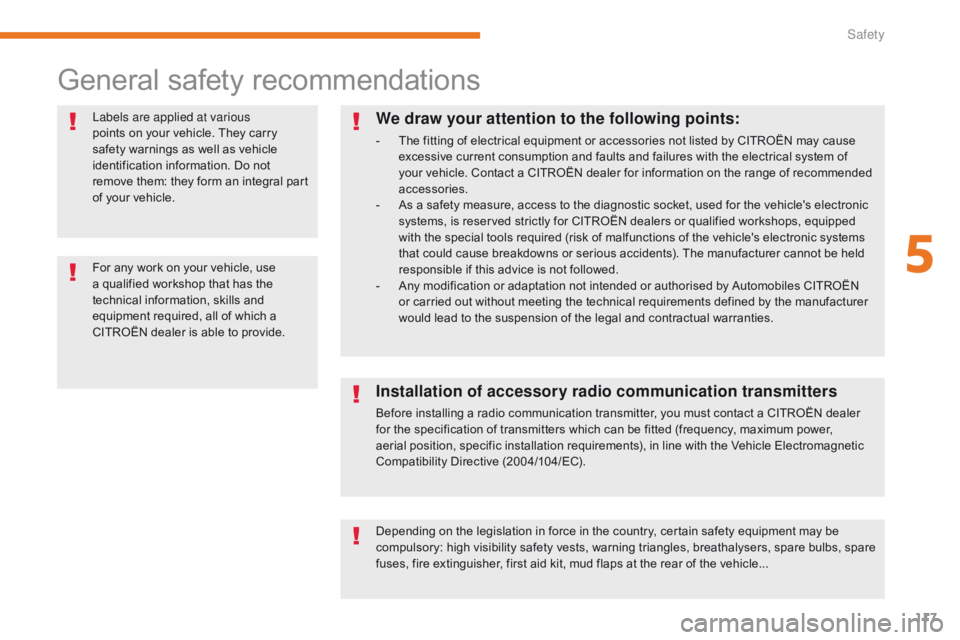

General safety recommendations
Labels are applied at various
points on your vehicle. They carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral part
of your vehicle.
For any work on your vehicle, use
a qualified workshop that has the
technical information, skills and
equipment required, all of which a
CITROËN dealer is able to provide.We draw your attention to the following points:
- The fitting of electrical equipment or accessories not listed by CITROËN may cause
excessive current consumption and faults and failures with the electrical system of
your vehicle. Contact a CITROËN dealer for information on the range of recommended
accessories.
-

A
s a safety measure, access to the diagnostic socket, used for the vehicle's electronic
systems, is reserved strictly for CITROËN dealers or qualified workshops, equipped
with the special tools required (risk of malfunctions of the vehicle's electronic systems
that could cause breakdowns or serious accidents). The manufacturer cannot be held
responsible if this advice is not followed.
-

A
ny modification or adaptation not intended or authorised by Automobiles CITROËN
or carried out without meeting the technical requirements defined by the manufacturer
would lead to the suspension of the legal and contractual warranties.
Installation of accessory radio communication transmitters
Before installing a radio communication transmitter, you must contact a CITROËN dealer
for the specification of transmitters which can be fitted (frequency, maximum power,
aerial position, specific installation requirements), in line with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, certain safety equipment may be
compulsory: high visibility safety vests, warning triangles, breathalysers, spare bulbs, spare
fuses, fire extinguisher, first aid kit, mud flaps at the rear of the vehicle...
5
Safety

118
B618_en_Chap05_securite_ed01-2016

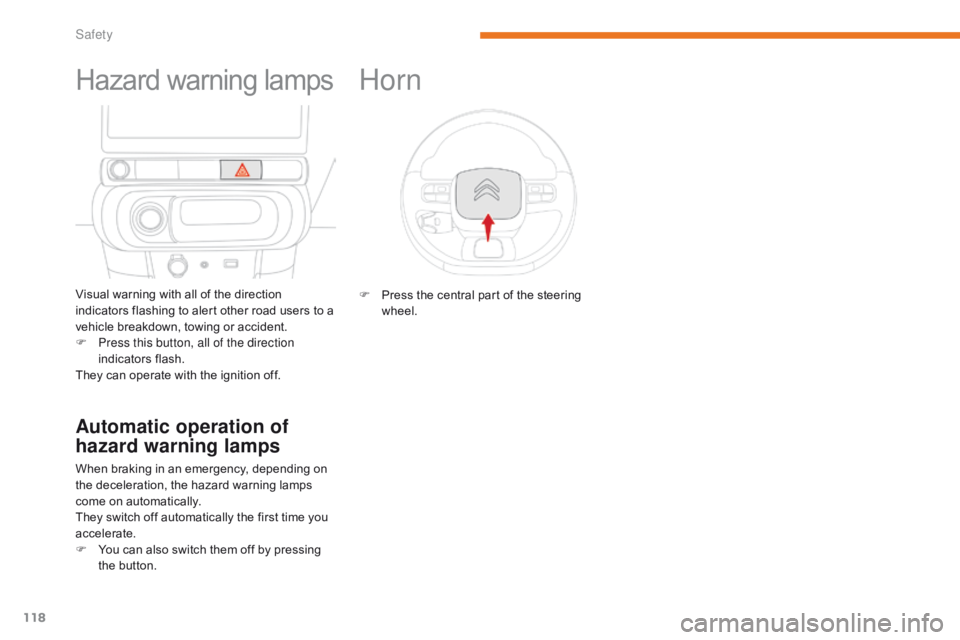

Hazard warning lamps
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
F
P
ress this button, all of the direction
indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F

Y
ou can also switch them off by pressing
the button.
Horn
F Press the central part of the steering wheel.
Safety

124
B618_en_Chap05_securite_ed01-2016
When this warning lamp comes on,
coupled with the STOP and ABS warning
lamps, accompanied by an audible signal
and a message, it indicates that there
is a fault with the electronic brake force
distribution (EBFD).
Anti-lock braking system (ABS) and electronic brake force
distribution (EBFD)
The fixed illumination of this warning
lamp indicates that there is a fault
with the ABS.
The vehicle retains conventional
braking. Drive carefully at moderate
speed. When changing wheels (tyres and
rims), ensure that these are approved
for your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.
In emergency braking, press ver y
firmly and maintain this pressure.
You must stop as soon as it is safe to do so.
In both cases, have the system checked by a
CITROËN dealer or a qualified workshop as
soon as possible.
Safety

125
B618_en_Chap05_securite_ed01-2016

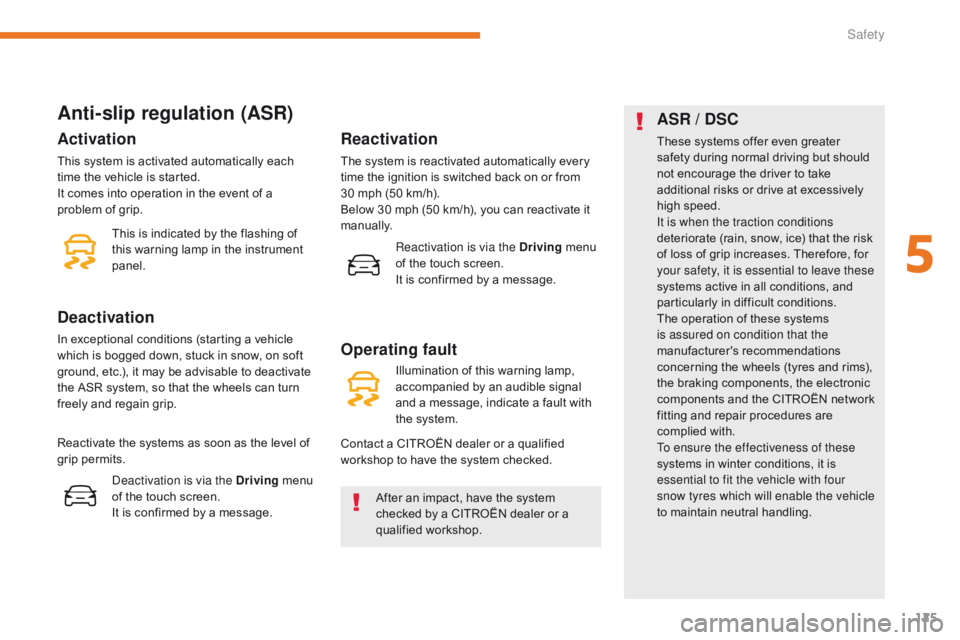

Anti-slip regulation (ASR)
After an impact, have the system
checked by a CITROËN dealer or a
qualified workshop.
Activation
This system is activated automatically each
time the vehicle is started.
It comes into operation in the event of a
problem of grip.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, etc.), it may be advisable to deactivate
the ASR system, so that the wheels can turn
freely and regain grip.This is indicated by the flashing of
this warning lamp in the instrument
panel.Operating fault
Reactivate the systems as soon as the level of
grip permits.
Deactivation is via the Driving menu
of the touch screen.
It is confirmed by a message.
Reactivation
The system is reactivated automatically every
time the ignition is switched back on or from
30
mph (50 km/h).
Below 30 mph (50 km/h), you can reactivate it
manually.
Reactivation is via the Driving menu
of the touch screen.
It is confirmed by a message.
Illumination of this warning lamp,
accompanied by an audible signal
and a message, indicate a fault with
the system.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
ASR / DSC
These systems offer even greater
safety during normal driving but should
not encourage the driver to take
additional risks or drive at excessively
high speed.
It is when the traction conditions
deteriorate (rain, snow, ice) that the risk
of loss of grip increases. Therefore, for
your safety, it is essential to leave these
systems active in all conditions, and
particularly in difficult conditions.
The operation of these systems
is assured on condition that the
manufacturer's recommendations
concerning the wheels (tyres and rims),
the braking components, the electronic
components and the CITROËN network
fitting and repair procedures are
complied with.
To ensure the effectiveness of these
systems in winter conditions, it is
essential to fit the vehicle with four
snow tyres which will enable the vehicle
to maintain neutral handling.
5
Safety

127
B618_en_Chap05_securite_ed01-2016
From approximately 12 mph
(20 km/h), the warning lamp(s)
flash(es) for two minutes
accompanied by an audible signal.
Once these two minutes have
elapsed, the warning lamp(s)
remain(s) on until the driver or front
passenger fastens their seat belt.

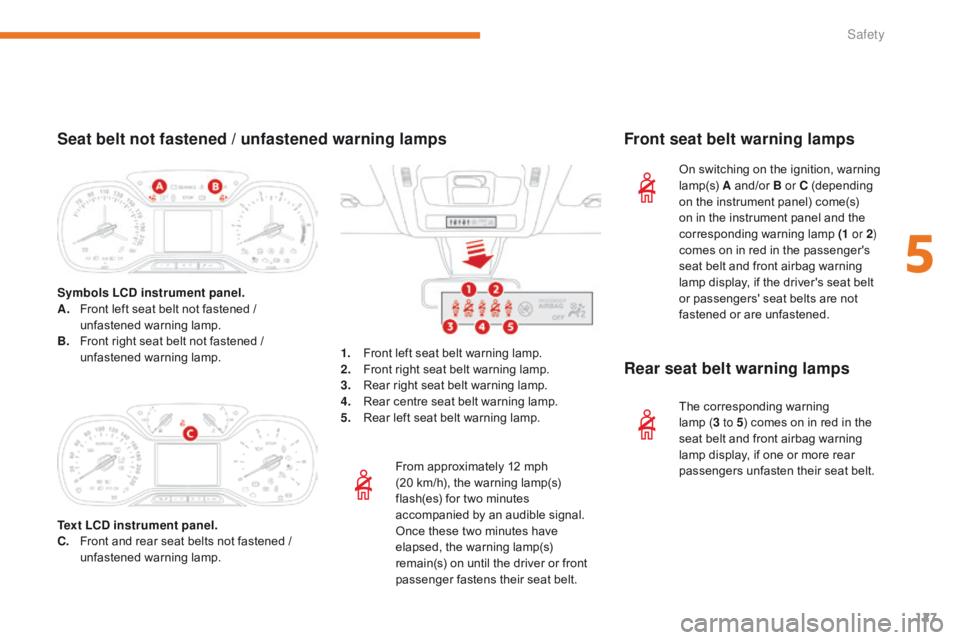

Seat belt not fastened / unfastened warning lamps Front seat belt warning lamps
On switching on the ignition, warning
lamp(s) A and/or B or C (depending
on the instrument panel) come(s)
on in the instrument panel and the
corresponding warning lamp (1 or 2 )
comes on in red in the passenger's
seat belt and front airbag warning
lamp display, if the driver's seat belt
or passengers' seat belts are not
fastened or are unfastened.
Symbols LCD instrument panel.
A.
F

ront left seat belt not fastened /
unfastened warning lamp.
B.
F

ront right seat belt not fastened /
unfastened warning lamp.
Rear seat belt warning lamps
The corresponding warning
lamp (3 to 5 ) comes on in red in the
seat belt and front airbag warning
lamp display, if one or more rear
passengers unfasten their seat belt.
1.
F

ront left seat belt warning lamp.
2.
F

ront right seat belt warning lamp.
3.
R

ear right seat belt warning lamp.
4. R
ear centre seat belt warning lamp.
5. R
ear left seat belt warning lamp.
Text LCD instrument panel.
C.
F

ront and rear seat belts not fastened /
unfastened warning lamp.
5
Safety

128
B618_en_Chap05_securite_ed01-2016

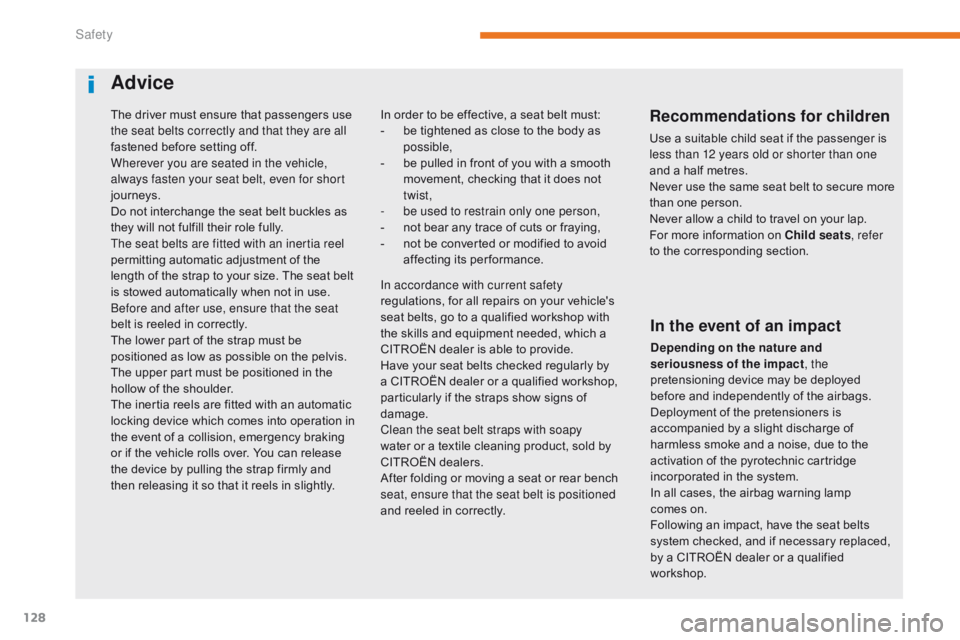

The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfill their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
In the event of an impact
Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
In order to be effective, a seat belt must:
-

b

e tightened as close to the body as
possible,
-

b

e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b

e used to restrain only one person,
-

n

ot bear any trace of cuts or fraying,
-

n

ot be converted or modified to avoid
affecting its performance.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on Child seats , refer
to the corresponding section.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Advice
Safety
