service indicator CITROEN C3 2022 User Guide

35
B618_en_Chap01_Instruments-de-bord_ed01-2016
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
m

inutes.
Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
For more information on Checking
levels , refer to the corresponding
section.
* Depending on version. In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels
,
refer to the corresponding section.
1
Instruments

72
B618_en_Chap02_ouvertures_ed01-2016
* Depending on the country of sale.
Alarm*
System which protects and provides a deterrent
against theft and break-ins. It provides the
following type of monitoring:
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet, etc.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop. Following an instruction to lock
the vehicle, the exterior perimeter
monitoring is activated after a delay of
5 seconds.
If an opening (door, boot, etc.) is not
fully closed, the vehicle is not locked but
the exterior perimeter monitoring will be
activated after a delay of 45 seconds.
Locking the vehicle with alarm system
Activation
F Switch off the ignition and get out of the
vehicle.
F

L
ock the vehicle with the remote control
or with the "Keyless Entry and Starting"
system.
The monitoring system is active: the indicator
lamp in the locking button on the dashboard
flashes once per second and the direction
indicators come on for about 2 seconds.
Deactivation
F Unlock the vehicle with the "Keyless Entry and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the locking button goes off
and the direction indicators flash for about
2
seconds.
If the vehicle automatically locks itself
again (as happens if a door or boot
is not opened within 30 seconds of
unlocking), the monitoring system is
also reactivated automatically.
Access

119
B618_en_Chap05_securite_ed01-2016
Emergency or assistance call
Localised Emergency Call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you benefit from the CITROËN

C

onnect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the Internet website for your country.
In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.
The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call. Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
Localised Emergency Call immediately locates
your vehicle, makes contact with you in your
language**

and - if necessary - organises
sending of the appropriate emergency
services**. In countries where the service is not
operational, or if the locating service has been
expressly declined, the call is directed straight
to the emergency services (112) without
location. *

D

epending on the terms and conditions for
the service, available from dealers, and
technological and technical limits.
**

D

epending on the geographic cover for
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle. The list of countries covered by Telematic
services is available at dealers or at
www.citroen.co.uk.
5
Safety

120
B618_en_Chap05_securite_ed01-2016
Localised Assistance Call
Operation of the systemIf you purchased your vehicle outside
the CITROËN dealer network, we
suggest that you have a dealer check
and, if desired, modify the configuration
of these services.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
If the orange indicator lamp
flashes then goes off: the system
has a fault.
The fault with the system does not
prevent the vehicle being driven. Press this button for more than
2

seconds to request assistance if
the vehicle breaks down.
**

D

epending on the geographic cover for
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle. The list of countries covered by Telematic
services is available at dealers or at
www.citroen.co.uk.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm.
Contact a qualified repairer as soon as
possible. If the orange indicator lamp is on fixed: the
back-up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
A voice message confirms that the call has
been made**.
Safety

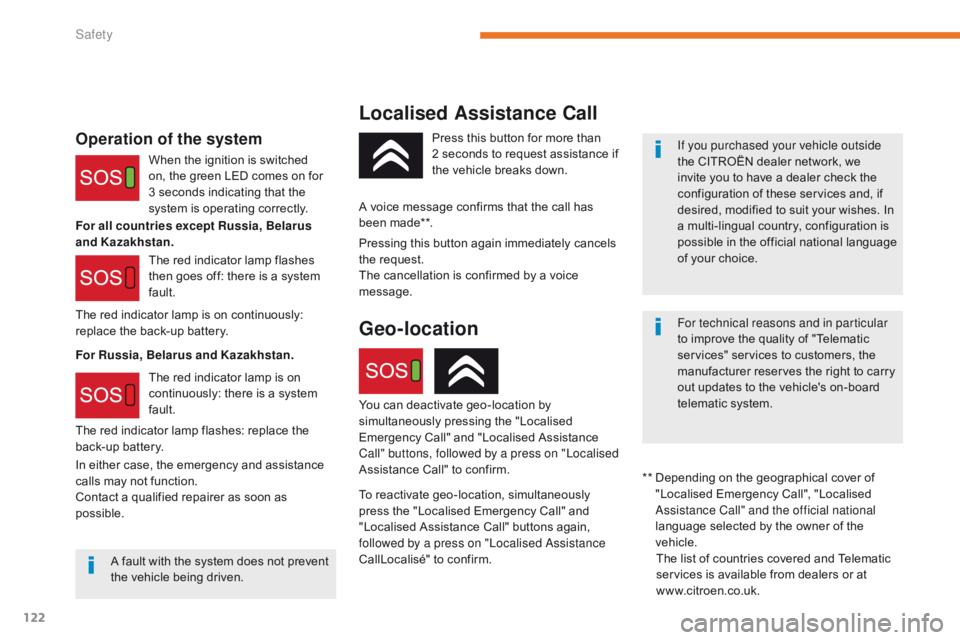

122
B618_en_Chap05_securite_ed01-2016
Localised Assistance Call
Operation of the systemIf you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes. In
a multi-lingual country, configuration is
possible in the official national language
of your choice.
For technical reasons and in particular
to improve the quality of "Telematic
services" services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp flashes
then goes off: there is a system
fault.
The red indicator lamp is on
continuously: there is a system
fault.
A fault with the system does not prevent
the vehicle being driven. Press this button for more than
2

seconds to request assistance if
the vehicle breaks down.
**

D

epending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle. The list of countries covered and Telematic
services is available from dealers or at
www.citroen.co.uk.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
CallLocalisé" to confirm.
The red indicator lamp is on continuously:
replace the back-up battery.
The red indicator lamp flashes: replace the
back-up battery.
A voice message confirms that the call has
been made**.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible. For Russia, Belarus and Kazakhstan. For all countries except Russia, Belarus
and Kazakhstan.
Safety

209
B618_en_Chap07_info-pratiques_ed01-2016
Checking levels
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns)
and the cooling fan could start at any
time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Checking using the dipstick
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.If you find that the level is above the A mark or
below the B mark, do not star t the engine.
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top up the engine oil.
A = MA X
B = MIN
To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms). The location of the dipstick is shown in the
corresponding underbonnet layout view.
F

T
ake the dipstick by its coloured grip and
remove it completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
Oil grade
Before topping up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
7
Practical information

210
B618_en_Chap07_info-pratiques_ed01-2016
After topping up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.
Topping up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F
U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
Practical information

263
B618_en_Chap11_index-alpha_ed01-2016
Safety, children .............................13 0, 13 4 -13 6,
141, 143 -145, 147
Screen, cold climate

..................................... 2

01
Screen, monochrome
..................................... 41
S

creenwash, front
......................................... 11

4
Screenwash, rear
...............................

...........114
SCR (Selective Catalytic Reduction) system

................
................................... 27, 215
Seat belts
....................................... 12

6 -128, 14 0
Seats, front
...............................

.......................76
Seats, heated
...............................

...................78
Seats, rear
....................................................... 79
Sel

ector, gear
................................................ 16

1
Serial number, vehicle

..................................25

8
Service indicator
.......................................3

2, 34
Servicing
...............................

............................ 9Tables of fuses

.............................. 2
41, 243, 246
Tank, fuel

...............................
................19 6, 198
Temperature, coolant
...................................... 31
T

hird brake lamp
...........................................23

9
Three flashes (direction indicators)
.............. 10

8
Time (setting)

..............................
........ 41, 54, 55
S
T
Settings, equipment ......................4 0, 41, 44, 46
Sidelamps .................... 1 05, 110, 234, 235, 238
Side repeater
..............................

..................237
Snow chains
..........................................1

90, 200
Socket, 12 V accessory

............................9
6, 97
Socket, auxiliary

...............................
...............98
Sockets, audio

................................................ 98
Spe

ed limiter
...............................
.. 170, 173, 175
Speed limit recognition
................................. 17

1
Stability control (ESC) ...................................123
Starting the engine

....................... 1
53, 156, 161
Starting using another battery

..............1
58, 249
Stay, bonnet
...............................

...................206
Steering wheel, adjustment

............................8

2
Stop
...............

.................................................. 20
Stopping the vehicle

..................... 1
53, 156, 161
Stop & Start
.......................... 1

8, 52, 84, 92, 167,
196, 206, 213, 251
Stop (warning lamp)

........................................ 20
St

orage
................
............................................ 97
Sun visor
...................................................9

6, 97
Switching off the engine

...............................15

3
Synchronising the remote control

...................67
R

emoving the mat
...............................
............ 99
Replacing bulbs ..............................
..... 234, 238
Replacing fuses
..............................

...... 241, 243
Replacing the air filter

................................... 2

13
Replacing the oil filter

................................... 2

13
Replacing the passenger
compartment filter

...................................... 2

13
Reservoir, screenwash
................................. 2

11
Resetting the service indicator

....................... 34
R

esetting the trip recorder

.............................. 39
R

eversing camera
...............................

.......... 189
Reversing lamp
............................................. 23

8
Roof bars
....................................................... 20

5
Running out of fuel (Diesel)

.......................... 2

20 To o l s ................
..................................... 226, 227
Total distance recorder ................................... 39
T
ouch screen.............................................44, 46
To w b a r
................

...................................152, 202
Towing another vehicle

.................................2

52
Towing eye

....................................................10

1
Traction control (ASR)
.................... 2

2, 123, 125
Tr a i l e r
...............

.....................................152, 202
Triangle, warning ................................... 101, 2 20
Trip computer

............................................5

0-52
Trip distance recorder
..................................... 39
T

y r e s
..........................................................9
, 258
Tyre under-inflation detection
...............

............... 30, 190, 192, 225
U
Under floor storage .......................................10 1
Under-inflation (detection) ............................ 19
0
Unlocking
..............................

.................... 57, 59
Unlocking from the inside

...............................70
U

pdating the date
............................................ 54
U

pdating the time
......................................5
4, 55
.
Alphabetical index

264
Alphabetical index
B618_en_Chap11_index-alpha_ed01-2016
Warning and indicator lamps ........ 15, 16, 19, 20
Warning lamp, braking system .......................2
2
Warning lamp, Diesel engine pre-heater

.......17
W

arning lamp, driver's seat belt not
fastened
...............

....................................... 127
Warning lamp, low fuel level

...........................28
W

arning lamps
................................................ 20
W

arning lamp, seat belts
..............................12

7
Warning lamp, Service.................................... 21
Warning lamp, Stop

........................................ 20
We

ights
...............
.................................. 254-256
Wheel, spare
.................................2

26, 227, 258
Window controls
............................................. 74
W

iper blades (changing)
....................... 11

6 , 2 0 4
Wiper, rear ..................................................... 114
Wipers
................................................... 11

3 , 115
Wipers, automatic rain sensitive

...........11

3 , 115W
V
Ventilation ...................................... 9, 83, 84, 86
