Page 18 of 308
16
Dynamic
stability control
(DSC/ASR)Flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss
of grip or trajectory.
Fixed. The DSC/ASR system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning/indicator lamp
StateCause Action/Observations
Airbags Temporarily on. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
Fixed.Either the airbag or seat belt
pyrotechnic pretensioner system has
a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Passenger's
airbag system Fixed.
The control switch, located at the
right side of the dashboard, is at the
"OFF " position.
The control switch, located in
the glove box, is set to the " OFF"
position.
The front passenger airbag is
deactivated.
You can install a "rearward facing"
child seat, unless there is a fault with
the airbags (airbag warning lamp on). Set the control to the "
ON" position to activate the
front passenger airbag.
In this case, do not install a "rear ward facing" child
seat on the front passenger seat.
Dashboard instruments

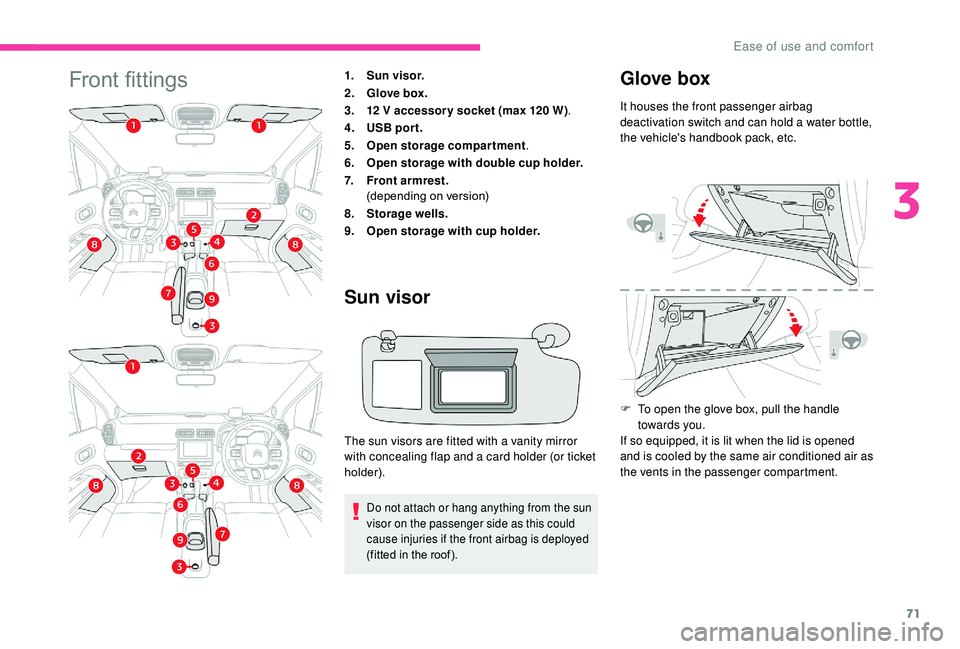

Page 73 of 308
71
Front fittings1.Sun visor.
2. Glove box.
3. 12
V accessor y socket (max 120 W).
4. USB por t.
5. Open storage compartment .
6. Open storage with double cup holder.
7. Front armrest.
(depending on version)
8. Storage wells.
9. Open storage with cup holder.
Sun visor
The sun visors are fitted with a vanity mirror
with concealing flap and a card holder (or ticket
holder).
Do not attach or hang anything from the sun
visor on the passenger side as this could
cause injuries if the front airbag is deployed
(fitted in the roof).
Glove box
It houses the front passenger airbag
deactivation switch and can hold a water bottle,
the vehicle's handbook pack, etc.
F
T
o open the glove box, pull the handle
towards you.
If so equipped, it is lit when the lid is opened
and is cooled by the same air conditioned air as
the vents in the passenger compartment.
3
Ease of use and comfort
Page 104 of 308
102
Airbags
General information
System designed to contribute towards
improving passenger safety (with the exception
of the rear centre passenger) in the event of
violent collisions. The airbags supplement the
action of the seat belts fitted with force limiters
(all except the centre rear passenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-
i
n the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the rear
centre passenger); immediately after the
impact, the airbags deflate rapidly so that
they do not hinder visibility or the exit of the
occupants,
-
i
n the case of a minor or rear impact or
in certain rollover conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations. The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
be deployed again.
Impact detection zones
A.
Front impact zone.
B. Side impact zone. The deployment of an airbag is
accompanied by a slight emission of
smoke and a noise, due to the detonation
of the pyrotechnic charge incorporated in
the system.
This smoke is not harmful, but sensitive
individuals may experience slight irritation.
The detonation noise associated with the
deployment of an airbag may result in a
slight loss of hearing for a short time.
Front airbags
This system protects the driver and front
passenger in the event of a severe frontal
impact in order to limit the risk of injury to the
head and chest.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger airbag is
fitted in the dashboard above the glove box.
Safety
Page 187 of 308
185
Repair procedure
F Park the vehicle without obstructing any traffic and apply the parking brake.
F
F
ollow the safety instructions (hazard warning
lamps, warning triangle, wearing high visibility
vest, etc.) according to the legislation in force
in the country where you are driving.
F
S
witch off the ignition.
F Uncoil the pipe stowed under the compressor.
Access to the kit
This kit is installed in the storage box, under
the boot floor.
List of tools
1. Temporary puncture repair kit.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2. Socket for the security bolts (located in the
glove box or in the tool box) (depending on
ve r s i o n).
For adapting the wheelbrace to the special
"security" bolts.
3. Removable towing eye.
4. Flat blade screwdriver.
Allows the cover plate on the front or
rear bumper to be opened to screw in the
removable towing eye 3.
For more information on Towing the vehicle
and using the removable towing eye, refer to
the corresponding section.
Composition of the kit
1. 12 V compressor, with built-in pressure
gauge.
2. Bottle of sealant, with built-in hose.
3. Speed limit sticker.
The speed limit sticker must be secured
to the interior of the vehicle in the driver's
field of vision, to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50
mph
(80
km/h) when driving with a tyre repaired
using this type of kit.
8
In the event of a breakdown
Page 191 of 308
189
List of tools
1.Wheelbrace.
For removing the wheel bolts.
2. Jack with integrated handle.
Used to raise the vehicle.
3. Wheel bolt cover removal tool.
Removes the central bolt covers on alloy
wheels.
4. Removable towing eye.
5. Socket for the security bolts (located in the
glove box or in the tool box) (depending on
country of sale).
For adapting the wheelbrace to the special
"security" bolts. 6.
Flat blade screwdriver.
Allows the cover plate on the front or
rear bumper to be opened to screw in the
removable towing eye 4 .
For more information on To w i n g , refer to the
corresponding section.
All of these tools are specific to your
vehicle and may vary according to the
level of equipment.
Do not use them for any other purposes.
The jack must only be used to change a
wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original jack,
contact a CITROËN dealer or a qualified
workshop to obtain the correct jack for it.
The jack meets European standards,
as defined in the Machinery
Directive
2006/42/EC.
The jack does not require any
maintenance.
Access to the tools
The tools are located in the boot. Depending on
version, they are either under the floor or behind
the removable grille of the right compartment.
To gain access to them:
F
o
pen the boot,
F
t
hen, depending on version, lift the floor using
the grip, remove it and remove the carpet.
F
o
r, open the removable grille to the right by
pulling from the top.
8
In the event of a breakdown
Page 200 of 308
198
Tw e e z e r s
The replacement of a fuse not shown in
the allocation tables below may cause
a serious malfunction of your vehicle.
Contact a CITROËN dealer or a qualified
workshop.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a CITROËN dealer or a qualified
workshop.
CITROËN will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10
milliamperes.
Fuses in the dashboard
Access to the fuses
The 2 fuseboxes are located in the lower part of
the dashboard, below the steering wheel.
F
U
nclip the cover by pulling at the top left,
then right.
The two fuseboxes are located in the lower part
of the dashboard, in the glove box. F
O
pen the glove box.
F
U
nclip the fusebox protection cover.
In the event of a breakdown
Page 294 of 308
214
Defrosting ........................................................ 70
Defrosting, front .............................................. 69
Demisting, front
............................................... 69
D
emisting, rear
................................................ 63
Demisting, rear screen
...................................63
Dimensions
..............................
.....................210
Dipstick
................
............................. 28, 176 -17 7
Direction indicators
..............22, 81- 82 , 193 -195
Display, head-up
...............................
............132
Display screen, instrument panel
.................128
Distance alert ~ Collision Risk Alert
.............143
Doors
............................................................... 48
Driver’s attention warning
......................14 6 -147
Driving time warning
..................................... 14 6
Dynamic stability control (DSC)
.....15 -16 , 93-96
EEarth point, remote ....................................... 17 5
Economy mode ............................................. 17
2
Electronic brake force distribution (EBFD)
.....93
Electronic stability control (ESC)
...................15
E
mergency braking assistance (EBA) ............93
Emergency call
......................................... 91-92
Emergency switching off
...............................123
Emissions control
...............................
.............14
Energy economy mode
................................. 17
2
Engine
............................................................. 14
Engine, Diesel
....................................... 165, 18 4
Engine, petrol
...............................
.........165, 175
Engine compartment
.................................... 17
5
Engine fault
..................................................... 14
Engines
.................................................. 207-209
Engine self-diagnosis
..................................... 14
E
nvironment
.................................................... 45
FFatigue detection ................................... 14 6 -147
Filling the fuel tank ................................. 165 -167
Filter, air
........................................................ 179
Filter, Diesel fuel
........................................... 176
Filter, oil
................
......................................... 179
Filter, particle
......................................... 178 -179
Filter, passenger compartment
.....................179
Fitting a wheel
....................................... 19 0 -192
Fitting roof bars
...................................... 173 -174
Fittings, boot
................................................... 76
Fittings, interior
......................................... 71,
75
Fittings, rear
.................................................... 75
Flap, fuel filler
......................................... 166 -167
Floor, boot, adjustable
....................................77
Foglamp, rear
............................................ 21, 81
Foglamps, front
.......23, 80 - 81 , 85-86 , 193, 195
Foglamps, rear
................................................ 80
F
olding the rear seats
...............................60-62
Frequency (radio)
....................................... 21-22
Fuel ................................................................ 165
Fuel tank ........................................................ 167
Fusebox, dashboard
..................................... 201
Fusebox, engine compartment
.....................201
Fuses
...................................................... 1
97-2 01
G
Gauge, fuel............................................. 166 -167
Gearbox, automatic .......................125 -131, 18 0
Gearbox, manual
......71, 124 -125 , 12 9 -131, 179
Gear lever, manual gearbox
..................124 -125
Gear shift indicator ~ Gear efficiency indicator
..................................... 128
Glove box
........................................................ 71
G . P. S .
.............................................................. 12
Grab handles
.................................................. 75
Grip control
............................................... 95-96
HHazard warning lamps ....................................91Hazard warning lamps, automatic operation .......91Headlamps, automatic dipping ...........23, 83-85
Headlamps, automatic illumination ..........82- 83
Headlamps, dipped beam
.........23, 80 , 193 -19 4
Headlamps, main beam
............23, 80 , 193 -19 4
Head restraints, front
...................................... 59
Head restraints, rear
.................................60-62
Head-up display
..................................... 13
2-13 3
Heating
...................................................... 6
6- 67
Hill Assist Descent Control
................22, 97- 9 8
Hill start assist
............................................... 12 9
Hooks
.............................................................. 77
Horn ................................................................. 91
IIgnition .......................................69, 121 , 123 , 28
Immobiliser, electronic ............................45, 11 9
Indicator, AdBlue
® range ........................... 28-29
Indicator, coolant temperature ........................ 25
Indicator, engine oil level
................................ 28
Indicator lamps, operation
.............................. 11
I
ndicators, direction
................................ 81, 19 4
Inflating tyres and accessories (using the kit)
.............................. 18 4 -185, 187
Instrument panel
.......................................... 8 -10
Instrument panel, matrix
................................... 9
Internet browser
.............................................. 16
I
SOFIX mountings ......................................... 112
JJack .............................................18 8 -19 0, 23, 9
Jump starting ................................................ 202
Alphabetical index
