Citroen C3 DAG 2008 1.G Owners Manual
Manufacturer: CITROEN, Model Year: 2008, Model line: C3 DAG, Model: Citroen C3 DAG 2008 1.GPages: 184, PDF Size: 6.11 MB
Page 91 of 184

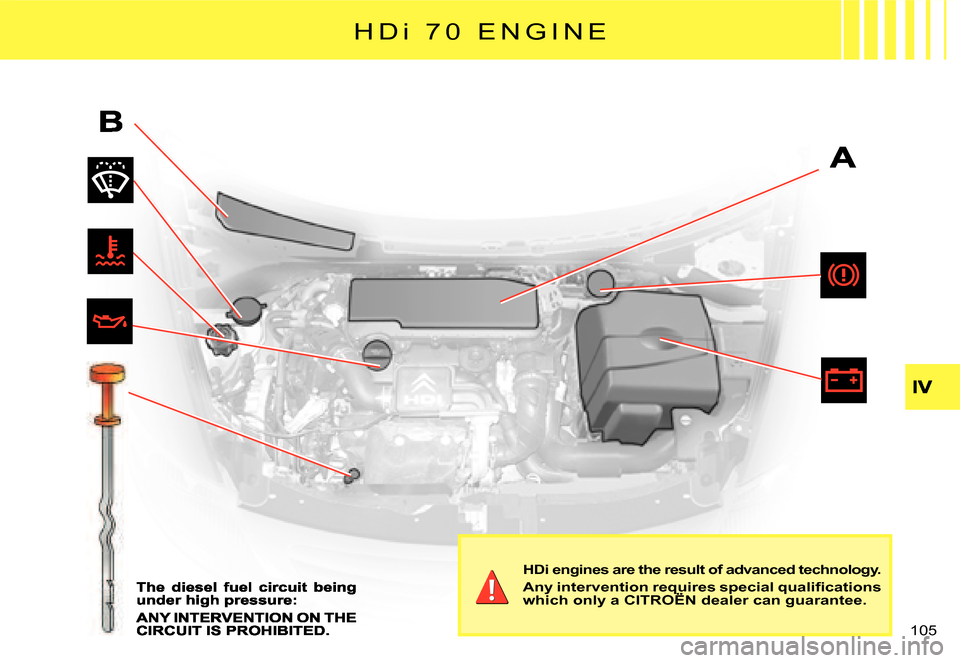

1 0 5
H Di 7 0 E N G I N E
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s which only a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s
Page 92 of 184
1 0 6
1 . 6 H Di E N G I N E
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s which only a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s
Page 93 of 184
IV
1 0 9
HDi 70 engine1.6 HDi engine
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
D I E S E L I N J E C T I O N E Q U I P M E N T
Draining water from the fuel fi l t e r
Purge regularly (at each oil change).
To drain the water, slacken the bleed screw or the water-in-diesel-fuel sensor located at the base of t h e fi l t e r .
Operate until the water has com-pletely drained away.
Then retighten the bleed screw or the water in diesel fuel sensor.
Page 94 of 184
IV
1 1 0
HDi 70 engine1.6 HDi engine
Detach the protection cover to access the priming pump.
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
D I E S E L I N J E C T I O N E Q U I P M E N T
Priming the fuel system
In the event of running out of fuel: A f t e r fi l l i n g ( 5 l i t r e s m i n i m u m ) , operate the manual priming pump until some resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.
I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t a t t e m p t , w a i t 1 5 s e c o n d s b e f o r e trying again.
If the engine fails to start after sev-eral attempts, repeat the procedure from the beginning.
When the engine is idling, acceler-ate slightly to complete the bleed-ing of the circuit.
Page 95 of 184
IV
111
C A P A C I T I E S
Engine typeEngine oil capacities (in litres)(1)
1.1i engine3.2
1.4i engine3.2
1.4 16V engine3.2
1.6i 16V engine3.2
HDi 70 engine3.8
1.6 HDi 92 engine3.85
1.6 HDi 110 engine3.75
(1) A f t e r d r a i n i n g w i t h c h a n g e o f o i l fi l t e r .
S c r e e n w a s h fl u i d ( i n l i t r e s )3.5
S c r e e n a n d h e a d l a m p w a s h fl u i d ( i n l i t r e s )6
Page 96 of 184
IV
1 1 2
Starting the engine after disconnecting and reconnecting the batteryTurn the ignition key.
Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise. It may be necessary to enter the radio code.
Page 97 of 184
A
B
IV
1 1 3
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact wit h each other.
Connect the cables according to the order indicated in the dia-ordergram. Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly .
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i c i n i t y of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face a nd especially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
Advice
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
1 2 V B A T T E R Y
Page 98 of 184
IV
1 1 4

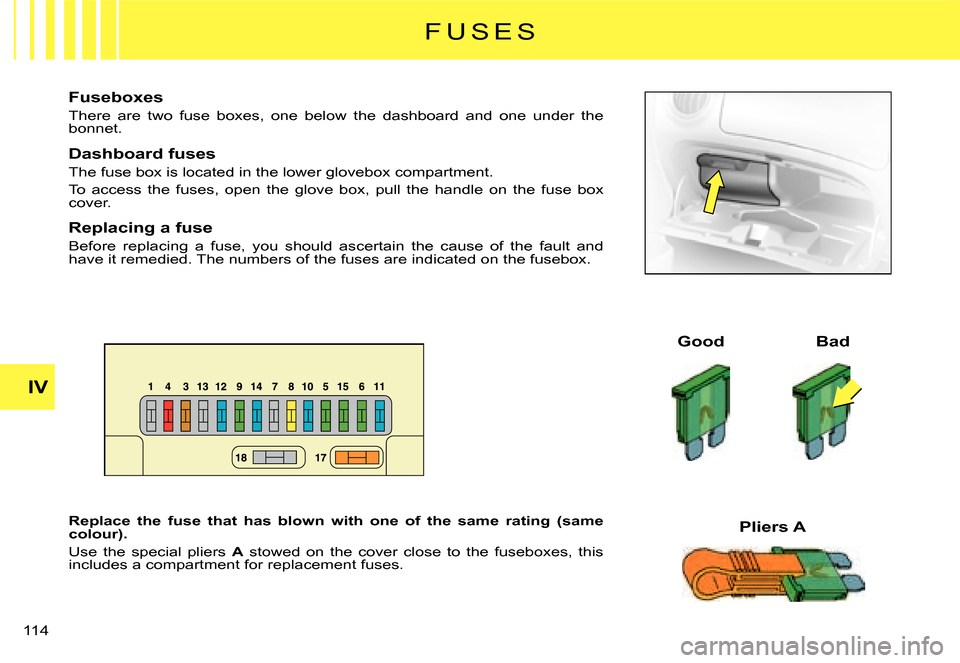

F U S E S
Fuseboxes
There are two fuse boxes, one below the dashboard and one under the bonnet.
Dashboard fuses
The fuse box is located in the lower glovebox compartment.
To access the fuses, open the glove box, pull the handle on the fuse box cover.
Replacing a fuse
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
GoodBad
Pliers AReplace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this includes a compartment for replacement fuses.
Page 99 of 184
IV
1 1 5
T A B L E O F F U S E SD A S H B O A R D F U S E S
Ref.RatingFunction
35 AAirbags
410 A D i a g n o s t i c s o c k e t – P a r t i c l e fi l t e r a d d i t i v e – C l u t c h s w i t c h – S t e e r i n g a n g l e s e n s o r
530 ARear window – Sun roof
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 A C i g a r - l i g h t e r – D i g i t a l c l o c k – I n t e r i o r l a m p s – V a n i t y m i r r o r
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Blueto oth® telephone®
1530 A Central locking – Deadlocking
1740 AHeated rear screen
18SHUNTCUSTOMER PARK SHUNT
Page 100 of 184
IV
1 1 6
F U S E S
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Any action on the MAXI fuses that give extra protection (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fuses under the bonnet
